Alarmes, Campainhas e Sirenes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Circuito do driver | Tipo de entrada | Voltagem - Nominal | Faixa de tensão | Frequência | Tecnologia | Modo operacional | Duração | Nível de pressão sonora (SPL) | Corrente - Alimentação | Localização da porta | Temperatura operacional | Agência de Aprovação | Classificações | Proteção de entrada | Tipo de montagem | Terminação | Tamanho/dimensão | Altura - Assentado (Máx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPI-3213-90PMBUZZER PIEZO 12V 32MM FLANGE |
283 |
|
Ficha técnica |
CPI | Tray | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 28V | 3.5kHz | Piezo | Single Tone | - | 90dB @ 12V, 30cm | 10mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.260" Dia (32.00mm) | 0.551" (14.00mm) |
|
CPI-2825-85PMBUZZER PIEZO 12V 28MM FLANGE |
201 |
|
Ficha técnica |
CPI | Box | Active | Indicator, Internally Driven | DC | 12 V | 4 ~ 28V | 3.5kHz | Piezo | Single Tone | - | 85dB @ 12V, 30cm | 10mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.102" Dia (28.00mm) | 1.004" (25.50mm) |
|
|
IE092505-1BUZZER ELECTRO 5V 9.6MM TH |
366 |
|
Ficha técnica |
- | Tray | Active | Indicator, Internally Driven | DC | 5 V | 3 ~ 7V | 2.5kHz | Electromechanical | Single Tone | - | - | 25mA | Top | -25°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.378" Dia (9.60mm) | 0.197" (5.00mm) |
|
|
AT-4228-TWT-F-RBUZZER PIEZO 12V 42MM TH |
1,121 |
|
Ficha técnica |
AT | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 3 ~ 28V | 2.8kHz | Piezo (with Feedback) | Single Tone | - | 92dB @ 12V, 10cm | 7mA | Top | -30°C ~ 85°C | - | Washable | - | Through Hole | PC Pins | 1.654" Dia (42.00mm) | 0.571" (14.50mm) |
|
TP224012-1BUZZER PIEZO 12V 22.1MM SMD |
898 |
|
Ficha técnica |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 1 ~ 30V | 4kHz | Piezo | - | - | 90dB @ 12V, 10cm | 7mA | Top | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.870" Dia (22.10mm) | 0.287" (7.30mm) |
|
CPT-3016C-120BUZZER PIEZO 12V 30.60MM TH |
530 |
|
Ficha técnica |
CPT | Box | Active | Transducer, Externally Driven | DC | 12 V | - | 3.4kHz | Piezo | Single Tone | - | 100dB @ 12V, 10cm | 20mA | Top | -30°C ~ 100°C | - | - | - | Through Hole | PC Pins | 1.205" Dia (30.60mm) | 0.630" (16.00mm) |
|
|
SMT-2225-T-RBUZZER PIEZO 10V 22MM SMD |
537 |
|
Ficha técnica |
SMT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 10 V | 1 ~ 30V | 2.5kHz | Piezo | Single Tone | - | 80dB @ 10V, 10cm | 8mA | Top | -30°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.866" Dia (22.00mm) | 0.240" (6.10mm) |
|
SMT-2240-TW-2-RBUZZER PIEZO 12V 22.5MM CUSTOM |
1,212 |
|
Ficha técnica |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 1 ~ 30V | 4kHz | Piezo | Single Tone | - | 90dB @ 12V, 10cm | - | Top | -30°C ~ 70°C | - | - | - | Custom | Solder Pads | 0.886" Dia (22.50mm) | 0.287" (7.30mm) |
|
|
PT-3529WQBUZZER PIEZO 5V 42MM FLANGE |
1,522 |
|
Ficha técnica |
PT | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 3 ~ 30V | 2.9kHz | Piezo | Single Tone | - | 95dB @ 5V, 10cm | 5mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.654" Dia (42.00mm) | 0.638" (16.20mm) |
|
|
CPT-4011C-600BUZZER PIEZO 40.00MM TH |
689 |
|
Ficha técnica |
CPT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | - | 60V (Max) | 3.25kHz | Piezo | Single Tone | - | 85dB @ 25V, 300cm | 40mA | Top | -30°C ~ 80°C | - | - | - | Through Hole | PC Pins | 1.575" Dia (40.00mm) | 0.453" (11.50mm) |
|
|
TP403212-1BUZZER PIEZO 12V 40.00MM TH |
300 |
|
Ficha técnica |
- | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 1 ~ 30V | 3.2kHz | Piezo | - | - | 105dB @ 12V, 10cm | 15mA | Top | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 1.575" Dia (40.00mm) | 0.787" (20.00mm) |
|
|
CMT-1261-SMTBUZZER PIEZO 10V16.9X16.9MM SMD |
2,549 |
|
Ficha técnica |
CMT | Tube | Active | Transducer, Externally Driven | Peak-Peak Signal | 10 V | 20V (Max) | 5kHz | Piezo | Single Tone | - | 90dB @ 10V, 10cm | 11mA | Top | -30°C ~ 70°C | - | Washable | - | Surface Mount | Solder Pads | 0.665" L x 0.665" W (16.90mm x 16.90mm) | 0.327" (8.30mm) |
|

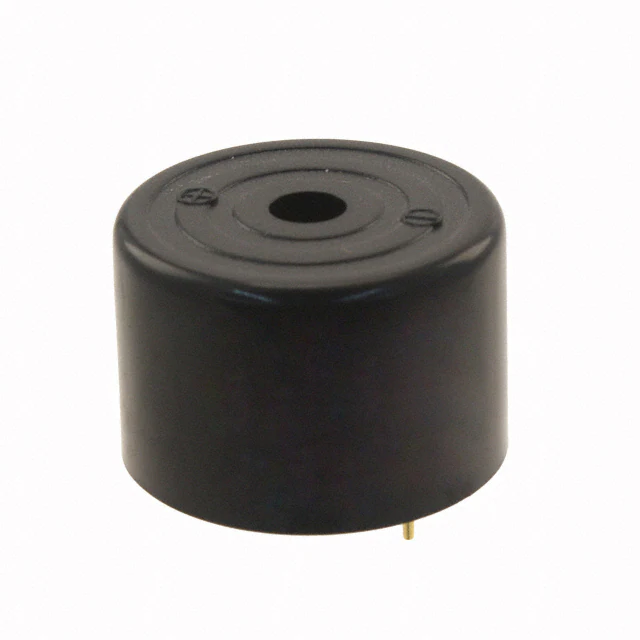

CPE-203BUZZER PIEZO 12V 24.50MM TH |
957 |
|
Ficha técnica |
CPE | Tray | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 20V | 3.4kHz | Piezo | Single Tone | - | 86dB @ 12V, 30cm | 9mA | Top | -30°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.965" Dia (24.50mm) | 0.650" (16.50mm) |
|
|
SMT-1324-TW-1V-R-T/RBUZZER MAGN 1.5V 12.5X12.5MM SMD |
8,075 |
|
Ficha técnica |
SMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 3V | 2.4kHz | Electromechanical/Magnetic | Single Tone | - | 80dB @ 1.5V, 10cm | 30mA | Top | -20°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.283" (7.20mm) |
|
|
SMT-0540-T-10-RBUZZER 3V 5MMX5MMSMD |
1,745 |
|
Ficha técnica |
SMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | DC | 3 V | 2 ~ 4V | 4kHz | - | - | - | 78dB @ 3V, 10cm | 45mA | Top | -30°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.126" (3.20mm) |
|
|
IP224512-1BUZZER PIEZO 12V 22MM FLANGE |
339 |
|
Ficha técnica |
- | Tray | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 30V | 4.5kHz | Piezo | Single Tone | - | 95dB @ 12V, 10cm | 3mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.866" Dia (22.00mm) | 0.425" (10.80mm) |
|
|
CPE-270HBUZZER PIEZO 12V 33.70MM FLANGE |
981 |
|
Ficha técnica |
CPE | Box | Active | Indicator, Internally Driven | DC | 12 V | 8 ~ 16V | 3.5kHz | Piezo | Single Tone | - | 96dB @ 12V, 30cm | 12mA | Top | -30°C ~ 85°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.327" Dia (33.70mm) | 0.591" (15.00mm) |
|
|
CPI-4116-90PMBUZZER PIEZO 12V 41.8MM FLANGE |
291 |
|
Ficha técnica |
CPI | Box | Active | Indicator, Internally Driven | DC | 12 V | - | 2.8kHz | Piezo | - | - | 92dB @ 12V, 10cm | 10mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.646" Dia (41.80mm) | 0.630" (16.00mm) |
|
|
CPI-4116-96PMBUZZER PIEZO 12V 41.8MM FLANGE |
268 |
|
Ficha técnica |
CPI | Box | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 20V | 2.8kHz | Piezo | Single Tone | - | 96dB @ 12V, 30cm | 10mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.646" Dia (41.80mm) | 0.650" (16.50mm) |
|
|
CPS-3016-105L085BUZZER PIEZO 12V 30.60MM CUSTOM |
181 |
|
Ficha técnica |
CPS | Tray | Active | Transducer, Externally Driven | DC | 12 V | 6 ~ 16V | 3.25kHz | Piezo | Single Tone | - | 105dB @ 12V, 10cm | 30mA | Top | -40°C ~ 85°C | - | - | - | Custom | Wire Leads | 1.205" Dia (30.60mm) | 0.650" (16.50mm) |
