Alarmes, Campainhas e Sirenes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Circuito do driver | Tipo de entrada | Voltagem - Nominal | Faixa de tensão | Frequência | Tecnologia | Modo operacional | Duração | Nível de pressão sonora (SPL) | Corrente - Alimentação | Localização da porta | Temperatura operacional | Agência de Aprovação | Classificações | Proteção de entrada | Tipo de montagem | Terminação | Tamanho/dimensão | Altura - Assentado (Máx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPI-4232-70STBUZZER PIEZO 12V 42.50MM PNL MNT |
300 |
|
Ficha técnica |
CPI | Box | Active | Indicator, Internally Driven | DC | 12 V | 6 ~ 16V | 2.9kHz | Piezo | Chime | Repeating every 2 Sec | 78dB @ 16V, 60cm | 4 ~ 12mA | Top | -30°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) | 1.280" (32.50mm) |
|
|
AI-3736-P-C28-RBUZZER PIEZO 12V 37.8MM PNL MNT |
173 |
|
Ficha técnica |
AI | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 4 ~ 28V | 3.6kHz | Piezo | Single Tone | - | 90dB @ 12V, 10cm | 8mA | Top | -30°C ~ 80°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.189" (4.80mm) | 1.488" Dia (37.80mm) | 0.945" (24.00mm) |
|
|
MSS5GHBUZZER MAGN 5V 23X23MM TH |
432 |
|
Ficha técnica |
MSS | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 4.5 ~ 5.5V | 150Hz ~ 4kHz | Magnetic | - | Repeating every 2.5 Sec | 85dB @ 5V, 10cm | 200mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) | 0.539" (13.70mm) |
|
|
MSS5MMVBUZZER MAGN 5V 23X23MM TH |
199 |
|
Ficha técnica |
MSS | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 4 ~ 6V | 2.075kHz | Magnetic | Pin Selectable | Variable | 85dB @ 5V, 10cm | 45 ~ 150mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) | - |
|
|
CPI-4232-76STBUZZER PIEZO 110V42.5MM PNL MNT |
222 |
|
Ficha técnica |
CPI | Box | Active | Indicator, Internally Driven | DC | 110 V | 30 ~ 120V | 2.8kHz | Piezo | Single Tone | - | 80dB @ 120V, 60cm | 5 ~ 25mA | Top | -30°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) | 1.280" (32.50mm) |
|

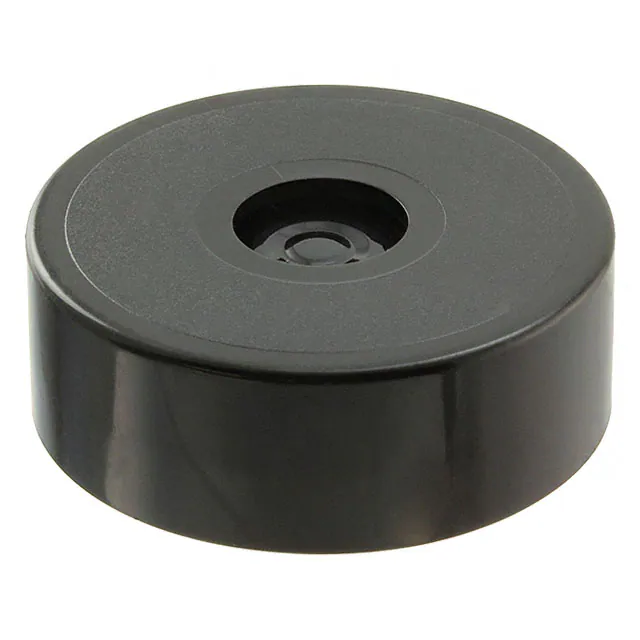

SBS300PCBUZZER MAGNETIC 2.8V 44.5MM TH |
203 |
|
Ficha técnica |
- | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 2.8 V | - | 325Hz | Magnetic | Single Tone | - | 95dB @ 9V, 10cm | - | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752" Dia (44.50mm) | 0.598" (15.20mm) |
|
|
MSE14LTT3BUZZER PIEZO 23X23MM TH |
150 |
|
Ficha técnica |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 3.35kHz | Piezo | Ringer, 3 Tone | - | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) | 0.535" (13.60mm) |
|
|
SC628N-BTRBUZZER PIEZO 42.98MM PNL MNT |
120 |
|
Ficha técnica |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 6V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.399" (35.54mm) |
|
|
SC110EJRBUZZER PIEZO 42.85MM PNL MNT |
110 |
|
Ficha técnica |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2kHz | Piezo | Pulse, Slow | 0.5 ~ 2.5 PPS | 55dB @ 30V, 61cm | 7 ~ 13mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
|
SC110HPRBUZZER PIEZO 42.85MM PNL MNT |
194 |
|
Ficha técnica |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 4.5kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 68dB @ 30V, 61cm | 6 ~ 20mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
|
SC110HJRBUZZER PIEZO 42.85MM PNL MNT |
147 |
|
Ficha técnica |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 4.5kHz | Piezo | Pulse, Slow | 0.5 ~ 2.5 PPS | 68dB @ 30V, 61cm | 6 ~ 40mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|

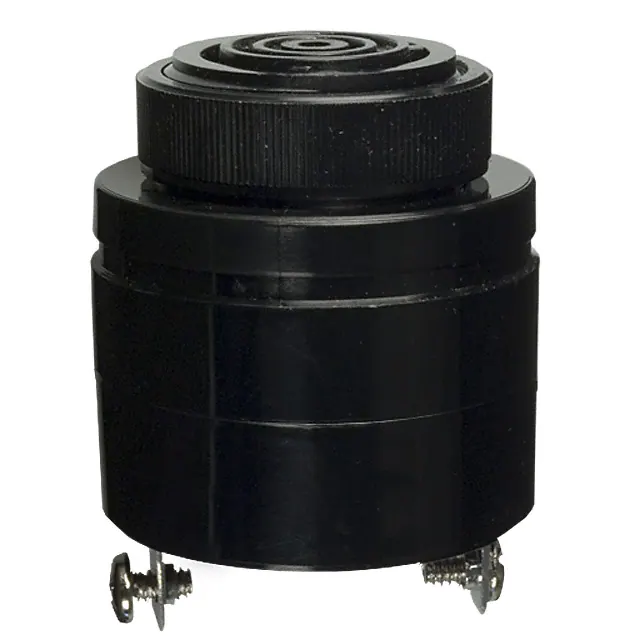

SC628ANBUZZER PIEZO 42.98MM PNL MNT |
209 |
|
Ficha técnica |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 7.5V, 61cm | 4 ~ 30mA | Top | -30°C ~ 65°C | cUL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.330" (33.77mm) |
|
|
SC648CPNRBUZZER PIEZO 42.98MM PNL MNT |
42 |
|
Ficha técnica |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 10 ~ 48V | 2.9kHz | Piezo | Chime | - | 84dB @ 10V, 61cm | 10 ~ 60mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.399" (35.54mm) |
|
|
SC110NPBUZZER PIEZO 42.85MM PNL MNT |
38 |
|
Ficha técnica |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 80dB @ 30V, 61cm | 6 ~ 24mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.809" (45.96mm) |
|
M2BJ-B24ABUZZER PIEZO 0.9X 0.7 PNL MNT |
158 |
|
Ficha técnica |
M2BJ | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 12 ~ 24V | 2kHz | Piezo | Pin Selectable | Variable | 80dB @ 12V, 100cm | 7 ~ 20mA | Top | -10°C ~ 55°C | - | - | IP40 | Panel Mount | Connector | 0.945" L x 0.709" W (24.00mm x 18.00mm) | 1.496" (38.00mm) |
|
|
M2BJ-BH24DBUZZER PIEZO 26X20MM PNL MNT |
72 |
|
Ficha técnica |
M2BJ | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 12 ~ 24V | 3kHz | Piezo | Pulse | 190 BPM | 70dB @ 12V, 100cm | 50 ~ 100mA | Top | -10°C ~ 55°C | - | - | - | Panel Mount | Connector | 1.024" L x 0.787" W (26.00mm x 20.00mm) | 1.752" (44.50mm) |
|
|
TE122701-2BUZZER ELECTRO 1.5V 12MM TH |
1,101 |
|
Ficha técnica |
- | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 3V | 2.731kHz | Electromechanical | - | - | 88dB @ 1.5V, 10cm | 70mA | Side | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.295" (7.50mm) |
|
WT-0905PBUZZER MAGNETIC 5V 9MM TH |
131 |
|
Ficha técnica |
WT | Tray | Active | Indicator, Internally Driven | Zero-Peak Signal | 5 V | 4 ~ 6V | 2.73kHz | Magnetic | Single Tone | - | 85dB @ 5V, 10cm | 80mA | Top | -30°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.354" Dia (9.00mm) | 0.236" (6.00mm) |
|
|
TE162006-4BUZZER ELECTRO 6V 16MM TH |
1,067 |
|
Ficha técnica |
- | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 6 V | 3 ~ 12V | 2.048kHz | Electromechanical | - | - | 85dB @ 6V, 10cm | 40mA | Top | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.630" Dia (16.00mm) | 0.571" (14.50mm) |
|
|
TE122405-2BUZZER ELECTRO 5V 12MM TH |
1,056 |
|
Ficha técnica |
- | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 5 V | 3 ~ 8V | 2.4kHz | Electromechanical | - | - | 85dB @ 5V, 10cm | 50mA | Top | -40°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.406" (10.30mm) |
