Capacitores Eletrolíticos de Alumínio
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Pacote/Caixa | Série | Embalagem | Status do produto | Capacitância | Tolerância | Voltagem - Nominal | ESR (Resistência equivalente em série) | Vida Útil @ Temp. | Temperatura operacional | Polarização | Classificações | Aplicações | Corrente de ondulação em baixa frequência | Corrente de ondulação em alta frequência | Impedância | Espaçamento de cabos | Tamanho/dimensão | Altura - Assentado (Máx.) | Tamanho da superfície de montagem | Tipo de montagem |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

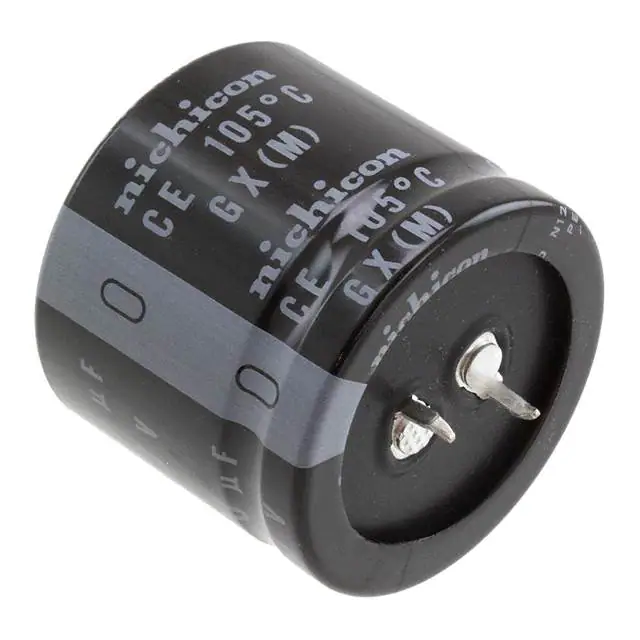

LGX2G391MELC30CAP ALUM 390UF 20% 400V SNAP TH |
236 |
|
Ficha técnica |
LGX | Bulk | Active | 390 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.52 A @ 120 Hz | 2.1736 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
B43624A5567M000CAP ALUM 570UF 20% 450V SNAP TH |
715 |
|
Ficha técnica |
B43624 | Bulk | Active | 570 µF | ±20% | 450 V | 200mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.15 A @ 100 Hz | - | 310 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
LGW2E821MELC30CAP ALUM 820UF 20% 250V SNAP TH |
200 |
|
Ficha técnica |
LGW | Bulk | Active | 820 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 120 Hz | 4.5 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LLS1E333MELCCAP ALUM 33000UF 20% 25V SNAP TH |
200 |
|
Ficha técnica |
LLS | Bulk | Active | 33000 µF | ±20% | 25 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.75 A @ 120 Hz | 7.7625 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
380LX333M016A022CAP ALUM 33000UF 20% 16V SNAP TH |
1,093 |
|
Ficha técnica |
380LX | Bulk | Active | 33000 µF | ±20% | 16 V | 25mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.8 A @ 120 Hz | 7.9 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
B43548B9397M060CAP ALUM 390UF 20% 400V SNAP TH |
1,500 |
|
Ficha técnica |
B43548 | Bulk | Active | 390 µF | ±20% | 400 V | 220mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.86 A @ 100 Hz | - | 330 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
380LQ331M400K022CAP ALUM 330UF 20% 400V SNAP TH |
2,080 |
|
Ficha técnica |
380LQ | Bulk | Active | 330 µF | ±20% | 400 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.66 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
381LX473M016A452CAP ALUM 47000UF 20% 16V SNAP TH |
2,423 |
|
Ficha técnica |
381LX | Bulk | Active | 47000 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.5 A @ 120 Hz | 6.3 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LGN2D122MELC30CAP ALUM 1200UF 20% 200V SNAP TH |
728 |
|
Ficha técnica |
LGN | Bulk | Active | 1200 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.65 A @ 120 Hz | 3.975 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGU2C182MELCCAP ALUM 1800UF 20% 160V SNAP TH |
193 |
|
Ficha técnica |
LGU | Bulk | Active | 1800 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 120 Hz | 4.5 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
ALC80A103CD040CAP ALUM 10000UF 20% 40V SNAP TH |
801 |
|
Ficha técnica |
ALC80 | Bulk | Active | 10000 µF | ±20% | 40 V | 51.26mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.51 A @ 100 Hz | 9.23 A @ 10 kHz | 41 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
SLP271M450H5P3CAP ALUM 270UF 20% 450V SNAP TH |
326 |
|
Ficha técnica |
SLP0712TE (750W) | Bulk | Active | 270 µF | ±20% | 450 V | 1.229Ohm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
LGG2D122MELA45CAP ALUM 1200UF 20% 200V SNAP TH |
116 |
|
Ficha técnica |
LGG | Bulk | Active | 1200 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

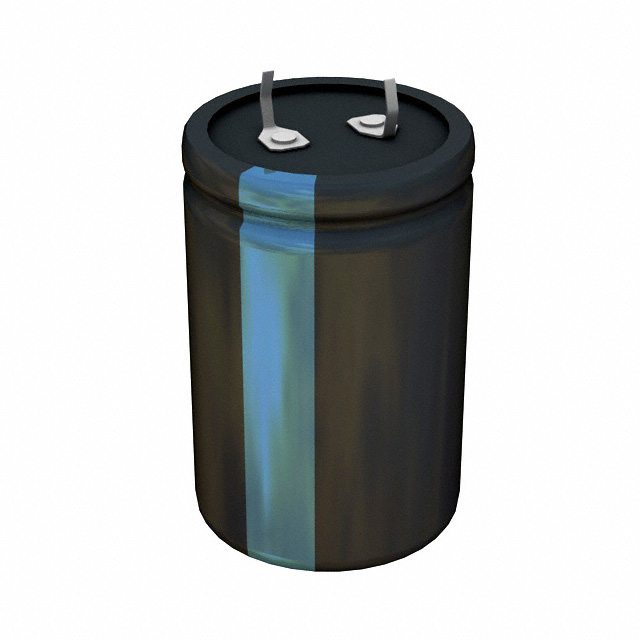

381LX153M035K452CAP ALUM 15000UF 20% 35V SNAP TH |
1,200 |
|
Ficha técnica |
381LX | Bulk | Active | 15000 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.9 A @ 120 Hz | 4.5 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
420LXW220MEFR18X45CAP ALUM 220UF 20% 420V RADIAL |
200 |
|
Ficha técnica |
LXW | Bulk | Active | 220 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 2.4 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
672D226H060CG5CCAP ALUM 22UF 60V RADIAL TH |
337 |
|
Ficha técnica |
672D | Bulk | Active | 22 µF | - | 60 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.906" (23.00mm) | - | Through Hole | |
|
ESMM451VSN561MA50SCAP ALUM 560UF 20% 450V SNAP TH |
267 |
|
Ficha técnica |
SMM | Bulk | Active | 560 µF | ±20% | 450 V | 592mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.88 A @ 120 Hz | 4.1184 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
420LXW180MEFR18X40CAP ALUM 180UF 20% 420V RADIAL |
200 |
|
Ficha técnica |
LXW | Bulk | Active | 180 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.06 A @ 120 Hz | 2.12 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B41231B8109M000CAP ALUM 10000UF 20% 63V SNAP TH |
167 |
|
Ficha técnica |
B41231 | Bulk | Active | 10000 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.25 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

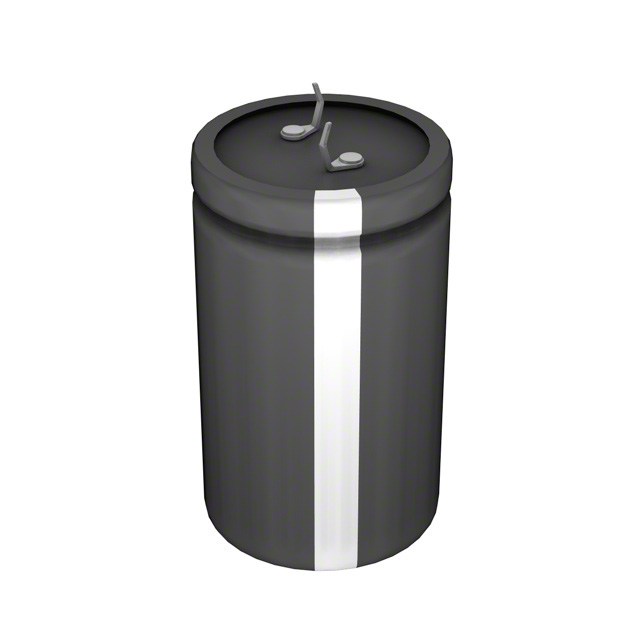

LP472M063E9P3CAP ALUM 4700UF 20% 63V SNAP TH |
663 |
|
Ficha técnica |
LP | Bulk | Active | 4700 µF | ±20% | 63 V | 53mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.84 A @ 120 Hz | 3.408 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole |
