Núcleos de ferrite
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de núcleo | Pacote do dispositivo do fornecedor | Material | Diâmetro | Fator de Indutância (Al) | Tolerância | Lacuna | Permeabilidade Efetiva (µe) | Permeabilidade Inicial (µi) | Fator do Núcleo (ΣI/A) mm⁻¹ | Comprimento Efetivo (le) mm | Área Efetiva (Ae) mm² | Seção Transversal Mínima do Núcleo (Amin) mm² | Volume Magnético Efetivo (Ve) mm³ | Acabamento | Altura | Comprimento | Largura |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TX16/9.6/6.3-3E6FERRITE CORE TOROID |
1,558 |
|
Ficha técnica |
- | Bulk | Active | Toroid | TX 16 x 9.6 x 6.3 | - | 0.640" (16.25mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.258" (6.55mm) | - | - |
|
|
TX16/9.6/6.3-3E65FERRITE CORE TOROID |
231 |
|
Ficha técnica |
- | Bulk | Active | Toroid | TX 16 x 9.6 x 6.3 | - | 0.659" (16.75mm) | - | ±30% | Ungapped | - | 10000 | 1.95 | 38.5 | 19.7 | - | 760.0 | Epoxy | 0.274" (6.95mm) | - | - |
|
TX20/10/7-3C94FERRITE CORE TOROID 3C94 |
1,054 |
|
Ficha técnica |
- | Bulk | Active | Toroid | TX 20 x 10 x 7 | 3C94 | 0.797" (20.25mm) | - | ±30% | Ungapped | - | - | 1.3 | 43.6 | 33.6 | - | 1465.0 | Epoxy | 0.291" (7.40mm) | - | - |
|
B66233Q0150K187FERRITE CORE E 150NH N87 |
259 |
|
Ficha técnica |
E32/16/11 | Tray | Active | E | E 32 x 16 x 11 | N87 | - | 150 nH | ±10% | Distributed Gapped | - | - | 0.76 | 74.0 | 97.0 | 95.0 | 7187.0 | Uncoated | 0.433" (11.00mm) | 1.260" (32.00mm) | 0.630" (16.00mm) |
|
TX22/14/6.4-3E12FERRITE CORE TOROID |
157 |
|
Ficha técnica |
- | Bulk | Active | Toroid | TX 22 x 14 x 6.4 | - | 0.880" (22.35mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.265" (6.75mm) | - | - |
|
|
B66413G0000X608FERRITE CORE EFD 370NH PCS200 |
1,272 |
|
Ficha técnica |
B66413 | Box | Active | EFD | EFD 15 x 8 x 5 | PC200 | - | 370 nH | -20%, +30% | Ungapped | 670.0 | 800 | 2.27 | 34.0 | 15.0 | 12.2 | 510.0 | Uncoated | 0.295" (7.50mm) | 0.591" (15.00mm) | 0.183" (4.65mm) |
|
5975000621FERRITE CORE TOROID 2.95UH 75 |
513 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | 75 | 0.860" (21.84mm) | 2.95 µH | -25%, +20% | Ungapped | - | 5000 | 2.13 | 52.0 | 24.3 | - | 126.0 | Plastic | 0.280" (7.11mm) | - | - |
|
|
5995001801FERRITE CORE TOROID 1824NH 95 |
1,281 |
|
Ficha técnica |
HF | Tray | Active | Toroid | - | 95 | 0.870" (22.10mm) | 1824 nH | ±25% | Ungapped | - | 3000 | 0.02067 | 54.1 | 26.2 | - | 1417.0 | Uncoated | 0.250" (6.35mm) | - | - |
|
EP10-3C96FERRITE CORE EP 3C96 2PC SET |
940 |
|
Ficha técnica |
- | Bulk | Active | EP | EP 10 | 3C96 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.402" (10.20mm) | 0.453" (11.50mm) | 0.300" (7.60mm) |
|
|
B66423U0250K187FERRITE CORE EFD N87 1PC |
899 |
|
Ficha técnica |
EFD30/15/9 | Box | Active | EFD | EFD 30 x 15 x 9 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.591" (15.00mm) | 1.181" (30.00mm) | 0.358" (9.10mm) |
|
B65513J0000R087FERRITE CORE ER 1.5UH N87 2PCS |
3,435 |
|
Ficha técnica |
ER14.5 | Box | Active | ER | ER 14.5 x 6 | N87 | - | 1.5 µH | -20%, +30% | Ungapped | 1250.0 | 2200 | 1.1 | 19.0 | 17.6 | - | 333.0 | Uncoated | 0.116" (2.95mm) | 0.571" (14.50mm) | 0.264" (6.70mm) |
|
B64290L0615X830FERRITE CORE TOROID 6.93UH N30 |
1,041 |
|
Ficha técnica |
TX25.3/14.8/15 | Box | Active | Toroid | - | N30 | 1.047" (26.60mm) | 6.93 µH | ±25% | Ungapped | - | 4300 | 0.78 | 60.07 | 76.89 | - | 4619.0 | Epoxy | 0.638" (16.20mm) | - | - |
|

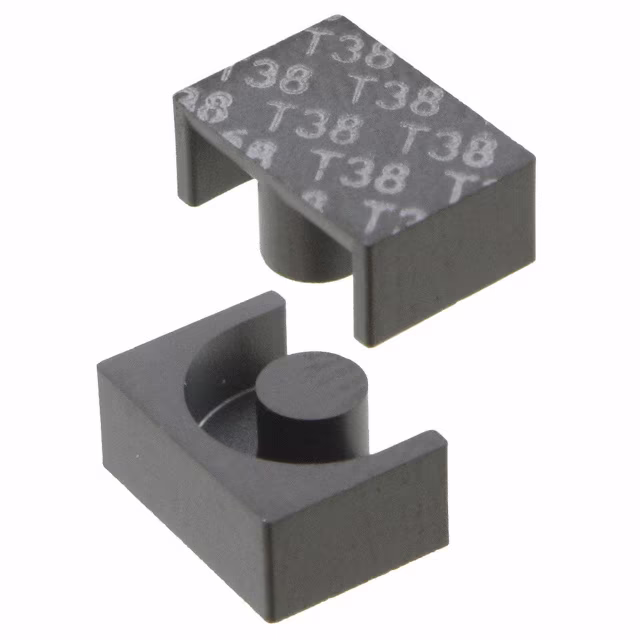

B65839A0000Y038FERRITE CORE EP 5.2UH T38 2PCS |
3,800 |
|
Ficha técnica |
EP7 | Box | Active | EP | EP 7 | T38 | - | 5.2 µH | -30%, +40% | Ungapped | 6310.0 | 10000 | 1.52 | 15.7 | 10.3 | 8.5 | 162.0 | Uncoated | 0.148" (3.75mm) | 0.370" (9.40mm) | 0.256" (6.50mm) |
|
B66423U0315K187FERRITE CORE EFD N87 1PC |
638 |
|
Ficha técnica |
EFD30/15/9 | Box | Active | EFD | EFD 30 x 15 x 9 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.591" (15.00mm) | 1.181" (30.00mm) | 0.358" (9.10mm) |
|
|
TX20/10/7-3E12FERRITE CORE TOROID |
467 |
|
Ficha técnica |
- | Bulk | Active | Toroid | TX 20 x 10 x 7 | - | 0.797" (20.25mm) | - | ±30% | Ungapped | - | - | 1.3 | 43.6 | 33.6 | - | 1465.0 | Epoxy | 0.291" (7.40mm) | - | - |
|
5977001601FERRITE CORE TOROID 77 |
330 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | 77 | - | - | ±25% | Ungapped | - | 2000 | - | 76.0 | 47.0 | - | 3530.0 | Uncoated | - | - | - |
|
PC95EI14/5/5-ZFERRITE COR HE 1.55UH PCS95 1SET |
847 |
|
Ficha técnica |
Planar | Tray | Active | HE, PLT | EI 14 x 5 x 5 | PC95 | - | 1.55 µH | ±25% | Ungapped | - | - | 1.11 | 15.0 | 16.7 | 15.0 | 251.0 | Uncoated | 0.197" (5.00mm) | 0.551" (14.00mm) | 0.197" (5.00mm) |
|
HF60T18X10X10FERRITE CORE TOROID |
430 |
|
Ficha técnica |
T | Tray | Active | Toroid | - | - | 0.709" (18.00mm) | - | - | Ungapped | - | 1600 | - | - | - | - | - | Epoxy | 0.394" (10.00mm) | - | - |
|
E42/21/15-3C92FERRITE CORE E 3C92 |
1,894 |
|
Ficha técnica |
- | Bulk | Active | E | E 42 x 21 x 15 | 3C92 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.827" (21.00mm) | 1.693" (43.00mm) | 0.598" (15.20mm) |
|
4077374711FERRITE CORE ROD 77 |
746 |
|
Ficha técnica |
- | Bulk | Active | ROD | - | 77 | 0.372" (9.45mm) | - | - | Ungapped | - | 2000 | - | - | - | - | - | Uncoated | - | 1.250" (31.75mm) | - |
