Núcleos de ferrite
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de núcleo | Pacote do dispositivo do fornecedor | Material | Diâmetro | Fator de Indutância (Al) | Tolerância | Lacuna | Permeabilidade Efetiva (µe) | Permeabilidade Inicial (µi) | Fator do Núcleo (ΣI/A) mm⁻¹ | Comprimento Efetivo (le) mm | Área Efetiva (Ae) mm² | Seção Transversal Mínima do Núcleo (Amin) mm² | Volume Magnético Efetivo (Ve) mm³ | Acabamento | Altura | Comprimento | Largura |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B65879A0000R087FERRITE CORE PQ 6.3UH N87 2PCS |
240 |
|
Ficha técnica |
PQ32/20 | Box | Active | PQ | PQ 32 x 20 | N87 | - | 6.3 µH | -20%, +30% | Ungapped | 1580.0 | 2200 | 0.314 | 48.4 | 154.2 | 127.5 | 7460.0 | Uncoated | 0.404" (10.25mm) | 1.260" (32.00mm) | 0.866" (22.00mm) |
|
B66289K0000X149FERRITE CORE I N49 |
870 |
|
Ficha técnica |
I38/4/25 | Tray | Active | I | I 38 x 4 x 25 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.150" (3.81mm) | 1.500" (38.10mm) | 1.000" (25.40mm) |
|
B66501G0000X197FERRITE CORE ER N97 1PC |
1,429 |
|
Ficha técnica |
ER32/5/21 | Box | Active | ER | ER 32 x 5 x 21 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.201" (5.10mm) | 1.260" (32.00mm) | 0.827" (21.00mm) |
|
B65813P0000R087FERRITE CORE RM 5.2UH N87 2PCS |
1,401 |
|
Ficha técnica |
RM10/LP | Cut Tape (CT) | Active | RM | RM 10 LP | N87 | - | 5.2 µH | -20%, +30% | Ungapped | 1410.0 | 2200 | 0.34 | 33.9 | 99.1 | 90.0 | 3360.0 | Uncoated | 0.207" (5.25mm) | 1.122" (28.50mm) | 0.531" (13.50mm) |
|

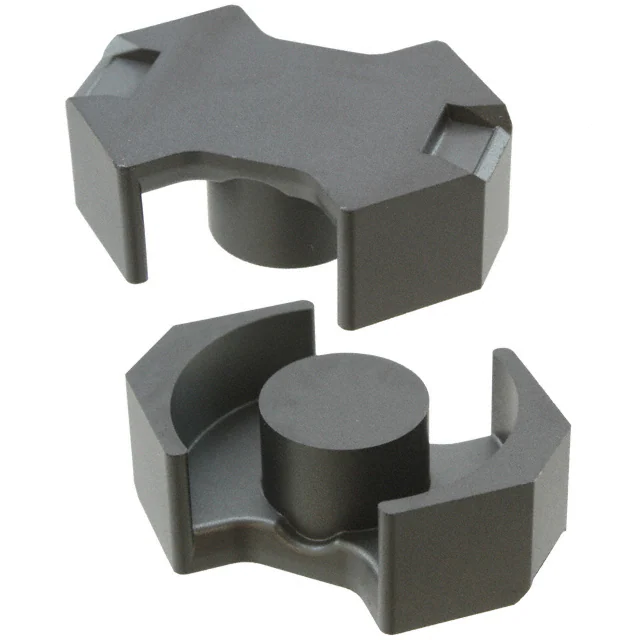

B65813J0000Y038FERRITE CORE RM 16UH T38 2PCS |
995 |
|
Ficha técnica |
RM10 | Box | Active | RM | RM 10 | T38 | - | 16 µH | -30%, +40% | Ungapped | 5720.0 | 2300 | 0.45 | 44.0 | 98.0 | 90.0 | 4310.0 | Uncoated | 0.368" (9.35mm) | 1.122" (28.50mm) | 0.531" (13.50mm) |
|
PQ32/25-3F36FERRITE CORE PQ 3F36 2PC SET |
671 |
|
Ficha técnica |
- | Bulk | Active | PQ | PQ 32 x 25 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.984" (25.00mm) | 1.299" (33.00mm) | 0.866" (22.00mm) |
|
B66335G0000X127FERRITE CORE E N27 1PC |
381 |
|
Ficha técnica |
E55/28/21 | Box | Active | E | E 55 x 28 x 21 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.094" (27.80mm) | 2.165" (55.00mm) | 0.827" (21.00mm) |
|
P26/16/I-3F46FERRITE CORE P 3F46 2PC SET |
434 |
|
Ficha técnica |
- | Bulk | Active | P (Pot Core) | P 26 x 16 | 3F46 | 1.004" (25.50mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.638" (16.20mm) | - | - |
|
B66367Q0100K187FERRITE CORE ETD 100NH N87 |
1,382 |
|
Ficha técnica |
ETD49/25/16 | Bulk | Active | ETD | ETD 49 x 25 x 16 | N87 | - | 100 nH | ±10% | Distributed Gapped | - | - | 0.54 | 114.0 | 211.0 | 209.0 | 24100.0 | Uncoated | 0.657" (16.70mm) | 1.909" (48.50mm) | 0.980" (24.90mm) |
|
TX39/20/13-3C94FERRITE CORE TOROID 3C94 |
246 |
|
Ficha técnica |
- | Bulk | Active | Toroid | TX 39 x 20 x 13 | 3C94 | 1.567" (39.80mm) | - | ±25% | Ungapped | 2300.0 | - | 0.76 | 84.9 | 112.0 | - | 9513.0 | Epoxy | 0.535" (13.60mm) | - | - |
|
B65877B0000R097FERRITE CORE PQ 5.15UH N97 2PCS |
215 |
|
Ficha técnica |
PQ26/20 | Box | Active | PQ | PQ 26 x 20 | N97 | - | 5.15 µH | -20%, +30% | Ungapped | 1480.0 | 2300 | 0.363 | 44.4 | 122.3 | 108.8 | 5435.0 | Uncoated | 0.397" (10.08mm) | 1.043" (26.50mm) | 0.748" (19.00mm) |
|
B64290L0022X065FERRITE CORE TOROID 5.8UH T65 |
252 |
|
Ficha técnica |
TX42/26/13 | Box | Active | Toroid | - | T65 | 1.717" (43.60mm) | 5.8 µH | ±30% | Ungapped | - | 5000 | 1.08 | 103.0 | 95.75 | - | 9862.0 | Epoxy | 0.535" (13.60mm) | - | - |
|
|
TX39/20/13-3C90FERRITE CORE TOROID 3C90 |
212 |
|
Ficha técnica |
- | Bulk | Active | Toroid | TX 39 x 20 x 13 | 3C90 | 1.567" (39.80mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.535" (13.60mm) | - | - |
|
|
TX39/20/13-3E27FERRITE CORE TOROID 3E+27 |
144 |
|
Ficha técnica |
- | Bulk | Active | Toroid | TX 39 x 20 x 13 | 3E27 | 1.567" (39.80mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.535" (13.60mm) | - | - |
|
B66461G0000X197FERRITE CORE ELP N97 1PC |
2,149 |
|
Ficha técnica |
ELP43/10/28 | Box | Active | ELP | ELP 43 x 10 x 28 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.374" (9.50mm) | 1.700" (43.20mm) | 1.098" (27.90mm) |
|
HF90T44.5X13X30FERRITE CORE TOROID |
1,682 |
|
Ficha técnica |
T | Tray | Active | Toroid | - | - | 1.752" (44.50mm) | - | - | Ungapped | - | 5000 | - | - | - | - | - | Epoxy | 0.512" (13.00mm) | - | - |
|
|
B65877B0000R087FERRITE CORE PQ 5UH N87 2PCS |
459 |
|
Ficha técnica |
PQ26/20 | Box | Active | PQ | PQ 26 x 20 | N87 | - | 5 µH | -20%, +30% | Ungapped | 1440.0 | 2200 | 0.363 | 44.4 | 122.3 | 108.8 | 5435.0 | Uncoated | 0.397" (10.08mm) | 1.043" (26.50mm) | 0.748" (19.00mm) |
|
0059059A2FERRITE CORE TOROID 43NH |
473 |
|
Ficha técnica |
- | Bulk | Active | Toroid | - | - | 0.930" (23.62mm) | 43 nH | ±8% | Ungapped | - | 60 | - | 56.7 | 31.7 | - | 1800.0 | Coated | 0.330" (8.38mm) | - | - |
|
B65811D0630J048FERRITE CORE RM 630NH N48 2PCS |
128 |
|
Ficha técnica |
RM8 | Cut Tape (CT) | Active | RM | RM 8 | N48 | - | 630 nH | ±5% | Gapped | 338.0 | - | 0.68 | 35.1 | 52.0 | - | 1825.0 | Uncoated | 0.324" (8.25mm) | 0.913" (23.20mm) | 0.433" (11.00mm) |
|
B66291G0000X197FERRITE CORE ELP N97 |
1,055 |
|
Ficha técnica |
ELP43/10/28 | Bag | Active | ELP | ELP 43 x 10 x 28 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.374" (9.50mm) | 1.700" (43.20mm) | 1.098" (27.90mm) |
