Núcleos de ferrite
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de núcleo | Pacote do dispositivo do fornecedor | Material | Diâmetro | Fator de Indutância (Al) | Tolerância | Lacuna | Permeabilidade Efetiva (µe) | Permeabilidade Inicial (µi) | Fator do Núcleo (ΣI/A) mm⁻¹ | Comprimento Efetivo (le) mm | Área Efetiva (Ae) mm² | Seção Transversal Mínima do Núcleo (Amin) mm² | Volume Magnético Efetivo (Ve) mm³ | Acabamento | Altura | Comprimento | Largura |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B64290L0659X065FERRITE CORE TOROID 8.2UH T65 |
148 |
|
Ficha técnica |
TX40/24/16 | Box | Active | Toroid | - | T65 | 1.646" (41.80mm) | 8.2 µH | ±30% | Ungapped | - | 5000 | 0.77 | 96.29 | 125.3 | 125.3 | 12070.0 | Epoxy | 0.677" (17.20mm) | - | - |
|
PC95PQ20/16Z-12FERRITE CORE PQ 4.48UH PCS95 2PC |
287 |
|
Ficha técnica |
PQ | Tray | Active | PQ | PQ 20 x 16 | PC95 | - | 4.48 µH | ±25% | Ungapped | - | - | 0.61 | 37.4 | 62.0 | - | 2310.0 | Uncoated | 0.638" (16.20mm) | 0.807" (20.50mm) | 0.551" (14.00mm) |
|
PLT64/50/5-3C90FERRITE CORE PLT 3C90 |
468 |
|
Ficha técnica |
- | Bulk | Active | PLT | PLT 64 x 50 x 5 | 3C90 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.200" (5.08mm) | 2.520" (64.00mm) | 0.228" (5.80mm) |
|
TX42/26/18-3E27FERRITE CORE TOROID 3E+27 |
190 |
|
Ficha técnica |
- | Bulk | Active | Toroid | TX 42 x 26 x 18 | 3E27 | 1.697" (43.15mm) | - | ±25% | Ungapped | 5500.0 | - | 0.769 | 103.0 | 134.0 | - | 13810.0 | Epoxy | 0.736" (18.70mm) | - | - |
|
B65879A0000R095FERRITE CORE PQ 7.6UH N95 2PCS |
220 |
|
Ficha técnica |
PQ32/20 | Box | Active | PQ | PQ 32 x 20 | N95 | - | 7.6 µH | -20%, +30% | Ungapped | 1895.0 | 2000 | 0.314 | 48.4 | 154.2 | 127.5 | 7460.0 | Uncoated | 0.404" (10.25mm) | 1.260" (32.00mm) | 0.866" (22.00mm) |
|
|
00K8020E026FERRITE CORE E 103NH |
445 |
|
Ficha técnica |
- | Bulk | Active | E | - | - | - | 103 nH | ±8% | Gapped | - | 26 | - | 185.0 | 389.0 | - | 72000.0 | Uncoated | 1.500" (38.10mm) | 3.150" (80.00mm) | 3.150" (80.00mm) |
|
PLT64/50/5-3F36FERRITE CORE PLT 3F36 |
412 |
|
Ficha técnica |
- | Bulk | Active | PLT | PLT 64 x 50 x 5 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.200" (5.08mm) | 2.520" (64.00mm) | 2.000" (50.80mm) |
|
B66397G1500X187FERRITE CORE ETD N87 1PC |
260 |
|
Ficha técnica |
ETD59/31/22 | Box | Active | ETD | ETD 59 x 31 x 22 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 1.228" (31.20mm) | 2.354" (59.80mm) | 0.870" (22.10mm) |
|
|
TX42/26/18-3E12FERRITE CORE TOROID |
615 |
|
Ficha técnica |
- | Bulk | Active | Toroid | TX 42 x 26 x 18 | - | 1.697" (43.15mm) | - | ±30% | Ungapped | 12000.0 | - | 0.769 | 103.0 | 134.0 | - | 13810.0 | Epoxy | 0.736" (18.70mm) | - | - |
|

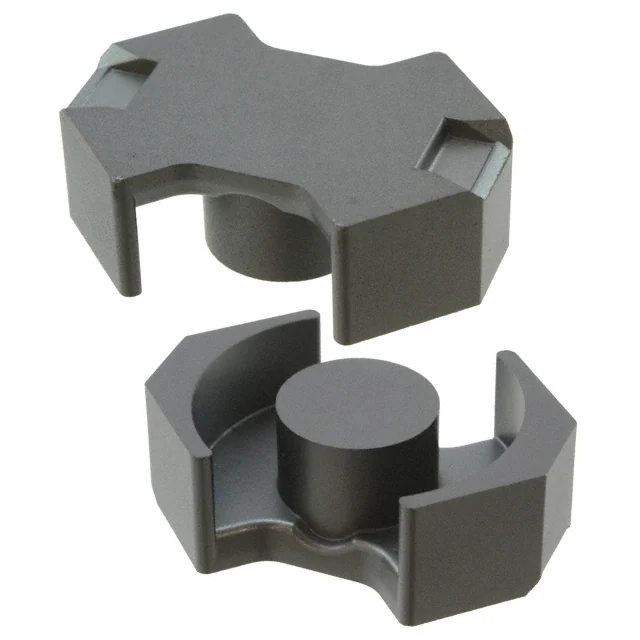

B65887E0250A087FERRITE CORE RM N87 |
310 |
|
Ficha técnica |
RM14 | Tray | Active | RM | RM 14 | N87 | - | - | - | Gapped | - | 2200 | 0.35 | 70.0 | 200.0 | 170.0 | 14000.0 | Uncoated | 0.594" (15.10mm) | 1.661" (42.20mm) | 0.748" (19.00mm) |
|
|
B65887E0160A087FERRITE CORE RM N87 |
239 |
|
Ficha técnica |
RM14 | Box | Active | RM | RM 14 | N87 | - | - | - | Gapped | - | 2200 | 0.35 | 70.0 | 200.0 | 170.0 | 14000.0 | Uncoated | 0.594" (15.10mm) | 1.661" (42.20mm) | 0.748" (19.00mm) |
|
RM14/I-3C95FERRITE CORE RM 3C95 2PC SET |
101 |
|
Ficha técnica |
- | Bulk | Active | RM | RM 14 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.185" (30.10mm) | 1.661" (42.20mm) | 0.748" (19.00mm) |
|
B66397Q0100K187FERRITE CORE ETD 100NH N87 |
103 |
|
Ficha técnica |
ETD59/31/22 | Bulk | Active | ETD | ETD 59 x 31 x 22 | N87 | - | 100 nH | ±10% | Distributed Gapped | - | - | 0.38 | 139.0 | 368.0 | 368.0 | 51200.0 | Uncoated | 0.870" (22.10mm) | 2.354" (59.80mm) | 0.870" (22.10mm) |
|
|
PC95PQ32/20Z-12FERRITE CORE PQ 9.12UH PCS95 2PC |
113 |
|
Ficha técnica |
PQ | Tray | Active | PQ | PQ 32 x 20 | PC95 | - | 9.12 µH | ±25% | Ungapped | - | - | 0.33 | 55.5 | 170.0 | - | 9420.0 | Uncoated | 0.809" (20.55mm) | 1.260" (32.00mm) | 0.866" (22.00mm) |
|

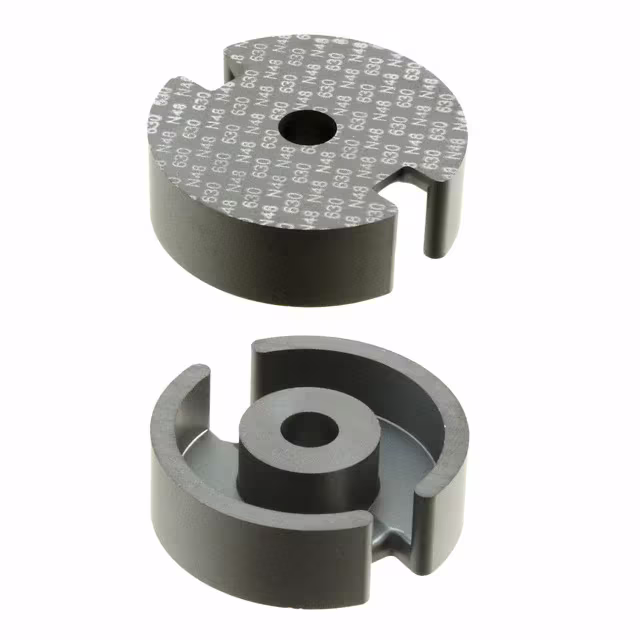

B65701T0630A048FERRITE CORE P 630NH N48 2PCS |
227 |
|
Ficha técnica |
P30/19 | Tray | Active | P (Pot Core) | P 30 x 19 | N48 | 1.200" (30.50mm) | 630 nH | ±3% | Gapped | 166.0 | - | 0.33 | 45.0 | 136.0 | - | 6120.0 | Uncoated | 0.374" (9.50mm) | - | - |
|
|
E64/10/50-3C92FERRITE CORE E 3C92 |
250 |
|
Ficha técnica |
- | Bulk | Active | E | E 64 x 10 x 50 | 3C92 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.402" (10.20mm) | 2.520" (64.00mm) | 2.000" (50.80mm) |
|

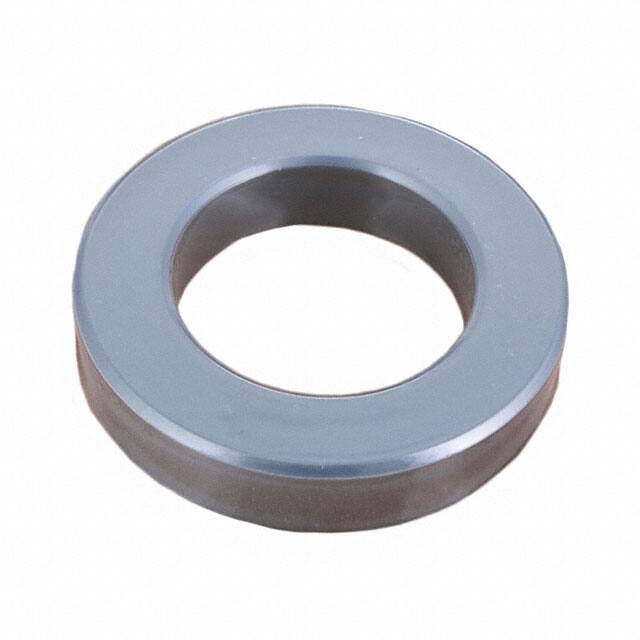

HF90T62X13X39FERRITE CORE TOROID |
165 |
|
Ficha técnica |
T | Tray | Active | Toroid | - | - | - | - | - | Ungapped | - | 5000 | - | - | - | - | - | Epoxy | 0.512" (13.00mm) | - | - |
|

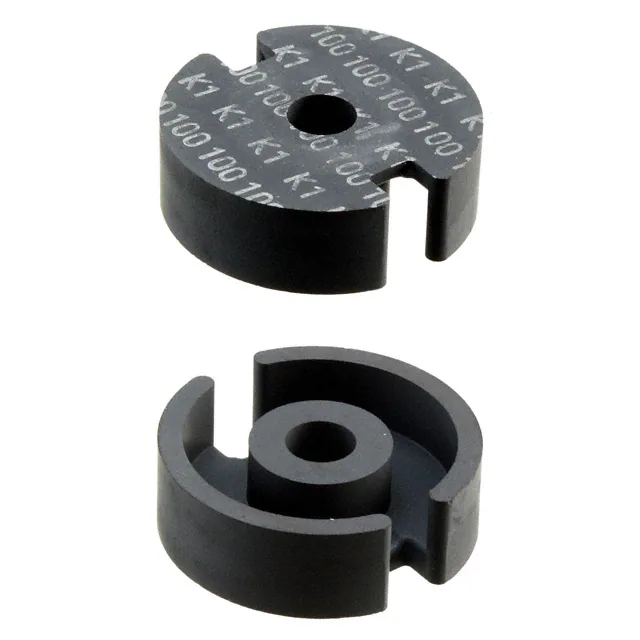

B65671T0100A001FERRITE CORE P 100NH K1 2PCS |
129 |
|
Ficha técnica |
P26/16 | Box | Active | P (Pot Core) | P 26 x 16 | K1 | 1.024" (26.00mm) | 100 nH | ±3% | Gapped | 32.0 | 80 | 0.4 | 37.2 | 93.0 | 76.5 | 3460.0 | Uncoated | 0.321" (8.15mm) | - | - |
|

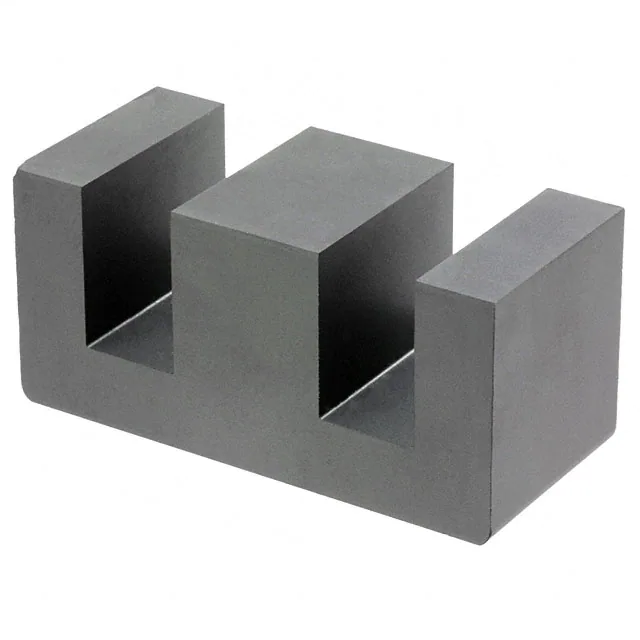

B66371G0000X127FERRITE CORE E N27 1PC |
509 |
|
Ficha técnica |
E70/33/32 | Box | Active | E | E 70 x 33 x 32 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.307" (33.20mm) | 2.776" (70.50mm) | 1.260" (32.00mm) |
|

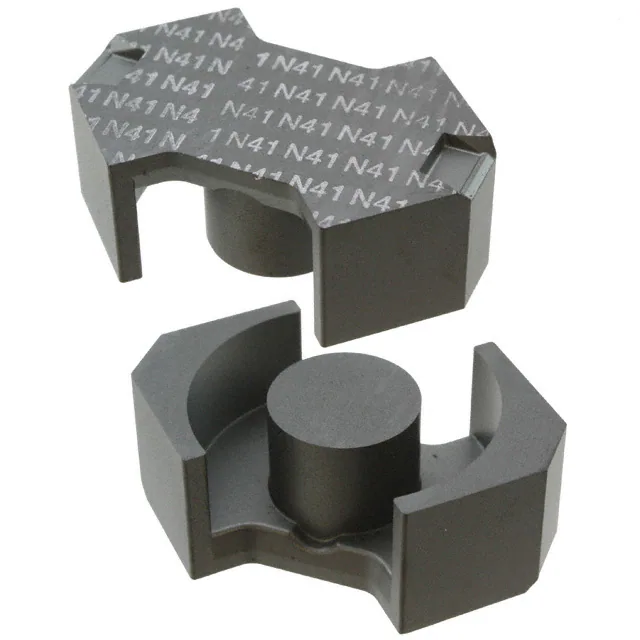

B65887E0000R041FERRITE CORE RM 6.8UH N41 2PCS |
402 |
|
Ficha técnica |
RM14 | Box | Active | RM | RM 14 | N41 | - | 6.8 µH | -20%, +30% | Ungapped | 1890.0 | 2800 | 0.35 | 70.0 | 200.0 | 170.0 | 14000.0 | Uncoated | 0.594" (15.10mm) | 1.661" (42.20mm) | 0.748" (19.00mm) |
