LCD, caractere OLED e numérico
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Número de caracteres | Formato de exibição | Formato do caractere | Tipo de Exibição | Modo de exibição | Tamanho do caractere | Contorno C x L x A | Área de visualização | Luz de fundo | Voltagem - Alimentação | Tamanho do ponto | Interface | Tipo de Controlador | Temperatura operacional | Cor do texto | Cor do fundo |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMC2002CR-B-G6WFDYLCD COB CHAR 20X2 GRAY TRANSF |
5 |
|
Ficha técnica |
- | Box | Active | 40.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 14.50mm | 83.00mm L x 18.60mm W | LED - Yellow/Green | 4.5V ~ 5.5V | 0.60mm W x 0.65mm H | Parallel, 8-Bit | S6A0069 | -20°C ~ 70°C | Dark | Yellow/Green |
|
AMC2004HR-B-W6WFDW20X4 CHARACTER FSTN POSITIVE |
3 |
|
Ficha técnica |
- | Box | Active | 40.0 | 20 x 4 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 1.85mm H x 3.15mm W | 65.00mm x 28.40mm x 9.00mm | 46.00mm L x 18.40mm W | LED - White | 5V | 0.33mm W x 0.35mm H | Parallel | S6A0069 | -20°C ~ 70°C | Black | Gray |
|
VI-511-DP-FH-WLCD MOD 4.5DIG 4.5X1 TRANSFLECTV |
0 |
|
Ficha técnica |
VI-511 | Box | Active | 4.5 | 4.5 x 1 | 7-Segment | TN - Twisted Nematic | Transflective | 15.24mm H x 7.62mm W | 70.00mm x 38.10mm x 2.80mm | 62.38mm L x 22.86mm W | Without Backlight | - | - | - | - | -10°C ~ 70°C | - | - |
|
|
EA W096016-XBLWGRAPHIC OLED 96X16 WHITE |
0 |
|
Ficha técnica |
- | Bulk | Active | - | - | - | OLED | Passive | - | 63.10mm x 9.20mm x 1.34mm | 23.10mm L x 5.50mm W | Without Backlight | 7V ~ 7.8V | 0.20mm W x 0.20mm H | I2C, SPI | SSD1306BZ | -40°C ~ 80°C | White | Black |
|

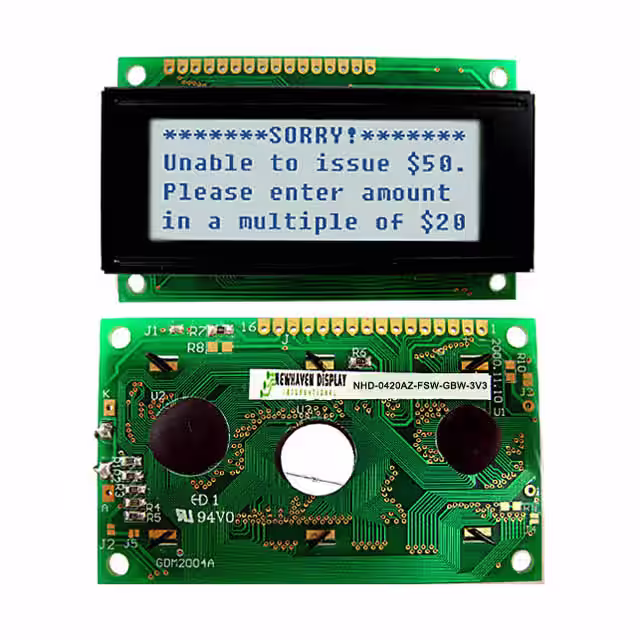

NHD-0420AZ-FSW-GBW-3V3LCD MOD 80DIG 20X4 TRANSFLCT WHT |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.03mm H x 2.30mm W | 77.00mm x 47.00mm x 14.50mm | 60.00mm L x 22.00mm W | LED - White | 2.7V ~ 3.3V | 0.42mm W x 0.46mm H | Parallel | - | -20°C ~ 70°C | Gray | White |
|
MDLS-81809-SS-LV-GLCD MOD 8 DIG 8 X 1 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-81809 | - | Obsolete | 8.0 | 8 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 10.75mm H x 6.45mm W | 80.00mm x 36.00mm x 6.80mm | 61.00mm L x 15.80mm W | Without Backlight | 5V | 1.25mm W x 1.30mm H | Parallel | - | -5°C ~ 50°C | - | - |
|
|
MDLS-16268B-LV-NEGBLUE-LED04GLCD MOD 32DIG 16X2 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-16268B | Box | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 9.22mm H x 4.84mm W | 122.00mm x 43.00mm x 15.00mm | 99.00mm L x 23.00mm W | LED - Green | 5V | 0.92mm W x 1.10mm H | Parallel | - | -5°C ~ 50°C | - | - |
|
|
LCM-H01602DSF/B-YLCD MOD 32DIG 16X2 TRANSFLECTIVE |
0 |
|
Ficha técnica |
- | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.56mm H x 2.96mm W | 84.00mm x 44.00mm x 12.70mm | 66.00mm L x 16.00mm W | LED | 4.7V ~ 5.3V | 0.56mm W x 0.66mm H | - | - | 0°C ~ 50°C | - | - |
|
NHD-0116DZ-FL-YBW-33VLCD MOD 16DIG 16X1 TRANS YLW/GRN |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 16.0 | 16 x 1 | 5 x 7 Dots w/Cursor | STN - Super-Twisted Nematic | Transflective | 9.66mm H x 4.84mm W | 122.00mm x 33.00mm x 14.00mm | 99.00mm L x 13.00mm W | LED - Yellow/Green | 3.3V | 0.92mm W x 1.10mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue | Green |
|
|
MDLS16166-LV-SLCD MOD 16 DIG 16 X 1 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-16166 | Bulk | Active | 16.0 | 16 x 1 | 5 x 8 Dots | TN - Twisted Nematic | Reflective | 6.30mm H x 3.15mm W | 80.00mm x 36.00mm x 6.80mm | 64.50mm L x 13.80mm W | Without Backlight | 5V | 0.55mm W x 0.70mm H | Parallel | - | -5°C ~ 50°C | Black | Green |
|
|
MDLS-16265B-LV-G-LEDLCD MOD 32 DIG 16 X 2 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-16265B | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 5.55mm H x 2.95mm W | 80.00mm x 36.00mm x 6.60mm | 61.00mm L x 15.80mm W | - | - | 0.55mm W x 0.65mm H | Parallel | - | - | - | - |
|
162H DC BW-3LPCHARACTER MODULE |
0 |
|
Ficha técnica |
- | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 2.95mm W | 84.00mm x 44.00mm x 13.20mm | 66.00mm L x 16.00mm W | LED - White | 4.5V ~ 5.5V | 0.55mm W x 0.65mm H | - | - | -20°C ~ 70°C | - | - |
|
|
VI-602-DP-RC-W-HVLCD MOD 6 DIG 6 X 1 REFLECTIVE |
0 |
|
Ficha técnica |
VI-602 | Bulk | Active | 6.0 | 6 x 1 | 7-Segment | TN - Twisted Nematic | Reflective | 12.70mm H x 6.50mm W | 69.80mm x 30.48mm x 2.70mm | 62.20mm L x 17.78mm W | - | - | - | Parallel | - | - | - | - |
|
|
MOP-AL162A-BYRN-25J-3INLCD MOD 32 DIG 16 X 2 REFLECTIVE |
0 |
|
Ficha técnica |
- | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | Alphanumeric | Reflective | 5.55mm H x 2.95mm W | 80.00mm x 36.00mm x 14.00mm | 64.50mm L x 15.50mm W | - | 4.5V ~ 5.5V | - | I2C, RS-232, TTL | - | -20°C ~ 70°C | Black | Yellow/Green |
|
|
MOP-AL082B-BGFW-25J-3INLCD MODULE 16 DIG 8 X 2 |
0 |
|
Ficha técnica |
- | Bulk | Active | 16.0 | 8 x 2 | 5 x 8 Dots | Alphanumeric | - | 5.56mm H x 2.96mm W | 58.00mm x 32.00mm x 14.00mm | 27.81mm L x 11.50mm W | - | 4.5V ~ 5.5V | - | Parallel, 8-Bit | - | -20°C ~ 70°C | Blue | Gray/White |
|
|
MOP-AL082B-BYFY-25J-3INLCD MODULE 16 DIG 8 X 2 |
0 |
|
Ficha técnica |
- | Bulk | Active | 16.0 | 8 x 2 | 5 x 8 Dots | Alphanumeric | - | 5.56mm H x 2.96mm W | 58.00mm x 32.00mm x 14.00mm | 27.81mm L x 11.50mm W | - | 4.5V ~ 5.5V | - | Parallel, 8-Bit | - | -20°C ~ 70°C | Black | Yellow/Green |
|
|
MOP-AL082B-BBTW-25E-3INLCD MODULE 16 DIG 8 X 2 |
0 |
|
Ficha técnica |
- | Bulk | Active | 16.0 | 8 x 2 | 5 x 8 Dots | Alphanumeric | - | 5.56mm H x 2.96mm W | 58.00mm x 32.00mm x 14.00mm | 27.81mm L x 11.50mm W | - | 4.5V ~ 5.5V | - | Parallel, 8-Bit | - | -20°C ~ 70°C | White | Blue |
|
|
MDLS-16264-LV-SLCD MOD 32 DIG 16 X 2 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-16264 | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 4.07mm H x 2.54mm W | 65.50mm x 36.70mm x 6.60mm | 48.60mm L x 12.00mm W | Without Backlight | 5V | 0.46mm W x 0.43mm H | Parallel | - | -5°C ~ 50°C | - | - |
|
|
MOP-AL162A-BBTW-25E-3INLCD MOD 32DIG 16 X 2 TRANSMISSIV |
0 |
|
Ficha técnica |
- | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | Alphanumeric | Transmissive | 5.55mm H x 2.95mm W | 80.00mm x 36.00mm x 14.00mm | 64.50mm L x 15.50mm W | - | 4.5V ~ 5.5V | - | I2C, RS-232, TTL | - | -20°C ~ 70°C | White | Blue |
|
AMC2004CR-B-Y6NFDYLCD COB CHAR 20X4 Y/G TRANSF |
0 |
|
Ficha técnica |
- | Box | Active | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.03mm H x 2.30mm W | 77.00mm x 47.00mm x 14.00mm | 60.00mm L x 22.00mm W | LED - Yellow/Green | 4.5V ~ 5.5V | 0.42mm W x 0.46mm H | Parallel, 8-Bit | S6A0069 | -20°C ~ 70°C | Dark Blue | Yellow/Green |
