LCD, caractere OLED e numérico
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Número de caracteres | Formato de exibição | Formato do caractere | Tipo de Exibição | Modo de exibição | Tamanho do caractere | Contorno C x L x A | Área de visualização | Luz de fundo | Voltagem - Alimentação | Tamanho do ponto | Interface | Tipo de Controlador | Temperatura operacional | Cor do texto | Cor do fundo |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

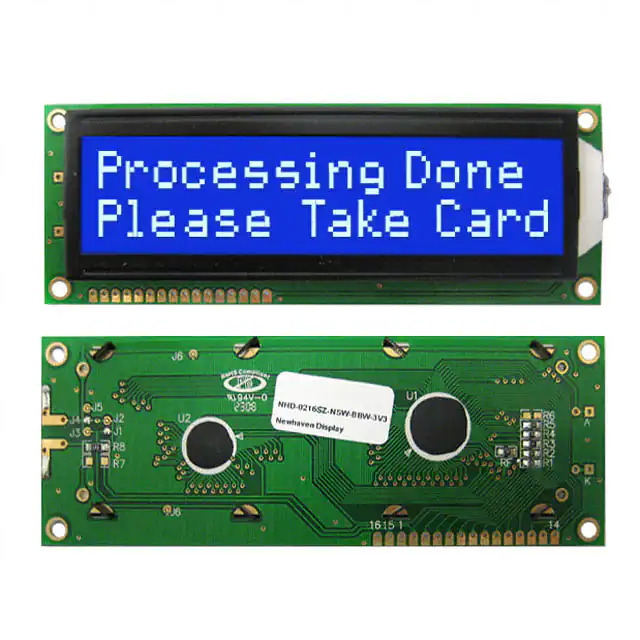

NHD-0216SZ-NSW-BBW-3VLCD MOD 32DIG 16X2 TRANSMISV WHT |
0 |
|
Ficha técnica |
- | Box | Obsolete | 32.0 | 16 x 2 | 5 x 7 Dots w/Cursor | STN - Super-Twisted Nematic | Transmissive | 8.06mm H x 4.84mm W | 126.00mm x 44.00mm x 10.50mm | 99.50mm L x 36.00mm W | LED - White | 4.7V ~ 5.5V | 0.92mm W x 1.10mm H | Parallel | - | -20°C ~ 70°C | White | Blue |
|

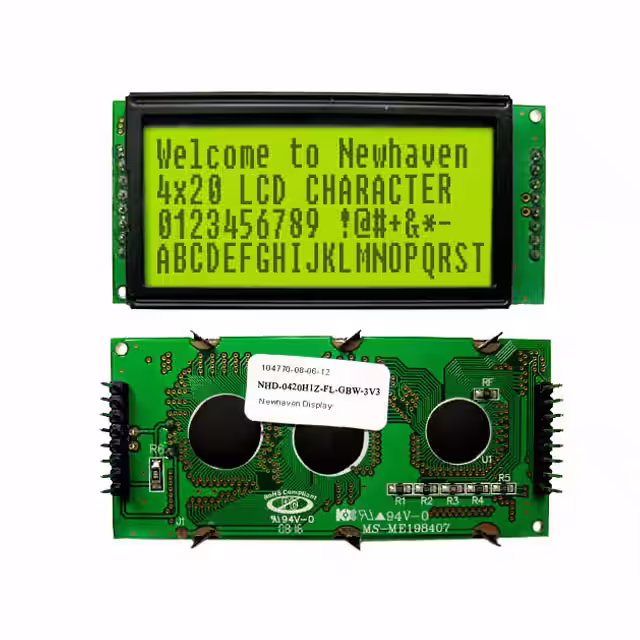

NHD-0420H1Z-FL-GBW-3V3LCD MOD 80DIG 20X4 TRANS YLW/GRN |
0 |
|
Ficha técnica |
- | Box | Obsolete | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.15mm H x 2.35mm W | 79.00mm x 36.00mm x 13.00mm | 60.00mm L x 28.00mm W | LED - Yellow/Green | 3V ~ 3.5V | 0.43mm W x 0.60mm H | Parallel | - | -20°C ~ 70°C | Gray | Green |
|
EA 8081-A3NLCD MOD 8 DIG 8 X 1 REFLECTIVE |
0 |
|
Ficha técnica |
- | Tray | Active | 8.0 | 8 x 1 | 5 x 7 Dots | STN - Super-Twisted Nematic | Reflective | 5.55mm H x 2.95mm W | 40.00mm x 20.00mm x 7.80mm | 27.80mm L x 13.90mm W | Without Backlight | 5V | 0.55mm W x 0.55mm H | Parallel, 8-Bit | - | 0°C ~ 50°C | Black | Gray |
|

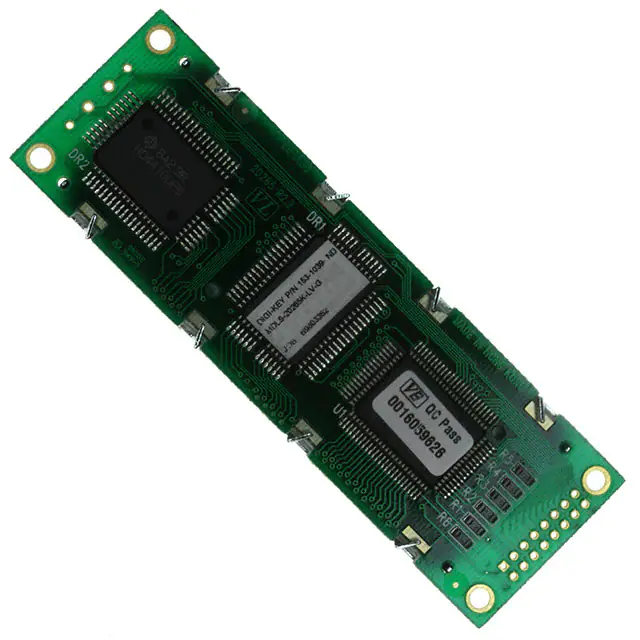

MDLS-20265-LV-GLCD MOD 40 DIG 20 X 2 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-20265 | Bulk | Active | 40.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 6.70mm | 83.00mm L x 18.60mm W | Without Backlight | 5V | 0.60mm W x 0.65mm H | Parallel | - | -5°C ~ 50°C | Black | Green |
|
|
NHD-0420H1Z-FL-GBW-3VLCD MOD 80DIG 20X4 TRANS YLW/GRN |
0 |
|
Ficha técnica |
- | Box | Obsolete | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.15mm H x 2.35mm W | 79.00mm x 36.00mm x 13.00mm | 60.00mm L x 28.00mm W | LED - Yellow/Green | 3V ~ 3.5V | 0.43mm W x 0.60mm H | Parallel | - | -20°C ~ 70°C | Gray | Green |
|
O016N002CBPP5N0000OLED MODULE 32DIG 16 X 2 PASSIVE |
0 |
|
Ficha técnica |
- | Tray | Active | 32.0 | 16 x 2 | 5 x 8 Dots | OLED | Passive | 5.55mm H x 2.95mm W | 85.00mm x 36.00mm x 10.00mm | 66.00mm L x 16.00mm W | - | 5V | 0.55mm W x 0.65mm H | SPI | - | - | Blue | - |
|

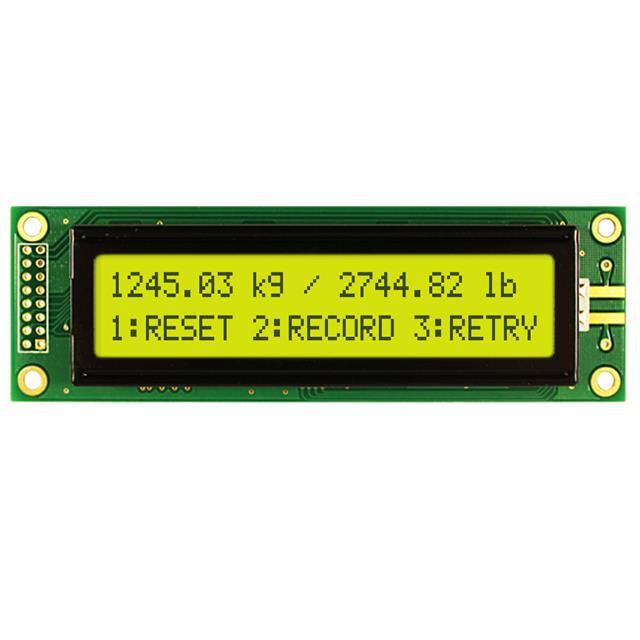

NHD-0224BZ-FL-YBWLCD MOD 48DIG 24X2 TRANS YLW/GRN |
0 |
|
Ficha técnica |
- | Box | Active | 48.0 | 24 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 2.70mm W | 116.00mm x 37.00mm x 13.50mm | 83.00mm L x 18.60mm W | LED - Yellow/Green | 4.7V ~ 5.5V | 0.50mm W x 0.65mm H | Parallel | KS0066U | -20°C ~ 70°C | Blue | Green |
|
O008N002AWPP5N0000OLED MODULE 16DIG 8 X 2 PASSIVE |
0 |
|
Ficha técnica |
- | Tray | Active | 16.0 | 8 x 2 | 5 x 8 Dots | OLED | Passive | 5.56mm H x 2.96mm W | 58.00mm x 32.00mm x 10.00mm | 38.00mm L x 16.00mm W | - | 5V | 0.56mm W x 0.66mm H | SPI | - | - | White | - |
|

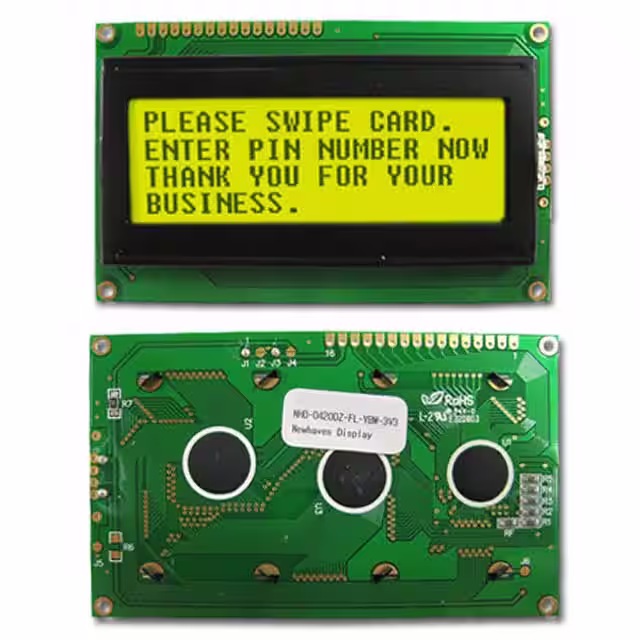

NHD-0420DZ-FL-YBW-3VLCD MOD 80DIG 20X4 TRANS YLW/GRN |
0 |
|
Ficha técnica |
- | Box | Obsolete | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 14.00mm | 76.00mm L x 25.20mm W | LED - Yellow/Green | 3V ~ 3.5V | 0.55mm W x 0.55mm H | Parallel | - | -20°C ~ 70°C | Gray | Green |
|
NHD-0116DZ-FL-GBWLCD MOD 16DIG 16X1 TRANS YLW/GRN |
0 |
|
Ficha técnica |
- | Box | Active | 16.0 | 16 x 1 | 5 x 7 Dots w/Cursor | STN - Super-Twisted Nematic | Transflective | 9.66mm H x 4.84mm W | 122.00mm x 33.00mm x 14.00mm | 99.00mm L x 13.00mm W | LED - Yellow/Green | 4.7V ~ 5.5V | 0.92mm W x 1.10mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue | Green |
|
NHD-0220DZ-FL-GBWLCD MOD 40DIG 20X2 TRANS YLW/GRN |
0 |
|
Ficha técnica |
- | Box | Active | 40.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.95mm H x 3.20mm W | 116.00mm x 37.00mm x 13.50mm | 83.00mm L x 18.60mm W | LED - Yellow/Green | 4.7V ~ 5.5V | 0.60mm W x 0.65mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue | Green |
|

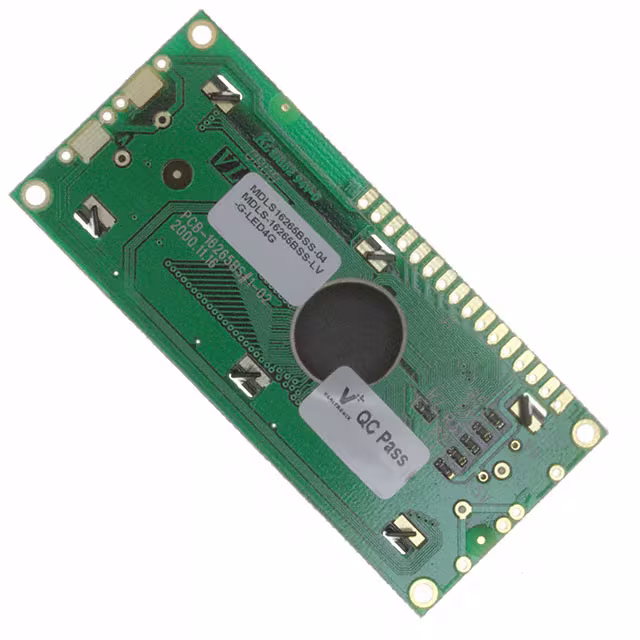

MDLS-16265B-SS-LV-G-LED04GLCD MOD 32DIG 16X2 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-16265B | Box | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 2.95mm W | 80.00mm x 36.00mm x 9.80mm | 61.00mm L x 15.80mm W | LED - Green | 5V | 0.55mm W x 0.65mm H | Parallel | - | -5°C ~ 50°C | - | - |
|
|
MOP-AL082B-BBTR-25J-3INLCD MODULE 16 DIG 8 X 2 |
0 |
|
Ficha técnica |
- | Bulk | Active | 16.0 | 8 x 2 | 5 x 8 Dots | Alphanumeric | - | 5.56mm H x 2.96mm W | 58.00mm x 32.00mm x 14.00mm | 27.81mm L x 11.50mm W | - | 4.5V ~ 5.5V | - | Parallel, 8-Bit | - | -20°C ~ 70°C | Red | Black |
|
|
MOP-AL082B-BTTY-25E-3INLCD MODULE 16 DIG 8 X 2 |
0 |
|
Ficha técnica |
- | Bulk | Active | 16.0 | 8 x 2 | 5 x 8 Dots | Alphanumeric | - | 5.56mm H x 2.96mm W | 58.00mm x 32.00mm x 14.00mm | 27.81mm L x 11.50mm W | - | 4.5V ~ 5.5V | - | Parallel, 8-Bit | - | -20°C ~ 70°C | Yellow/Green | Black |
|
NHD-0220DZ-NSW-FBWLCD MOD 40DIG 20X2 TRANSMISV WHT |
0 |
|
Ficha técnica |
- | Box | Active | 40.0 | 20 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transmissive | 5.95mm H x 3.20mm W | 116.00mm x 37.00mm x 13.50mm | 83.00mm L x 18.60mm W | LED - White | 4.5V ~ 5.5V | 0.60mm W x 0.65mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | White | Blue |
|
NHD-0224BZ-FSW-GBWLCD MOD 48DIG 24X2 TRANSFLCT WHT |
0 |
|
Ficha técnica |
- | Box | Active | 48.0 | 24 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 2.70mm W | 116.00mm x 37.00mm x 13.50mm | 83.00mm L x 18.60mm W | LED - White | 4.7V ~ 5.5V | 0.50mm W x 0.65mm H | Parallel | KS0066U | -20°C ~ 70°C | Blue | White |
|
|
LCM-H01602DWF/A-PLCD MOD 32DIG 16X2 TRANSFLCT GRN |
0 |
|
Ficha técnica |
- | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 5.56mm H x 2.96mm W | 80.00mm x 36.00mm x 12.70mm | 66.00mm L x 16.00mm W | LED - Green | 4.7V ~ 5.3V | 0.56mm W x 0.66mm H | - | - | -20°C ~ 70°C | - | - |
|
|
O016O002BLPP5N0000OLED MODULE 32DIG 16 X 2 PASSIVE |
0 |
|
- |
- | Tray | Active | 32.0 | 16 x 2 | 5 x 8 Dots | OLED | Passive | 1.66mm H x 2.84mm W | 53.00mm x 20.00mm x 7.60mm | 36.00mm L x 10.00mm W | - | 4.8V ~ 5.3V | 0.30mm W x 0.32mm H | Parallel, 8-Bit | - | -40°C ~ 80°C | Yellow | - |
|
NHD-0220DZ-FSW-GBWLCD MOD 40DIG 20X2 TRANSFLCT WHT |
0 |
|
Ficha técnica |
- | Box | Active | 40.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.95mm H x 3.20mm W | 116.00mm x 37.00mm x 13.50mm | 83.00mm L x 18.60mm W | LED - White | 4.7V ~ 5.5V | 0.60mm W x 0.65mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue | White |
|
MDLS-20265-SS-LV-GLCD MOD 40 DIG 20 X 2 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-20265 | - | Obsolete | 40.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 6.70mm | 83.00mm L x 18.60mm W | Without Backlight | 5V | 0.65mm W x 0.60mm H | Parallel | - | -5°C ~ 50°C | - | Green |
