LCD, caractere OLED e numérico
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Número de caracteres | Formato de exibição | Formato do caractere | Tipo de Exibição | Modo de exibição | Tamanho do caractere | Contorno C x L x A | Área de visualização | Luz de fundo | Voltagem - Alimentação | Tamanho do ponto | Interface | Tipo de Controlador | Temperatura operacional | Cor do texto | Cor do fundo |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDLS-81809-SS-LV-SLCD MOD 8 DIG 8 X 1 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-81809 | - | Obsolete | 8.0 | 8 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 10.75mm H x 6.45mm W | 84.00mm x 44.00mm x 6.80mm | 61.00mm L x 15.80mm W | Without Backlight | 5V | 1.25mm W x 1.30mm H | Parallel | - | -5°C ~ 50°C | - | Green |
.jpg)
|

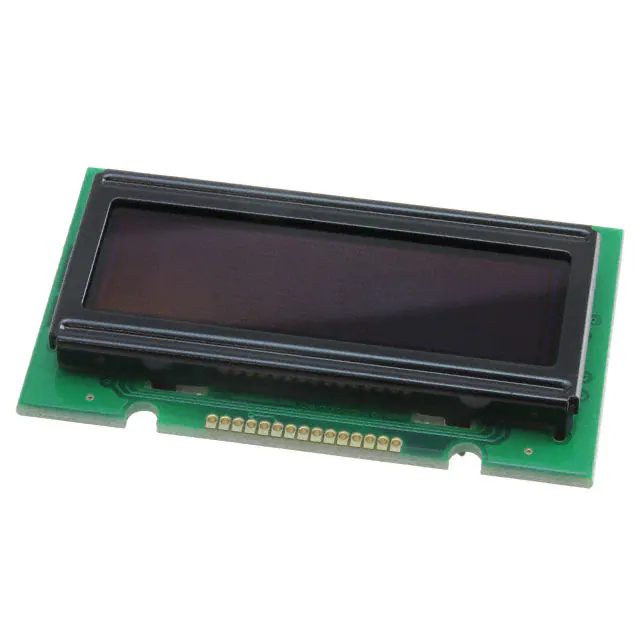

O012N002AGPP5N0000OLED MODULE 24DIG 12 X 2 PASSIVE |
0 |
|
Ficha técnica |
- | Tray | Active | 24.0 | 12 x 2 | 5 x 8 Dots | OLED | Passive | 5.50mm H x 2.65mm W | 55.70mm x 32.00mm x 11.00mm | 46.00mm L x 14.50mm W | - | 5V | 0.45mm W x 0.60mm H | SPI | - | - | Green | - |
|
NHD-0140AZ-FL-YBWLCD MOD 40DIG 40X1 TRANS YLW/GRN |
0 |
|
Ficha técnica |
- | Box | Obsolete | 40.0 | 40 x 1 | 5 x 12 Dots | STN - Super-Twisted Nematic | Transflective | 8.20mm H x 3.70mm W | 182.00mm x 33.50mm x 14.00mm | 152.50mm L x 16.50mm W | LED - Yellow/Green | 4.7V ~ 5.5V | 0.60mm W x 0.70mm H | Parallel | - | -20°C ~ 70°C | - | - |
|
|
VI-415-DP-RH-WLCD MOD 4 DIG 4 X 1 REFLECTIVE |
0 |
|
Ficha técnica |
VI-415 | Bulk | Active | 4.0 | 4 x 1 | 7-Segment | TN - Twisted Nematic | Reflective | - | 69.85mm x 38.10mm x 2.80mm | 63.75mm L x 24.38mm W | - | - | - | - | - | -20°C ~ 70°C | - | - |
|
|
NHD-0420DZ-FSW-GBWLCD MOD 80DIG 20X4 TRANSFLCT WHT |
0 |
|
Ficha técnica |
- | Box | Obsolete | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 14.00mm | 76.00mm L x 25.20mm W | LED - White | 5V | 0.55mm W x 0.55mm H | - | - | -20°C ~ 70°C | - | - |
|
|
O016O002CLPP5N0000OLED MODULE 32DIG 16 X 2 PASSIVE |
0 |
|
- |
- | Tray | Active | 32.0 | 16 x 2 | 5 x 8 Dots | OLED | Passive | 2.97mm H x 5.57mm W | 68.50mm x 17.50mm x 2.05mm | 58.22mm L x 13.52mm W | - | 4.8V ~ 5.3V | 0.57mm W x 0.67mm H | Parallel, 8-Bit | - | -40°C ~ 80°C | Yellow | - |
|
MIKROE-2518LCD MOD 32 DIG 16 X 2 MINI DISPL |
0 |
|
Ficha técnica |
- | Bulk | Active | 32.0 | 16 x 2 | - | LCD - Color | - | - | 53.00mm x 20.00mm x 9.10mm | - | - | - | - | SPI | - | - | Yellow/Green | Blue |
|
|
MDLS-16265-LV-GLCD MOD 32DIG 16X2 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-16265 | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 2.95mm W | 84.00mm x 44.00mm x 9.80mm | 61.00mm L x 15.80mm W | LED - Green | 5V | 0.55mm W x 0.65mm H | Parallel | - | -5°C ~ 50°C | Black | Green |
|
|
O012N002ABPP5N0000OLED MODULE 24DIG 12 X 2 PASSIVE |
0 |
|
Ficha técnica |
- | Tray | Active | 24.0 | 12 x 2 | 5 x 8 Dots | OLED | Passive | 5.50mm H x 2.65mm W | 55.70mm x 32.00mm x 11.00mm | 46.00mm L x 14.50mm W | - | 5V | 0.45mm W x 0.60mm H | SPI | - | - | Blue | - |
|

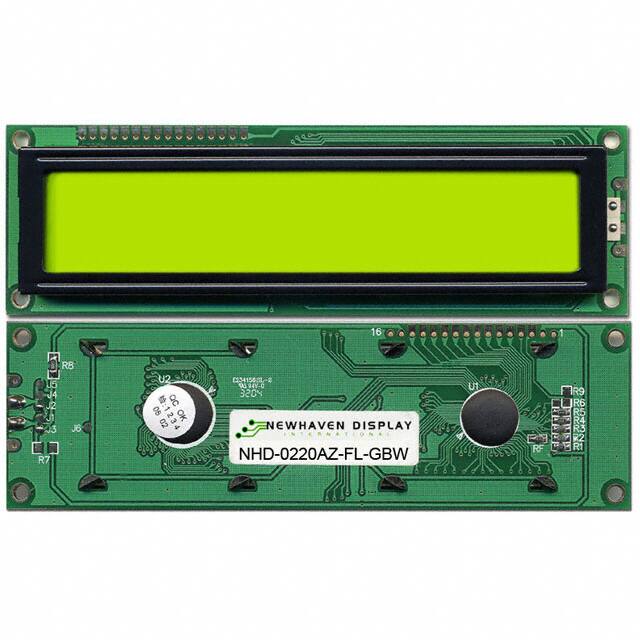

NHD-0220AZ-FL-GBWLCD MOD 40DIG 20X2 TRANS YLW/GRN |
0 |
|
Ficha técnica |
- | Box | Obsolete | 40.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 9.22mm H x 4.84mm W | 146.00mm x 43.00mm x 14.20mm | 123.00mm L x 23.00mm W | LED - Yellow/Green | 4.7V ~ 5.5V | 0.92mm W x 1.10mm H | Parallel | - | -20°C ~ 70°C | Gray | Green |
|
C161BLBFKSW6WNC3XAA16X1 FSTN BLACK CHARACTER LCD |
1 |
|
Ficha técnica |
- | Box | Active | 16.0 | 16 x 1 | 5 x 7 Dots | FSTN - Film Super-Twisted Nematic | Transmissive | 9.22mm H x 4.84mm W | 122.00mm x 33.00mm x 14.00mm | 99.00mm L x 13.00mm W | LED - White | 3.3V | 0.92mm W x 1.10mm H | Parallel | ST7066U | -20°C ~ 70°C | White | Black |
|
202G CC BC-3LPCHARACTER MODULE |
0 |
|
Ficha técnica |
- | Bulk | Active | 20.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 13.90mm | 85.00mm L x 18.60mm W | LED - White | 4.5V ~ 5.5V | 0.60mm W x 0.65mm H | - | - | 0°C ~ 50°C | - | - |
|
|
L016N002AYYHET0000LED DISPLAY 16*2 5V |
0 |
|
Ficha técnica |
- | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 2.95mm W | 84.00mm x 44.00mm x 13.20mm | 66.00mm L x 16.00mm W | LED - Yellow/Green | 4.5V ~ 5.5V | 0.55mm W x 0.65mm H | Parallel, 8-Bit | - | -20°C ~ 70°C | Yellow/Green | - |
|
|
WH2004AR-TMI-JTLCD MOD 80 DIG 40X4 TRANS WHT |
1 |
|
Ficha técnica |
- | Tray | Active | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 13.60mm | 77.00mm W x 25.20mm H | LED - White | 3.75V ~ 4.35V | 0.55mm W x 0.55mm H | - | ST7066 | -20°C ~ 70°C | Blue | - |
|
|
MDLS-16268C-LV-G-LED4GLCD MOD 16X2 CHAR STN W/BKLT GN |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MDLS-20263-C-LV-G-LED01GLCD MOD 40DIG 20X2 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-20263 | Box | Active | 40.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 3.15mm H x 1.85mm W | 65.00mm x 20.00mm x 8.00mm | 46.00mm L x 10.00mm W | LED - Green | 4.75V ~ 5.25V | 0.33mm W x 0.35mm H | Parallel | - | -5°C ~ 50°C | - | - |
|

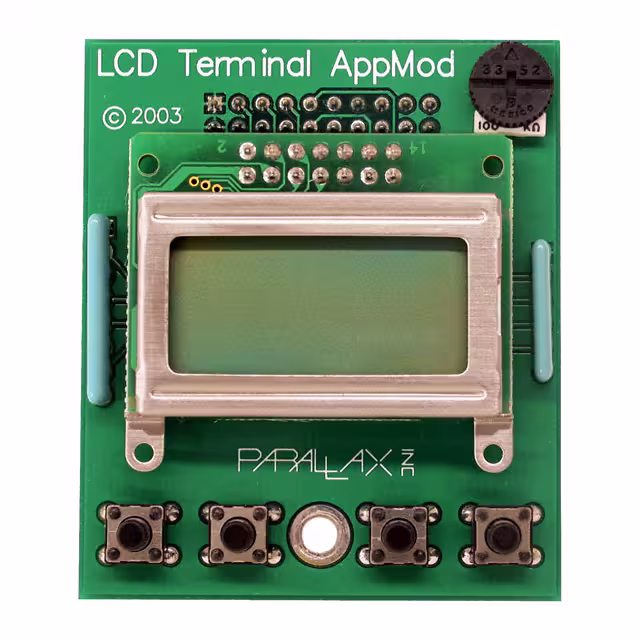

29121LCD MOD 16 DIG 8 X 2 REFLECTIVE |
0 |
|
Ficha técnica |
- | Box | Obsolete | 16.0 | 8 x 2 | - | LCD - Monochrome | Reflective | - | - | 37.77mm L x 23.37mm W | - | 5V | - | Parallel | - | - | Gray | Green |
|
|
MIKROE-13LCD MOD 32DIG 16X2 TRANSMISV WHT |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 5.55mm H x 2.95mm W | 80.00mm x 36.00mm x 13.50mm | 66.00mm L x 16.00mm W | LED - White | 3.2V ~ 5.2V | 0.55mm W x 0.65mm H | Parallel, 8-Bit | - | -20°C ~ 70°C | White | Blue |
|
|
LCM-S01602DSF/D-YLCD MODULE 16X2 CHAR TRNSFL STN |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MOP-AL162A-BGFW-25E-3INLCD MOD 32DIG 16X2 TRANSFLECTIVE |
0 |
|
Ficha técnica |
- | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | Alphanumeric | Transflective | 5.55mm H x 2.95mm W | 80.00mm x 36.00mm x 14.00mm | 64.50mm L x 15.50mm W | - | 4.5V ~ 5.5V | - | I2C, RS-232, TTL | - | -20°C ~ 70°C | Blue | Gray/White |
