LCD, caractere OLED e numérico
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Número de caracteres | Formato de exibição | Formato do caractere | Tipo de Exibição | Modo de exibição | Tamanho do caractere | Contorno C x L x A | Área de visualização | Luz de fundo | Voltagem - Alimentação | Tamanho do ponto | Interface | Tipo de Controlador | Temperatura operacional | Cor do texto | Cor do fundo |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

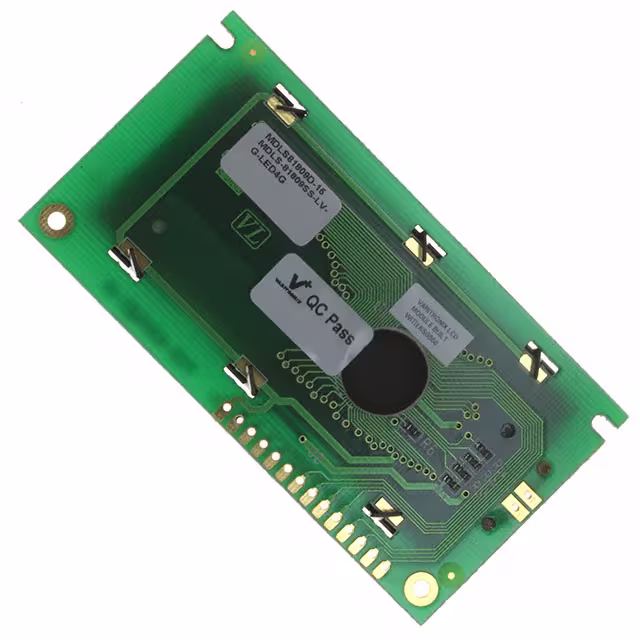

MDLS-81809-SS-LV-G-LED-04-GLCD MOD 8DIG 8X1 TRANSFLECTV GRN |
0 |
|
Ficha técnica |
MDL(S)-81809 | - | Obsolete | 8.0 | 8 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 10.75mm H x 6.45mm W | 84.00mm x 44.00mm x 11.00mm | 61.00mm L x 15.80mm W | LED - Green | 5V | 1.25mm W x 1.30mm H | Parallel | - | -5°C ~ 50°C | - | - |
|
C202B-KR-LW6520X2 FSTN BLACK CHARACTER LCD |
3 |
|
Ficha técnica |
C202B-K | Box | Active | 40.0 | 20 x 2 | 5 x 7 Dots | FSTN - Film Super-Twisted Nematic | Transmissive | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 14.00mm | 83.00mm L x 18.60mm W | LED - Red | 5V | 0.60mm W x 0.65mm H | Parallel | RW1063 | -20°C ~ 70°C | Red | Black |
|
LCM-S01602DSF/AYVMLCD MOD 32DIG 16X2 TRANSFLECTIVE |
0 |
|
- |
- | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.56mm H x 2.96mm W | 80.00mm x 36.00mm x 12.70mm | 66.00mm L x 16.00mm W | LED | - | 0.56mm W x 0.66mm H | - | - | - | - | - |
|
|
MDLS-16166-LV-GLED4GLCD MOD 16DIG 16X1 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-16166 | Bulk | Active | 16.0 | 16 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 6.30mm H x 3.15mm W | 80.00mm x 36.00mm x 9.80mm | 64.50mm L x 13.80mm W | LED - Green | 5V | 0.55mm W x 0.70mm H | Parallel | - | -5°C ~ 50°C | Black | Green |
|
|
WEA002002AWAP3N00000OLED MODULE 40 DIG 20X2 PASSIVE |
2 |
|
Ficha técnica |
- | Tray | Active | 40.0 | 20 x 2 | 5 x 8 Dots | OLED | Passive | 5.57mm H x 3.22mm W | 92.30mm x 23.30mm x 5.96mm | 75.52mm L x 13.52mm W | LED | 3.1V ~ 3.5V | 0.62mm W x 0.67mm H | I2C, SPI | SSD1311 | -40°C ~ 80°C | White | - |
|
|
MOP-AL162A-BBTR-25E-3INLCD MOD 32DIG 16 X 2 TRANSMISSIV |
0 |
|
Ficha técnica |
- | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | Alphanumeric | Transmissive | 5.55mm H x 2.95mm W | 80.00mm x 36.00mm x 14.00mm | 64.50mm L x 15.50mm W | - | 4.5V ~ 5.5V | - | I2C, RS-232, TTL | - | -20°C ~ 70°C | Red | Black |
|
|
MOP-AL162A-BTTY-25E-3INLCD MOD 32DIG 16 X 2 TRANSMISSIV |
0 |
|
Ficha técnica |
- | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | Alphanumeric | Transmissive | 5.55mm H x 2.95mm W | 80.00mm x 36.00mm x 14.00mm | 64.50mm L x 15.50mm W | - | 4.5V ~ 5.5V | - | I2C, RS-232, TTL | - | -20°C ~ 70°C | Yellow/Green | Black |
|
NHD-0416BZ-FL-YBWLCD MOD 64DIG 16X4 TRANS YLW/GRN |
0 |
|
Ficha técnica |
- | Box | Active | 64.0 | 16 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.75mm H x 2.95mm W | 87.00mm x 60.00mm x 14.50mm | 61.80mm L x 25.20mm W | LED - Yellow/Green | 4.7V ~ 5.5V | 0.55mm W x 0.55mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue | Green |
|

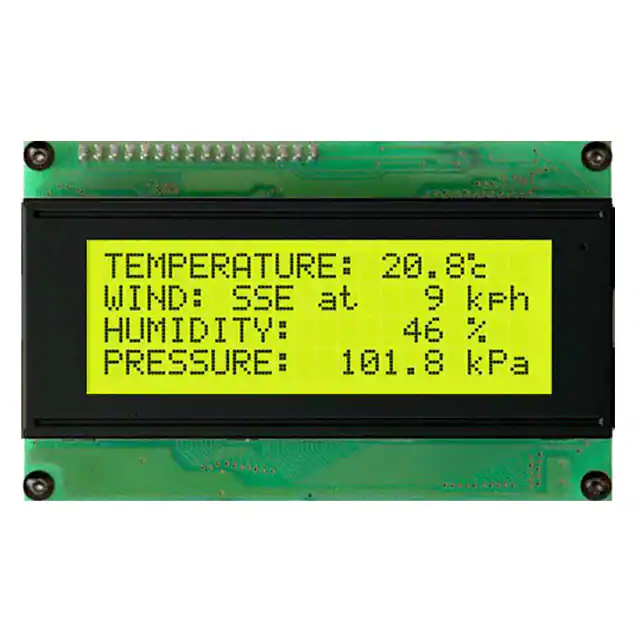

MOP-AL204A-BYFY-25E-3INLCD MOD 80DIG 20X4 TRANS YLW/GRN |
0 |
|
Ficha técnica |
- | Bulk | Active | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 15.00mm | 76.00mm L x 25.20mm W | LED - Yellow/Green | 4.5V ~ 5.5V | 0.55mm W x 0.55mm H | Parallel | - | -20°C ~ 70°C | Gray | Green |
|
|
WEH001602ARPP5N0010016x2 COB OLED Character Display |
3 |
|
Ficha técnica |
- | Tray | Active | 32.0 | 16 x 2 | 5 x 8 Dots | OLED | Passive | 5.55mm H x 2.95mm W | 80.00mm x 36.00mm x 10.00mm | 66.00mm L x 16.00mm W | LED | 4.8V ~ 5.3V | 0.55mm W x 0.65mm H | Parallel, 4-Bit | WS0010-TX | -40°C ~ 80°C | Red | - |
|
EA DOGM163B-ALCD MOD 48DIG 16 X 3 TRANSMISSIV |
2 |
|
Ficha técnica |
EA DOG | Bag | Active | 48.0 | 16 x 3 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 3.65mm H x 2.47mm W | 55.00mm x 27.94mm x 2.00mm | 51.00mm L x 14.50mm W | Without Backlight | 3.3V | 0.47mm W x 0.43mm H | Parallel, 8-Bit, SPI | - | -20°C ~ 70°C | White | Blue |
|

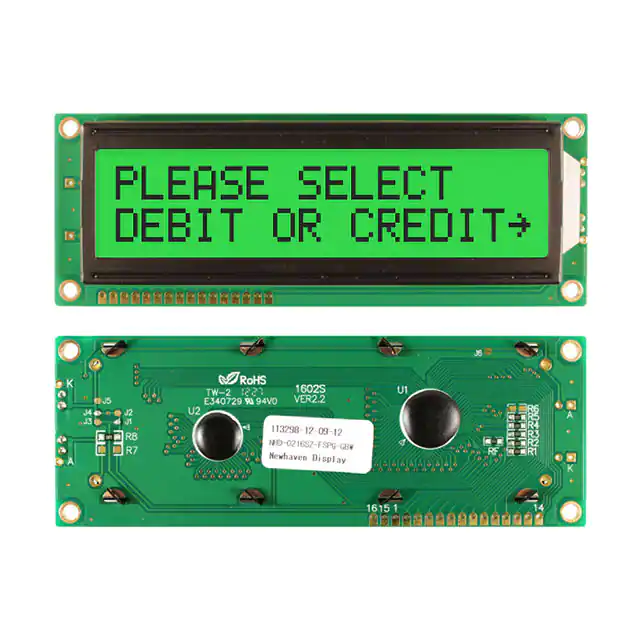

NHD-0216SZ-FSPG-GBWLCD MOD 32DIG 16X2 TRANSFLCT GRN |
0 |
|
Ficha técnica |
- | Box | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 9.55mm H x 5.20mm W | 122.00mm x 44.00mm x 13.50mm | 99.00mm L x 24.00mm W | LED - Green | 4.7V ~ 5.5V | 1.00mm W x 1.15mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue | Green |
|
|
O016N001AWPP5N0000OLED MODULE 16DIG 16 X 1 PASSIVE |
0 |
|
- |
- | Tray | Active | 16.0 | 16 x 1 | 5 x 8 Dots | OLED | Passive | 2.95mm H x 6.35mm W | 80.00mm x 36.00mm x 10.00mm | 66.00mm L x 16.00mm W | - | 4.8V ~ 5.3V | 0.55mm W x 0.75mm H | Parallel, 8-Bit | - | -40°C ~ 80°C | White | - |
|
EA DOGM081B-ALCD MOD 8 DIG 8 X 1 TRANSMISSIVE |
0 |
|
Ficha técnica |
EA DOG | Bag | Active | 8.0 | 8 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 11.97mm H x 4.97mm W | 55.00mm x 27.94mm x 2.00mm | 51.00mm L x 14.50mm W | Without Backlight | 3.3V | 0.97mm W x 1.47mm H | Parallel, 8-Bit, SPI | - | -20°C ~ 70°C | White | Blue |
|
|
MDLS-20189-LV-GLCD MOD 20 DIG 20 X 1 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-20189 | Bulk | Active | 20.0 | 20 x 1 | 5 x 7 Dots w/Cursor | STN - Super-Twisted Nematic | Reflective | 9.40mm H x 6.70mm W | 182.00mm x 33.50mm x 7.60mm | 154.00mm L x 15.30mm W | Without Backlight | 5V | 1.30mm W x 1.30mm H | Parallel | - | -5°C ~ 50°C | Black | Green |
|
|
WEH001602AWPP5N0030016x2 COB OLED Character Display |
1 |
|
Ficha técnica |
- | Tray | Active | 32.0 | 16 x 2 | 5 x 8 Dots | OLED | Passive | - | 80.00mm x 36.00mm x 10.00mm | 66.00mm L x 16.00mm W | Without Backlight | 4.8V ~ 5.3V | 0.55mm W x 0.65mm H | SPI | WS0010-TX | -40°C ~ 80°C | - | White |
|
162M FC BC-3LPCHARACTER MODULE |
0 |
|
Ficha técnica |
- | Bulk | Active | 16.0 | 16 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 8.06mm H x 4.84mm W | 122.00mm x 44.00mm x 13.60mm | 99.00mm L x 24.00mm W | LED - White | 4.5V ~ 5.5V | 0.92mm W x 1.10mm H | - | - | 0°C ~ 50°C | - | - |
|

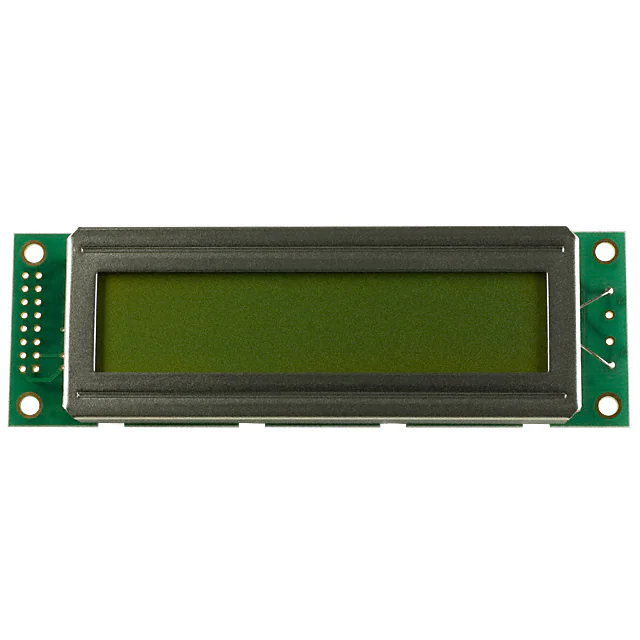

MDLS-20265-SS-LV-G-LED-04-GLCD MOD 40DIG 20X2 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-20265 | - | Obsolete | 40.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 10.00mm | 83.00mm L x 18.60mm W | LED - Green | 5V | 0.60mm W x 0.65mm H | Parallel | - | -5°C ~ 50°C | - | Green |
|
|
MDLS-40266-LV-GLCD MOD 80DIG 40X2 REFLECTIV GRN |
0 |
|
Ficha técnica |
MDL(S)-40266 | Bulk | Active | 80.0 | 40 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 5.50mm H x 3.15mm W | 182.00mm x 33.50mm x 6.60mm | 154.00mm L x 15.80mm W | LED - Green | 5V | - | Parallel | - | -5°C ~ 50°C | - | - |
|
|
LCM-H01604DSFLCD MOLULE DOT 16X4 TRANSFL STN |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
