LCD, caractere OLED e numérico
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Número de caracteres | Formato de exibição | Formato do caractere | Tipo de Exibição | Modo de exibição | Tamanho do caractere | Contorno C x L x A | Área de visualização | Luz de fundo | Voltagem - Alimentação | Tamanho do ponto | Interface | Tipo de Controlador | Temperatura operacional | Cor do texto | Cor do fundo |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NHD-0116GZ-FSW-FBWLCD MOD 16DIG 16X1 TRANSFLCT WHT |
0 |
|
Ficha técnica |
- | Box | Active | 16.0 | 16 x 1 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 14.54mm H x 6.00mm W | 151.00mm x 40.00mm x 13.00mm | 120.00mm L x 23.00mm W | LED - White | 4.7V ~ 5.5V | 1.15mm W x 1.77mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Black | White |
|
NHD-0420DZ-FSB-GBWLCD MOD 80DIG 20X4 TRANSFLCT BLU |
0 |
|
Ficha técnica |
- | Box | Active | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 14.00mm | 76.00mm L x 25.20mm W | LED - Blue | 4.5V ~ 5.5V | 0.55mm W x 0.55mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue | Blue |
|
MDLS-20189-SS-LV-GLCD MOD 20 DIG 20 X 1 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-20189 | - | Obsolete | 20.0 | 20 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 11.50mm H x 6.70mm W | 182.00mm x 33.50mm x 7.60mm | 154.00mm L x 15.30mm W | Without Backlight | 5V | 1.30mm W x 1.30mm H | Parallel | - | -5°C ~ 50°C | - | Green |
|
MDLS-161612D-02LCD MOD 16DIG 16X1 TRANS YLW/GRN |
0 |
|
Ficha técnica |
- | Box | Active | 16.0 | 16 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 12.70mm H x 5.90mm W | 154.40mm x 43.50mm x 8.90mm | 119.40mm L x 18.70mm W | LED - Yellow/Green | 4.75V ~ 5.25V | 1.10mm W x 1.50mm H | Parallel | - | 0°C ~ 50°C | - | Green |
|
NHD-0220AZ-FL-YBWLCD MOD 40DIG 20X2 TRANS YLW/GRN |
0 |
|
Ficha técnica |
- | Box | Active | 40.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 9.22mm H x 4.84mm W | 146.00mm x 43.00mm x 14.20mm | 123.00mm L x 23.00mm W | LED - Yellow/Green | 4.7V ~ 5.5V | 0.92mm W x 1.10mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue | Green |
|
NHD-0216MW-EB3OLED MODULE 32DIG 16 X 2 PASSIVE |
0 |
|
Ficha técnica |
- | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | OLED | Passive | 4.45mm H x 1.82mm W | 49.20mm x 26.90mm | 36.22mm L x 11.40mm W | Without Backlight | 2.4V ~ 5.5V | 0.34mm W x 0.53mm H | SPI | US2066 | -40°C ~ 85°C | Blue | Black |
|

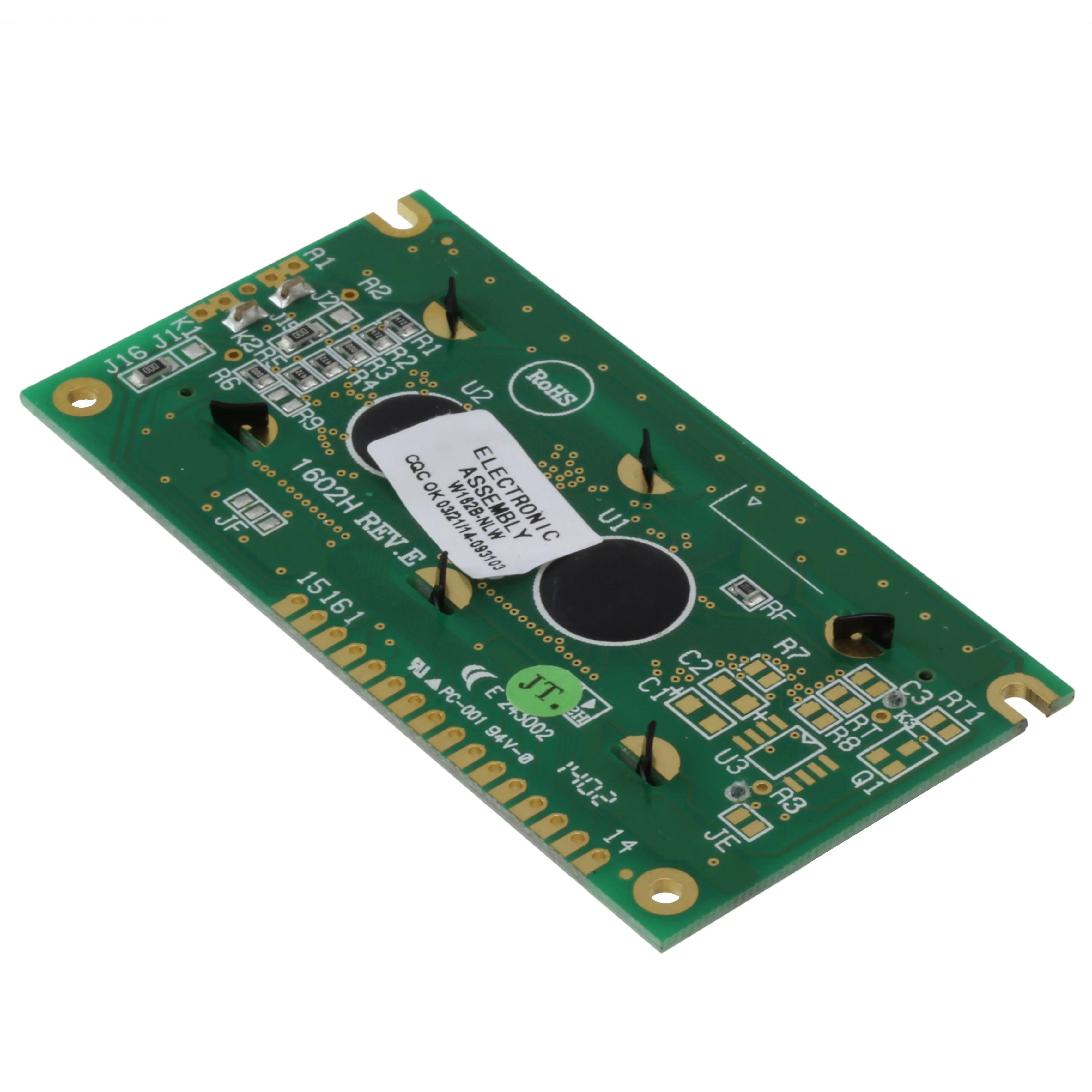

EA W162B-NLWLCD MOD 32DIG 16X2 TRANSFLCT WHT |
0 |
|
Ficha técnica |
BlueLine | Bag | Active | 32.0 | 16 x 2 | - | STN - Super-Twisted Nematic | Transflective | - | - | 64.50mm L x 16.00mm W | LED - White | 5V | - | Parallel, 8-Bit | - | -20°C ~ 70°C | White | Blue |
|
MOP-AL202C-BBTR-25E-3INLCD MODULE 40 DIG 20 X 2 |
0 |
|
Ficha técnica |
- | Bulk | Active | 40.0 | 20 x 2 | 5 x 8 Dots | Alphanumeric | - | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 14.50mm | 73.50mm L x 11.50mm W | - | 5V | - | I2C, RS-232, TTL | - | -20°C ~ 70°C | Red | Black |
|
|
MOP-AL202C-BBTW-25E-3INLCD MODULE 40 DIG 20 X 2 |
0 |
|
Ficha técnica |
- | Bulk | Active | 40.0 | 20 x 2 | 5 x 8 Dots | Alphanumeric | - | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 14.50mm | 73.50mm L x 11.50mm W | - | 5V | - | I2C, RS-232, TTL | - | -20°C ~ 70°C | White | Blue |
|
|
MOP-AL202C-BGFW-25E-3INLCD MODULE 40 DIG 20 X 2 |
0 |
|
Ficha técnica |
- | Bulk | Active | 40.0 | 20 x 2 | 5 x 8 Dots | Alphanumeric | - | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 14.50mm | 73.50mm L x 11.50mm W | - | 5V | - | I2C, RS-232, TTL | - | -20°C ~ 70°C | Blue | Gray/White |
|
|
MOP-AL202C-BTTY-25E-3INLCD MODULE 40 DIG 20 X 2 |
0 |
|
Ficha técnica |
- | Bulk | Active | 40.0 | 20 x 2 | 5 x 8 Dots | Alphanumeric | - | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 14.50mm | 73.50mm L x 11.50mm W | - | 5V | - | I2C, RS-232, TTL | - | -20°C ~ 70°C | Yellow/Green | Black |
|
|
MDLS16263-C-G-LED1GLCD MOD 32DIG 16X2 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-16263 | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 3.15mm H x 1.85mm W | 53.00mm x 20.00mm x 5.60mm | 36.00mm L x 10.00mm W | LED - Green | - | 0.33mm W x 0.35mm H | Parallel | - | -5°C ~ 50°C | - | Green |
|
|
MDLS-81809-LV-GLED4GLCD MOD 8DIG 8X1 TRANSFLECTV GRN |
0 |
|
Ficha técnica |
MDL(S)-81809 | Bulk | Active | 8.0 | 8 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 10.75mm H x 6.45mm W | 84.00mm x 44.00mm x 11.00mm | 61.00mm L x 15.80mm W | LED - Green | 5V | 1.25mm W x 1.30mm H | Parallel | - | -5°C ~ 50°C | Black | Green |
|
|
EA W162-NLED2X16, 5.56MM, YELLOW/GREEN LED B |
0 |
|
- |
- | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | LCD - Color | - | - | 84.00mm x 44.00mm x 14.00mm | 66.00mm L x 17.00mm W | LED - Yellow/Green | 5V | 0.55mm W x 0.65mm H | RS-422/232 | HD44780 | 0°C ~ 50°C | Black | Yellow/Green |
.JPG)
|
MDLS-16268C-SS-LV-G-LED04GLCD MOD 32DIG 16X2 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-16268C | Box | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 9.22mm H x 4.84mm W | 122.00mm x 44.00mm x 11.00mm | 99.00mm L x 23.00mm W | LED - Green | 5V | 0.92mm W x 1.10mm H | Parallel | - | -5°C ~ 50°C | - | Green |
|
|
LCM-S04002DSRLCD MOD 80 DIG 40 X 2 REFLECTIVE |
0 |
|
Ficha técnica |
- | Bulk | Active | 80.0 | 40 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 5.55mm H x 3.20mm W | 182.00mm x 33.50mm x 8.80mm | 154.00mm L x 15.30mm W | Without Backlight | 5V | 0.60mm W x 0.65mm H | Parallel | - | 0°C ~ 50°C | - | - |
|

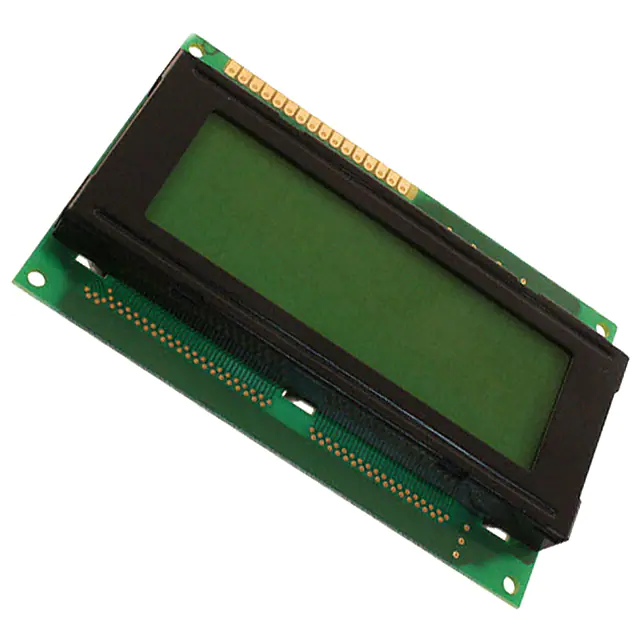

DMC-20481NY-LY-BJE-BMNLCD MOD 80DIG 20X4 TRANS YLW/GRN |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | - | 98.50mm x 61.00mm x 15.60mm | 76.00mm L x 25.20mm W | LED - Yellow/Green | 4.5V ~ 5.5V | - | Parallel | - | 0°C ~ 50°C | Yellow | Green |
|
NHD-0220WH-MYGH-JT#ELCD MOD 40DIG 20X2 TRANS YLW/GRN |
0 |
|
Ficha técnica |
- | Box | Active | 40.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 9.22mm H x 4.84mm W | 146.00mm x 43.00mm x 13.70mm | 123.00mm L x 23.00mm W | LED - Yellow/Green | 4.5V ~ 5.5V | 0.92mm W x 1.10mm H | Parallel | KS0066U | -20°C ~ 70°C | Blue | Green |
|
|
WEH002002ALPP5N00100Character OLED Display 20x2 |
1 |
|
Ficha técnica |
- | Tray | Active | 40.0 | 20 x 2 | 5 x 8 Dots | OLED | Passive | - | 116.00mm x 37.00mm x 9.80mm | 85.00mm L x 18.60mm W | Without Backlight | 4.8V ~ 5.3V | 0.60mm W x 0.65mm H | - | WS0010-TX | -40°C ~ 80°C | - | Yellow |
|
|
O020N002AGPP5N000AOLED MODULE 40DIG 20 X 2 PASSIVE |
0 |
|
- |
- | Tray | Active | 40.0 | 20 x 2 | 5 x 8 Dots | OLED | Passive | 3.20mm H x 5.55mm W | 116.00mm x 37.00mm x 9.80mm | 85.00mm L x 18.60mm W | - | 4.8V ~ 5.3V | 0.60mm W x 0.65mm H | Parallel, 8-Bit | - | -40°C ~ 80°C | Green | - |
