LCD, caractere OLED e numérico
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Número de caracteres | Formato de exibição | Formato do caractere | Tipo de Exibição | Modo de exibição | Tamanho do caractere | Contorno C x L x A | Área de visualização | Luz de fundo | Voltagem - Alimentação | Tamanho do ponto | Interface | Tipo de Controlador | Temperatura operacional | Cor do texto | Cor do fundo |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCD-09393LCD MOD 32DIG 16X2 TRANSFLECTIVE |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.23mm H x 3.00mm W | 103.00mm x 36.00mm x 7.05mm | 71.45mm L x 27.03mm W | LED | 5V | 0.56mm W x 0.61mm H | Parallel/Serial | - | 0°C ~ 50°C | Black | Green |
|

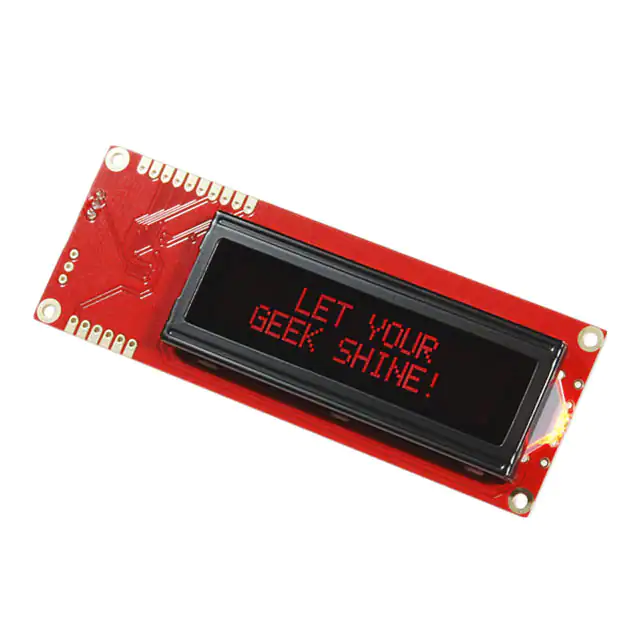

LCD-09394LCD MOD 32DIG 16X2 TRANSFLECTIVE |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.23mm H x 3.00mm W | 103.00mm x 36.00mm x 7.05mm | 71.45mm L x 27.03mm W | LED | 5V | 0.56mm W x 0.61mm H | Parallel/Serial | - | 0°C ~ 50°C | Red | Black |
|

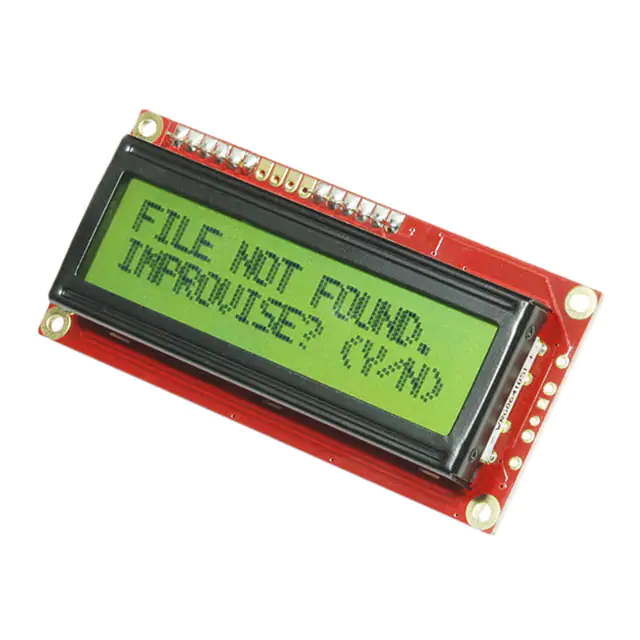

LCD-09066LCD MODULE 32 DIG 16 X 2 |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | - | - | - | 80.00mm x 36.32mm x 25.40mm | - | LED | - | - | Parallel/Serial | - | - | Black | Green |
|
LCD-09068LCD MODULE 32 DIG 16 X 2 |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | - | - | - | 80.00mm x 36.32mm x 25.40mm | - | LED | - | - | Parallel/Serial | - | - | Red | Black |
.jpg)
|
LCD-09067LCD MODULE 32 DIG 16 X 2 WHT |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | - | - | - | - | - | LED - White | 3.3V | - | TTL | - | - | White | Black |
|
499LCD MOD 80DIG 20X4 TRANSFL R/G/B |
0 |
|
Ficha técnica |
- | Bulk | Active | 80.0 | 20 x 4 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 13.60mm | 77.00mm L x 25.20mm W | LED - Red/Green/Blue | 5V | 0.55mm W x 0.55mm H | Parallel, 8-Bit | - | -20°C ~ 70°C | Black | Red/Green/Blue |
|

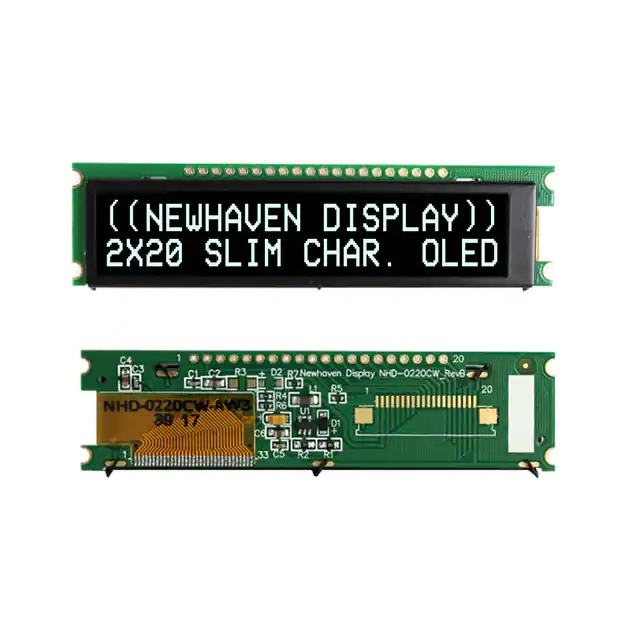

NHD-0220CW-AW3OLED MODULE 40DIG 20 X 2 |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 40.0 | 20 x 2 | 5 x 8 Dots | OLED | - | 5.67mm H x 3.22mm W | 92.00mm x 23.30mm x 5.00mm | 77.92mm L x 16.28mm W | - | 2.4V ~ 5.5V | 0.62mm W x 0.67mm H | Parallel, 8-Bit, I2C, SPI | US2066 | -40°C ~ 85°C | White | Black |
|

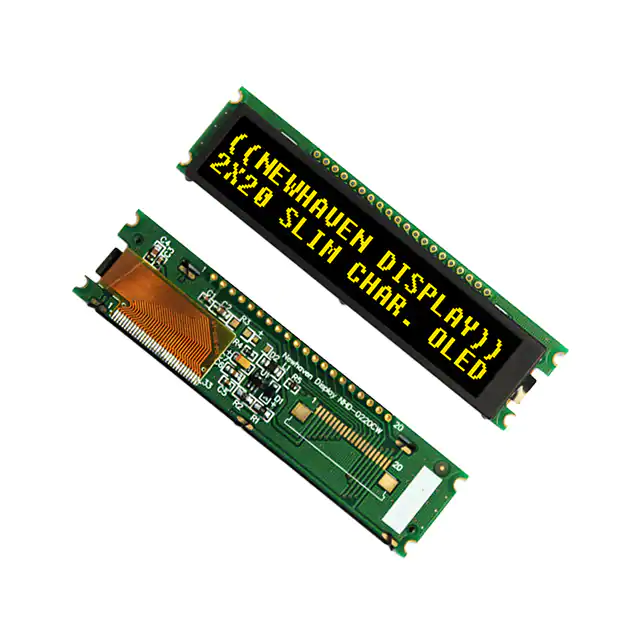

NHD-0220CW-AY3OLED MODULE 40DIG 20 X 2 PASSIVE |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 40.0 | 20 x 2 | 5 x 8 Dots | OLED | Passive | 5.57mm H x 3.22mm W | 92.00mm x 23.30mm x 2.50mm | 77.92mm L x 16.28mm W | - | 2.4V ~ 5.5V | 0.62mm W x 0.67mm H | Parallel, 8-Bit, I2C, SPI | US2066 | -40°C ~ 85°C | Yellow | Black |
|

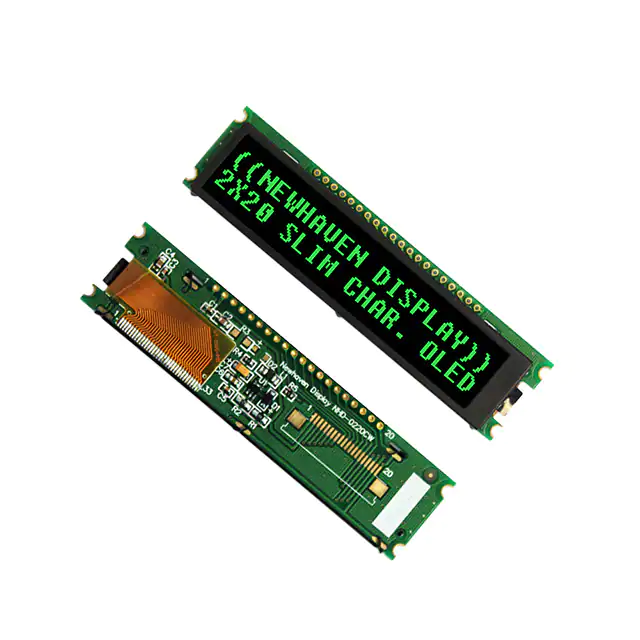

NHD-0220CW-AG3OLED MODULE 40DIG 20 X 2 PASSIVE |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 40.0 | 20 x 2 | 5 x 8 Dots | OLED | Passive | 5.57mm H x 3.22mm W | 92.00mm x 23.30mm x 2.50mm | 77.92mm L x 16.28mm W | - | 2.4V ~ 5.5V | 0.62mm W x 0.67mm H | Parallel, 8-Bit, I2C, SPI | US2066 | -40°C ~ 85°C | Green | Black |
|

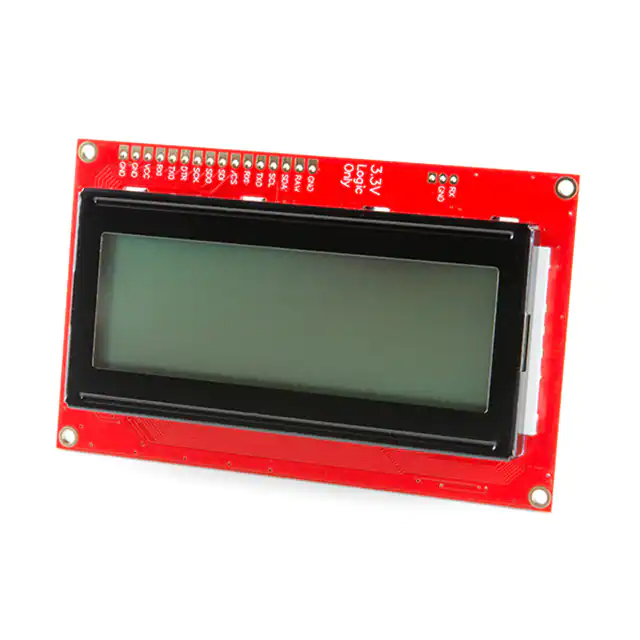

LCD-14074LCD MODULE 80 DIG 20 X 4 |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 80.0 | 20 x 4 | - | LCD - Monochrome | - | - | - | - | - | 3.3V | - | I2C, Serial, SPI | - | - | Black | Red/Green/Blue |
|

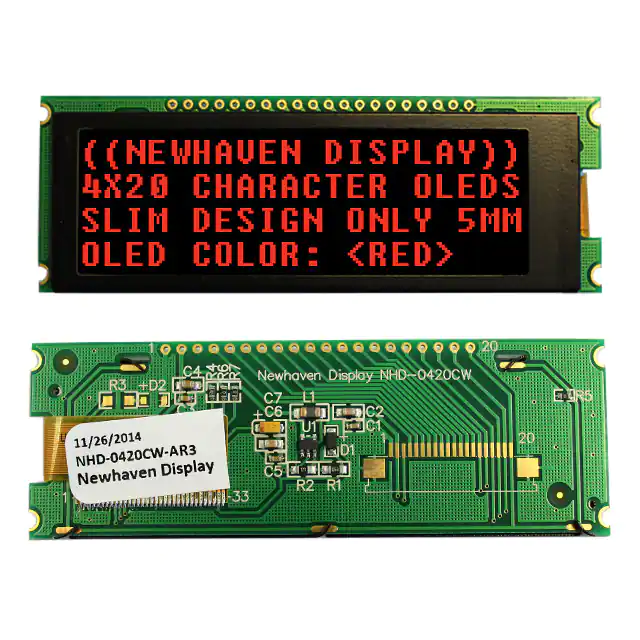

NHD-0420CW-AR3OLED MODULE 80DIG 20 X 4 PASSIVE |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 80.0 | 20 x 4 | 5 x 8 Dots | OLED | Passive | 4.77mm H x 2.97mm W | 92.00mm x 31.50mm x 2.50mm | 72.42mm L x 22.82mm W | - | 2.4V ~ 5.5V | 0.57mm W x 0.57mm H | Parallel, 8-Bit, I2C, SPI | - | -40°C ~ 85°C | Red | Black |
|
MDLS-16263-C-LV-G-LED-01-GLCD MOD 32DIG 16X2 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-16263 | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 3.15mm H x 1.85mm W | 53.00mm x 20.00mm x 9.60mm | 36.00mm L x 10.00mm W | LED - Green | 5V | 0.33mm W x 0.35mm H | Parallel | - | -5°C ~ 50°C | - | Green |
|
O016O002CSPP3N0000OLED MODULE 32DIG 16 X 2 PASSIVE |
2 |
|
- |
- | Tray | Active | 32.0 | 16 x 2 | 5 x 8 Dots | OLED | Passive | 2.97mm H x 5.57mm W | 68.50mm x 17.50mm x 2.05mm | 58.22mm L x 13.52mm W | - | 4.8V ~ 5.3V | 0.57mm W x 0.67mm H | Parallel, 8-Bit | - | -40°C ~ 80°C | - | - |
|
|
MDLS-20188-C-LV-GLCD MOD 20DIG 20X1 TRANS YLW/GRN |
0 |
|
Ficha técnica |
MDL(S)-20188 | Box | Discontinued | 20.0 | 20 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 9.22mm H x 4.84mm W | 146.00mm x 33.00mm x 11.00mm | 123.00mm L x 13.00mm W | LED - Yellow/Green | 4.8V | 0.92mm W x 1.10mm H | Parallel | - | -5°C ~ 50°C | - | - |
|
|
O016N002EWPP5N0000OLED MODULE 32DIG 16 X 2 PASSIVE |
0 |
|
Ficha técnica |
- | Tray | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | OLED | Passive | 5.55mm H x 2.95mm W | 84.00mm x 44.00mm x 10.00mm | 66.00mm L x 16.00mm W | - | 5V | 0.55mm W x 0.65mm H | SPI | - | - | White | - |
|
|
MDLS-20265-LV-GLED4GLCD MOD 40DIG 20X2 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-20265 | Bulk | Active | 40.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 10.00mm | 83.00mm L x 18.60mm W | LED - Green | 5V | 0.60mm W x 0.65mm H | Parallel | - | -5°C ~ 50°C | Black | Green |
|
O162A-CW-SS3OLED MOD 32DIG 16 X 2 REFLECTIVE |
4 |
|
Ficha técnica |
- | Box | Active | 32.0 | 16 x 2 | 5 x 8 Dots | OLED | Reflective | 5.57mm H x 2.97mm W | 85.00mm x 30.00mm x 9.70mm | 58.22mm L x 13.52mm W | LED | 2.7V ~ 3.5V | 0.57mm W x 0.67mm H | Parallel, 8-Bit | KS0066 | -40°C ~ 85°C | - | - |
|
NHD-0220JZ-FL-GBWLCD MOD 40DIG 20X2 TRANS YLW/GRN |
0 |
|
Ficha técnica |
- | Box | Active | 40.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 12.70mm H x 5.90mm W | 182.00mm x 60.00mm x 14.00mm | 147.00mm L x 35.20mm W | LED - Yellow/Green | 4.7V ~ 5.5V | 1.10mm W x 1.50mm H | Parallel | S6A0069 | -20°C ~ 70°C | Blue | Green |
|
NHD-0220JZ-FSB-GBWLCD MOD 40DIG 20X2 TRANSFLCT BLU |
0 |
|
Ficha técnica |
- | Bulk | Active | 40.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 12.70mm H x 5.90mm W | 182.00mm x 60.00mm x 14.00mm | 147.00mm L x 35.20mm W | LED - Blue | 4.7V ~ 5.5V | 1.10mm W x 1.50mm H | Parallel | S6A0069 | -20°C ~ 70°C | Blue | Blue |
|
|
MOP-AL204A-BBTW-25E-3INLCD MODULE 80 DIG 20 X 4 |
0 |
|
Ficha técnica |
- | Bulk | Active | 80.0 | 20 x 4 | 5 x 8 Dots | LCD - Monochrome | - | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 15.00mm | 70.40mm L x 20.80mm W | - | 5V | - | I2C, RS-232, TTL | - | 0°C ~ 50°C | White | Blue |
