LCD, caractere OLED e numérico
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Número de caracteres | Formato de exibição | Formato do caractere | Tipo de Exibição | Modo de exibição | Tamanho do caractere | Contorno C x L x A | Área de visualização | Luz de fundo | Voltagem - Alimentação | Tamanho do ponto | Interface | Tipo de Controlador | Temperatura operacional | Cor do texto | Cor do fundo |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MOP-AL204A-BGFW-25E-3INLCD MODULE 80 DIG 20 X 4 |
0 |
|
Ficha técnica |
- | Bulk | Active | 80.0 | 20 x 4 | 5 x 8 Dots | LCD - Monochrome | - | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 15.00mm | 70.40mm L x 20.80mm W | - | 5V | - | I2C, RS-232, TTL | - | 0°C ~ 50°C | Blue | Gray/White |
|
NHD-0220JZ-FSW-GBWLCD MOD 40DIG 20X2 TRANSFLCT WHT |
0 |
|
Ficha técnica |
- | Box | Active | 40.0 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 12.70mm H x 5.90mm W | 182.00mm x 60.00mm x 14.00mm | 147.00mm L x 35.20mm W | LED - White | 4.7V ~ 5.5V | 1.10mm W x 1.50mm H | Parallel | S6A0069 | -20°C ~ 70°C | Blue | White |
|
|
MDLS-20433-LV-GLCD MOD 80 DIG 20 X 4 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-20433 | Bulk | Active | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 3.15mm H x 1.85mm W | 65.00mm x 28.40mm x 5.60mm | 46.00mm L x 18.40mm W | Without Backlight | - | 0.33mm W x 0.35mm H | Parallel | - | -5°C ~ 50°C | - | - |
|
|
MOS-AL162F-YX3SJLCD MODULE 32 DIG 16 X 2 |
0 |
|
Ficha técnica |
Economy Series | Bulk | Active | 32.0 | 16 x 2 | - | Alphanumeric | - | 4.90mm H x 2.56mm W | 69.00mm x 21.50mm x 23.00mm | 47.56mm L x 11.00mm W | - | 5V | - | I2C, RS-232, TTL | - | 0°C ~ 50°C | Black | Yellow/Green |
|
|
LCM-S02004DSF-1LCD MOD 20X4 CHAR TRNSF STN 1:00 |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
603-00006LCD MOD 32 DIG 16 X 2 REFLECTIVE |
0 |
|
Ficha técnica |
- | Box | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | LCD - Monochrome | Reflective | 5.00mm H x 3.00mm W | 81.00mm x 36.00mm x 6.00mm | 73.50mm L x 25.00mm W | - | 5V | - | Parallel | - | 0°C ~ 70°C | Gray | Green |
|
MDLS-20189-SS-LV-G-LED-04-GLCD MOD 20DIG 20X1 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-20189 | - | Obsolete | 20.0 | 20 x 1 | 5 x 7 Dots w/Cursor | STN - Super-Twisted Nematic | Transflective | 9.40mm H x 6.70mm W | 182.00mm x 33.50mm x 11.00mm | 154.00mm L x 15.30mm W | LED - Green | 5V | 1.30mm W x 1.30mm H | Parallel | - | -5°C ~ 50°C | - | Green |
|
|
MDLS-24265-LV-GLED4GLCD MOD 48DIG 24X2 REFLECTIV GRN |
0 |
|
Ficha técnica |
MDL(S)-24265 | Bulk | Active | 48.0 | 24 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 5.15mm H x 3.15mm W | 118.00mm x 36.00mm x 10.00mm | 93.50mm L x 15.80mm W | LED - Green | 5V | 0.60mm W x 0.60mm H | Parallel | - | -5°C ~ 50°C | Black | Green |
|

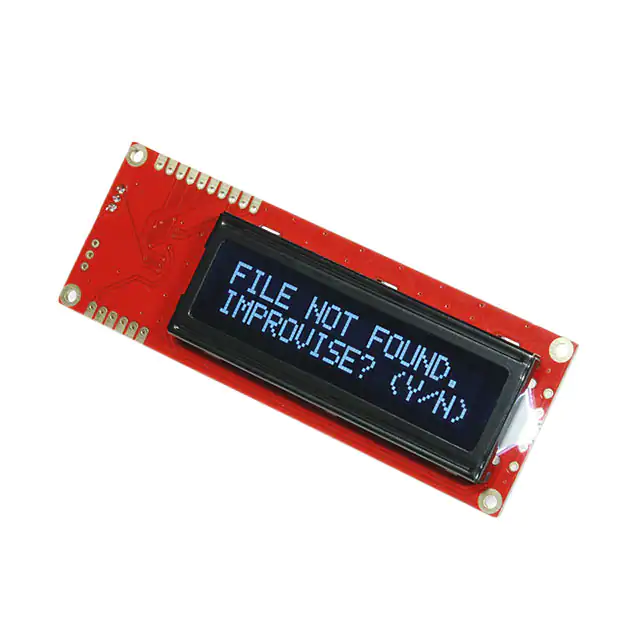

LCD-09395LCD MOD 32DIG 16X2 TRANSFLECTIVE |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.23mm H x 3.00mm W | 103.00mm x 36.00mm x 7.05mm | 71.45mm L x 27.03mm W | LED | 5V | 0.56mm W x 0.61mm H | Parallel/Serial | - | 0°C ~ 50°C | White | Black |
|
LCD-09568LCD MODULE 80 DIG 20 X 4 |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 80.0 | 20 x 4 | 5 x 8 Dots | - | - | - | - | - | LED | - | - | Parallel/Serial | - | - | Black | Green |
|
MDLS-40263-C-HT-HV-FSTN-LED3GLCD MOD 80DIG 40X2 TRANSFLCT GRN |
0 |
|
Ficha técnica |
MDL(S)-40263 | Box | Active | 80.0 | 40 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 3.15mm H x 1.85mm W | 108.00mm x 20.00mm x 9.60mm | 89.00mm L x 10.00mm W | LED - Green | 5V | 0.33mm W x 0.35mm H | Parallel | - | -20°C ~ 70°C | - | - |
|
|
WEH002004ALPP5N0010020x4 Character OLED Display |
2 |
|
Ficha técnica |
- | Tray | Active | 80.0 | 20 x 4 | 5 x 8 Dots | OLED | Passive | - | 98.00mm x 60.00mm x 10.00mm | 77.00mm L x 25.20mm W | Without Backlight | 4.8V ~ 5.3V | 0.54mm W x 0.55mm H | - | WS0010-TX | -40°C ~ 80°C | - | Yellow |
|
|
MDLS-20464-LV-GLCD MOD 80 DIG 20 X 4 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-20464 | Bulk | Active | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 7.10mm | 76.00mm L x 25.20mm W | Without Backlight | 5V | 0.50mm W x 0.50mm H | Parallel | - | -5°C ~ 50°C | - | - |
|
|
MDLS-16465-LV-GLCD MOD 64 DIG 16 X 4 REFLECTIVE |
0 |
|
Ficha técnica |
MDL(S)-16465 | Bulk | Active | 64.0 | 16 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 4.75mm H x 2.95mm W | 87.00mm x 60.00mm x 6.60mm | 61.80mm L x 25.20mm W | Without Backlight | 5V | 0.55mm W x 0.55mm H | Parallel | - | -5°C ~ 50°C | - | - |
|
EA DIP162J-DN3LWLCD MOD 32DIG 16X2 TRANSMISV WHT |
0 |
|
Ficha técnica |
EA DIP162-D | Tray | Active | 32.0 | 16 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transmissive | 6.68mm H x 2.96mm W | 66.00mm x 26.80mm x 10.80mm | 61.00mm L x 19.00mm W | LED - White | 5V | 0.56mm W x 0.80mm H | Parallel, 8-Bit | - | -20°C ~ 70°C | Black | White |
|
|
LCM-H04002DWN-1GLCD MODULE 80 DIG 40 X 2 GRN |
0 |
|
Ficha técnica |
- | Bulk | Active | 80.0 | 40 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | - | 5.55mm H x 3.20mm W | 182.00mm x 33.50mm x 12.70mm | 154.00mm L x 15.30mm W | LED - Green | 4.5V ~ 5.5V | 0.60mm W x 0.65mm H | - | - | -20°C ~ 70°C | - | - |
|
|
WEH001602HBPP5N00100OLED 16x2 Character Display |
2 |
|
Ficha técnica |
- | Tray | Active | 32.0 | 16 x 2 | 5 x 8 Dots | OLED | Passive | - | 122.00mm x 44.00mm x 10.00mm | 98.00mm L x 21.00mm W | Without Backlight | 4.8V ~ 5.3V | 0.90mm W x 1.06mm H | - | WS0010-TX | -40°C ~ 80°C | - | Blue |
|
|
O016N002HGPP5N0000OLED MODULE 32DIG 16 X 2 PASSIVE |
0 |
|
- |
- | Tray | Active | 32.0 | 16 x 2 | 5 x 8 Dots | OLED | Passive | 4.74mm H x 8.90mm W | 122.00mm x 44.00mm x 10.00mm | 98.00mm L x 21.00mm W | - | 4.8V ~ 5.3V | 0.90mm W x 1.06mm H | Parallel, 8-Bit | - | -40°C ~ 80°C | Green | - |
|
|
O016N002HBPP5N0000OLED MODULE 32DIG 16 X 2 PASSIVE |
0 |
|
- |
- | Tray | Active | 32.0 | 16 x 2 | 5 x 8 Dots | OLED | Passive | 4.74mm H x 8.90mm W | 122.00mm x 44.00mm x 10.00mm | 98.00mm L x 21.00mm W | - | 4.8V ~ 5.3V | 0.90mm W x 1.06mm H | Parallel, 8-Bit | - | -40°C ~ 80°C | Blue | - |
|
|
MOS-AL162A-BW3SELCD MODULE 32 DIG 16 X 2 |
0 |
|
Ficha técnica |
Economy Series | Bulk | Active | 32.0 | 16 x 2 | - | Alphanumeric | - | 5.55mm H x 2.95mm W | 80.00mm x 36.00mm x 25.60mm | 56.20mm L x 11.50mm W | - | 5V | - | I2C, RS-232, TTL | - | 0°C ~ 50°C | White | Blue |
