Iluminação colorida de LED
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Pacote/Caixa | Embalagem | Status do produto | Cor | Comprimento de onda | Corrente - Teste | Voltagem - Direto (Vf) (Típico) | Lúmens/Watt @ corrente - Teste | Corrente - Máx. | Fluxo luminoso @ corrente/temperatura | Temperatura - Teste | Ângulo de visão | Tipo de montagem | Pacote do dispositivo do fornecedor | Tamanho/dimensão | Altura - Assentado (Máx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LA CPDP-KPKR-W3-0-350-R18LED OSLON SSL150 AMBER 615NM |
0 |
|
Ficha técnica |
OSLON® SSL 150 | 1212 (3030 Metric) | Tape & Reel (TR) | Discontinued | Amber | 615nm (609nm ~ 620nm) | 350mA | 2.2V | 104 lm/W | 1A | 80lm (71lm ~ 89lm) | 25°C | 150° | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.062" (1.58mm) |
|
|
LA CPDP-KQKS-W3-0-350-R18LED OSLON SSL150 AMBER 615NM |
0 |
|
Ficha técnica |
OSLON® SSL 150 | 1212 (3030 Metric) | Tape & Reel (TR) | Discontinued | Amber | 615nm (609nm ~ 620nm) | 350mA | 2.2V | 113 lm/W | 1A | 87lm (76lm ~ 97lm) | 25°C | 150° | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.062" (1.58mm) |
|
LB CP7P-GZHX-35-0-350-R18LED OSLON SSL80 BLUE 470NM 2SMD |
0 |
|
Ficha técnica |
OSLON® SSL 80 | 1212 (3030 Metric) | Tape & Reel (TR) | Discontinued | Blue | 470nm (464nm ~ 476nm) | 350mA | 3.2V | 26 lm/W | 1A | 29lm (24lm ~ 33lm) | 25°C | 80° | Surface Mount | 2-SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.093" (2.35mm) |
|
|
LB CPDP-GZHX-35-0-350-R18LED OSLON SSL BLU 470NM 2SMD |
0 |
|
- |
OSLON SSL | 1212 (3030 Metric) | Tape & Reel (TR) | Discontinued | Blue | 470nm (Typ) | 350mA | 3.2V | 26 lm/W | 1A | 29lm (24lm ~ 33lm) | 25°C | 150° | Surface Mount | 2-SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.062" (1.58mm) |
|

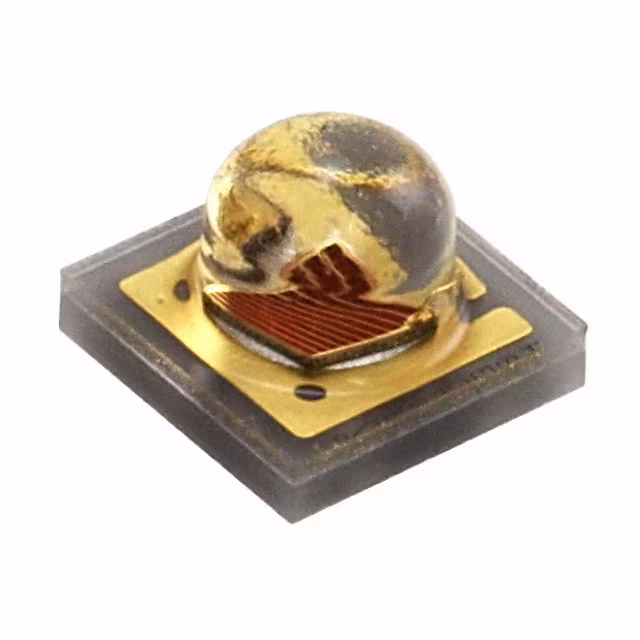

H CP7P-2T3T-1-0-350-R18LED OSLON SSL80 RED 656NM SMD |
0 |
|
Ficha técnica |
OSLON® SSL 80 | 1212 (3030 Metric) | Tape & Reel (TR) | Discontinued | Red | 656nm (646nm ~ 666nm) | 350mA | 2.1V | - | 1A | 358mW (315mW ~ 400mW) | 25°C | 80° | Surface Mount | SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.092" (2.33mm) |
|
|
LR CP7P-JRJT-1-0-350-R18LED OSLON SSL80 RED 626NM 2SMD |
0 |
|
Ficha técnica |
OSLON® SSL 80 | 1212 (3030 Metric) | Tape & Reel (TR) | Discontinued | Red | 626nm (620nm ~ 632nm) | 350mA | 2.15V | 78 lm/W | 1A | 59lm (52lm ~ 66lm) | 25°C | 80° | Surface Mount | 2-SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.093" (2.35mm) |
|
|
LR CP7P-JSJU-1-0-350-R18LED OSLON SSL80 RED 626NM 2SMD |
0 |
|
Ficha técnica |
OSLON® SSL 80 | 1212 (3030 Metric) | Tape & Reel (TR) | Discontinued | Red | 626nm (620nm ~ 632nm) | 350mA | 2.15V | 85 lm/W | 1A | 64lm (56lm ~ 71lm) | 25°C | 80° | Surface Mount | 2-SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.093" (2.35mm) |
|
|
LR CPDP-JRJT-1-0-350-R18LED OSLON SSL150 RED 626NM 2SMD |
0 |
|
Ficha técnica |
OSLON® SSL 150 | 1212 (3030 Metric) | Tape & Reel (TR) | Discontinued | Red | 626nm (620nm ~ 632nm) | 350mA | 2.15V | 78 lm/W | 1A | 59lm (52lm ~ 66lm) | 25°C | 150° | Surface Mount | 2-SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.062" (1.58mm) |
|
|
LY CP7P-JRJT-36-0-350-R18LED OSLON SSL YELLOW 590NM 2SMD |
0 |
|
Ficha técnica |
OSLON SSL | 1212 (3030 Metric) | Tape & Reel (TR) | Discontinued | Yellow | 590nm (Typ) | 350mA | 2.25V | 75 lm/W | 1A | 59lm (52lm ~ 66lm) | 25°C | 80° | Surface Mount | 2-SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.093" (2.35mm) |
|
|
LY CPDP-JRJT-36-0-350-R18LED OSLON SSL YELLOW 590NM 2SMD |
0 |
|
Ficha técnica |
OSLON SSL | 1212 (3030 Metric) | Tape & Reel (TR) | Discontinued | Yellow | 590nm (Typ) | 350mA | 2.25V | 75 lm/W | 1A | 59lm (52lm ~ 66lm) | 25°C | 150° | Surface Mount | 2-SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.062" (1.58mm) |
|
XMLCTW-A0-0000-00C3ACAA1LED XLAMP XML RGBW SMD |
0 |
|
- |
XLamp® XM-L | 2020 (5050 Metric) | Tape & Reel (TR) | Obsolete | Red, Green, Blue, White - Cool (RGBW) | 625nm Red, 528nm Green, 458nm Blue, 6850K White | 350mA Red, 350mA Green, 350mA Blue, 350mA White | 2.25V Red, 3.3V Green, 3.1V Blue, 3.1V White | 85 lm/W Red, 87 lm/W Green, 25 lm/W Blue, 101 lm/W White | 1A Red, 1A Blue, 1A Green, 1A White | 67lm Red, 101lm Green, 27lm Blue, 110lm White | 25°C | 130° | Surface Mount | SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.124" (3.15mm) |
|
|
XMLCTW-A0-0000-00C3AAA03LED XLAMP XML RGBW SMD |
0 |
|
- |
XLamp® XM-L | 2020 (5050 Metric) | Tape & Reel (TR) | Obsolete | Red, Green, Blue, White - Cool (RGBW) | 625nm Red, 528nm Green, 458nm Blue, 6850K White | 350mA Red, 350mA Green, 350mA Blue, 350mA White | 2.25V Red, 3.3V Green, 3.1V Blue, 3.1V White | 85 lm/W Red, 87 lm/W Green, 25 lm/W Blue, 101 lm/W White | 1A Red, 1A Blue, 1A Green, 1A White | 67lm Red, 101lm Green, 27lm Blue, 110lm White | 25°C | 130° | Surface Mount | SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.124" (3.15mm) |
|
|
XMLCTW-A0-0000-00C3ABA03LED XLAMP XML RGBW SMD |
0 |
|
- |
XLamp® XM-L | 2020 (5050 Metric) | Tape & Reel (TR) | Obsolete | Red, Green, Blue, White - Cool (RGBW) | 625nm Red, 528nm Green, 458nm Blue, 6850K White | 350mA Red, 350mA Green, 350mA Blue, 350mA White | 2.25V Red, 3.3V Green, 3.1V Blue, 3.1V White | 85 lm/W Red, 87 lm/W Green, 25 lm/W Blue, 101 lm/W White | 1A Red, 1A Blue, 1A Green, 1A White | 67lm Red, 101lm Green, 27lm Blue, 110lm White | 25°C | 130° | Surface Mount | SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.124" (3.15mm) |
|
|
XMLCTW-A0-0000-00C3ACA03LED XLAMP XML RGBW SMD |
0 |
|
- |
XLamp® XM-L | 2020 (5050 Metric) | Tape & Reel (TR) | Obsolete | Red, Green, Blue, White - Cool (RGBW) | 625nm Red, 528nm Green, 458nm Blue, 6850K White | 350mA Red, 350mA Green, 350mA Blue, 350mA White | 2.25V Red, 3.3V Green, 3.1V Blue, 3.1V White | 85 lm/W Red, 87 lm/W Green, 25 lm/W Blue, 101 lm/W White | 1A Red, 1A Blue, 1A Green, 1A White | 67lm Red, 101lm Green, 27lm Blue, 110lm White | 25°C | 130° | Surface Mount | SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.124" (3.15mm) |
|
|
XMLCTW-A0-0000-00C3ABA02LED XLAMP XML RGBW SMD |
0 |
|
- |
XLamp® XM-L | 2020 (5050 Metric) | Tape & Reel (TR) | Obsolete | Red, Green, Blue, White - Cool (RGBW) | 625nm Red, 528nm Green, 458nm Blue, 6850K White | 350mA Red, 350mA Green, 350mA Blue, 350mA White | 2.25V Red, 3.3V Green, 3.1V Blue, 3.1V White | 85 lm/W Red, 87 lm/W Green, 25 lm/W Blue, 101 lm/W White | 1A Red, 1A Blue, 1A Green, 1A White | 67lm Red, 101lm Green, 27lm Blue, 110lm White | 25°C | 130° | Surface Mount | SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.124" (3.15mm) |
|
|
XMLCTW-A0-0000-00C3ACCA1LED XLAMP XML RGBW SMD |
0 |
|
- |
XLamp® XM-L | 2020 (5050 Metric) | Tape & Reel (TR) | Obsolete | Red, Green, Blue, White - Cool (RGBW) | 625nm Red, 528nm Green, 458nm Blue, 6850K White | 350mA Red, 350mA Green, 350mA Blue, 350mA White | 2.25V Red, 3.3V Green, 3.1V Blue, 3.1V White | 85 lm/W Red, 87 lm/W Green, 25 lm/W Blue, 101 lm/W White | 1A Red, 1A Blue, 1A Green, 1A White | 67lm Red, 101lm Green, 27lm Blue, 110lm White | 25°C | 130° | Surface Mount | SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.124" (3.15mm) |
|
|
XMLCTW-A0-0000-00C3ACA02LED XLAMP XML RGBW SMD |
0 |
|
- |
XLamp® XM-L | 2020 (5050 Metric) | Tape & Reel (TR) | Obsolete | Red, Green, Blue, White - Cool (RGBW) | 625nm Red, 528nm Green, 458nm Blue, 6850K White | 350mA Red, 350mA Green, 350mA Blue, 350mA White | 2.25V Red, 3.3V Green, 3.1V Blue, 3.1V White | 85 lm/W Red, 87 lm/W Green, 25 lm/W Blue, 101 lm/W White | 1A Red, 1A Blue, 1A Green, 1A White | 67lm Red, 101lm Green, 27lm Blue, 110lm White | 25°C | 130° | Surface Mount | SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.124" (3.15mm) |
|
|
XMLCTW-A0-0000-00C3ABCA1LED XLAMP XML RGBW SMD |
0 |
|
- |
XLamp® XM-L | 2020 (5050 Metric) | Tape & Reel (TR) | Obsolete | Red, Green, Blue, White - Cool (RGBW) | 625nm Red, 528nm Green, 458nm Blue, 6850K White | 350mA Red, 350mA Green, 350mA Blue, 350mA White | 2.25V Red, 3.3V Green, 3.1V Blue, 3.1V White | 85 lm/W Red, 87 lm/W Green, 25 lm/W Blue, 101 lm/W White | 1A Red, 1A Blue, 1A Green, 1A White | 67lm Red, 101lm Green, 27lm Blue, 110lm White | 25°C | 130° | Surface Mount | SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.124" (3.15mm) |
|
|
XMLCTW-A0-0000-00C3ACC03LED XLAMP XML RGBW SMD |
0 |
|
- |
XLamp® XM-L | 2020 (5050 Metric) | Tape & Reel (TR) | Obsolete | Red, Green, Blue, White - Cool (RGBW) | 625nm Red, 528nm Green, 458nm Blue, 6850K White | 350mA Red, 350mA Green, 350mA Blue, 350mA White | 2.25V Red, 3.3V Green, 3.1V Blue, 3.1V White | 85 lm/W Red, 87 lm/W Green, 25 lm/W Blue, 101 lm/W White | 1A Red, 1A Blue, 1A Green, 1A White | 67lm Red, 101lm Green, 27lm Blue, 110lm White | 25°C | 130° | Surface Mount | SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.124" (3.15mm) |
|
|
XMLCTW-A0-0000-00C3AACA1LED XLAMP XML RGBW SMD |
0 |
|
- |
XLamp® XM-L | 2020 (5050 Metric) | Tape & Reel (TR) | Obsolete | Red, Green, Blue, White - Cool (RGBW) | 625nm Red, 528nm Green, 458nm Blue, 6850K White | 350mA Red, 350mA Green, 350mA Blue, 350mA White | 2.25V Red, 3.3V Green, 3.1V Blue, 3.1V White | 85 lm/W Red, 87 lm/W Green, 25 lm/W Blue, 101 lm/W White | 1A Red, 1A Blue, 1A Green, 1A White | 67lm Red, 101lm Green, 27lm Blue, 110lm White | 25°C | 130° | Surface Mount | SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.124" (3.15mm) |
