Medidores
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Tipo de medição | Faixa de medição | Tipo de Exibição | Número de caracteres por linha | Caracteres de exibição - Altura | Tipo de saída | Voltagem - Alimentação | Dimensões do Recorte do Painel | Tipo de montagem | Estilo de Terminação | Proteção de entrada | Recursos |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMR35-ACV2-AC1-RVOLTMETER PANEL 0-300VAC RED LED |
0 |
|
Ficha técnica |
DMR35-ACV | Box | Active | Voltmeter | Voltage | 0 ~ 300VAC | LCD - Red Characters | 3.5 | - | Analog | 100 ~ 264VAC | - | Panel Mount | Screw Terminal | - | - |
|
DMR35-DCV1-DC1-RSWITCH-SELECTABLE UNIPOLAR 5-50 |
0 |
|
Ficha técnica |
DMR35-DCV | Box | Active | Voltmeter | Voltage | 0 ~ 50VDC | LED - Red Characters | 3.5 | 0.450" (11.43mm) | - | 9 ~ 32VDC | - | Panel Mount | Screw Terminal | - | - |
|
DK857BPROCESS METER 4-20MA LCD PNL MT |
0 |
|
Ficha técnica |
DK807 | Bulk | Active | Process Meter | Process | 4 ~ 20mA | LCD - Red Characters, Backlight | 3.5 | 1.000" (24.90mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|

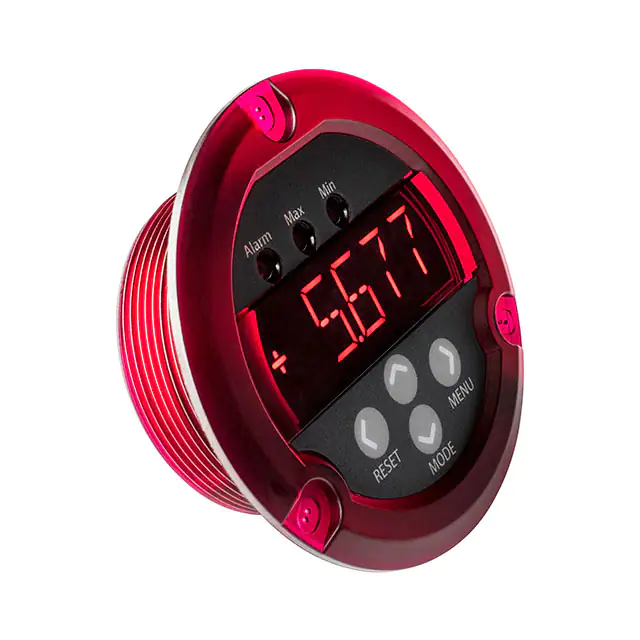

DMR30-PM1-1-DC4-R-CDC PROCESS METER, ALARM OUTPUT, |
0 |
|
Ficha técnica |
DMR30-PM1 | Bulk | Active | Process Meter | Process | 0 ~ 10VDC, 0 ~ 20mA | LED - Red Characters | 4 | 0.450" (11.43mm) | Relay (2), Solid State | 9 ~ 32VDC | Circular - 57.15mm Dia | Panel Mount | Screw Terminal | - | Excitation Supply |
|
ACM3P-4-AC1-B-28-CAMMETER 0-100A LED PANEL MOUNT |
1 |
|
Ficha técnica |
ACM3P | Box | Active | Ammeter | Current (3-Phase) | 0 ~ 100A | LED - Blue Characters | 4 | 0.360" (9.14mm) | - | 85 ~ 264VAC | Rectangular - 36.22mm x 22.10mm | Panel Mount - Surface | Screw Terminal | - | Built In Current Transformer (Primary) |
|

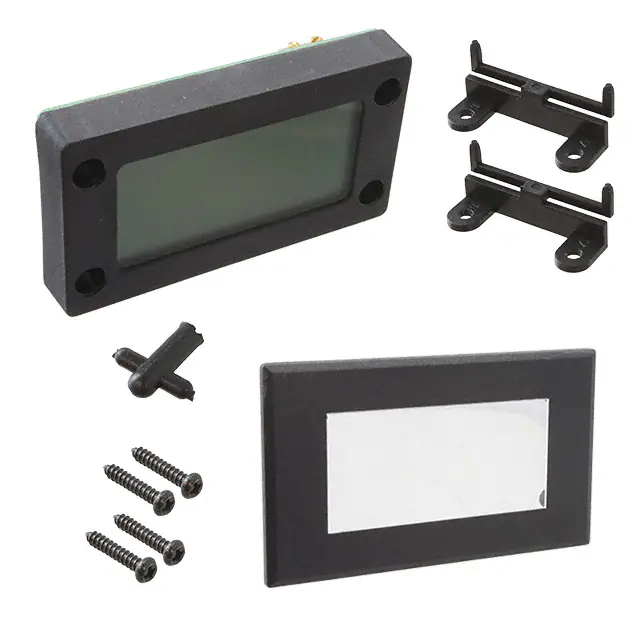

DPM 942PROCESS METER LCD PNL MOUNT |
1 |
|
Ficha técnica |
DPM | Box | Active | Ammeter | Current | 4 ~ 20mA | LCD - Black Characters | 3.5 | 0.748" (19.00mm) | - | 3.9 ~ 4.8VDC | Rectangular - 72.00mm x 40.00mm | Panel Mount | Screw Terminal | - | - |
|
K3MA-J 24VAC/VDCPROC MTR 0-20MA/10VDC LCD PNL MT |
0 |
|
Ficha técnica |
K3MA-J | Bulk | Active | Process Meter | Process | 0 ~ 20mA, ±10VDC | LCD - Dual Color Characters, Backlight | 5 | 0.560" (14.20mm) | - | 24VAC/DC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|

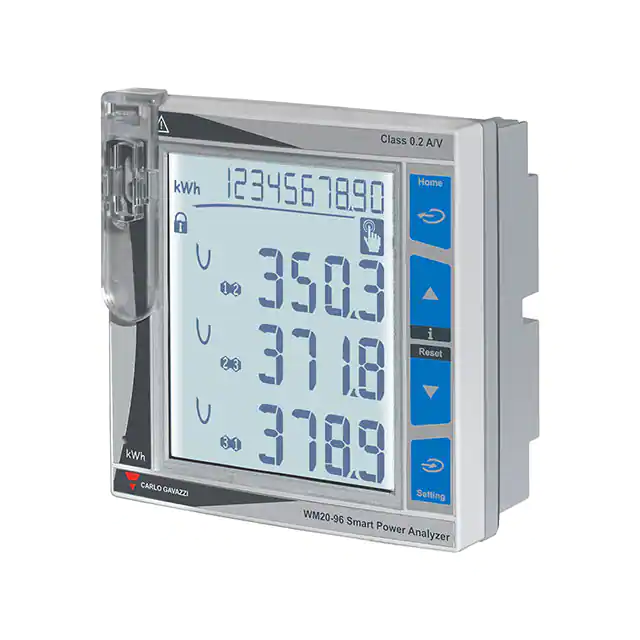

WM20AV63HSMART PWR ANALYZER 100V-5A |
1 |
|
Ficha técnica |
WM20 | Box | Active | Energy Monitor | Current (3-Phase), Voltage, Wattage | 0 ~ 6A, 100 ~ 230VAC, 40 ~ 440Hz | LCD - Black Characters, White Backlight | 4, 4, 4, 10 | 0.551" (14.00mm), 0.295" (7.50mm) | - | 100 ~ 240VAC/DC | - | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
V 600VOLTMETER 0-200MVDC LCD PNL MT |
1 |
|
Ficha técnica |
V | Box | Active | Voltmeter | Voltage | ±200mVDC | LCD - Black Characters | 3.5 | 0.600" (15.20mm) | Reference | 7 ~ 12VDC | Rectangular - 62.00mm x 32.00mm | Panel Mount | Solder Pad | - | - |
|
DMS-20LCD-2-9-CVOLTMETER 20VDC LCD PANEL MOUNT |
0 |
|
Ficha técnica |
DMS-20LCD | Box | Active | Voltmeter | Voltage | ±20VDC | LCD - Black Characters | 3.5 | 0.370" (9.40mm) | - | 9VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount | PC Pin | - | - |
|
EMV 1025S-01200MV D.C. VOLTMETER |
1 |
|
Ficha técnica |
EMV | Box | Active | Voltmeter | Voltage | ±200mV | LCD - Black Characters | 3.5 | 0.500" (12.70mm) | - | 3.5 ~ 7VDC | Circular - 5.50mm Dia | Panel Mount - Surface | Wire Leads | - | - |
|
SP 400VOLTMETER 0-200MVDC LCD PNL MT |
2 |
|
Ficha técnica |
SP | Box | Active | Voltmeter | Voltage | ±200mVDC | LCD - Black Characters, Green Backlight | 3.5 | 0.384" (9.75mm) | Reference | 3 ~ 7.5VDC | Rectangular - 34.00mm x 21.30mm | Panel Mount | PC Pin | - | - |
|
SP 200VOLTMETER 0-200MVDC LCD PNL MT |
1 |
|
Ficha técnica |
SP | Box | Active | Voltmeter | Voltage | ±200mVDC | LCD - Black Characters, Green Backlight | 3.5 | 0.384" (9.75mm) | - | 3.5 ~ 5.25VDC | Rectangular - 34.00mm x 21.30mm | Panel Mount | PC Pin | - | - |
|

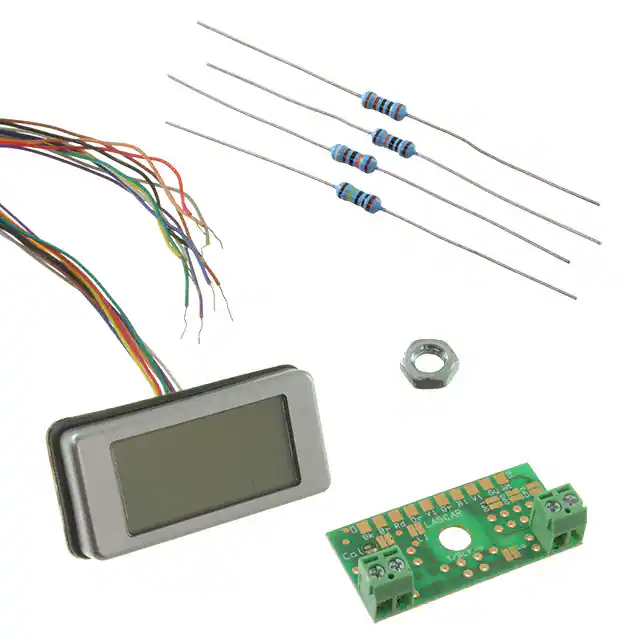

EMV 1125LCD VOLTMETER |
0 |
|
Ficha técnica |
EMV | Box | Active | Voltmeter | Voltage | ±200mV | LCD - Black Characters | 3.5 | 0.500" (12.70mm) | - | 7.5 ~ 15VDC | Circular - 5.50mm Dia | Panel Mount - Surface | Wire Leads | - | - |
|
DLA-200LCDVOLTMETER 200MVDC LCD PANEL MT |
1 |
|
Ficha técnica |
DLA-200LCD | Bulk | Active | Voltmeter | Voltage | ±200mVDC | LCD - Black Characters | 3.5 | 0.370" (9.40mm) | Reference | 5VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | PC Pin | - | Bezel Sold Separately |
|
|
DLA-201LCDVOLTMETER 2VDC LCD PANEL MOUNT |
1 |
|
Ficha técnica |
DLA-200LCD | Bulk | Active | Voltmeter | Voltage | ±2VDC | LCD - Black Characters | 3.5 | 0.370" (9.40mm) | Reference | 5VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | PC Pin | - | Bezel Sold Separately |
|
OEM 1BULTRA COMPACT LCD VOLTMETER |
4 |
|
Ficha técnica |
OEM | Box | Active | Voltmeter | Voltage | ±200mVDC | LCD - Black Characters | 3.5 | 0.315" (8.00mm) | - | 7.5 ~ 14VDC | - | Panel Mount | PC Pin | - | - |
|
DMS-20PC-2-GS-CVOLTMETER 20VDC LED PANEL MOUNT |
0 |
|
Ficha técnica |
DMS-20PC | Box | Active | Voltmeter | Voltage | ±20VDC | LED - Green Characters | 3.5 | 0.370" (9.40mm) | Reference | 5VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount | PC Pin | - | - |
|
SP 300VOLTMETER 0-200MVDC LED PNL MT |
1 |
|
Ficha técnica |
SP | Box | Active | Voltmeter | Voltage | ±200mVDC | LCD - Red Characters, Backlight | 3.5 | 0.370" (9.40mm) | - | 4.75 ~ 5.25VDC | Rectangular - 34.00mm x 21.30mm | Panel Mount | PC Pin | - | - |
|
DK561VOLTMETER 200MVDC LCD PANEL MT |
1 |
|
Ficha técnica |
DK540-580 EPIC | Box | Active | Voltmeter | Voltage | ±200mVDC | LCD - Green Characters, Backlight | 3.5 | 0.449" (11.40mm) | - | 5VDC | Rectangular - 61.00mm x 25.40mm | Panel Mount | PC Pin | - | - |
