Medidores
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Tipo de medição | Faixa de medição | Tipo de Exibição | Número de caracteres por linha | Caracteres de exibição - Altura | Tipo de saída | Voltagem - Alimentação | Dimensões do Recorte do Painel | Tipo de montagem | Estilo de Terminação | Proteção de entrada | Recursos |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP 400-BLUEVOLTMETER 0-200MVDC LCD PNL MT |
1 |
|
Ficha técnica |
SP | Box | Active | Voltmeter | Voltage | ±200mVDC | LCD - Black Characters, Green Backlight | 3.5 | 0.384" (9.75mm) | Reference | 3 ~ 7.5VDC | Rectangular - 34.00mm x 21.30mm | Panel Mount | PC Pin | - | - |
|
DK616VOLTMETER 20VDC LED PANEL MOUNT |
1 |
|
Ficha técnica |
DK610 | Box | Active | Voltmeter | Voltage | ±20VDC | LED - Red Characters | 3.5 | 0.560" (14.20mm) | - | 5VDC | Rectangular - 71.77mm x 32.02mm | Panel Mount | PC Pin | - | - |
|
DMS-30LCD-2-5-CVOLTMETER 20VDC LCD PANEL MOUNT |
0 |
|
Ficha técnica |
DMS-30LCD | Box | Active | Voltmeter | Voltage | ±20VDC | LCD - Black Characters | 3.5 | 0.401" (10.20mm) | Reference | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | - |
|
DK173VOLTMETER 20VDC LCD PANEL MOUNT |
1 |
|
Ficha técnica |
DK170 | Bulk | Active | Voltmeter | Voltage | ±20VDC | LCD - Black Characters | 3.5 | 0.512" (13.00mm) | - | 9VDC | Rectangular - 60.00mm x 30.00mm | Panel Mount | Solder Pad | - | Bezel Sold Separately |
|
DK111VOLTMETER 2VDC LCD PANEL MOUNT |
1 |
|
Ficha técnica |
DK110 | Bulk | Active | Voltmeter | Voltage | 2VDC | LCD - Black Characters | 3.5 | 0.500" (12.70mm) | - | 5VDC | Rectangular - 56.40mm x 25.40mm | Panel Mount | PC Pin | - | - |
|

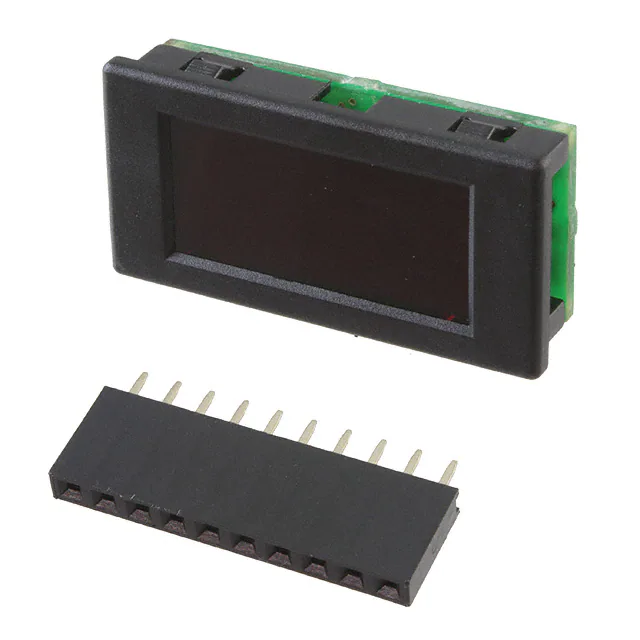

DPM 340VOLTMETER 200MVDC LED PNL MNT |
1 |
|
Ficha técnica |
DPM | Box | Active | Voltmeter | Voltage | ±200mVDC | LED - Red Characters | 3.5 | 0.315" (8.00mm) | - | 4.75 ~ 5.25VDC | Rectangular - 38.00mm x 18.00mm | Panel Mount | PC Pin | - | - |
|
DK702VOLTMETER 200MVDC LCD PANEL MT |
1 |
|
Ficha técnica |
DK700 | Bulk | Active | Voltmeter | Voltage | ±200mVDC | LCD - Black Characters | 4.5 | 0.512" (13.00mm) | - | 5VDC | Rectangular - 58.40mm x 22.40mm | Panel Mount - Surface, Window | PC Pin | - | - |
|
|
DK703VOLTMETER 2VDC LCD PANEL MOUNT |
1 |
|
Ficha técnica |
DK700 | Bulk | Active | Voltmeter | Voltage | ±2VDC | LCD - Black Characters | 4.5 | 0.512" (13.00mm) | - | 5VDC | Rectangular - 58.40mm x 22.40mm | Panel Mount - Surface, Window | PC Pin | - | - |
|

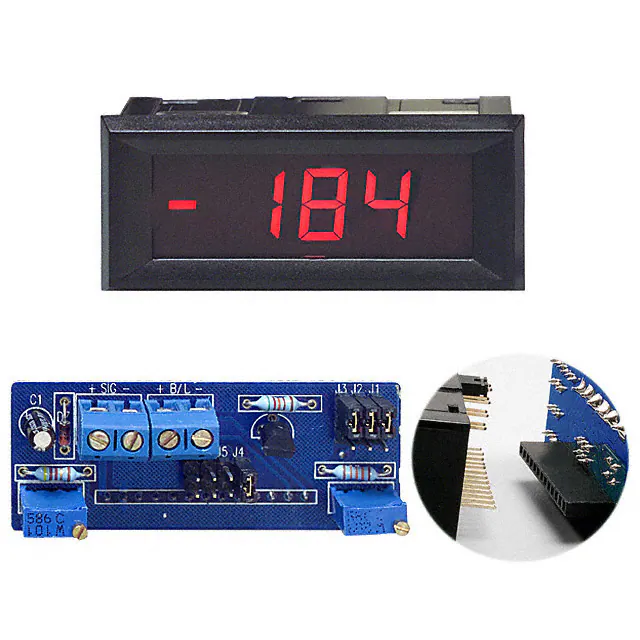

DK194PROCESS METER 4-20MA LCD PNL MT |
1 |
|
Ficha técnica |
DK191 EPIC Loop | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Red Characters, Backlight | 3.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
DK772VOLTMETER 2VDC LCD PANEL MOUNT |
1 |
|
Ficha técnica |
DK740-770 EPIC | Bulk | Active | Voltmeter | Voltage | ±2VDC | LCD - Red Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | 5VDC | Rectangular - 61.00mm x 25.40mm | Panel Mount | PC Pin | - | - |
|
DPM 2000PROCESS METER LCD PNL MOUNT |
1 |
|
Ficha técnica |
DPM | Box | Active | Voltmeter | Voltage | ±200mVDC | LCD - Black Characters | 3.5 | 0.600" (15.20mm) | Reference | 7.5 ~ 14VDC | Rectangular - 60.00mm x 29.50mm | Panel Mount | PC Pin | - | - |
|
DK573VOLTMETER 20VDC LCD PANEL MOUNT |
1 |
|
Ficha técnica |
DK540-580 EPIC | Bulk | Active | Voltmeter | Voltage | ±20VDC | LCD - Red Characters, Backlight | 3.5 | 0.449" (11.40mm) | - | 5VDC | Rectangular - 61.00mm x 25.40mm | Panel Mount | PC Pin | - | - |
|
DK198PPROC METER/VOLTMETER LCD PNL MT |
1 |
|
Ficha técnica |
DK190V EPIC | Box | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Red Characters, Backlight | 3.5 | 0.449" (11.40mm) | - | 12VDC, 24VDC (Backlight) | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
DLA20-DCA-B-2AMMETER 0-1.999MA LED PANEL MT |
1 |
|
Ficha técnica |
DLA20-DCA | Bulk | Active | Ammeter | Current | 0 ~ 1.999mA | LED - Blue Characters | 3.5 | 0.370" (9.40mm) | - | 5 ~ 40VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | - |
|
DPM 500PROCESS METER LCD PNL MOUNT |
0 |
|
Ficha técnica |
DPM | Box | Active | Voltmeter | Voltage | ±200mVDC | LCD - Black Characters | 3.5 | 0.500" (12.70mm) | Reference | 7.5 ~ 14VDC | Rectangular - 57.00mm x 27.00mm | Panel Mount | PC Pin | - | - |
|
DPM 125-BLPROCESS METER LCD PNL MOUNT |
1 |
|
Ficha técnica |
DPM | Box | Active | Voltmeter | Voltage | ±200mVDC | LCD - Black Characters, Green Backlight | 3.5 | 0.500" (12.70mm) | Reference | 7.5 ~ 14VDC | Rectangular - 45.00mm x 22.20mm | Panel Mount - Bezel, Window | PC Pin | - | - |
|
DLA20-DCM-G-2VOLTMETER 30-264VDC LED PNL MT |
1 |
|
Ficha técnica |
DLA20-DCM | Bulk | Active | Voltmeter | Voltage | 30 ~ 264VDC | LED - Green Characters | 3.5 | 0.370" (9.40mm) | - | Loop Power | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | - |
|
DLA20-DCA-R-2AMMETER 0-1.999MA LED PANEL MT |
1 |
|
Ficha técnica |
DLA20-DCA | Bulk | Active | Ammeter | Current | 0 ~ 1.999mA | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | 5 ~ 40VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | - |
|
|
DLA20-DCA-R-4AMMETER 0-199.9MA LED PANEL MT |
1 |
|
Ficha técnica |
DLA20-DCA | Bulk | Active | Ammeter | Current | 0 ~ 199.9mA | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | 5 ~ 40VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | - |
|
DPM 2000SPROCESS METER LCD PNL MOUNT |
1 |
|
Ficha técnica |
DPM | Box | Active | Voltmeter | Voltage | ±200mVDC | LCD - Black Characters | 3.5 | 0.600" (15.20mm) | Reference | 7.5 ~ 14VDC | Rectangular - 60.00mm x 29.50mm | Panel Mount | PC Pin | - | - |
