Medidores
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Tipo de medição | Faixa de medição | Tipo de Exibição | Número de caracteres por linha | Caracteres de exibição - Altura | Tipo de saída | Voltagem - Alimentação | Dimensões do Recorte do Painel | Tipo de montagem | Estilo de Terminação | Proteção de entrada | Recursos |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DLA20-DCA-G-5AMMETER 0-1.999A LED PANEL MOUNT |
0 |
|
Ficha técnica |
DLA20-DCA | Bulk | Active | Ammeter | Current | 0 ~ 1.999A | LED - Green Characters | 3.5 | 0.370" (9.40mm) | - | 5 ~ 40VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | - |
|
|
DLA20-DCA-G-6AMMETER 0-19.99A LED PANEL MOUNT |
0 |
|
Ficha técnica |
DLA20-DCA | Bulk | Active | Ammeter | Current | 0 ~ 19.99A | LED - Green Characters | 3.5 | 0.370" (9.40mm) | - | 5 ~ 40VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | - |
|

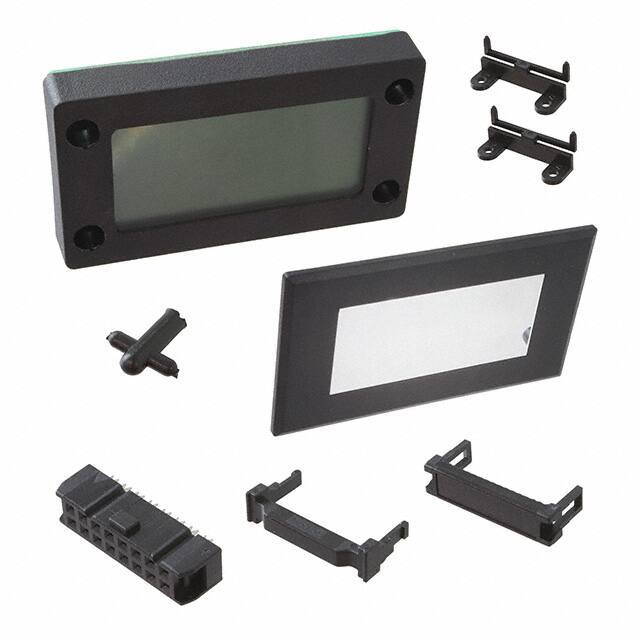

DPM 950PROCESS METER LCD PNL MOUNT |
1 |
|
Ficha técnica |
DPM | Box | Active | Voltmeter | Voltage | ±200mVDC | LCD - Black Characters, Green Backlight | 3.5 | 0.748" (19.00mm) | Reference | 7.5 ~ 14VDC | Rectangular - 72.00mm x 40.00mm | Panel Mount | PC Pin | - | - |
|
DMR35-DCMA3-DC1-RSWITCH-SELECTABLE 100/150/200/25 |
1 |
|
Ficha técnica |
DMR35-DCxA | Box | Active | Ammeter | Current | 100 ~ 250mA | LED - Red Characters | 3.5 | 0.450" (11.43mm) | - | 9 ~ 32VDC | - | Panel Mount | Screw Terminal | - | Built In Shunts |
|
DLA20-ACA5-4-AC1-RAMMETER 0-150A LED PANEL MOUNT |
0 |
|
Ficha técnica |
DLA20-ACA5 | Bulk | Active | Ammeter | Current | 0 ~ 150A | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | 85 ~ 264VAC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | - |
|
|
DLA20-ACA5-6-AC1-RAMMETER 0-250A LED PANEL MOUNT |
0 |
|
Ficha técnica |
DLA20-ACA5 | Bulk | Active | Ammeter | Current | 0 ~ 250A | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | 85 ~ 264VAC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | - |
|
|
DLA20-ACA5-7-AC1-RAMMETER 0-300A LED PANEL MOUNT |
0 |
|
Ficha técnica |
DLA20-ACA5 | Bulk | Active | Ammeter | Current | 0 ~ 300A | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | 85 ~ 264VAC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | - |
|
|
DLA20-ACA5-8-AC1-RAMMETER 0-400A LED PANEL MOUNT |
0 |
|
Ficha técnica |
DLA20-ACA5 | Bulk | Active | Ammeter | Current | 0 ~ 400A | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | 85 ~ 264VAC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | - |
|
DLA20-ACA5-6-AC1-GAMMETER 0-250A LED PANEL MOUNT |
0 |
|
Ficha técnica |
DLA20-ACA5 | Bulk | Active | Ammeter | Current | 0 ~ 250A | LED - Green Characters | 3.5 | 0.370" (9.40mm) | - | 85 ~ 264VAC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | - |
|
DK793PROCESS METER 4-20MA LCD PNL MT |
0 |
|
Ficha técnica |
DK790 EPIC Loop | Bulk | Active | Process Meter | Process | 4 ~ 20mA | LCD - Green Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
ACA-20RM-4-AC4-RL-CAMMETER 0-50A LED PANEL MOUNT |
0 |
|
Ficha técnica |
ACA-20RM | Box | Active | Ammeter | Current | 0 ~ 50A | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | 170 ~ 264VAC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | Built In Current Transformer (Primary) |
|
ET330DINAV53HS1XENERGY TRANSDUCER 3-PHASE REV.0 |
0 |
|
Ficha técnica |
ET330 | Box | Active | Energy Monitor | Current (3-Phase), Voltage, Wattage | 5A, 400 ~ 480VAC | - | - | - | - | 100 ~ 240VAC/DC | - | DIN Rail | Screw Terminal | IP20 | - |
|
EM50DINAV53HRSXENERGY METER 3-PHASE CLASS 05S |
0 |
|
Ficha técnica |
EM50 | Box | Active | Energy Monitor | Current (3-Phase), Voltage, Wattage | 0.05 ~ 10A, 100 ~ 600V | LCD - Black Characters, White Backlight | 7 | 0.315" (8.00mm) | Relay | 100 ~ 415VAC, 100 ~ 300VDC | - | DIN Rail | Screw Terminal | IP40 | - |
|
K3GN-PDT2-FLK DC24PROC MTR 4-20MA/10VDC LCD PNL MT |
1 |
|
Ficha técnica |
K3GN | Bulk | Active | Process Meter | Process | 4 ~ 20mA, ±10VDC | LCD - Dual Color Characters, Backlight | 5 | 0.275" (7.00mm) | Solid State (3) | 24VDC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Serial Communications Output |
|
K3GN-PDC-FLK 24VDCPROC MTR 4-20MA/10VDC LCD PNL MT |
1 |
|
Ficha técnica |
K3GN | Bulk | Active | Process Meter | Process | 4 ~ 20mA, ±10VDC | LCD - Dual Color Characters, Backlight | 5 | 0.275" (7.00mm) | Relay (2) | 24VDC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Serial Communications Output |
|
LDM35HHSXH2XXXX3.5 DIGIT CONTROLLER |
1 |
|
Ficha técnica |
LDM35H | Box | Active | Ammeter, Voltmeter | Current, Voltage | ±5A, ±500V | LED - Red Characters | 3.5 | 0.560" (14.20mm) | Relay (2) | 90 ~ 260VAC/DC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
2908285PANEL-MOUNT ENERGY METER WITH DI |
1 |
|
Ficha técnica |
EEM-MA | Box | Active | Energy Monitor | Current (3-Phase), Voltage, Wattage | 0 ~ 5A, 35 ~ 690VAC | LCD - Black Characters, Backlight | - | - | - | 100 ~ 400VAC, 150 ~ 250VDC | - | Panel Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant | - |
|
PCD100-24-B-N-0PROCESS CONTROL DISPLAY |
1 |
|
Ficha técnica |
PCD100 | Box | Active | Process, Temperature Meter | Process, RTD, Thermocouple | 0 ~ 20mA, ±10VDC, -200°C ~ 1260°C | LED - Red Characters | 4 | 1.200" (30.48mm) | - | 12 ~ 36VDC | - | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
K3HB-XVA 24VAC/VDCPROCESS MTR 0-400VAC LCD PNL MT |
1 |
|
Ficha técnica |
K3HB-X | Bulk | Active | Process Meter | Process | 0 ~ 400VAC | LCD - Dual Color Characters, Backlight | 5, 5 | 0.560" (14.20mm), 0.192" (4.90mm) | Option Cards Available | 24VAC/DC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Option Cards Available |
|
K3HB-XAA 100-240VACPROCESS METER 0-10A LCD PNL MT |
1 |
|
Ficha técnica |
K3HB-X | Bulk | Active | Process Meter | Process | 0 ~ 10A | LCD - Dual Color Characters, Backlight | 5, 5 | 0.560" (14.20mm), 0.192" (4.90mm) | Option Cards Available | 100 ~ 240VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Option Cards Available |
