Medidores
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Tipo de medição | Faixa de medição | Tipo de Exibição | Número de caracteres por linha | Caracteres de exibição - Altura | Tipo de saída | Voltagem - Alimentação | Dimensões do Recorte do Painel | Tipo de montagem | Estilo de Terminação | Proteção de entrada | Recursos |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCD200-24-SB-420-140PROCESS CONTROL DISPLAY |
1 |
|
Ficha técnica |
PCD200 | Box | Active | Process Meter | Process | 0 ~ 20mA, ±10VDC | LED - Red Characters | 6, 6 | 0.600" (15.20mm), 0.460" (11.68mm) | Analog | 12 ~ 24VDC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
WM40AV63HWM40-96 BASE 100V-5A IN REV.0 |
1 |
|
Ficha técnica |
WM40 | Box | Active | Energy Monitor | Current (3-Phase), Voltage, Wattage | 0 ~ 6A, 100 ~ 208VAC, 40 ~ 440Hz | LCD - Black Characters, White Backlight | 4, 4, 4, 4, 10 | 0.551" (14.00mm), 0.295" (7.50mm) | - | 100 ~ 240VAC/DC | - | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|

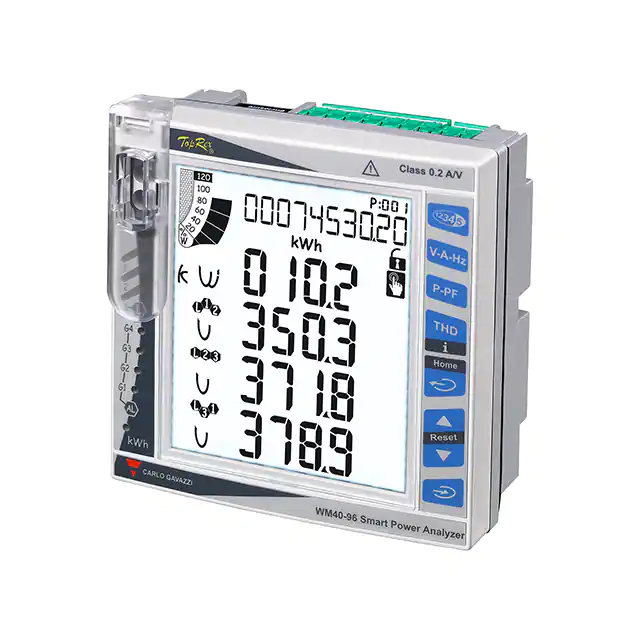

WM40AV53HWM40-96 BASE 400V-5A IN REV.0 |
1 |
|
Ficha técnica |
WM40 | Box | Active | Energy Monitor | Current (3-Phase), Voltage, Wattage | 0 ~ 6A, 380 ~ 690VAC, 40 ~ 440Hz | LCD - Black Characters, White Backlight | 4, 4, 4, 4, 10 | 0.551" (14.00mm), 0.295" (7.50mm) | - | 100 ~ 240VAC/DC | - | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
MA335-230VAC3 DIGITAL AMMETER WITH LED DISPL |
0 |
|
Ficha técnica |
MA335 | Box | Active | Ammeter | Current | 0.05 ~ 6A | LED - Red Characters | 4 | 0.560" (14.22mm) | - | 230VAC | Square - 92.00mm x 92.00mm | Panel Mount - Bezel | Screw Terminal | - | - |
|
|
MFM391DIGITAL MULTIFUNCTION METER WITH |
0 |
|
Ficha técnica |
- | Box | Active | Multifunction Meter | Current, Frequency, Voltage | 0.02 ~ 6A, 11 ~ 519VAC, 45 ~ 65Hz | LED - Red Characters | 3, 3, 3 | - | - | 85 ~ 276VAC | Square - 90.50mm x 90.50mm | Panel Mount - Bezel | Screw Terminal | - | - |
|
|
MX300-1-C-CESINGLE PHASE MULTIFUNCTION DIGIT |
0 |
|
Ficha técnica |
MX300 | Box | Active | Multifunction Meter | Current, Frequency, Voltage | 0.04 ~ 5A, 20 ~ 519VAC, 45 ~ 65Hz | LED - Red Characters | 4 | 0.472" (12.00mm) | Relay | 85 ~ 300VAC/DC | Square - 91.50mm x 91.50mm | Panel Mount - Bezel | Screw Terminal | IP20 | - |
|
|
MA12-75MV-DCDC DIGITAL AMMETER WITH LED DISP |
0 |
|
Ficha técnica |
MA12 | Box | Active | Ammeter | Current | 0 ~ 4960A | LED - Red Characters | 4 | 0.560" (14.22mm) | - | 240VAC | Rectangular - 92.00mm x 46.00mm | Panel Mount | Screw Terminal | IP51 - Dust Protected | - |
|
|
MA12-20A-AC1 DIGITAL AMMETER WITH LED DISPL |
0 |
|
Ficha técnica |
MA12 | Box | Active | Ammeter | Current | 0 ~ 4960A | LED - Red Characters | 4 | 0.560" (14.22mm) | - | 240VAC | Rectangular - 92.00mm x 46.00mm | Panel Mount | Screw Terminal | IP51 - Dust Protected | - |
|
|
MA2301-230V-CE3 DIGITAL AMMETER WITH LCD DISPL |
2 |
|
Ficha técnica |
MA2301 | Box | Active | Ammeter | Current | 0.05 ~ 6.2A | LCD - Blue Characters | 4 | 0.560" (14.22mm) | - | 240VAC | Square - 67.50mm x 67.50mm | Panel Mount - Bezel | Screw Terminal | IP51 - Dust Protected | - |
|
|
EM306-C-D3 KWH METER WITH LED DISPLAY AND |
0 |
|
Ficha técnica |
EM306 | Box | Active | Energy Monitor | Current, Frequency, Voltage | 1 ~ 5A, 11 ~ 519VAC, 45 ~ 65Hz | LED - Red Characters | 6 | 0.560" (14.22mm) | - | 100 ~ 240VAC | Square - 91.50mm x 91.50mm | Panel Mount - Bezel | Screw Terminal | IP54 - Dust Protected, Water Resistant | - |
|
|
EM2M-1P-C-100A-110V1 DIRECT 100A KWH METER, SELF P |
0 |
|
Ficha técnica |
- | Box | Active | Energy Monitor | Current, Frequency, Voltage | 0.5 ~ 100A, 88 ~ 130VAC, 45 ~ 65Hz | LCD - Black Characters, Backlight | 7 | - | Solid State | 88 ~ 130VAC | - | DIN Rail | Screw Terminal | - | - |
|
|
EM2M-1P-W-100A1 DIRECT 100A KWH METER, SELF PO |
0 |
|
Ficha técnica |
- | Box | Active | Energy Monitor | Current, Frequency, Voltage | 0.5 ~ 100A, 176 ~ 276VAC, 45 ~ 65Hz | LCD - Black Characters, Blue Backlight | 7 | - | - | 176 ~ 276VAC | - | DIN Rail | Screw Terminal | - | - |
|
|
EM2M-1CH-C-DC-1RODC ENERGY METER IN 2M SIZE WITH |
0 |
|
Ficha técnica |
- | Box | Active | Energy Monitor | Current, Frequency, Voltage | 0.5 ~ 100A, 176 ~ 276VAC, 45 ~ 65Hz | LCD - Black Characters, Blue Backlight | 7 | - | Relay | 18 ~ 30VDC | - | DIN Rail | Screw Terminal | - | - |
|
|
EM2M-1CH-C-DC-DLDC ENERGY METER IN 2M SIZE WITH |
0 |
|
Ficha técnica |
- | Box | Active | Energy Monitor | Current, Frequency, Voltage | 0.5 ~ 100A, 176 ~ 276VAC, 45 ~ 65Hz | LCD - Black Characters, Blue Backlight | 7 | - | - | 18 ~ 30VDC | - | DIN Rail | Screw Terminal | - | - |
|
|
PIC352-11-U-0-1PROCESS INDICATOR WITH 24BIT UNI |
0 |
|
Ficha técnica |
- | Box | Active | Process Meter | Process | 0 ~ 20mA, -0.005 ~ 10VDC | LCD - Black Characters, Green Backlight | 4 | - | Solid State | 90 ~ 270VAC/DC | - | Panel Mount - Bezel | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
|
EM4M-3P-W-100A3 DIRECT 100A KWH METER, 85 TO |
0 |
|
Ficha técnica |
- | Box | Active | Energy Monitor | Current, Frequency, Voltage | 0.5 ~ 100A, 176 ~ 276VAC, 45 ~ 65Hz | LCD - Black Characters, Blue Backlight | 7 | - | Solid State | 85 ~ 494VAC | - | DIN Rail | Screw Terminal | - | - |
|
|
DP20-A1MULTI-SIGNAL PANEL METER, UNIVER |
0 |
|
Ficha técnica |
- | Bulk | Active | Process, Temperature Meter | Current, RTD, Thermister, Thermocouple, Voltage | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10V | LED - Red Characters | 4 | 0.550" (13.97mm) | Relay | 18 ~ 265VAC | Rectangular - 92.20mm x 44.20mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant, NEMA 4 | - |
|
|
1423550000POWER MONITOR |
1 |
|
Ficha técnica |
- | Box | Active | Energy Monitor | Current (3-Phase), Frequency, Voltage, Temperature | -100°C ~ 100°C, 1 ~ 5A, 0 ~ 500VAC, 0 ~ 99.99Hz | - | 5, 5, 5, 6 | - | - | 100 ~ 240VAC, 100 ~ 300VDC | - | Panel Mount | Screw Terminal | IP51 - Dust Protected | - |
|

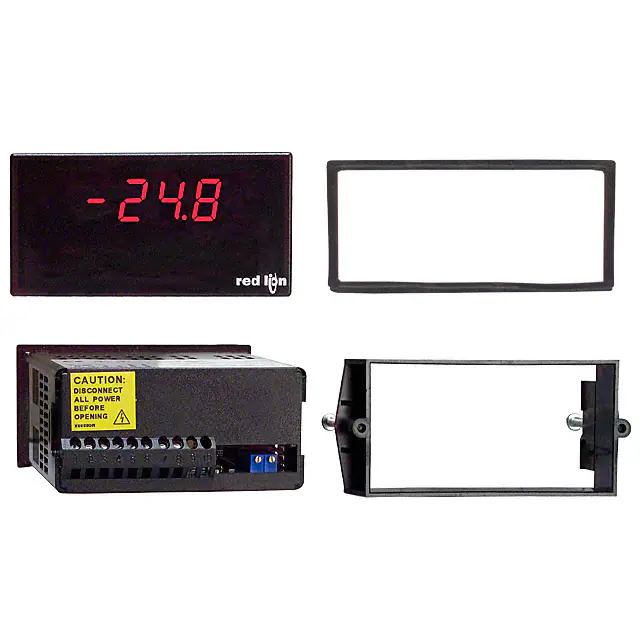

PAXLPV00PROCESS METER 25VDC LED PNL MT |
1 |
|
Ficha técnica |
PAX®LITE PAXLPV | Bulk | Active | Process Meter | Process | ±25VDC | LED - Red Characters | 3.5 | 0.560" (14.20mm) | - | 85 ~ 250VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Excitation Supply |
|

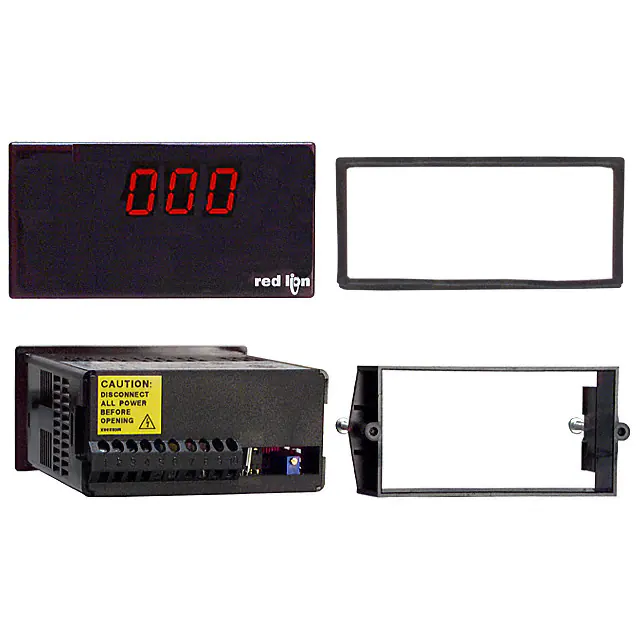

PAXLVA00VOLTMETER 0-300VDC LED PANEL MT |
1 |
|
Ficha técnica |
PAX®LITE PAXLV | Bulk | Active | Voltmeter | Voltage | 0 ~ 300VAC | LED - Red Characters | 3.5 | 0.560" (14.20mm) | - | 115VAC, 230VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
