Medidores
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Tipo de medição | Faixa de medição | Tipo de Exibição | Número de caracteres por linha | Caracteres de exibição - Altura | Tipo de saída | Voltagem - Alimentação | Dimensões do Recorte do Painel | Tipo de montagem | Estilo de Terminação | Proteção de entrada | Recursos |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BDR-924BPROCESS MTR/VOLTMTR LED CHAS MT |
0 |
|
Ficha técnica |
BDR | Box | Active | Process Meter | Process | ±20VDC | LED - Blue Characters | 3.5 | 2.300" (58.40mm) | - | 10.5 ~ 30VAC/DC | Rectangular - 264.00mm x 100.80mm | Chassis Mount - Bracket; Panel Mount | Screw Terminal | - | - |
|
|
BDR-924GPROCESS MTR/VOLTMTR LED CHAS MT |
0 |
|
Ficha técnica |
BDR | Box | Active | Process Meter | Process | ±20VDC | LED - Green Characters | 3.5 | 2.300" (58.40mm) | - | 10.5 ~ 30VAC/DC | Rectangular - 264.00mm x 100.80mm | Chassis Mount - Bracket; Panel Mount | Screw Terminal | - | - |
|
|
MFM374-CUMULTI METER, 1/4DIN, LED |
0 |
|
- |
MFM | Bulk | Active | Multifunction Meter | Current (3-Phase), Voltage | 0.01 ~ 5A, 11 ~ 519VAC | LED - Red Characters | 4, 4, 4 | - | Solid State | 85 ~ 270VAC | Square - 91.50mm x 91.50mm | DIN Rail | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
|
EM511DINAV81XO1SFA1-PH ENERGY METER 45A DIG OUTPUT |
0 |
|
Ficha técnica |
EM511 | Box | Active | Energy Monitor | Current, Frequency, Voltage | 5 ~ 45A, 120 ~ 240VAC, 50 ~ 60Hz | LCD - Black Characters, Backlight | 6 | - | Digital | 230VAC | - | DIN Rail | Screw Terminal | IP40 | Hour Meter |
|
|
EM511DINAV81XO1PFA1-PH ENERGY METER 45A DIG OUTPUT |
0 |
|
Ficha técnica |
EM511 | Box | Active | Energy Monitor | Current, Frequency, Voltage | 5 ~ 45A, 120 ~ 240VAC, 50 ~ 60Hz | LCD - Black Characters, Backlight | 6 | - | Digital | 230VAC | - | DIN Rail | Screw Terminal | IP40 | Hour Meter |
|
EM530DINAV53XO1X3-PH ENERGY METER CT 5A DIG OUTP |
0 |
|
Ficha técnica |
EM530 | Box | Active | Energy Monitor | Current (3-Phase), Voltage, Wattage | 0 ~ 5A, 208 ~ 415VAC, 45 ~ 65Hz | LCD - Black Characters, Blue Backlight | 8 | - | - | 120 ~ 415VAC | - | DIN Rail | Screw Terminal | IP40 | - |
|
|
EM511DINAV81XO1PFB1-PH ENERGY METER 45A DIG OUTPUT |
0 |
|
Ficha técnica |
EM511 | Box | Active | Energy Monitor | Current, Frequency, Voltage | 5 ~ 45A, 120 ~ 240VAC, 50 ~ 60Hz | LCD - Black Characters, Backlight | 6 | - | Digital | 230VAC | - | DIN Rail | Screw Terminal | IP40 | Hour Meter |
|
|
APLIA400AMMETER 0-199.9MA LED PANEL MT |
0 |
|
Ficha técnica |
Apollo | Box | Obsolete | Ammeter | Current | 0 ~ 199.9mA | LED - Red Characters | 3.5 | 0.560" (14.20mm) | - | 115VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
|
APLIA410AMMETER 0-199.9MA LED PANEL MT |
0 |
|
Ficha técnica |
Apollo | Box | Obsolete | Ammeter | Current | 0 ~ 199.9mA | LED - Red Characters | 3.5 | 0.560" (14.20mm) | - | 230VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
|
APLVA400VOLTMETER 0-300VDC LED PANEL MT |
0 |
|
Ficha técnica |
Apollo | Box | Obsolete | Voltmeter | Voltage | 0 ~ 300VDC | LED - Red Characters | 3.5 | 0.560" (14.20mm) | - | 115VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
|
APLVA410VOLTMETER 0-300VDC LED PANEL MT |
0 |
|
Ficha técnica |
Apollo | Box | Obsolete | Voltmeter | Voltage | 0 ~ 300VDC | LED - Red Characters | 3.5 | 0.560" (14.20mm) | - | 230VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
CUB4I000AMMETER 199.9MA LCD PANEL MOUNT |
0 |
|
Ficha técnica |
CUB4I | Box | Obsolete | Ammeter | Current | ±199.9mA | LCD - Black Characters | 3.5 | 0.600" (15.20mm) | - | 9 ~ 28VDC | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
|
DPM-C520POWER METER, STANDARD, CE, UL |
0 |
|
- |
DPM | Box | Not For New Designs | Energy Monitor | Current (3-Phase), Voltage, Wattage | 1 ~ 5A, 35 ~ 690VAC, 45 ~ 70Hz | LCD - Black Characters | 4, 4, 4, 8 | - | - | 80 ~ 265VAC | - | Panel Mount | - | IP54 - Dust Protected, Water Resistant | - |
|
|
VAF36-DEMODIGITAL METER DEMO VAF36A MV507 |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EM511DINAV81XS1PFA1-PH ENERGY METER 45A RS485 + DI |
0 |
|
Ficha técnica |
EM511 | Box | Active | Energy Monitor | Current, Frequency, Voltage | 5 ~ 45A, 120 ~ 240VAC, 50 ~ 60Hz | LCD - Black Characters, Backlight | 6 | - | Serial | 230VAC | - | DIN Rail | Screw Terminal | IP40 | Hour Meter |
|
|
EM511DINAV81XS1SFA1-PH ENERGY METER 45A RS485 + DI |
0 |
|
Ficha técnica |
EM511 | Box | Active | Energy Monitor | Current, Frequency, Voltage | 5 ~ 45A, 120 ~ 240VAC, 50 ~ 60Hz | LCD - Black Characters, Backlight | 6 | - | Serial | 230VAC | - | DIN Rail | Screw Terminal | IP40 | Hour Meter |
|
|
EM511DINAV81XM1X1-PH ENERGY METER 45A M-BUS + DI |
0 |
|
Ficha técnica |
EM511 | Box | Active | Energy Monitor | Current, Frequency, Voltage | 5 ~ 45A, 120 ~ 240VAC, 50 ~ 60Hz | LCD - Black Characters, Backlight | 6 | - | - | 120 ~ 240VAC | - | DIN Rail | Screw Terminal | IP40 | Hour Meter |
|
|
EM511DINAV81XS1PFB1-PH ENERGY METER 45A RS485 + DI |
0 |
|
Ficha técnica |
EM511 | Box | Active | Energy Monitor | Current, Frequency, Voltage | 5 ~ 45A, 120 ~ 240VAC, 50 ~ 60Hz | LCD - Black Characters, Backlight | 6 | - | Serial | 230VAC | - | DIN Rail | Screw Terminal | IP40 | Hour Meter |
|

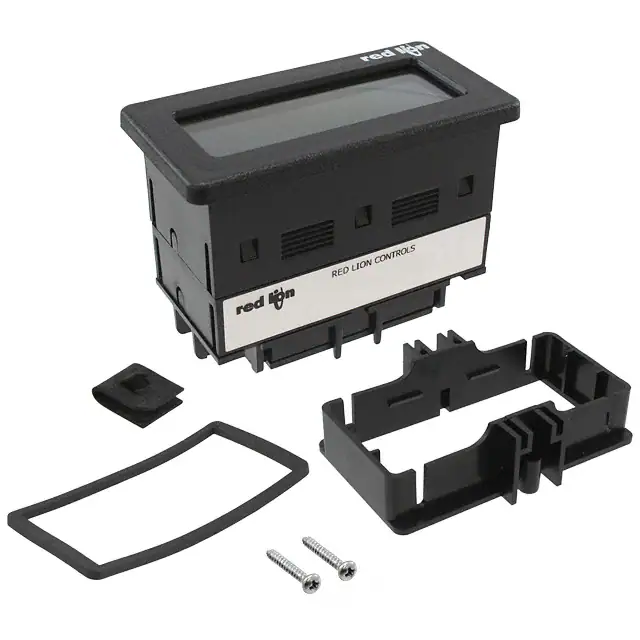

CUB4CL10PROCESS METER 4-50MA LCD PNL MT |
0 |
|
Ficha técnica |
CUB4CL | Box | Obsolete | Process Meter | Process | 4 ~ 50mA | LCD - Black Characters, Green Backlight | 3.5 | 0.600" (15.20mm) | - | Loop Power, 9 ~ 28VDC (Backlight) | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
CUB4CL20PROCESS METER 4-50MA LCD PNL MT |
0 |
|
Ficha técnica |
CUB4CL | Box | Obsolete | Process Meter | Process | 4 ~ 50mA | LCD - Red Characters, Backlight | 3.5 | 0.600" (15.20mm) | - | Loop Power, 9 ~ 28VDC (Backlight) | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
