Relés de potência, acima de 2 amperes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Tensão da bobina | Forma de contato | Classificação de contato (corrente) | Tensão de comutação | Carga - Comutação Máxima | Corrente da bobina | Tipo de bobina | Recursos | Estilo de Terminação | Classificação de Vedação | Isolamento da Bobina | Tensão de operação obrigatória | Tensão de liberação obrigatória | Tempo de operação | Tempo de liberação | Temperatura operacional | Material de Contato | Agência de Aprovação | Tipo de Relé | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

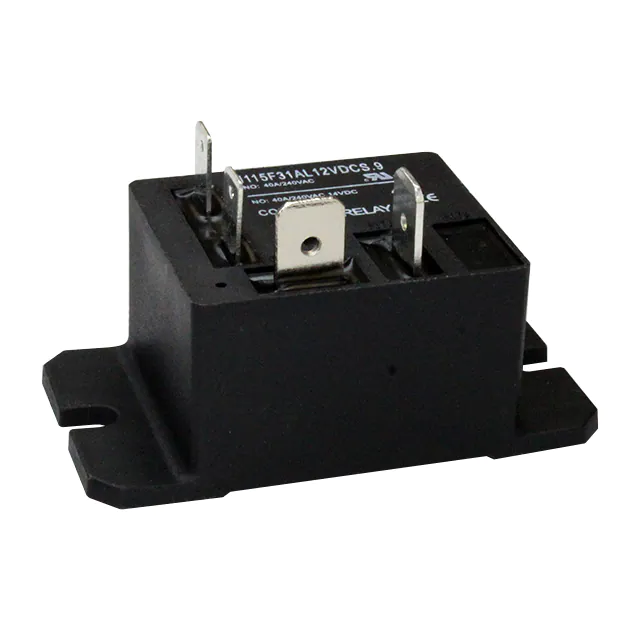

J115F31AL12VDCS.9RELAY GEN PURPOSE SPST 40A 12V |
3,052 |
|
Ficha técnica |
J115F3 | Tray | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 75 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|

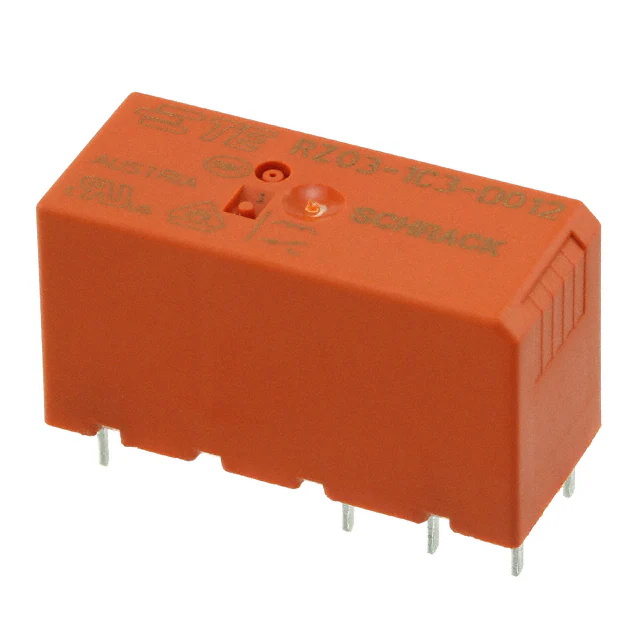

7-1415899-7RELAY GEN PURPOSE SPDT 16A 12V |
31,230 |
|
Ficha técnica |
RZ, SCHRACK | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, cURus, VDE | General Purpose | - | - |
|
JW2ASN-DC5VRELAY GEN PURPOSE DPST 5A 5V |
8,400 |
|
Ficha técnica |
JW | Tray | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 106 mA | Non Latching | - | PC Pin | Sealed - Fully | Class E | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 60°C | Silver Alloy | CQC, CSA, UR, VDE | General Purpose | - | - |
|
AZ576-1A-5DERELAY GEN PURPOSE SPST 20A 5V |
1,729 |
|
Ficha técnica |
AZ576 | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 20 A | 480VAC, 30VDC - Max | 5540VA, 510W | 80 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 8 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CUR, TUV, UL | General Purpose | - | - |
|
|
G5LE-14-AP3 DC24RELAY GEN PURPOSE SPDT 10A 24V |
988 |
|
Ficha técnica |
G5LE | Tray | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 125VDC - Max | - | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|

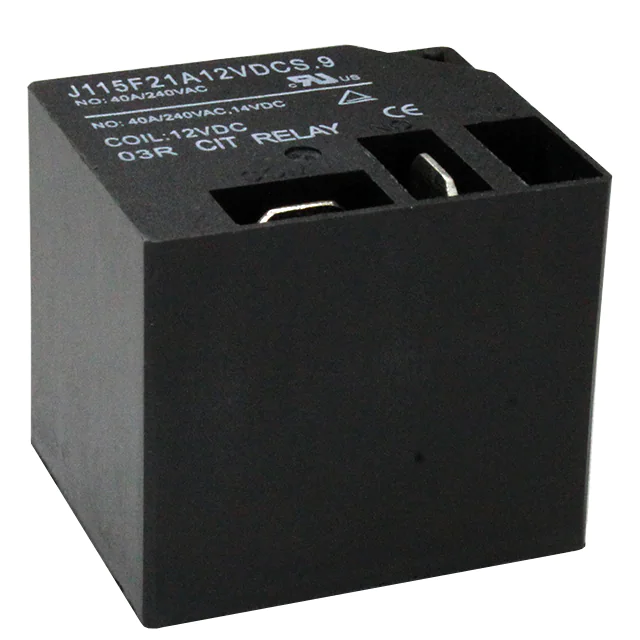

J115F21A12VDCS.9RELAY GEN PURPOSE SPST 40A 12V |
336 |
|
Ficha técnica |
J115F2 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 75 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
J115F21A12VDCS.6RELAY GEN PURPOSE SPST 40A 12V |
265 |
|
Ficha técnica |
J115F2 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 50 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
G6DN-1A-L DC24RELAY GEN PURPOSE SPST 5A 24V |
8,556 |
|
Ficha técnica |
G6DN | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 125VDC - Max | 1385VA, 625W | 7.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 16.8 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Alloy | cURus, TUV, VDE | General Purpose | - | - |
|
|
AZ2100-1A-24DERELAY GEN PURPOSE SPST 40A 24V |
1,880 |
|
Ficha técnica |
AZ2100 | Box | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 40 A | 300VAC, 30VDC - Max | 12000VA, 1200W | 36.4 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class B | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
PR23-12V-900-1ARELAY GEN PURPOSE SPST 30A 12V |
696 |
|
Ficha técnica |
PR23 | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 75 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
PR23-5V-900-1ARELAY GEN PURPOSE SPST 30A 5V |
312 |
|
Ficha técnica |
PR23 | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 179.9 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|
|
AZ2100-1AE-15DERELAY GEN PURPOSE SPST 40A 15V |
170 |
|
Ficha técnica |
AZ2100 | Box | Active | Through Hole | 15VDC | SPST-NO (1 Form A) | 40 A | 300VAC, 30VDC - Max | 12000VA, 1200W | 58.6 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class B | 11.25 VDC | 1.5 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
PTRH-1C-12S-T5-XRELAY GEN PURPOSE SPDT 30A 12V |
943 |
|
Ficha técnica |
PTRH | Tube | Active | Chassis Mount | 12VDC | SPDT (1 Form C) | 30 A | 300VAC, 110VDC - Max | 9000VA, 3300W | 80 mA | Non Latching | - | Quick Connect - Multiple Sizes | Sealed - Fully | Class B | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 100°C | Silver Cadmium Oxide (AgCdO) | CUL, cURus, UL | General Purpose | - | - |
|
AZ2100-1A-12DEFRELAY GEN PURPOSE SPST 40A 12V |
1,971 |
|
Ficha técnica |
AZ2100 | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 30VDC - Max | 12000VA, 1200W | 77.4 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
PB114005RELAY GEN PURPOSE SPDT 10A 5V |
3,960 |
|
Ficha técnica |
PB, SCHRACK | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 400VAC - Max | 4000VA | 71.4 mA | Non Latching | - | PC Pin | - | Class F | 3.75 VDC | 0.5 VDC | 10 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
G2RL-1A-E-ASI DC5RELAY GEN PURPOSE SPST 16A 5V |
416 |
|
Ficha técnica |
G2RL | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 440VAC, 300VDC - Max | 7040VA, 4800W | 80 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
G2RL-1A-E-CV DC12RELAY GEN PURPOSE SPST 16A 12V |
198 |
|
Ficha técnica |
G2RL | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 440VAC, 300VDC - Max | 7040VA, 4800W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
PR21-12V-400-2ARELAY GEN PURPOSE DPST 8A 12V |
969 |
|
Ficha técnica |
PR21 | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 8 A | 440VAC, 120VDC - Max | 3520VA, 960W | 33.3 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | cURus | General Purpose | - | - |
|
AZ2100-1A-24DEFRELAY GEN PURPOSE SPST 40A 24V |
2,879 |
|
Ficha técnica |
AZ2100 | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 30VDC - Max | 12000VA, 1200W | 36.4 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
J117F1CS24VDCRELAY GEN PURPOSE SPDT 10A 24V |
1,993 |
|
Ficha técnica |
J117F | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 400VAC, 150VDC - Max | 4000VA, 1500W | 9.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
