Relés de estado sólido (SSR)
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Circuito | Tipo de saída | Voltagem - Entrada | Tensão - Carga | Corrente de Carga | Resistência no estado ligado (máx.) | Estilo de Terminação | Temperatura operacional | Pacote do dispositivo do fornecedor | Agência de Aprovação | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

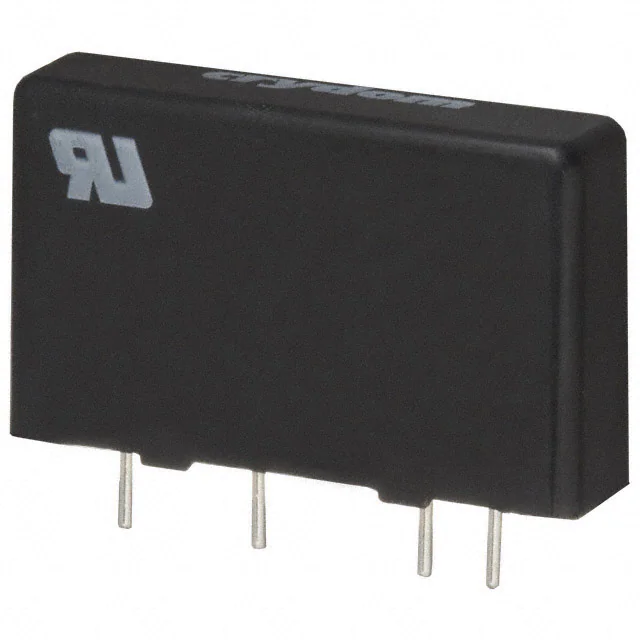

MCMX60D10SSR RELAY SPST-NO 10A 0-60V |
211 |
|
Ficha técnica |
MCMX | Bulk | Active | Through Hole | SPST-NO (1 Form A) | DC | 3 ~ 10VDC | 0 V ~ 60 V | 10 A | 18 mOhms | PC Pin | -40°C ~ 80°C | 4-SIP | CE, cURus | - | - |
|

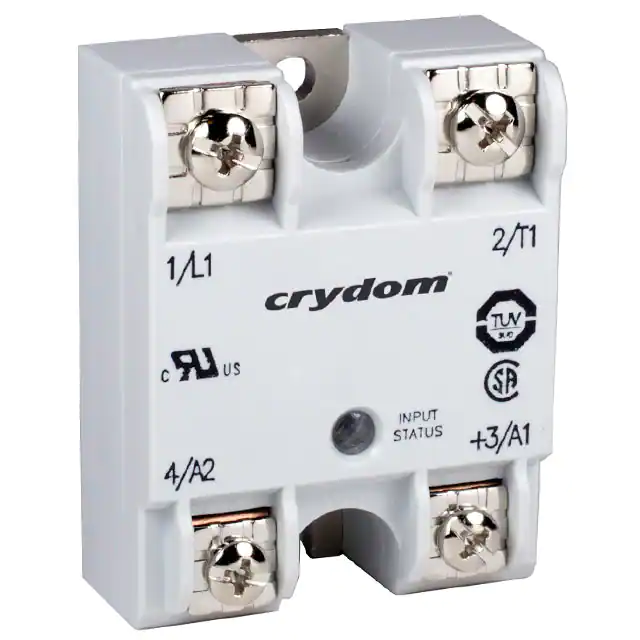

84134010SSR RELAY SPST-NO 25A 24-280V |
91 |
|
Ficha técnica |
GN | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 280 V | 25 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
G3NA-225B-UTU DC5-24SSR RELAY SPST-NO 25A 19-264V |
146 |
|
Ficha técnica |
G3NA | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 5 ~ 24VDC | 19 V ~ 264 V | 25 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, CSA, TUV, UR | - | - |
|
AQAD171DLSSR RELAY SPST-NO 10A 0-600V |
54 |
|
Ficha técnica |
AQ-A | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 4 ~ 32VDC | 0 V ~ 600 V | 10 A | 200 mOhms | Screw Terminal | -20°C ~ 80°C | - | cURus, VDE | - | - |
|

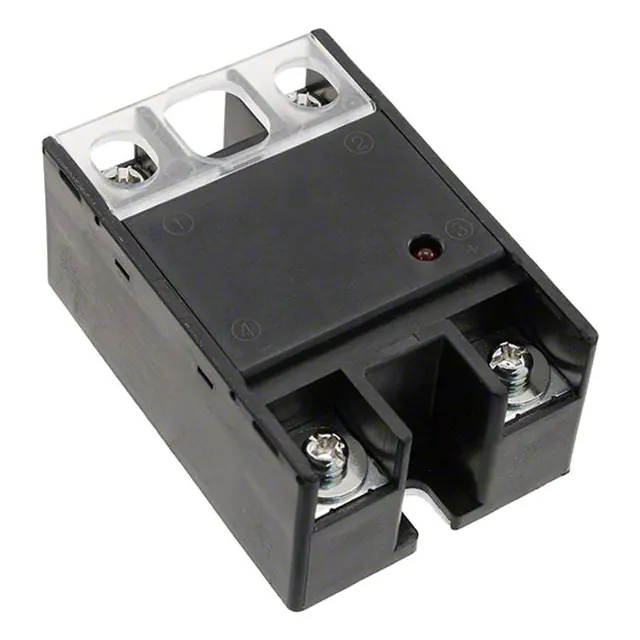

AQAD551DLSSR RELAY SPST-NO 30A 0-100V |
62 |
|
Ficha técnica |
AQ-A | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 4 ~ 32VDC | 0 V ~ 100 V | 30 A | 20 mOhms | Screw Terminal | -20°C ~ 80°C | - | cURus, VDE | - | - |
|
SSRT-240A25SSR RELAY SPST-NO 25A 24-280V |
30 |
|
Ficha técnica |
SSRT | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 90 ~ 280VAC | 24 V ~ 280 V | 25 A | - | Screw Terminal | -30°C ~ 80°C | - | cURus | - | - |
|
RM1D060D20SSR RELAY SPST-NO 20A 1-60V |
104 |
|
Ficha técnica |
RM1D | Box | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 4 ~ 32VDC | 1 V ~ 60 V | 20 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, EAC, UKCA | - | - |
|
D2425-BSSR RELAY SPST-NC 25A 24-280V |
29 |
|
Ficha técnica |
1 | Bulk | Active | Chassis Mount | SPST-NC (1 Form B) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 280 V | 25 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, TUV, UL | - | - |
|
DR06D06SSR RELAY SPST-NO 6A 1-60V |
53 |
|
Ficha técnica |
DR | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 4 ~ 32VDC | 1 V ~ 60 V | 6 A | 100 mOhms | Screw Terminal | -20°C ~ 40°C | - | CE, cULus | - | - |
|

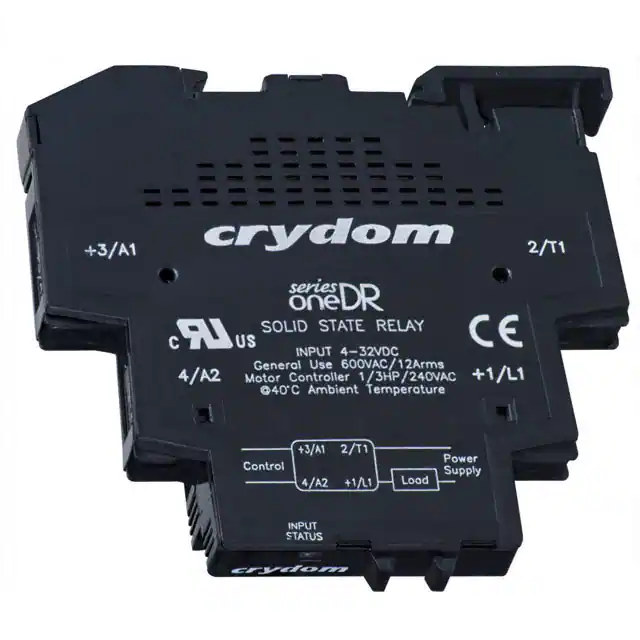

DR24D12SSR RELAY SPST-NO 12A 24-280V |
30 |
|
Ficha técnica |
DR | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 24 V ~ 280 V | 12 A | - | Screw Terminal | -20°C ~ 40°C | - | CE, cULus | - | - |
|
|
G3NA-D210B-UTU DC5-24SSR RELAY SPST-NO 10A 4-220V |
579 |
|
Ficha técnica |
G3NA | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 5 ~ 24VDC | 4 V ~ 220 V | 10 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, CSA, TUV, UR | - | - |
|
RM1A48D50SSR RELAY SPST-NO 50A 42-530V |
145 |
|
Ficha técnica |
RM | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 42 V ~ 530 V | 50 A | - | Screw Terminal | -20°C ~ 70°C | - | CCC, CE, CSA, cURus, EAC, UKCA | - | - |
|
84137670NSSR RELAY SPST-NO 40A 5-55V |
103 |
|
Ficha técnica |
GNAD | Box | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 4 ~ 32VDC | 5 V ~ 55 V | 40 A | - | Screw Terminal | -25°C ~ 90°C | - | CE, cURus | - | - |
|
D1D12SSR RELAY SPST-NO 12A 0-100V |
38 |
|
Ficha técnica |
1-DC | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 3.5 ~ 32VDC | 1 V ~ 100 V | 12 A | 130 mOhms | Screw Terminal | -40°C ~ 100°C | - | CE, cURus | - | - |
|

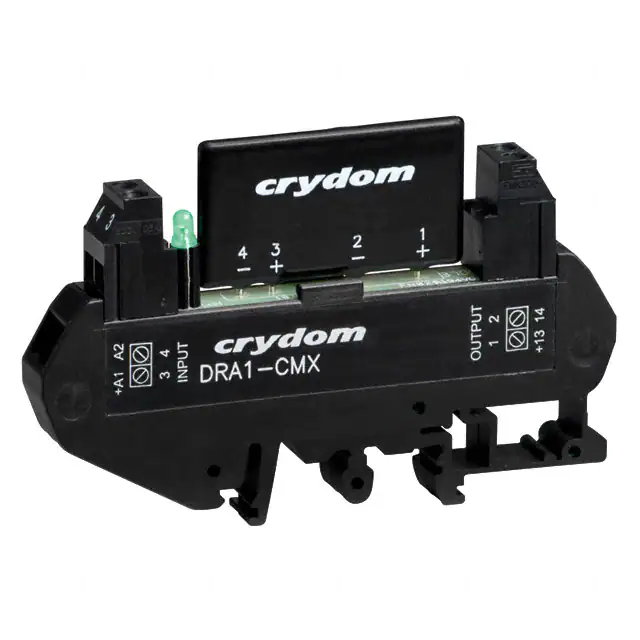

DRA1-CMX60D5SSR RELAY SPST-NO 5A 1-60V |
95 |
|
Ficha técnica |
DRA | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 3 ~ 10VDC | 1 V ~ 60 V | 5 A | 100 mOhms | Screw Terminal | -20°C ~ 80°C | - | CE, cURus | - | - |
|

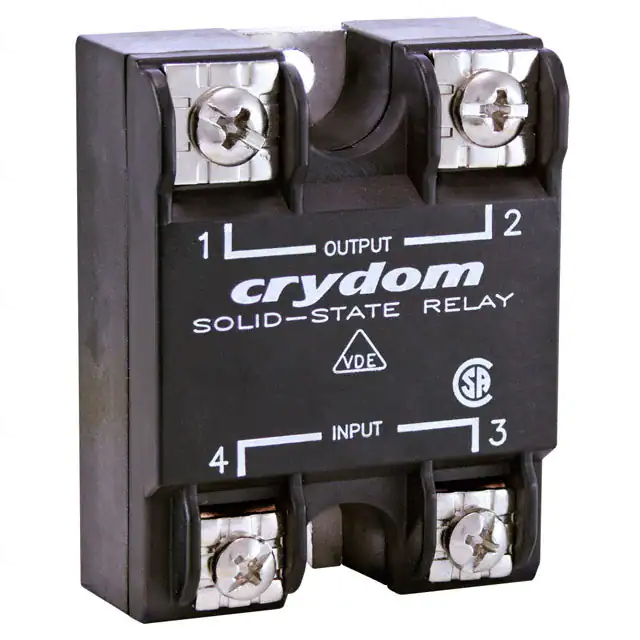

HD4850SSR RELAY SPST-NO 50A 48-530V |
69 |
|
Ficha técnica |
HD48 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 48 V ~ 530 V | 50 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
|
D2D07SSR RELAY SPST-NO 7A 0-200V |
180 |
|
Ficha técnica |
1-DC | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 3.5 ~ 32VDC | 1 V ~ 200 V | 7 A | 290 mOhms | Screw Terminal | -40°C ~ 100°C | - | CE, cURus | - | - |
|
CKRD2410SSR RELAY SPST-NO 10A 24-280V |
57 |
|
Ficha técnica |
CKR | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 24 V ~ 280 V | 10 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, TUV, UR | - | - |
|
CMXE60D20SSR RELAY SPST-NO 20A 0-60V |
61 |
|
Ficha técnica |
CMX | Bulk | Active | Through Hole | SPST-NO (1 Form A) | DC | 20 ~ 28VDC | 0 V ~ 60 V | 20 A | - | PC Pin | -10°C ~ 80°C | 4-SIP | CE, cURus | - | - |
|
DR06D12SSR RELAY SPST-NO 12A 1-60V |
52 |
|
Ficha técnica |
DR | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 4 ~ 32VDC | 1 V ~ 60 V | 12 A | 100 mOhms | Screw Terminal | -20°C ~ 40°C | - | CE, cULus | - | - |
