Relés de estado sólido (SSR)
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Circuito | Tipo de saída | Voltagem - Entrada | Tensão - Carga | Corrente de Carga | Resistência no estado ligado (máx.) | Estilo de Terminação | Temperatura operacional | Pacote do dispositivo do fornecedor | Agência de Aprovação | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AQV201ASSR RELAY SPST-NO 500MA 0-40V |
839 |
|
Ficha técnica |
PhotoMOS™ AQV | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 2.3VDC | 0 V ~ 40 V | 500 mA | 1 Ohms | Gull Wing | -40°C ~ 85°C | 6-SMD | UR | - | - |
|
CS128TRSSR RELAY SPST-NO 4.5A 0-40V |
32,052 |
|
Ficha técnica |
COTOMOS™ | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.37VDC | 0 V ~ 40 V | 4.5 A | 50 mOhms | Gull Wing | -40°C ~ 85°C | 6-SMD | - | - | - |
|
LBB127SSR RELAY SPST-NC 200MA 0-250V |
288 |
|
Ficha técnica |
LBB, OptoMOS® | Tube | Active | Through Hole | SPST-NC (1 Form B) x 2 | AC, DC | 1.2VDC | 0 V ~ 250 V | 200 mA | 10 Ohms | PC Pin | -40°C ~ 85°C | 8-DIP | CSA, EN, UL | - | - |
|
CS128SSR RELAY SPST-NO 4.5A 0-40V |
2,300 |
|
Ficha técnica |
COTOMOS™ | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.37VDC | 0 V ~ 40 V | 4.5 A | 50 mOhms | Gull Wing | -40°C ~ 85°C | 6-SMD | - | - | - |
|

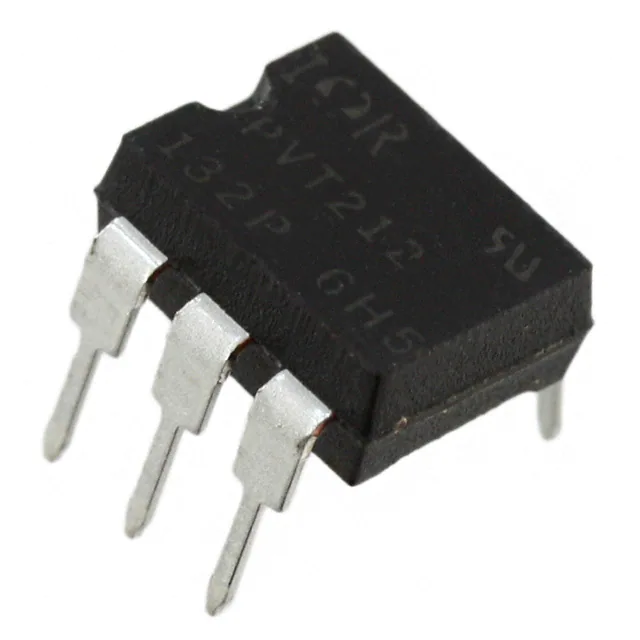

PVT312PBFSSR RELAY SPST-NO 190MA 0-250V |
344 |
|
Ficha técnica |
PVT, HEXFET® | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 250 V | 190 mA | 10 Ohms | PC Pin | -40°C ~ 85°C | 6-DIP | UL | - | - |
|
G3VM-81GR1SSR RELAY SPST-NO 200MA 0-80V |
715 |
|
Ficha técnica |
G3VM | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 80 V | 200 mA | 8 Ohms | Gull Wing | -40°C ~ 85°C | 4-SOP | - | - | - |
|
AQW217ASSR RELAY SPST-NO 160MA 0-200V |
1,004 |
|
Ficha técnica |
PhotoMOS™ AQW | Tube | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.14VDC | 0 V ~ 200 V | 160 mA | 15 Ohms | Gull Wing | -40°C ~ 85°C | 8-SMD | UR, VDE | - | - |
.jpg)
|
G3VM-101DR1(TR05)SSR RELAY SPST-NO 2A 0-100V |
1,950 |
|
Ficha técnica |
G3VM | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.64VDC | 0 V ~ 100 V | 2 A | 200 mOhms | Gull Wing | -40°C ~ 85°C | 4-SMD | - | - | - |
|
G3VM-41LR6(TR05)SSR RELAY SPST-NO 120MA 0-40V |
1,730 |
|
Ficha técnica |
G3VM | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 40 V | 120 mA | 15 Ohms | SMD (SMT) Tab | -40°C ~ 85°C | 4-SSOP | - | - | - |
.jpg)
|
CPC1916YSSR RELAY SPST-NO 2.5A 0-100V |
913 |
|
Ficha técnica |
CPC, OptoMOS® | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 100 V | 2.5 A | 340 mOhms | PC Pin | -40°C ~ 85°C | 4-SIP | CSA, TUV, UL | - | - |
|
CPC1966YX6SSR RELAY SPST-NO 3A 0-600V |
249 |
|
Ficha técnica |
CPC | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC | 1.2VDC | 0 V ~ 600 V | 3 A | - | PC Pin | -40°C ~ 85°C | 4-SIP | CSA, UL | - | - |
|
|
AQZ207SSR RELAY SPST-NO 1A 0-200V |
3,621 |
|
Ficha técnica |
PhotoMOS™ AQZ | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.16VDC | 0 V ~ 200 V | 1 A | 1.1 Ohms | PC Pin | -40°C ~ 85°C | 4-SIL | UR, VDE | - | - |
|
|
PAA150SSR RELAY SPST-NO 250MA 0-250V |
219 |
|
Ficha técnica |
PAA, OptoMOS® | Tube | Active | Through Hole | SPST-NO (1 Form A) x 2 | AC, DC | 1.2VDC | 0 V ~ 250 V | 250 mA | 7 Ohms | PC Pin | -40°C ~ 85°C | 8-DIP | CSA, EN, UL | - | - |
|
PBB150SSSR RELAY SPST-NC 250MA 0-250V |
407 |
|
Ficha técnica |
PBB, OptoMOS® | Tube | Active | Surface Mount | SPST-NC (1 Form B) x 2 | AC, DC | 1.2VDC | 0 V ~ 250 V | 250 mA | 7 Ohms | Gull Wing | -40°C ~ 85°C | 8-SMD | CSA, EN, TUV, UL | - | - |
|
|
AQV255G3ASSR RELAY SPST-NO 2.4A 0-100V |
1,196 |
|
Ficha técnica |
PhotoMOS™ AQV | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.32VDC | 0 V ~ 100 V | 2.4 A | 120 mOhms | Gull Wing | -40°C ~ 85°C | 6-SMD | UR | - | - |
|
AQY225R2V1YSSR RELAY SPST-NO 120MA 0-80V |
3,710 |
|
Ficha técnica |
PhotoMOS™ AQY | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.32VDC | 0 V ~ 80 V | 120 mA | 15 Ohms | SMD (SMT) Tab | -40°C ~ 85°C | 4-SSOP | BSI, cURus | - | - |
|
TLP3547(FSSR RELAY SPST-NO 5A 0-60V |
380 |
|
Ficha técnica |
TLP3547 | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.64VDC | 0 V ~ 60 V | 5 A | 50 mOhms | PC Pin | -40°C ~ 85°C | 8-DIP | CSA, cUL, UL, VDE | - | - |
|
AQY222R1SSSR RELAY SPST-NO 500MA 0-60V |
988 |
|
Ficha técnica |
PhotoMOS™ AQY | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC (RF) | 1.14VDC | 0 V ~ 60 V | 500 mA | 1.2 Ohms | Gull Wing | -40°C ~ 85°C | 4-SOP | BSI, cURus | - | - |
|
|
AQW414EHSSR RELAY SPST-NC 100MA 0-400V |
259 |
|
Ficha técnica |
PhotoMOS™ AQW | Tube | Active | Through Hole | SPST-NC (1 Form B) x 2 | AC, DC | 1.14VDC | 0 V ~ 400 V | 100 mA | 35 Ohms | PC Pin | -40°C ~ 85°C | 8-DIP | UR, VDE | - | - |
|
|
PAA191SSSR RELAY SPST-NO 250MA 0-400V |
1,515 |
|
Ficha técnica |
PAA, OptoMOS® | Tube | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.2VDC | 0 V ~ 400 V | 250 mA | 8 Ohms | Gull Wing | -40°C ~ 85°C | 8-SMD | CSA, EN, UL | - | - |
