Dissipadores de Calor
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Pacote resfriado | Método de fixação | Forma | Comprimento | Largura | Diâmetro | Altura da aleta | Dissipação de energia @ Aumento de temperatura | Resistência térmica @ Fluxo de ar forçado | Resistência térmica @ Natural | Material | Acabamento do material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

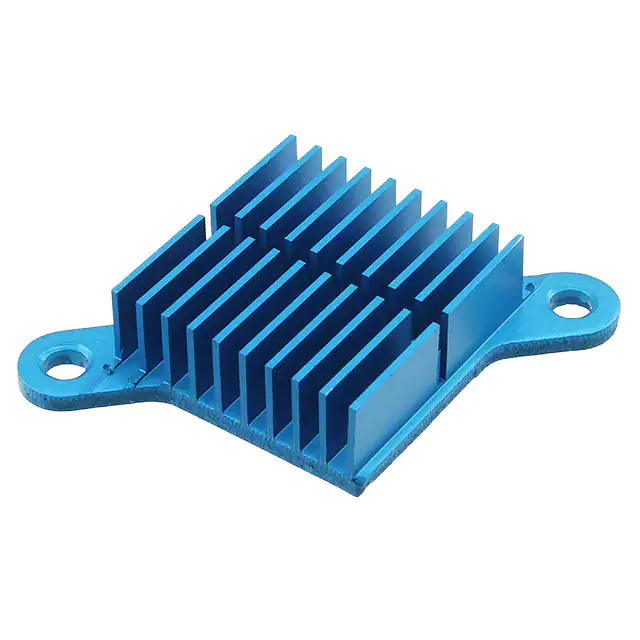

ATS-FPX025025010-73-C2-R0HEATSINK 25X25X10MM R-TAB FP |
479 |
|
Ficha técnica |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.394" (10.00mm) | - | 28.85°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX050050025-124-C1-R0HEATSINK 50X50X25MM XCUT CP |
591 |
|
Ficha técnica |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.984" (25.00mm) | - | 3.16°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
TGH-0300-03ALUMINIUM HEAT SINK 30X30MM |
396 |
|
Ficha técnica |
TGH | Bulk | Active | Top Mount | - | - | Square, Pin Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.472" (12.00mm) | - | - | - | Aluminum | - |
|

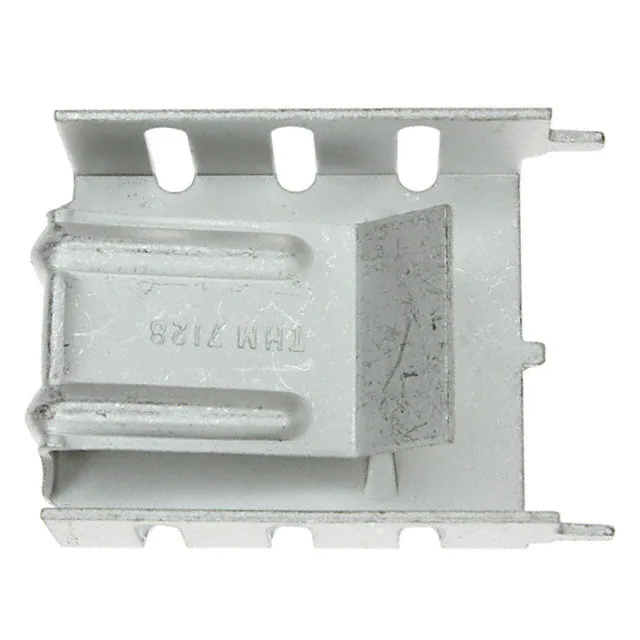

7128DGBOARD LEVEL HEATSINK .375"TO-220 |
3,008 |
|
Ficha técnica |
- | Bulk | Active | Board Level, Vertical | TO-220 | Clip and PC Pin | Rectangular, Fins | 1.100" (27.94mm) | 0.866" (22.00mm) | - | 0.375" (9.52mm) | 1.5W @ 40°C | 10.00°C/W @ 200 LFM | 19.20°C/W | Copper | Tin |
|

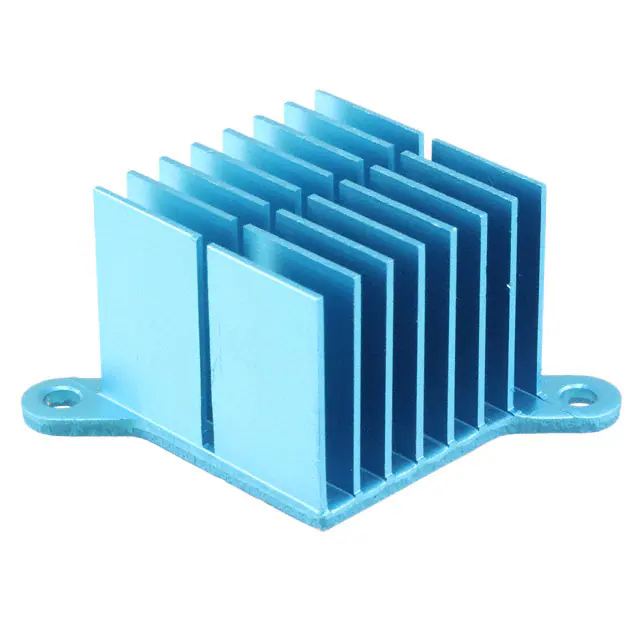

ATS-CPX030030025-172-C1-R0HEATSINK 30X30X25MM R-TAB CP |
867 |
|
Ficha técnica |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.984" (25.00mm) | - | 5.71°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX030030025-144-C1-R0HEATSINK 30X30X25MM L-TAB CP |
200 |
|
Ficha técnica |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.984" (25.00mm) | - | 5.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

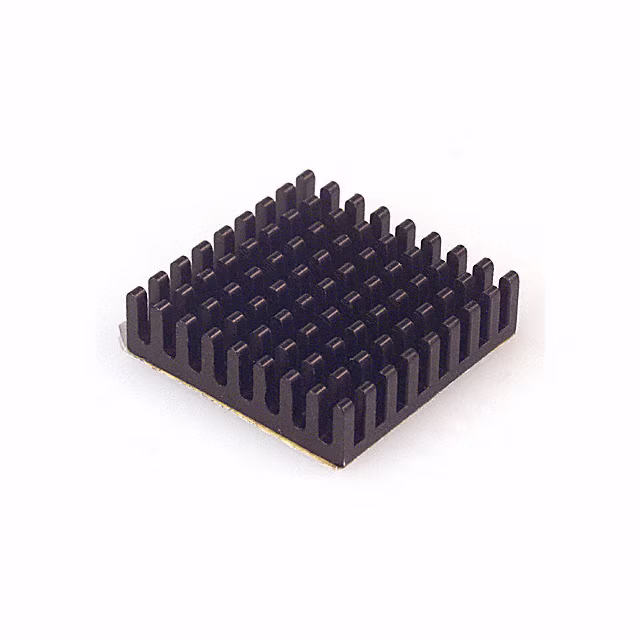

BDN13-3CB/A01HEATSINK CPU W/ADHESIVE 1.31"SQ |
1,335 |
|
Ficha técnica |
BDN | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.310" (33.27mm) | 1.310" (33.27mm) | - | 0.355" (9.02mm) | - | 6.00°C/W @ 400 LFM | 16.10°C/W | Aluminum | Black Anodized |
|

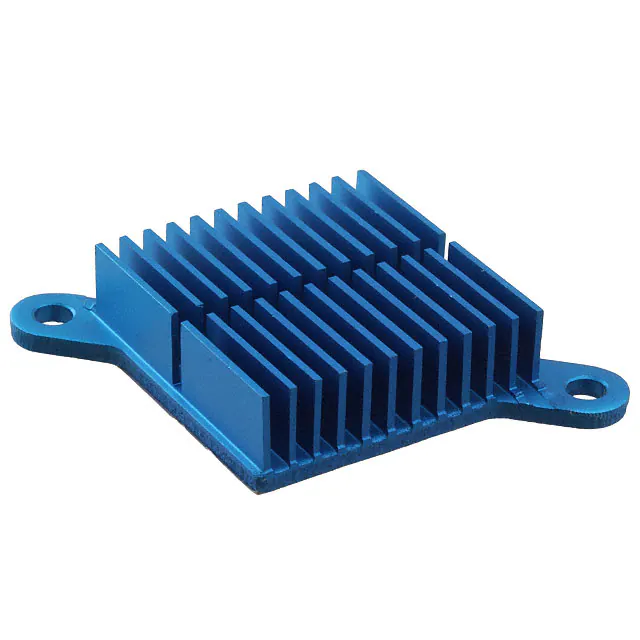

ATS-FPX030030010-49-C2-R0HEATSINK 30X30X10MM L-TAB FP |
214 |
|
Ficha técnica |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.394" (10.00mm) | - | 26.36°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

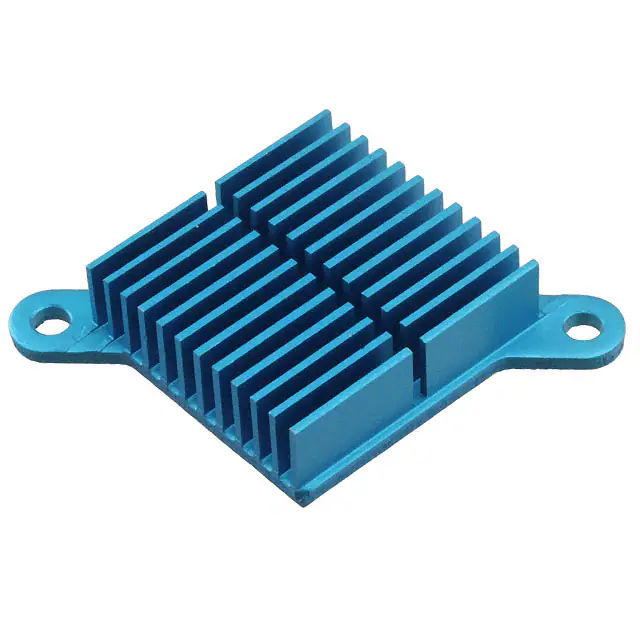

ATS-FPX030030010-79-C2-R0HEATSINK 30X30X10MM R-TAB FP |
118 |
|
Ficha técnica |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.394" (10.00mm) | - | 26.36°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
533422B02552GHEATSINK TO-220 SOLDERPIN/CLIP |
6,598 |
|
Ficha técnica |
- | Bulk | Active | Board Level, Vertical | TO-220 (Dual) | Clip and PC Pin | Rectangular, Fins | 1.650" (41.91mm) | 1.000" (25.40mm) | - | 1.500" (38.10mm) | 10.0W @ 50°C | 3.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

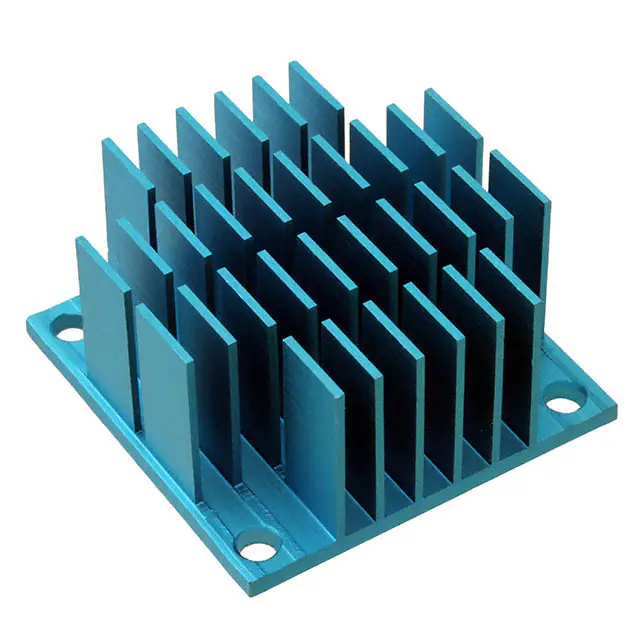

ATS-CPX040040020-115-C2-R0HEATSINK 40X40X20MM XCUT CP |
174 |
|
Ficha técnica |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | - | 5.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX030030010-169-C2-R0HEATSINK 30X30X10MM R-TAB CP |
1,932 |
|
Ficha técnica |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.394" (10.00mm) | - | 15.71°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
RA-T2X-64EHEATSINK TO-218,TO-220,TO-247 |
804 |
|
Ficha técnica |
R | Box | Active | Board Level, Vertical | TO-218, TO-220, TO-247 | Bolt On and PC Pin | Rectangular, Fins | 1.654" (42.00mm) | 0.985" (25.00mm) | - | 2.500" (63.50mm) | 4.0W @ 20°C | 1.00°C/W @ 200 LFM | 3.10°C/W | Aluminum | Black Anodized |
|

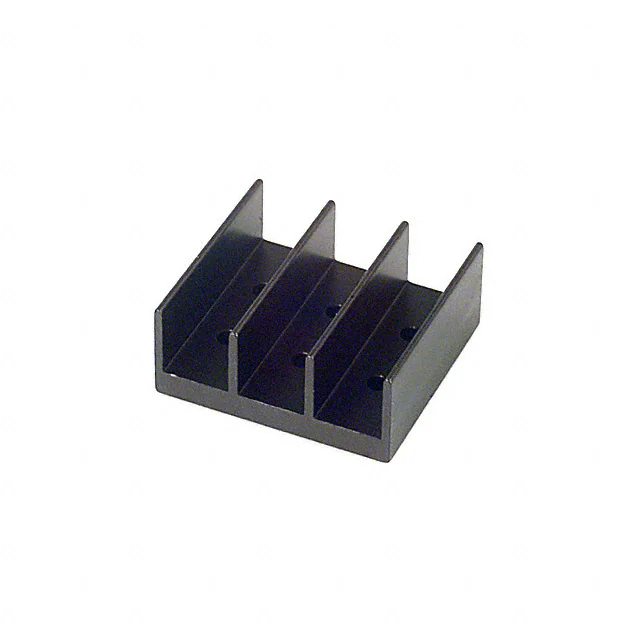

7-342-2PP-BAHEATSINK HORZ SIX BLACK TO-220 |
1,148 |
|
Ficha técnica |
7 | Box | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.500" (38.10mm) | 1.642" (41.70mm) | - | 0.690" (17.53mm) | 9.0W @ 40°C | - | 5.00°C/W | Aluminum | Black Anodized |
|
501100B00000GHEATSINK 14-DIP/16-DIP |
1,443 |
|
Ficha técnica |
- | Bulk | Active | Top Mount | 14-DIP and 16-DIP | Thermal Tape, Adhesive (Not Included) | Rectangular, Fins | 0.750" (19.05mm) | 0.250" (6.35mm) | - | 0.190" (4.83mm) | 0.4W @ 30°C | 30.00°C/W @ 500 LFM | 67.00°C/W | Aluminum | Black Anodized |
|
OMNI-UNI-PF-38TO-247 TO-264 TO-220 HEATSINK |
186 |
|
Ficha técnica |
OmniKlip™ | Bulk | Active | Board Level, Vertical | TO-220, TO-247, TO-264 | Clip, Solder Foot | Rectangular, Fins | 1.500" (38.10mm) | 1.180" (29.97mm) | - | 0.690" (17.53mm) | - | - | 8.07°C/W | Aluminum | Black Anodized |
|
M45165B021000GMAX CLIP HEATSINK |
430 |
|
Ficha técnica |
Max Clip System™ | Bulk | Active | Board Level, Vertical | TO-126, TO-220, TO-247 | Clip and PC Pin | Rectangular, Fins | 1.650" (41.91mm) | 1.181" (30.00mm) | - | 1.988" (50.50mm) | - | - | - | Aluminum | Black Anodized |
|
551002B00000GHEATSINK TO-220 1.45" HIGH |
966 |
|
Ficha técnica |
- | Bag | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.450" (36.83mm) | 1.006" (25.55mm) | - | 0.787" (19.99mm) | 1.5W @ 20°C | 4.00°C/W @ 300 LFM | 12.40°C/W | Aluminum | Black Anodized |
|

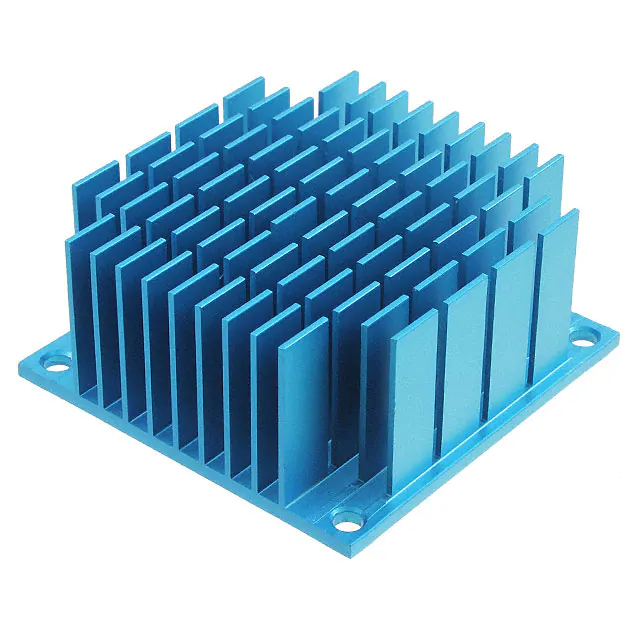

ATS-CPX054054025-128-C2-R0HEATSINK 54X54X25MM XCUT CP |
5,707 |
|
Ficha técnica |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.984" (25.00mm) | - | 2.91°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
TGH-0220-07ALUMINIUM HEAT SINK 45X22MM |
765 |
|
Ficha técnica |
TGH | Bulk | Active | Top Mount | - | - | Rectangular, Fins | 1.772" (45.00mm) | 0.866" (22.00mm) | - | 0.571" (14.50mm) | - | - | - | Aluminum | - |
