Dissipadores de Calor
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Pacote resfriado | Método de fixação | Forma | Comprimento | Largura | Diâmetro | Altura da aleta | Dissipação de energia @ Aumento de temperatura | Resistência térmica @ Fluxo de ar forçado | Resistência térmica @ Natural | Material | Acabamento do material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-60001-C1-R0HEAT SINK 37.6MM X 37.6MM X 4MM |
463 |
|
Ficha técnica |
blueICE | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.480" (37.59mm) | 1.480" (37.59mm) | - | 0.157" (4.00mm) | - | 7.80°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-61450R-C1-R0MAXIGRIP FANSINK 45X45X19.5MM |
126 |
|
Ficha técnica |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.768" (19.50mm) | - | 1.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-51230R-C1-R0HEAT SINK 23MM X 23MM X 19.5MM |
240 |
|
Ficha técnica |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.768" (19.50mm) | - | 5.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

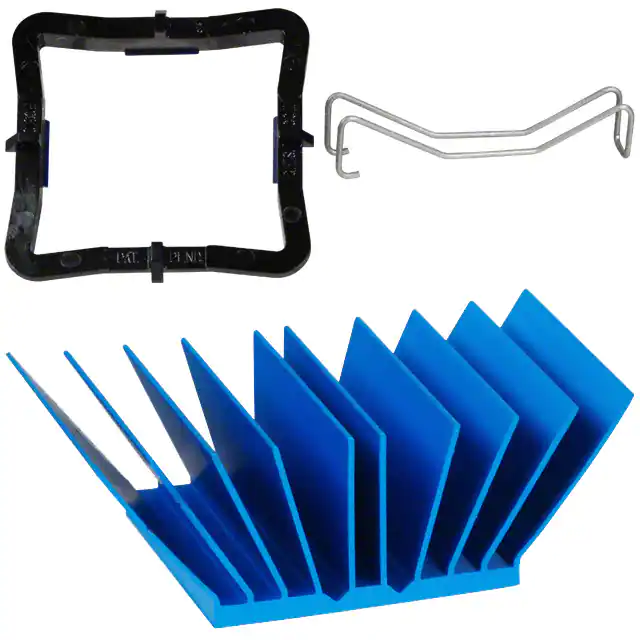

ATS-50310P-C1-R0HEAT SINK 31MM X 31MM X 17.5MM |
235 |
|
Ficha técnica |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.689" (17.50mm) | - | 3.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-51250R-C1-R0HEAT SINK 25MM X 25MM X 19.5MM |
121 |
|
Ficha técnica |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.768" (19.50mm) | - | 3.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-56004-C4-R0HEAT SINK 40MM X 30MM X 5MM |
151 |
|
Ficha técnica |
maxiFLOW | Bulk | Active | Top Mount | ASIC | Thermal Tape, Adhesive (Not Included) | Rectangular, Angled Fins | 1.575" (40.00mm) | 1.181" (30.00mm) | - | 0.197" (5.00mm) | - | 7.90°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
1277022.25" WIDE X 12" FLATBACK HEATSI |
148 |
|
Ficha técnica |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 2.250" (57.15mm) | - | 1.250" (31.75mm) | - | - | 0.95°C/W | Aluminum | - |
|

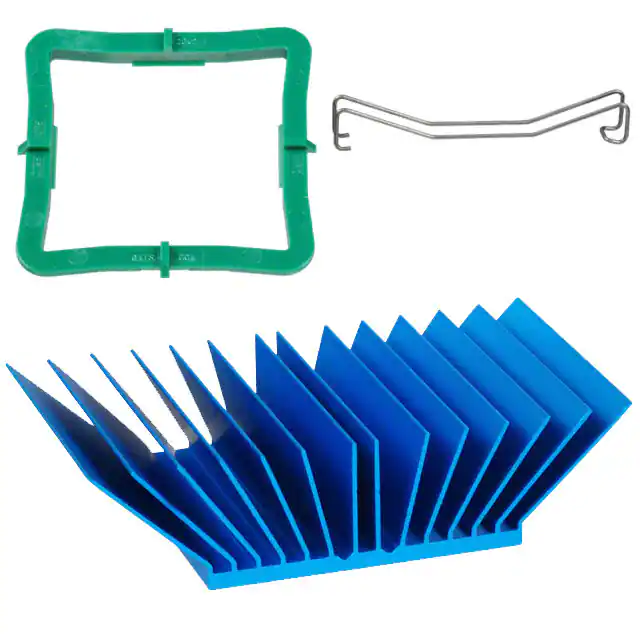

ATS-50400P-C1-R0HEAT SINK 40MM X 40MM X 17.5MM |
926 |
|
Ficha técnica |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.689" (17.50mm) | - | 2.00°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-60004-C1-R0HEAT SINK 61MM X 58.2MM X 6.1MM |
121 |
|
Ficha técnica |
blueICE | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Rectangular, Angled Fins | 2.291" (58.20mm) | 2.401" (61.00mm) | - | 0.240" (6.10mm) | - | 3.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

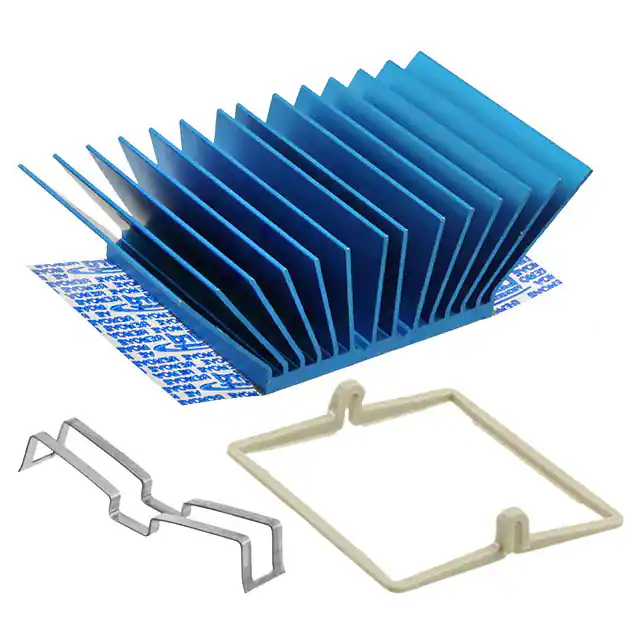

ATS-X50350P-C1-R0HEATSINK 35X35X17.5MM SUPERGRIP |
1,000 |
|
Ficha técnica |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.689" (17.50mm) | - | 2.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X51230K-C1-R0MAXIFLOW 22.25X22.25X14.5MM T766 |
270 |
|
Ficha técnica |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.906" (23.00mm) | 0.906" (23.00mm) | - | 0.571" (14.50mm) | - | 6.6°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-61290R-C1-R0MAXIGRIP FANSINK 29X29X19.5MM |
2,847 |
|
Ficha técnica |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.768" (19.50mm) | - | 2.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-61270W-C2-R0MAXIGRIP FANSINK 27X27X24.5MM |
133 |
|
Ficha técnica |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.965" (24.50mm) | - | 1.90°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-61290W-C2-R0MAXIGRIP FANSINK 29X29X24.5MM |
193 |
|
Ficha técnica |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.965" (24.50mm) | - | 1.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-X53230G-C1-R0SUPERGRIP HEATSINK 23X23X12.5MM |
203 |
|
Ficha técnica |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.492" (12.50mm) | - | 8.80°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-1106-C1-R01/2 BRICK HEATSINK 61X58X22.9MM |
297 |
|
Ficha técnica |
maxiFLOW | Bulk | Active | Top Mount | Half Brick DC/DC Converter | Bolt On | Rectangular, Angled Fins | 2.402" (61.00mm) | 2.323" (59.00mm) | - | 0.902" (22.90mm) | - | 1.30°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|

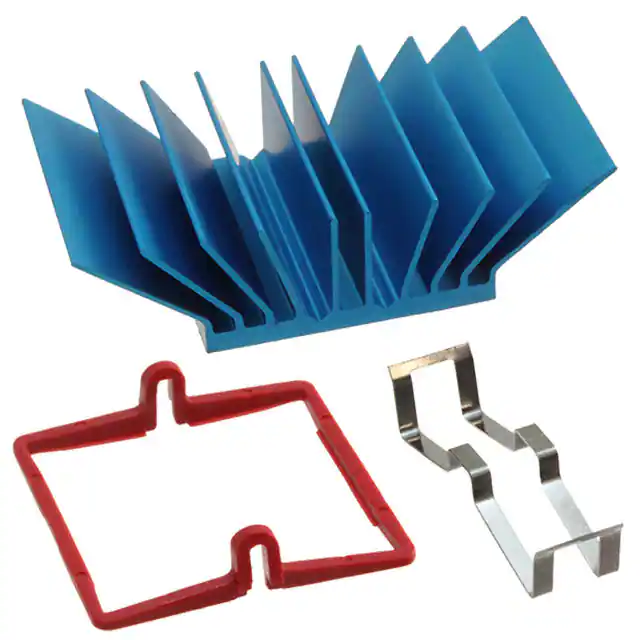

ATS-X50270G-C1-R0SUPERGRIP HEATSINK 27X27X12.5MM |
374 |
|
Ficha técnica |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.492" (12.50mm) | - | 4.80°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-61500R-C2-R0FANSINK ASSEMBLY W/ MOUNTING HAR |
113 |
|
Ficha técnica |
fanSINK™ | Bulk | Active | Top Mount | BGA | Push Pin, Thermal Material | Square, Pin Fins | 2.087" (53.02mm) | 2.087" (53.02mm) | - | 0.768" (19.50mm) | - | - | - | - | - |
|
ATS-X50310G-C1-R0SUPERGRIP HEATSINK 31X31X12.5MM |
164 |
|
Ficha técnica |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.492" (12.50mm) | - | 4.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-1043-C3-R0HEATSINK 41X45X25MM PEM |
350 |
|
Ficha técnica |
maxiFLOW | Bulk | Active | Top Mount | BGA | Push Pin | Rectangular, Angled Fins | 1.610" (40.89mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 1.60°C/W @ 300 LFM | - | Aluminum | Green Anodized |
