Dissipadores de Calor
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Pacote resfriado | Método de fixação | Forma | Comprimento | Largura | Diâmetro | Altura da aleta | Dissipação de energia @ Aumento de temperatura | Resistência térmica @ Fluxo de ar forçado | Resistência térmica @ Natural | Material | Acabamento do material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
658-25ABT2HEATSINK CPU 28MM SQ BLK W/TAPE |
0 |
|
Ficha técnica |
658 | - | Obsolete | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.100" (27.94mm) | 1.100" (27.94mm) | - | 0.250" (6.35mm) | 2.0W @ 40°C | 5.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|
|
658-25ABT4HEATSINK CPU 28MM SQ BLK W/TAPE |
0 |
|
Ficha técnica |
658 | - | Obsolete | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.100" (27.94mm) | 1.100" (27.94mm) | - | 0.250" (6.35mm) | 2.0W @ 40°C | 5.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|
658-35ABT4HEATSINK CPU 28MM SQ BLK W/TAPE |
0 |
|
Ficha técnica |
658 | - | Obsolete | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.100" (27.94mm) | 1.100" (27.94mm) | - | 0.350" (8.89mm) | - | 3.00°C/W @ 800 LFM | - | Aluminum | Black Anodized |
|
658-45ABT2HEATSINK CPU 28MM SQ BLK W/TAPE |
0 |
|
Ficha técnica |
658 | - | Obsolete | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.100" (27.94mm) | 1.100" (27.94mm) | - | 0.450" (11.43mm) | 3.0W @ 50°C | 6.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
658-45ABT4HEATSINK CPU 28MM SQ BLK W/TAPE |
0 |
|
Ficha técnica |
658 | Bulk | Obsolete | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.100" (27.94mm) | 1.100" (27.94mm) | - | 0.450" (11.43mm) | 3.0W @ 50°C | 6.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
658-60ABT1HEATSINK CPU 28MM SQ BLK W/TAPE |
0 |
|
Ficha técnica |
658 | - | Obsolete | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.100" (27.94mm) | 1.100" (27.94mm) | - | 0.598" (15.20mm) | 2.5W @ 30°C | 2.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|
|
658-60ABT2HEATSINK CPU 28MM SQ BLK W/TAPE |
0 |
|
Ficha técnica |
658 | - | Obsolete | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.100" (27.94mm) | 1.100" (27.94mm) | - | 0.598" (15.20mm) | 2.5W @ 30°C | 2.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|
518-95AB-MS4HEATSINK DC/DC HALF BRICK VERT |
0 |
|
Ficha técnica |
518 | Bulk | Obsolete | Board Level | Half Brick DC/DC Converter | Bolt On, Thermal Material | Rectangular, Fins | 2.402" (61.00mm) | 2.280" (57.91mm) | - | 0.950" (24.13mm) | 11.0W @ 60°C | 2.00°C/W @ 300 LFM | - | Aluminum | Black Anodized |
|
|
UP1-TO3BHEATSINK HORZ MNT BLACK TO-3 |
0 |
|
Ficha técnica |
- | - | Obsolete | Board Level | TO-3 | Bolt On | Square, Pin Fins | 1.780" (45.21mm) | 1.780" (45.21mm) | - | 0.500" (12.70mm) | - | - | 10.40°C/W | Aluminum | Black Anodized |
|
320205B00000GHEATSINK TO-5 1W H=.25"BLK |
0 |
|
Ficha técnica |
- | Bag | Obsolete | Board Level | TO-5 | Press Fit | Cylindrical | - | - | 0.305" (7.75mm) ID, 0.500" (12.70mm) OD | 0.250" (6.35mm) | 0.6W @ 40°C | 35.00°C/W @ 200 LFM | 63.00°C/W | Aluminum | Black Anodized |
|
500503B00000GHEATSINK TO-3 14W H=0.82" BLK |
0 |
|
Ficha técnica |
- | Bag | Active | Board Level | TO-3 | Bolt On | Square, Pin Fins | 2.500" (63.50mm) | 2.500" (63.50mm) | - | 0.821" (20.86mm) | 6.0W @ 40°C | 2.00°C/W @ 500 LFM | 4.90°C/W | Aluminum | Black Anodized |
|

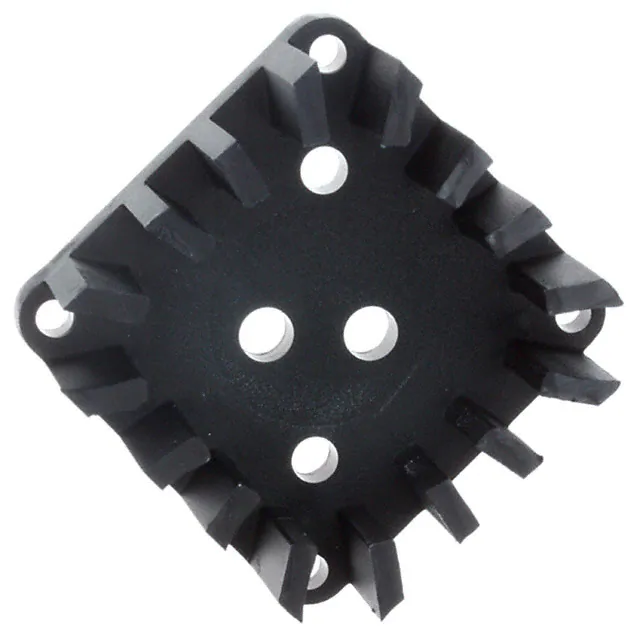

568103B00000GHEATSINK TO-3 12W H=.75" BLK |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | Board Level | TO-3 | Bolt On | Square | 1.810" (45.97mm) | 1.810" (45.97mm) | - | 0.750" (19.05mm) | 5.0W @ 40°C | 1.00°C/W @ 500 LFM | 6.70°C/W | Aluminum | Black Anodized |
|
7-120-BAHEATSINK PRESS ON .50"H BLK TO-5 |
0 |
|
Ficha técnica |
7 | Box | Obsolete | Top Mount | TO-5 | Press Fit | Cylindrical | - | - | 0.440" (11.18mm) OD | 0.500" (12.70mm) | 2.0W @ 60°C | - | 34.00°C/W | Aluminum | Black Anodized |
|
7-175-BAHEATSINK PRESS ON .25"H BLK TO-5 |
0 |
|
Ficha técnica |
7 | Box | Obsolete | Top Mount | TO-5 | Press Fit | Rectangular | 0.700" (17.78mm) | 0.325" (8.26mm) | - | 0.250" (6.35mm) | 1.0W @ 60°C | - | 58.00°C/W | Aluminum | Black Anodized |
|
7-362-BAHEATSINK VERT HORZ W/TABS TO-220 |
0 |
|
Ficha técnica |
7 | - | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.710" (18.03mm) | 0.800" (20.32mm) | - | 0.340" (8.64mm) | 1.0W @ 40°C | - | 38.00°C/W | Aluminum | Black Anodized |
|

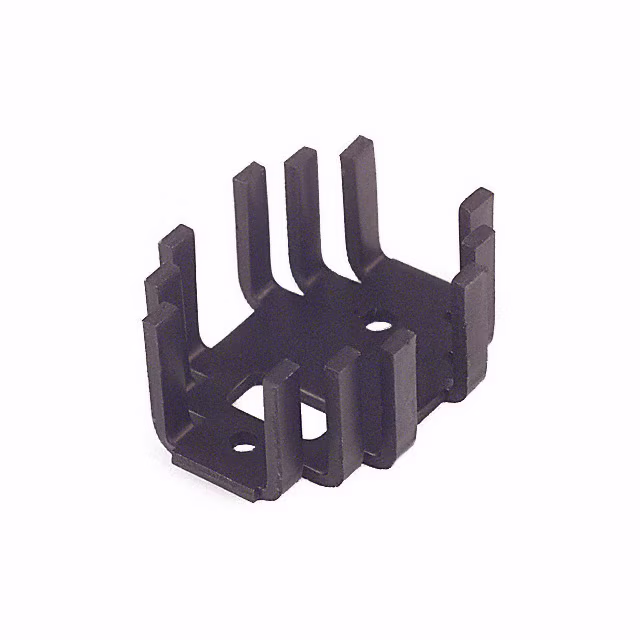

LAT0127B3CBHEATSINK PWR .75"H BLACK TO-220 |
0 |
|
Ficha técnica |
LA-B3 | - | Obsolete | Board Level | TO-127, TO-220 | Bolt On | Rhombus | 1.630" (41.40mm) | 1.290" (32.77mm) | - | 0.750" (19.05mm) | - | - | 12.90°C/W | Aluminum | Black Anodized |
|

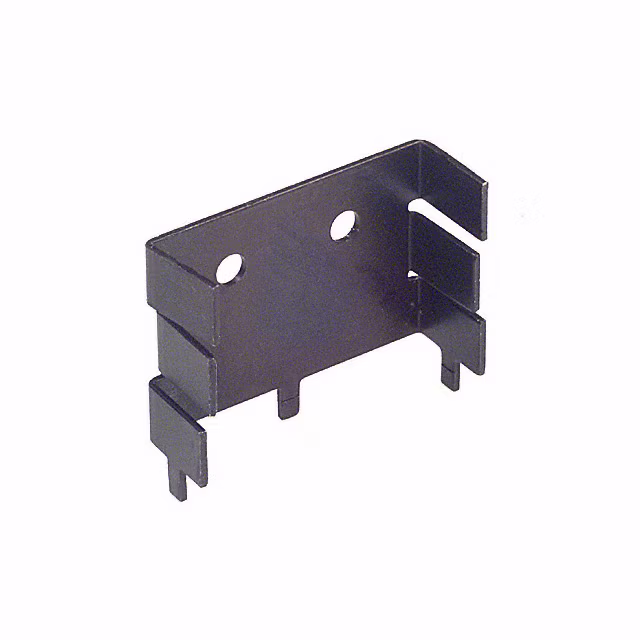

PSE1-2CBHEATSINK DUAL VERT BLACK TO-220 |
0 |
|
Ficha técnica |
PSE1 | - | Obsolete | Board Level, Vertical | TO-126, TO-127, TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 1.180" (29.97mm) | - | 0.500" (12.70mm) | - | - | 15.00°C/W | Aluminum | Black Anodized |
|
TXB2032037BTHERMAL LINKPRESSON WO/HRDWR TO8 |
0 |
|
Ficha técnica |
- | Tray | Obsolete | Top Mount | TO-5 | Press Fit | Cylindrical | - | - | - | 0.250" (6.35mm) | 0.5W @ 41°C | - | - | Brass | Black Cadmium |
|

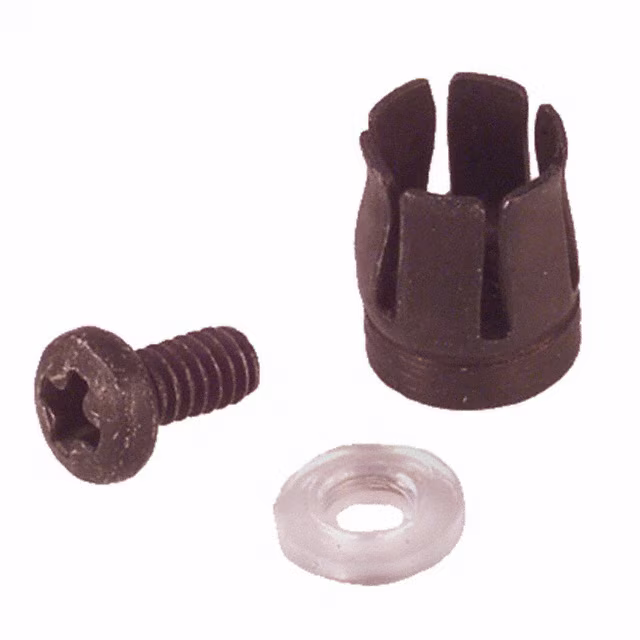

TXB2P019028BTHERMAL LINK PRESS ON BLACK TO-1 |
0 |
|
Ficha técnica |
- | Tray | Obsolete | Top Mount | TO-18 | Press Fit, Bolt On | Cylindrical | 0.280" (7.11mm) | 0.220" (5.59mm) | 0.220" (5.59mm) OD | - | - | - | 108.00°C/W | Brass | Black Cadmium |
|

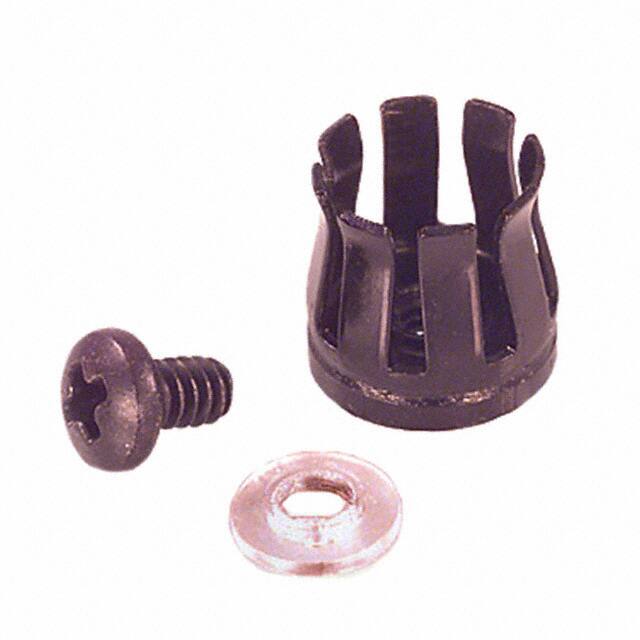

TXB2P032037BTHERMAL LINK PRESSON BLK TO-5 |
0 |
|
Ficha técnica |
- | Tray | Obsolete | Top Mount | TO-5 | Press Fit, Bolt On | Cylindrical | 0.370" (9.40mm) | 0.380" (9.65mm) | 0.380" (9.65mm) OD | - | - | - | 82.00°C/W | Brass | Black Cadmium |
