Dissipadores de Calor
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Pacote resfriado | Método de fixação | Forma | Comprimento | Largura | Diâmetro | Altura da aleta | Dissipação de energia @ Aumento de temperatura | Resistência térmica @ Fluxo de ar forçado | Resistência térmica @ Natural | Material | Acabamento do material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
574402B00000GBOARD LEVEL HEAT SINK |
0 |
|
Ficha técnica |
- | Bulk | Active | Board Level | TO-220 | Clip | Rectangular, Fins | 0.750" (19.05mm) | 0.860" (21.84mm) | - | 0.395" (10.03mm) | 3.0W @ 60°C | 6.00°C/W @ 600 LFM | 23.20°C/W | Aluminum | Black Anodized |
|
|
574802B00000GBOARD LEVEL HEAT SINK |
0 |
|
Ficha técnica |
- | Bulk | Active | Board Level | TO-220 | Clip | Rectangular, Fins | 0.900" (22.86mm) | 1.020" (25.91mm) | - | 0.420" (10.67mm) | 3.0W @ 60°C | 6.00°C/W @ 500 LFM | 20.40°C/W | Aluminum | Black Anodized |
|
|
529902B00000BOARD LEVEL HEAT SINK |
0 |
|
Ficha técnica |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 2.000" (50.80mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | 6.0W @ 30°C | 1.50°C/W @ 500 LFM | 4.50°C/W | Aluminum | Black Anodized |
|
|
7024BGBOARD LEVEL HEAT SINK |
0 |
|
Ficha técnica |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On | Rectangular, Fins | 1.620" (41.15mm) | 2.000" (50.80mm) | - | 0.750" (19.05mm) | 9.0W @ 60°C | 4.00°C/W @ 200 LFM | 5.60°C/W | Aluminum | Black Anodized |
|
|
506902B00000GBOARD LEVEL HEAT SINK |
0 |
|
Ficha técnica |
Hat Section 5070 | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.700" (17.78mm) | 1.250" (31.75mm) | - | 0.375" (9.52mm) | 1.0W @ 20°C | 6.00°C/W @ 600 LFM | 20.00°C/W | Aluminum | Black Anodized |
|
|
375324B00035GHEATSINK 10.2X10.2X10.2MM W/ADH |
0 |
|
Ficha técnica |
- | Bulk | Active | - | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.401" (10.19mm) | 0.401" (10.20mm) | - | 0.400" (10.16mm) | 0.5W @ 40°C | 21.20°C/W @ 200 LFM | 71.40°C/W | Aluminum | Black Anodized |
|
|
373324M00000GHEATSINK BGA W/OUT AD-TAPE |
0 |
|
Ficha técnica |
- | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.472" (37.39mm) | 1.472" (37.39mm) | - | 0.236" (6.00mm) | - | - | - | Aluminum | Green Anodized |
|
|
TXP0508NDTHERMAL LINK RETAINER |
0 |
|
- |
- | Tray | Obsolete | Top Mount | TO-5 | Bolt On | Cylindrical | - | - | 0.380" (9.65mm) OD | 0.430" (10.92mm) | - | - | - | - | Dull Nickel |
|
DV-T263-101EHEATSINK FOR TO-263 |
0 |
|
Ficha técnica |
D | Box | Discontinued | Top Mount | TO-263 (D²Pak) | Solderable Feet | Rectangular, Fins | 0.500" (12.70mm) | 1.020" (25.91mm) | - | 0.400" (10.16mm) | 2.0W @ 30°C | 8.00°C/W @ 500 LFM | - | Aluminum | Degreased |
|
DA-T263-101EHEATSINK FOR TO-263 BLACK |
0 |
|
Ficha técnica |
D | Box | Discontinued | Top Mount | TO-263 (D²Pak) | Solderable Feet | Rectangular, Fins | 0.500" (12.70mm) | 1.020" (25.91mm) | - | 0.400" (10.16mm) | 2.0W @ 30°C | 8.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|
DV-T268-101EHEATSINK FOR TO-268 |
0 |
|
Ficha técnica |
D | Box | Discontinued | Top Mount | TO-268 (D³Pak) | Solderable Feet | Rectangular, Fins | 0.500" (12.70mm) | 1.220" (30.99mm) | - | 0.400" (10.16mm) | 5.0W @ 35°C | 6.00°C/W @ 600 LFM | - | Aluminum | Degreased |
|
DA-T268-101EHEATSINK FOR TO-268 BLACK |
0 |
|
Ficha técnica |
D | Strip | Discontinued | Top Mount | TO-268 (D³Pak) | Solderable Feet | Rectangular, Fins | 0.500" (12.70mm) | 1.220" (30.99mm) | - | 0.400" (10.16mm) | 5.0W @ 35°C | 6.00°C/W @ 600 LFM | - | Aluminum | Black Anodized |
|

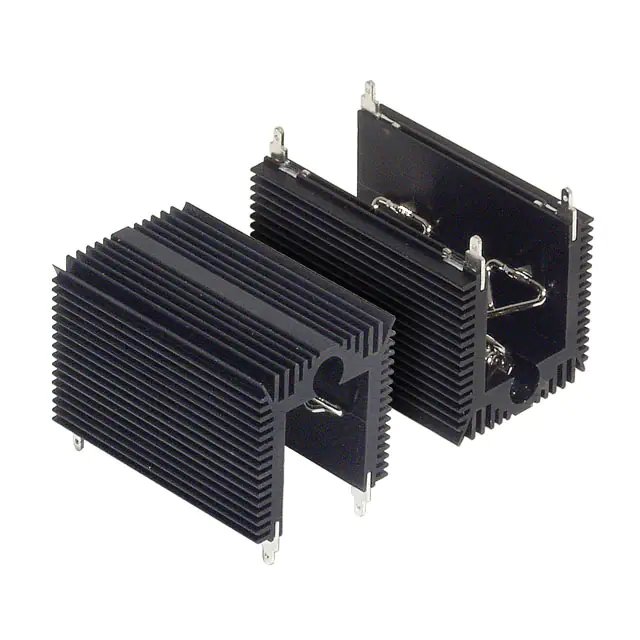

MV-102-55EHEATSINK FOR TO-247 TO-264 |
0 |
|
Ficha técnica |
M | Box | Obsolete | Top Mount | TO-247, TO-264 | Clip and PC Pin | Rectangular, Fins | 2.170" (55.12mm) | 1.350" (34.30mm) | - | 1.520" (38.61mm) | 16.0W @ 43°C | 2.00°C/W @ 400 LFM | - | Aluminum | Degreased |
|
|
1-1542001-942.5MM HS ASSY ULTE |
0 |
|
Ficha técnica |
- | Box | Active | Top Mount | BGA | Clip | Cylindrical, Pin Fins | - | - | 2.000" (50.80mm) OD | 1.100" (27.94mm) | - | 2.25°C/W @ 200 LFM | 5.64°C/W | Aluminum | Black Anodized |
|
|
1542002-340MM HS ASSY ULTEM |
0 |
|
Ficha técnica |
- | Box | Active | Top Mount | BGA | Clip | Cylindrical | - | - | 2.000" (50.80mm) OD | 1.100" (27.94mm) | - | 2.25°C/W @ 200 LFM | 5.64°C/W | Aluminum | Black Anodized |
|
|
4-1542002-735MMLP HS ASSY A-TE |
0 |
|
Ficha técnica |
- | Box | Active | Top Mount | BGA | Clip | Cylindrical, Pin Fins | - | - | 1.376" (34.95mm) OD | 0.500" (12.70mm) | - | 5.74°C/W @ 200 LFM | 10.20°C/W | Aluminum | Black Anodized |
|
|
4-1542003-925MM HS ASSY CLIP |
0 |
|
Ficha técnica |
- | Box | Active | Top Mount | BGA | Clip | Cylindrical | - | - | 1.375" (34.92mm) OD | 0.571" (14.50mm) | - | 5.26°C/W @ 200 LFM | 12.30°C/W | Aluminum | Black Anodized |
|
|
3-1542005-925MM HS ASSY ULTEM CL |
0 |
|
Ficha técnica |
- | Box | Active | Top Mount | BGA | Clip | Cylindrical | - | - | 1.375" (34.92mm) OD | 0.678" (17.22mm) | - | 4.75°C/W @ 200 LFM | 11.90°C/W | Aluminum | Black Anodized |
|
|
5-1542005-327MM HS ASSY ULTEM CL |
0 |
|
Ficha técnica |
- | Box | Active | Top Mount | BGA | Clip | Cylindrical, Pin Fins | - | - | 1.376" (34.95mm) OD | 1.100" (27.94mm) | - | 4.10°C/W @ 200 LFM | 8.60°C/W | Aluminum | Black Anodized |
|
|
4-1542006-342.5MM HS ASSY ULTEM |
0 |
|
Ficha técnica |
- | Box | Active | Top Mount | BGA | Clip | Cylindrical | - | - | 2.000" (50.80mm) OD | 0.678" (17.22mm) | - | 3.30°C/W @ 200 LFM | 8.73°C/W | Aluminum | Black Anodized |
