Relés de Retardo de Tempo
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de montagem | Tipo de Relé | Função | Circuito | Tempo de atraso | Classificação de Contato @ Voltagem | Voltagem - Alimentação | Estilo de Terminação | Temporização Método de ajuste | Método de início de tempo | Grau | Qualificação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRTU24B06RELAY TIME DELAY 6A 280V DIN RL |
0 |
|
Ficha técnica |
DRT | Box | Active | DIN Rail | Solid State Relay | Programmable (Multi-Function) | SPST-NO (1 Form A) | - | 6A @ 280VAC | 90 ~ 140VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
|
DRTU24B06RRELAY TIME DELAY 6A 280V DIN RL |
0 |
|
Ficha técnica |
DRT | Box | Active | DIN Rail | Solid State Relay | Programmable (Multi-Function) | SPST-NO (1 Form A) | - | 6A @ 280VAC | 90 ~ 140VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
RE22R2MMWRELAY TIME DELAY 100HR 8A 250V |
0 |
|
Ficha técnica |
Harmony | Box | Active | DIN Rail | Mechanical Relay | Programmable (Multi-Function) | DPDT (2 Form C) | 0.1 Sec ~ 100 Hrs | 8A @ 250VAC | 12 ~ 240VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
|
7PV15181AJ30RELAY TIME DELAY 100HR 3A 250V |
0 |
|
Ficha técnica |
SIRIUS | Box | Active | DIN Rail | Mechanical Relay | On-Delay | SPDT (1 Form C) | 0.05 Sec ~ 100 Hrs | 3A @ 250VAC | 90 ~ 127VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
|
ATS-P12RELAY TIME DELAY 59SEC 16A 240V |
0 |
|
- |
ATS | Bulk | Active | DIN Rail | Mechanical Relay | Programmable (Multi-Function) | SPDT (1 Form C) | 1 Sec ~ 59 Sec | 16A @ 240VAC/24VDC | 12VDC | Screw Terminal | Up/Down Digit Keys | Input Voltage | - | - |
|
|
ATS-P24RELAY TIME DELAY 59SEC 16A 240V |
0 |
|
- |
ATS | Bulk | Active | DIN Rail | Mechanical Relay | Programmable (Multi-Function) | SPDT (1 Form C) | 1 Sec ~ 59 Sec | 16A @ 240VAC/24VDC | 24VDC | Screw Terminal | Up/Down Digit Keys | Input Voltage | - | - |
|
|
H3FA-B DC5RELAY TIME DELAY 60MIN 3A 250V |
0 |
|
- |
H3FA | Bulk | Active | Through Hole | Mechanical Relay | On-Delay | DPST-NO/NC (1 Form A and B) | 0.6 Sec ~ 60 Min | 3A @ 250VAC | 5VDC | PC Pin | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|
H3CRA8AC100240DC100125Q1RELAY TIME DELAY 300HR 5A 250V |
0 |
|
Ficha técnica |
H3CR-A | Bulk | Obsolete | Socketable | Mechanical Relay | Programmable (Multi-Function) | DPDT (2 Form C) | 0.05 Sec ~ 300 Hrs | 5A @ 250VAC | 100 ~ 240VAC, 100 ~ 125VDC | Plug In, 8 Pin (Octal) | Hand Dial | - | - | - |
|
|
H3CRAAC100240DC100125Q1RELAY TIME DELAY 300HR 5A 250V |
0 |
|
Ficha técnica |
H3CR-A | Bulk | Obsolete | Socketable | Mechanical Relay | Programmable (Multi-Function) | DPDT (2 Form C) | 0.05 Sec ~ 300 Hrs | 5A @ 250VAC | 100 ~ 240VAC, 100 ~ 125VDC | Plug In, 11 Pin (Octal) | Hand Dial | - | - | - |
|
8836630000RELAY TIME DELAY 0.1SEC 0.4A 30V |
0 |
|
Ficha técnica |
JPTA | Bulk | Active | Free Hanging (In-Line) | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | Fixed, 0.1 Sec | 0.4A @ 30VDC | 24VDC | Connector | Fixed | Input Voltage | - | - |
|
H3FA-SA12/24 VDCRELAY TIME DELAY 10MIN TH |
0 |
|
- |
H3FA | Bulk | Active | Through Hole | Solid State Relay | On-Delay | - | 0.1 Sec ~ 10 Min | - | 12 ~ 24VDC | PC Pin | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|
|
RE17LCBMSRELAY TIME DELAY 100HR 0.7A 250V |
0 |
|
Ficha técnica |
Harmony | Box | Obsolete | DIN Rail | Solid State Relay | Off-Delay | - | 0.1 Sec ~ 100 Hrs | 0.7A @ 250VAC | 24 ~ 240VAC | Spring Terminal | Screwdriver Slot | Input Voltage | - | - |
|

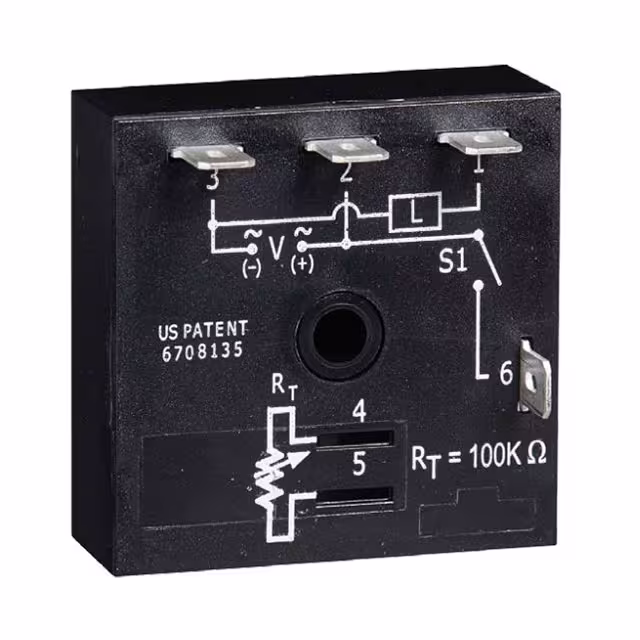

KSPSP145SMRELAY TIME DELAY 45SEC CHAS MT |
0 |
|
Ficha técnica |
KSPS | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 45 Sec | - | 12 ~ 120VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|

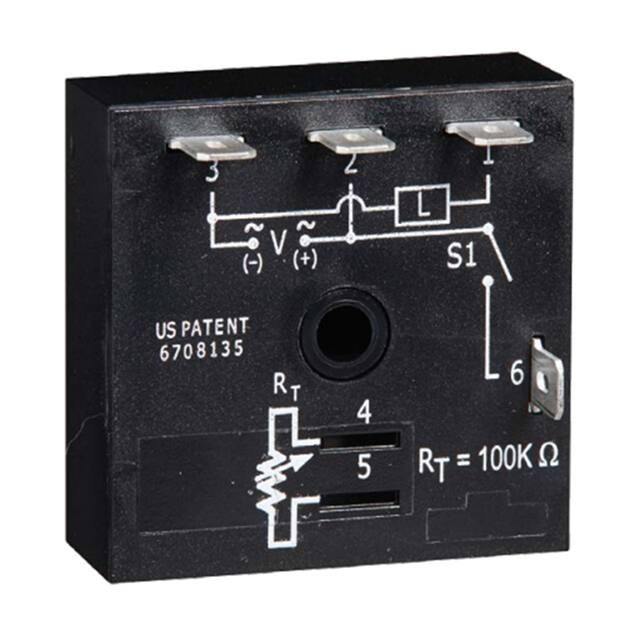

KSPSP35PSDRELAY TIME DELAY 100MIN CHAS MT |
0 |
|
Ficha técnica |
KSPS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | 1 Min ~ 100 Min | - | 12 ~ 120VDC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage, Trigger Signal | - | - |
|
RE22R2QTMRRELAY TIME DELAY 300HR 8A 250V |
0 |
|
Ficha técnica |
Harmony | Box | Active | DIN Rail | Mechanical Relay | Star Delta Controller | DPDT (2 Form C) | 0.05 Sec ~ 300 Hrs | 8A @ 250VAC | 24 ~ 240VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
|
THDB421ARELAY TIME DELAY 100SEC CHAS MT |
0 |
|
Ficha técnica |
THDB | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | 1 Sec ~ 100 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|
THDS431CRELAY TIME DELAY 100SEC CHAS MT |
0 |
|
Ficha técnica |
THDS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | 1 Sec ~ 100 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|
|
THDS610.25SARELAY TIME DELAY 0.25SEC CHAS MT |
0 |
|
Ficha técnica |
THDS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | Fixed, 0.25 Sec | - | 230VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|
|
KRDR115MB25MRELAY TIME DELAY 25MIN 10A 125V |
0 |
|
Ficha técnica |
KRDR | Bulk | Discontinued | Chassis Mount | Mechanical Relay | Repeat Cycle | SPDT (1 Form C) | Fixed, 25 Min | 10A @ 125VAC | 12VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
|
H3Y-4 DC24 120SRELAY TIME DELAY 120 SEC 3A 250V |
0 |
|
Ficha técnica |
H3Y | Bulk | Active | Socketable | Mechanical Relay | Off-Delay, On-Delay | 4PDT (4 Form C) | 5 Sec ~ 120 Sec | 3A @ 250VAC | 24VDC | Plug In | Hand Dial | Input Voltage | - | - |
