Adaptadores de Energia CA/CC para Mesa e Parede
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Região utilizada | Forma | Tipo de entrada | Voltagem - Entrada | Tensão - Saída | Corrente - Saída (máx.) | Potência (Watts) | Consumo de energia sem carga | Polarização | Aplicações | Eficiência | Temperatura operacional | Conector de saída | Comprimento do cabo | Conector de entrada | Recursos | Tamanho/dimensão | Agência de Aprovação | Número padrão |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
318AS03100AC/DC WALL MOUNT ADAPTER 3V 3W |
0 |
|
Ficha técnica |
318AS | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 3V | 1A | 3 W | - | Positive Center | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.75" L x 1.81" W x 1.69" H (70.0mm x 46.0mm x 43.0mm) | cULus | - |
|

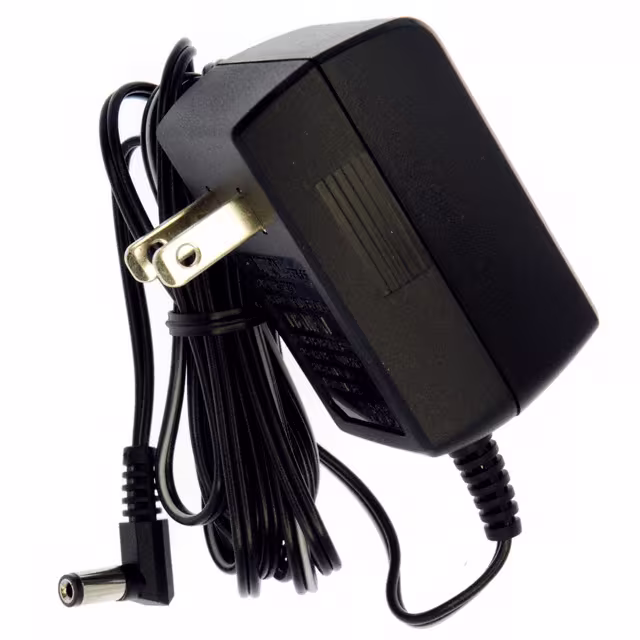

212AS04025AC/DC WALL MNT ADAPTER 4.5V 1.1W |
0 |
|
Ficha técnica |
212AS | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 4.5V | 250mA | 1.1 W | - | Positive Center | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.50" L x 1.57" W x 1.40" H (63.5mm x 40.0mm x 35.5mm) | cULus | - |
|

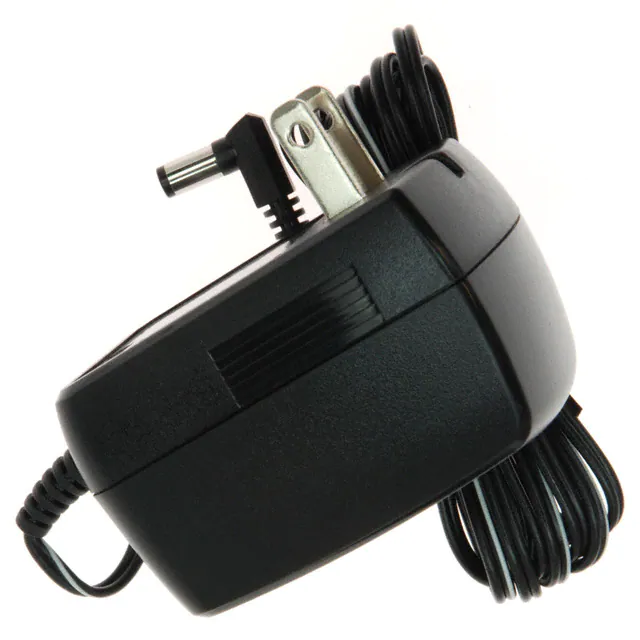

318AS04070AC/DC WALL MNT ADAPTER 4.5V 3.2W |
0 |
|
Ficha técnica |
318AS | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 4.5V | 700mA | 3.2 W | - | Positive Center | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.75" L x 1.81" W x 1.69" H (70.0mm x 46.0mm x 43.0mm) | cULus | - |
|
318AS06050AC/DC WALL MOUNT ADAPTER 6V 3W |
0 |
|
Ficha técnica |
318AS | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 6V | 500mA | 3 W | - | Positive Center | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.75" L x 1.81" W x 1.69" H (70.0mm x 46.0mm x 43.0mm) | cULus | - |
|
420AS06090AC/DC WALL MOUNT ADAPTER 6V 5.4W |
0 |
|
Ficha técnica |
420AS | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 6V | 900mA | 5.4 W | - | Positive Center | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.84" L x 2.05" W x 1.83" H (72.0mm x 52.0mm x 46.5mm) | cULus | - |
|

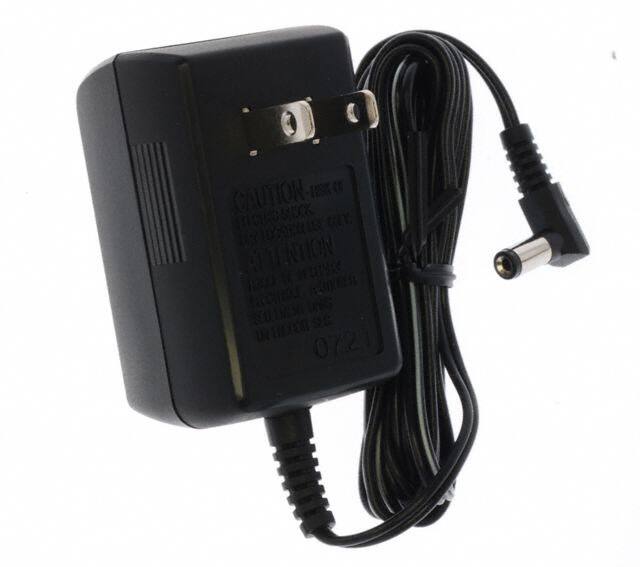

212AS09012AC/DC WALL MOUNT ADAPTER 9V 1.1W |
0 |
|
Ficha técnica |
212AS | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 9V | 125mA | 1.1 W | - | Positive Center | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.50" L x 1.57" W x 1.40" H (63.5mm x 40.0mm x 35.5mm) | cULus | - |
|
318AS09035AC/DC WALL MOUNT ADAPTER 9V 3.1W |
0 |
|
Ficha técnica |
318AS | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 9V | 350mA | 3.1 W | - | Positive Center | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.75" L x 1.81" W x 1.69" H (70.0mm x 46.0mm x 43.0mm) | cULus | - |
|
|
420AS09060AC/DC WALL MOUNT ADAPTER 9V 5.4W |
0 |
|
Ficha técnica |
420AS | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 9V | 600mA | 5.4 W | - | Positive Center | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.84" L x 2.05" W x 1.83" H (72.0mm x 52.0mm x 46.5mm) | cULus | - |
|
212AS12010AC/DC WALL MNT ADAPTER 12V 1.2W |
0 |
|
Ficha técnica |
212AS | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 12V | 100mA | 1.2 W | - | Positive Center | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.50" L x 1.57" W x 1.40" H (63.5mm x 40.0mm x 35.5mm) | cULus | - |
|
318AS12030AC/DC WALL MNT ADAPTER 12V 3.6W |
0 |
|
Ficha técnica |
318AS | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 12V | 300mA | 3.6 W | - | Positive Center | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.75" L x 1.81" W x 1.69" H (70.0mm x 46.0mm x 43.0mm) | cULus | - |
|
420AS12050AC/DC WALL MOUNT ADAPTER 12V 6W |
0 |
|
Ficha técnica |
420AS | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 12V | 500mA | 6 W | - | Positive Center | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.84" L x 2.05" W x 1.83" H (72.0mm x 52.0mm x 46.5mm) | cULus | - |
|
835AS12100AC/DC WALL MOUNT ADAPTER 12V 12W |
0 |
|
Ficha técnica |
835AS | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 12V | 1A | 12 W | - | Positive Center | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 72" (1.83m) | NEMA 1-15P | - | 4.10" L x 2.44" W x 2.44" H (103.0mm x 62.0mm x 62.0mm) | cULus | - |
|
|
212AS15007AC/DC WALL MNT ADAPTER 15V 1.1W |
0 |
|
Ficha técnica |
212AS | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 15V | 75mA | 1.1 W | - | Positive Center | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.50" L x 1.57" W x 1.40" H (63.5mm x 40.0mm x 35.5mm) | cULus | - |
|
|
420AS15040AC/DC WALL MOUNT ADAPTER 15V 6W |
0 |
|
Ficha técnica |
420AS | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 15V | 400mA | 6 W | - | Positive Center | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.84" L x 2.05" W x 1.83" H (72.0mm x 52.0mm x 46.5mm) | cULus | - |
|
|
835AS15080AC/DC WALL MOUNT ADAPTER 15V 12W |
0 |
|
Ficha técnica |
835AS | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 15V | 800mA | 12 W | - | Positive Center | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 72" (1.83m) | NEMA 1-15P | - | 4.10" L x 2.44" W x 2.44" H (103.0mm x 62.0mm x 62.0mm) | cULus | - |
|
|
212AS18006AC/DC WALL MNT ADAPTER 18V 1.1W |
0 |
|
Ficha técnica |
212AS | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 18V | 60mA | 1.1 W | - | Positive Center | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.50" L x 1.57" W x 1.40" H (63.5mm x 40.0mm x 35.5mm) | cULus | - |
|
|
420AS18035AC/DC WALL MNT ADAPTER 18V 6.3W |
0 |
|
Ficha técnica |
420AS | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 18V | 350mA | 6.3 W | - | Positive Center | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.84" L x 2.05" W x 1.83" H (72.0mm x 52.0mm x 46.5mm) | cULus | - |
|
|
212AS24005AC/DC WALL MNT ADAPTER 24V 1.2W |
0 |
|
Ficha técnica |
212AS | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 24V | 50mA | 1.2 W | - | Positive Center | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.50" L x 1.57" W x 1.40" H (63.5mm x 40.0mm x 35.5mm) | cULus | - |
|
|
318AS24015AC/DC WALL MNT ADAPTER 24V 3.6W |
0 |
|
Ficha técnica |
318AS | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 24V | 150mA | 3.6 W | - | Positive Center | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.75" L x 1.81" W x 1.69" H (70.0mm x 46.0mm x 43.0mm) | cULus | - |
|
|
420AS24025AC/DC WALL MOUNT ADAPTER 24V 6W |
0 |
|
Ficha técnica |
420AS | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 24V | 250mA | 6 W | - | Positive Center | ITE (Commercial) | - | -10°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.84" L x 2.05" W x 1.83" H (72.0mm x 52.0mm x 46.5mm) | cULus | - |
