Adaptadores de Energia CA/CC para Mesa e Parede
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Região utilizada | Forma | Tipo de entrada | Voltagem - Entrada | Tensão - Saída | Corrente - Saída (máx.) | Potência (Watts) | Consumo de energia sem carga | Polarização | Aplicações | Eficiência | Temperatura operacional | Conector de saída | Comprimento do cabo | Conector de entrada | Recursos | Tamanho/dimensão | Agência de Aprovação | Número padrão |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KUSB1052AC/DC WALL MOUNT ADAPTER 5V 10W |
0 |
|
- |
- | Bulk | Obsolete | - | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 5V | 2A | 10 W | 300mW (Max) | - | ITE (Commercial) | Level V | 10°C ~ 40°C | USB A Receptacle | - | NEMA 1-15P | - | 2.05" L x 1.14" W x 1.81" H (52.0mm x 28.9mm x 46.0mm) | IEC | 60950-1 |
|

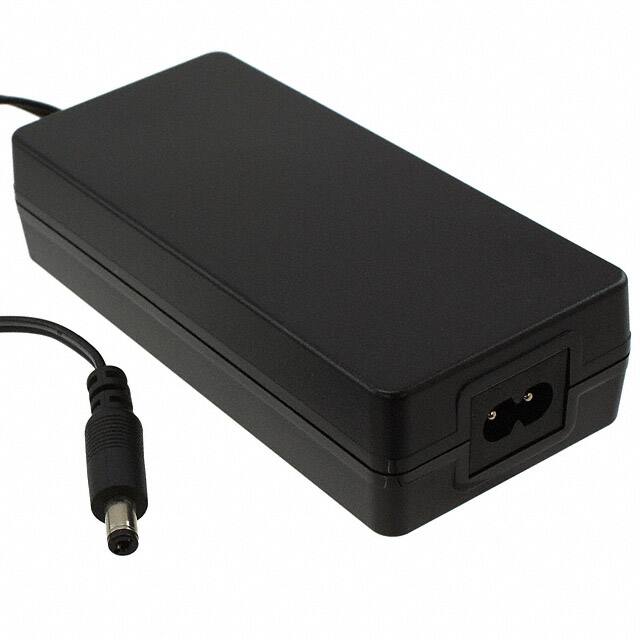

PSAC60W-180AC/DC DESKTOP ADAPTER 18V 60W |
0 |
|
Ficha técnica |
PSAC60W (60W) | Bulk | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 3.33A | 60 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C8 | - | 5.12" L x 2.36" W x 1.30" H (130.0mm x 60.0mm x 32.0mm) | CE, cULus | - |
|
PSAC60M-180AC/DC DESKTOP ADAPTER 18V 60W |
0 |
|
Ficha técnica |
PSAC60M (60W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 3.33A | 60 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C6 | - | 5.12" L x 2.36" W x 1.30" H (130.0mm x 60.0mm x 32.0mm) | CE, cULus | - |
|

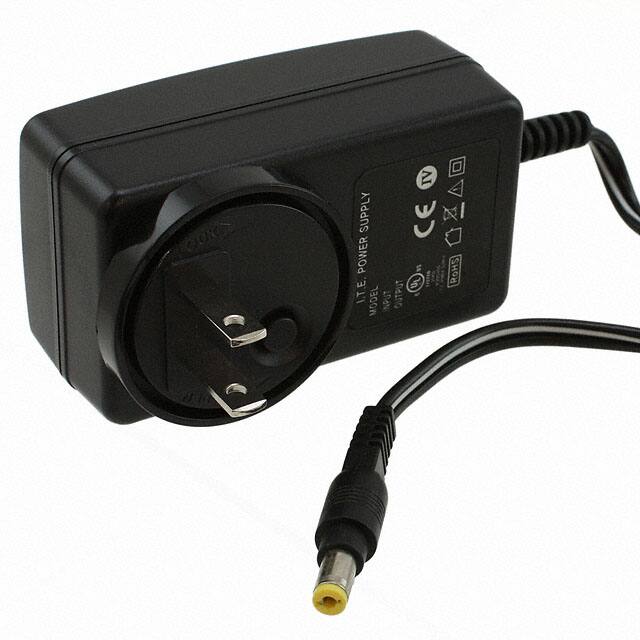

PW172KB1272B01AC/DC WALL MOUNT ADAPTER 12V 18W |
0 |
|
Ficha técnica |
PW172KB (15-19W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 100 ~ 240 VAC | 12V | 1.5A | 18 W | 500mW (Max) | - | ITE (Commercial) | Level IV | 0°C ~ 40°C | - | 70.9" (1.80m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.27" L x 1.85" W x 1.50" H (83.0mm x 47.0mm x 38.0mm) | CE, cULus | - |
|

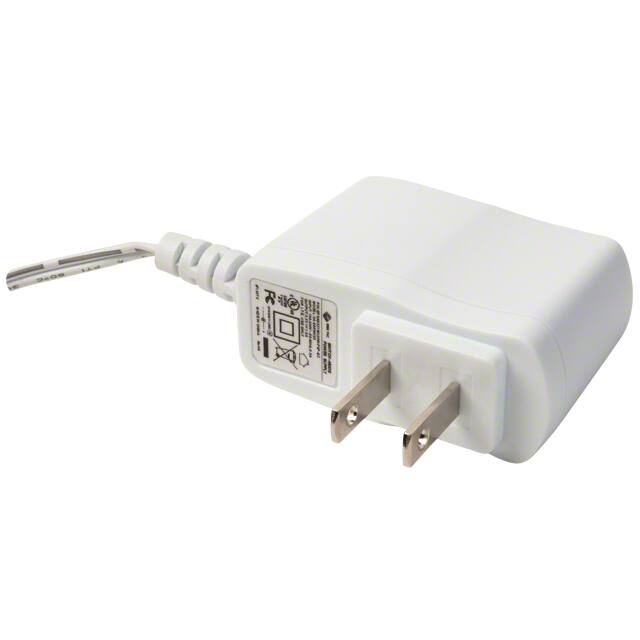

EPSA120050UW-P5P-SZAC/DC WALL MOUNT ADAPTER 12V 6W |
0 |
|
Ficha técnica |
EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 500mA | 6 W | - | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | NEMA 1-15P | - | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | CE, TUVgs | - |
|
|
EPSA050120UW-P5P-SZAC/DC WALL MOUNT ADAPTER 5V 6W |
0 |
|
Ficha técnica |
EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1.2A | 6 W | - | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | NEMA 1-15P | - | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | CE, TUVgs | - |
|
PSAC05R-050(P)-R-C2AC/DC WALL MOUNT ADAPTER 5V 5W |
0 |
|
Ficha técnica |
PSAC05R (5W) | Bulk | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 1A | 5 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | Multi-Blade | - | 2.82" L x 1.77" W x 1.17" H (71.7mm x 45.0mm x 29.8mm) | CE, cULus, TUVgs | - |
00xxA-10B.jpg)
|
FWE050012A-10BAC/DC DESKTOP ADAPTER 12V 51W |
0 |
|
- |
ELPAC FWE050 (50W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 12V | 4.25A | 51 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 4.50" L x 2.26" W x 1.44" H (114.2mm x 57.5mm x 36.5mm) | CB, CE, cTUVus | - |
|

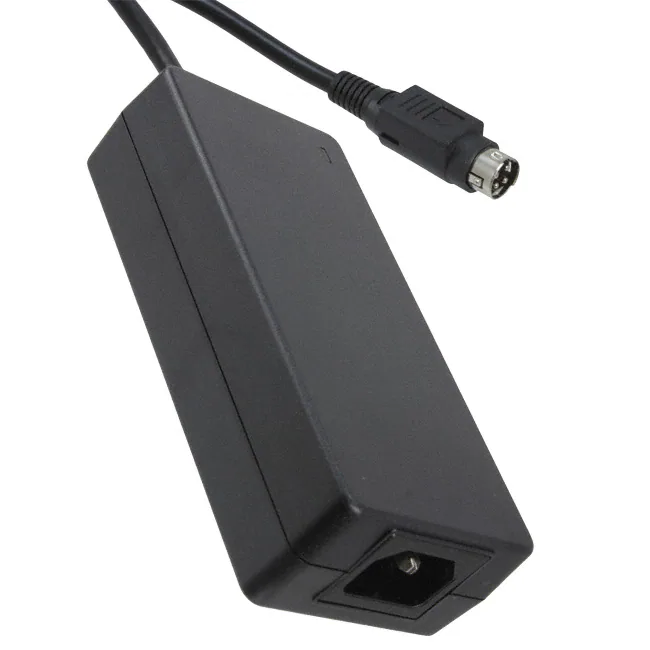

MDS-060AAS12 BAAC/DC DESKTOP ADAPTER 12V 60W |
0 |
|
Ficha técnica |
MDS | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 275 VAC | 12V | 5A | 60 W | 500mW (Max) | - | ITE (Commercial), Medical | Level V | 0°C ~ 40°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 5.31" L x 2.44" W x 1.34" H (135.0mm x 62.0mm x 34.1mm) | CB Scheme, CE, EN, UL | 50581; 55011; 55032; 60601-1; 60950-1 |
|
MDS-060AAS15 BAAC/DC DESKTOP ADAPTER 15V 60W |
0 |
|
Ficha técnica |
MDS | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 275 VAC | 15V | 4A | 60 W | 500mW (Max) | - | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 5.31" L x 2.44" W x 1.34" H (135.0mm x 62.0mm x 34.1mm) | CB Scheme, CE, EN, UL | 50581; 55011; 55032; 60601-1; 60950-1 |
|
|
MDS-060AAS19 BAAC/DC DESKTOP ADAPTER 19V 61W |
0 |
|
Ficha técnica |
MDS | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 275 VAC | 19V | 3.2A | 61 W | 500mW (Max) | - | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 5.31" L x 2.44" W x 1.34" H (135.0mm x 62.0mm x 34.1mm) | CB Scheme, CE, EN, UL | 50581; 55011; 55032; 60601-1; 60950-1 |
|
|
76002021AC/DC WALL MOUNT ADAPTER 5V 15W |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 100 ~ 240 VAC | 5V | 3A | 15 W | - | - | ITE (Commercial) | - | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | Multi-Blade | - | 2.91" L x 1.71" W x 1.34" H (74.0mm x 43.5mm x 34.0mm) | CE | - |
|
DTM200PW190CAC/DC ADAPTER 19V 10.53A 200W |
0 |
|
- |
DTM200-C (200W) | Bulk | Discontinued | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DTM200PW240CAC/DC ADAPTER 24V 8.33A 200W |
0 |
|
- |
DTM200-C (200W) | Bulk | Discontinued | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DTM200PW480CAC-DC MED ADPT 48V 4.166A 200W |
0 |
|
- |
DTM200-C (200W) | Bulk | Discontinued | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PSM03A-100-RAC/DC WALL MNT ADAPTER 10V 2.8W |
0 |
|
Ficha técnica |
PSM03 (2.75W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 10V | 275mA | 2.8 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | NEMA 1-15P | - | 0.83" L x 1.69" W x 1.65" H (21.0mm x 43.0mm x 42.0mm) | cULus | - |
|
|
PSM03A-050-RAC/DC WALL MOUNT ADAPTER 5V 3W |
0 |
|
Ficha técnica |
PSM03 (2.75W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 550mA | 3 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | NEMA 1-15P | - | 0.83" L x 1.69" W x 1.65" H (21.0mm x 43.0mm x 42.0mm) | cULus | 60950-1; 62368-1 |
|
PSA15R-075PV-RPAAC/DC WALL MNT ADAPTER 7.5V 15W |
0 |
|
Ficha técnica |
PSA15R (15W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 7.5V | 2A | 15 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | Multi-Blade | - | 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm) | CE, C-Tick, cULus, GS | - |
|
PSC12R-050-RPAAC/DC WALL MOUNT ADAPTER 5V 10W |
0 |
|
Ficha técnica |
PSC12R (12W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 2A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | Multi-Blade | - | 2.82" L x 1.77" W x 1.30" H (71.7mm x 45.0mm x 33.0mm) | CE, C-tick, cULus | - |
|
PSAA20R-120-RPAAC/DC WALL MOUNT ADAPTER 12V 20W |
0 |
|
Ficha técnica |
PSAA20R (20W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 1.67A | 20 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | Multi-Blade | - | 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm) | CE, cULus | - |
