Alarmes, Campainhas e Sirenes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Circuito do driver | Tipo de entrada | Voltagem - Nominal | Faixa de tensão | Frequência | Tecnologia | Modo operacional | Duração | Nível de pressão sonora (SPL) | Corrente - Alimentação | Localização da porta | Temperatura operacional | Agência de Aprovação | Classificações | Proteção de entrada | Tipo de montagem | Terminação | Tamanho/dimensão | Altura - Assentado (Máx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC628NDRBUZZER PIEZO 42.98MM PNL MNT |
70 |
|
Ficha técnica |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2kHz | Piezo | Single Tone | - | 83dB @ 6V, 61cm | 3 ~ 20mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.946" (49.43mm) |
|

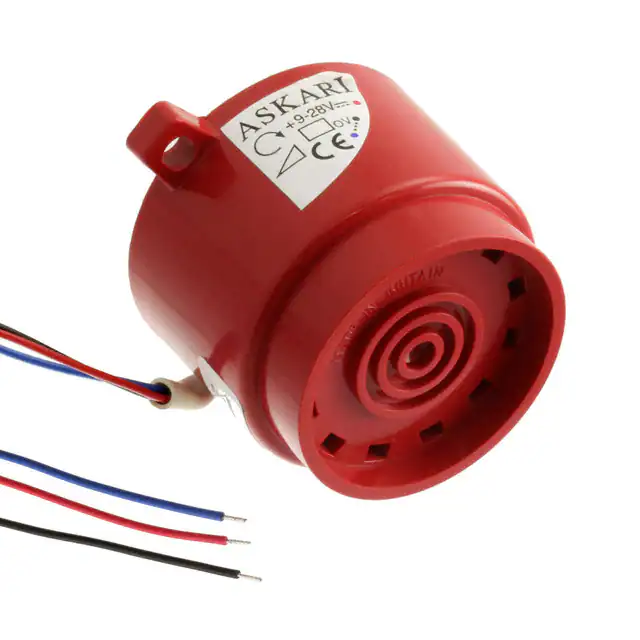

AW-10FR-NSVCBUZZER PIEZO 12V 53MM FLANGE |
20 |
|
Ficha técnica |
AW | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 9 ~ 28V | 2.9kHz | Piezo | Dual Tone | - | 118dB @ 12V, 10cm | 15mA | Top | -25°C ~ 70°C | - | - | IP65 - Dust Tight, Water Resistant | Panel Mount, Flange | Wire Leads | 2.087" Dia (53.00mm) | 1.713" (43.50mm) |
|
4099BUZZER 12V63.2X64.3MM BRACKET |
71 |
|
Ficha técnica |
- | Bulk | Active | Indicator, Internally Driven | DC | 12 V | - | - | - | - | - | - | - | - | - | - | - | - | Bracket Mount | Screw Terminals | 2.488" L x 2.531" W (63.20mm x 64.30mm) | - |
|
ZA016LDCTBUZZER PIEZO 30.74MM PNL MNT |
12 |
|
Ficha técnica |
ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Single Tone | - | 85dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
SC628NDPBUZZER PIEZO 42.98MM PNL MNT |
7 |
|
Ficha técnica |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 10 ~ 28V | 2kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 85dB @ 10V, 61cm | 3 ~ 16mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.946" (49.43mm) |
|
AW-10PR-NSVCBUZZER PIEZO 12V 50MM PNL MNT |
32 |
|
Ficha técnica |
AW | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 9 ~ 28V | 2.9kHz | Piezo | Dual Tone | - | 106dB @ 12V, 10cm | 15mA | Top | -40°C ~ 80°C | - | - | IP65 - Dust Tight, Water Resistant | Panel Mount | Wire Leads | 1.969" Dia (50.00mm) | 1.791" (45.50mm) |
|

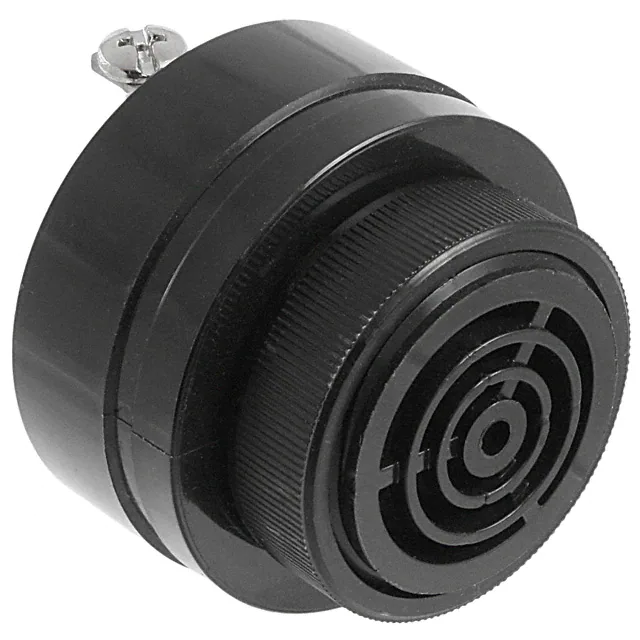

SC628DPRBUZZER PIEZO 42.98MM PNL MNT |
25 |
|
Ficha técnica |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 1.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 60dB @ 6V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.330" (33.77mm) |
|
|
ZA016LDMP1BUZZER PIEZO 30.74MM PNL MNT |
9 |
|
Ficha técnica |
ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Pulse, Medium | 5 PPS | 85dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
ZA028LDMP1BUZZER PIEZO 30.74MM PNL MNT |
7 |
|
Ficha técnica |
ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Pulse, Medium | 5 PPS | 85dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
SC250NRBUZZER PIEZO 42.85MM PNL MNT |
34 |
|
Ficha técnica |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 60 ~ 250V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 60V, 61cm | 5 ~ 18mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|

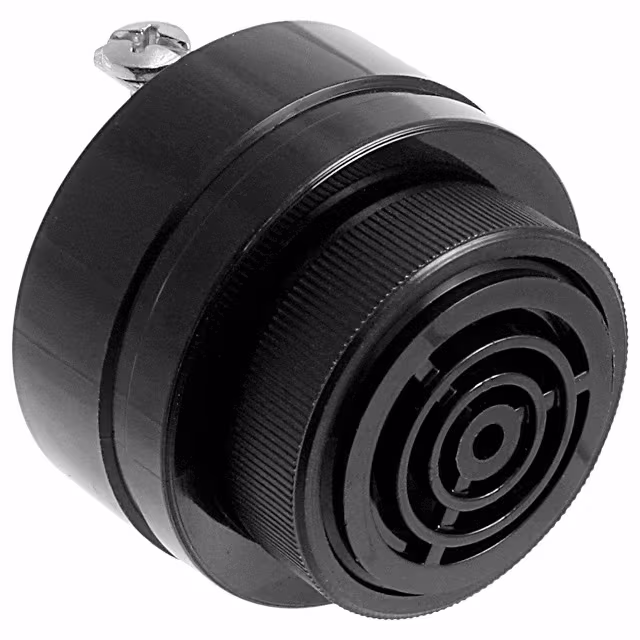

SC628NPRBUZZER PIEZO 42.98MM PNL MNT |
18 |
|
Ficha técnica |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 80dB @ 6V, 61cm | 4 ~ 16mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.399" (35.54mm) |
|
SC2036CPRBUZZER PIEZO 42.85MM PNL MNT |
41 |
|
Ficha técnica |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 20 ~ 36V | 1kHz | Piezo | Chime | - | 68dB @ 20V, 61cm | 12 ~ 25mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.946" (49.43mm) |
|
SCE028LD2TT1BBUZZER PIEZO 42.98MM PNL MNT |
7 |
|
Ficha técnica |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.167kHz | Piezo | Ringer, 3 Tone | - | 85dB @ 16V, 61cm | 30mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) | 2.000" (50.80mm) |
|
ZT028LDCTRBUZZER PIEZO 30.74MM PNL MNT |
13 |
|
Ficha técnica |
ZT | Bulk | Active | Indicator, Internally Driven | DC | - | 20 ~ 28V | 3.7kHz | Piezo, LED, Red | Single Tone, Visual Indicator | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
SC250RBUZZER PIEZO 42.85MM PNL MNT |
27 |
|
Ficha técnica |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 60 ~ 250V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 60V, 61cm | 5 ~ 18mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
|
SC616CPRBUZZER PIEZO 42.85MM PNL MNT |
14 |
|
Ficha técnica |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Chime | - | 68dB @ 6V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
ZA120MACTBUZZER PIEZO 30.74MM PNL MNT |
21 |
|
Ficha técnica |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Single Tone | - | 75dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) | 2.234" (56.75mm) |
|
|
SC630JWBUZZER PIEZO 42.98MM PNL MNT |
29 |
|
Ficha técnica |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 30V | 2.3kHz | Piezo | Warble | 0.5 ~ 2 PPS | 65dB @ 6V, 61cm | 6 ~ 35mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.946" (49.43mm) |
|
|
SC110DRBUZZER PIEZO 42.85MM PNL MNT |
16 |
|
Ficha técnica |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2kHz | Piezo | Single Tone | - | 60dB @ 30V, 61cm | 6 ~ 21mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) | 1.399" (35.54mm) |
|
SC648SBUZZER PIEZO 42.98MM PNL MNT |
12 |
|
Ficha técnica |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 10 ~ 48V | 2.4kHz | Piezo | Siren | 3.5 ~ 6.5 PPS | 80dB @ 10V, 61cm | 25 ~ 35mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) | 1.946" (49.43mm) |
