Alarmes, Campainhas e Sirenes
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Circuito do driver | Tipo de entrada | Voltagem - Nominal | Faixa de tensão | Frequência | Tecnologia | Modo operacional | Duração | Nível de pressão sonora (SPL) | Corrente - Alimentação | Localização da porta | Temperatura operacional | Agência de Aprovação | Classificações | Proteção de entrada | Tipo de montagem | Terminação | Tamanho/dimensão | Altura - Assentado (Máx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XVSV9BBNBUZZER 105MMX105MM DIN RAIL |
9 |
|
Ficha técnica |
Harmony XVS | Box | Active | - | DC | - | 10 ~ 30V | - | - | - | - | - | 160mA | User Defined | -10°C ~ 55°C | CE | - | IP20, IP65 | DIN Rail | Wire Leads | 4.134" L x 4.134" W (105.00mm x 105.00mm) | 1.972" (50.10mm) |
|

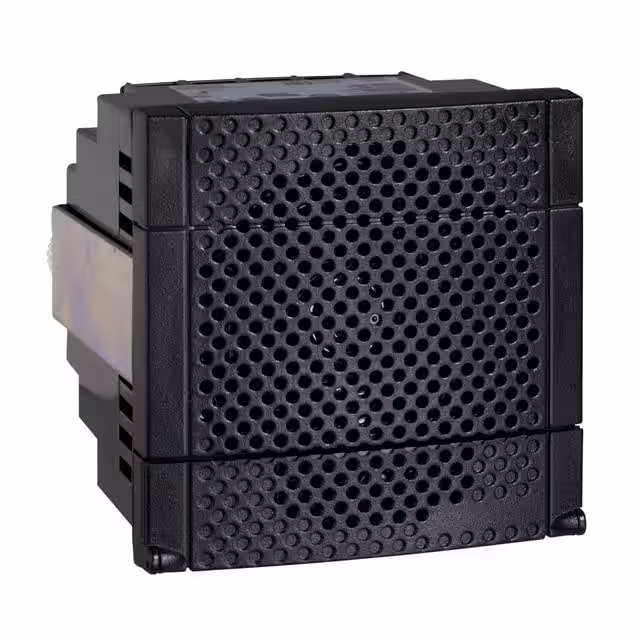

XVS72BMBPBUZZER 24V 69.3MMX72MM DIN RAIL |
4 |
|
Ficha técnica |
Harmony XVS | Box | Active | - | DC | 24 V | - | - | - | - | - | - | 117 ~ 200mA | User Defined | -10°C ~ 50°C | CE, UR | - | IP54 - Dust Protected, Water Resistant | DIN Rail | - | 2.728" L x 2.835" W (69.30mm x 72.00mm) | 2.835" (72.00mm) |
|
BRT1209PF-12BUZZER MAGNETIC 12V 12MM TH |
1,000 |
|
Ficha técnica |
BRT1209PF | Tray | Active | Transducer, Externally Driven | DC | 12 V | 6 ~ 15V | 2.4kHz | Magnetic | Single Tone | - | 85dB @ 12V, 10cm | 40mA | Top | -40°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.374" (9.50mm) |
|
BRT1209PF-01BUZZER MAGNETIC 1.5V 12MM TH |
100 |
|
Ficha técnica |
BRT1209PF | Tray | Active | Transducer, Externally Driven | DC | 1.5 V | 1 ~ 3V | 2.4kHz | Magnetic | Single Tone | - | 75dB @ 1.5V, 10cm | 40mA | Top | -40°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.374" (9.50mm) |
|
EMX-2T01P50ABUZZER 1.5V 12MM TH |
32 |
|
Ficha técnica |
- | Tray | Active | - | - | 1.5 V | 1.25 ~ 2.5V | 2.048kHz | - | Continuous | - | 70dB @ 1.5V, 10cm | 10mA | - | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.213" (5.40mm) |
|
|
OWMB-1295P-24-5BUZZER MAGNETIC 5V 12MM TH |
516 |
|
Ficha técnica |
- | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 5 V | 3 ~ 7V | 2.4kHz | Magnetic | Single Tone | - | 85dB @ 5V, 10cm | 30mA | Top | -40°C ~ 85°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.374" (9.50mm) |
|
EMX-7TB12PBUZZER 12V 12MM TH |
40 |
|
Ficha técnica |
- | Tray | Active | - | - | 12 V | 9 ~ 15V | 2.7kHz | - | Continuous | - | 86dB @ 12V, 10cm | 40mA | - | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) | 0.394" (10.00mm) |
|
OWPB-121230S-40-3.6BUZZER PIEZO 3.6V 12X12MM SMD |
53 |
|
Ficha técnica |
- | Cut Tape (CT) | Active | Transducer, Externally Driven | Peak-Peak Signal | 36 V | 25V | 4kHz | Piezo | Single Tone | - | 75dB @ 3.6V, 10cm | 3mA | Side | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.118" (3.00mm) |
|
|
OWMB-9032S-27-16-3BUZZER MAGNETIC 3V 9.2MM SMD |
479 |
|
Ficha técnica |
- | Cut Tape (CT) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3 V | 2 ~ 4V | 2.7kHz | Magnetic | Single Tone | - | 92dB @ 3V, 10cm | 80mA | Side | -40°C ~ 105°C | - | - | - | Surface Mount | Solder Pads | 0.362" Dia (9.20mm) | 0.126" (3.20mm) |
|
TFM-59DA-5BUZZER 3V 12.2MM TH |
101 |
|
Ficha técnica |
- | Tray | Active | - | - | 3 V | 3 ~ 25V | 4kHz | - | Continuous | - | 70dB @ 3V, 10cm | - | - | -40°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.480" Dia (12.20mm) | 0.433" (11.00mm) |
|
TFM-51BUZZER 9V 22MM TH |
115 |
|
Ficha técnica |
- | Tray | Active | - | - | 9 V | 3 ~ 15V | 4.1kHz | - | Continuous | - | 80dB @ 9V, 10cm | 3mA | - | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.866" Dia (22.00mm) | 0.319" (8.10mm) |
|
TFM-25BUZZER 9V 16.8MM TH |
37 |
|
Ficha técnica |
- | Tray | Active | - | - | 9 V | 3 ~ 15V | 4kHz | - | Continuous | - | 80dB @ 9V, 10cm | 2.5mA | - | -40°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.661" Dia (16.80mm) | 0.276" (7.00mm) |
|
TFM-25EBUZZER PIEZO 3V 17MM TH |
103 |
|
Ficha técnica |
TFM | Box | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 25V | 2kHz | Piezo | - | - | 60.46dB @ 3V, 30cm | 3mA | Top | -40°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.669" Dia (17.00mm) | 0.315" (8.00mm) |
|
TFM-23PBUZZER 9V 16.8MM TH |
40 |
|
Ficha técnica |
- | Tray | Active | - | - | 9 V | 3 ~ 15V | 4kHz | - | Continuous | - | 80dB @ 9V, 10cm | 3mA | - | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.661" Dia (16.80mm) | 0.197" (5.00mm) |
|
TFM-51HABUZZER 3V 22MM TH |
38 |
|
Ficha técnica |
- | Tray | Active | - | - | 3 V | 3 ~ 15V | 2kHz | - | Continuous | - | 70dB @ 3V, 10cm | 3mA | - | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.866" Dia (22.00mm) | 0.425" (10.80mm) |
|
TFM-51HBUZZER 3V 22MM TH |
30 |
|
Ficha técnica |
- | Tray | Active | - | - | 3 V | 3 ~ 15V | 2kHz | - | Continuous | - | 70dB @ 3V, 10cm | 3mA | - | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.866" Dia (22.00mm) | 0.425" (10.80mm) |
|
TFM-25EH3.5BUZZER 3V 17MM TH |
28 |
|
Ficha técnica |
- | Tray | Active | - | - | 3 V | 3 ~ 15V | 2kHz | - | Continuous | - | 70dB @ 3V, 10cm | 3mA | - | -40°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.669" Dia (17.00mm) | 0.315" (8.00mm) |
|
|
OWMB-131310S-20-140BUZZER MAGN 12V 13.8X13MM SMD |
468 |
|
Ficha técnica |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 12 V | 8 ~ 16V | 2kHz | Magnetic | Single Tone | - | 90dB @ 12V, 10cm | 40mA | Top | -40°C ~ 105°C | - | - | - | Surface Mount | Solder Pads | 0.543" L x 0.512" W (13.80mm x 13.00mm) | 0.386" (9.80mm) |
|
PART PASSIVE BUZZER 5VBUZZER PIEZO 5V TH |
500 |
|
- |
- | Bulk | Active | - | - | 5 V | 2 ~ 6V | - | Magnetic | - | - | - | - | - | - | - | - | - | Through Hole | PC Pins | - | - |
|

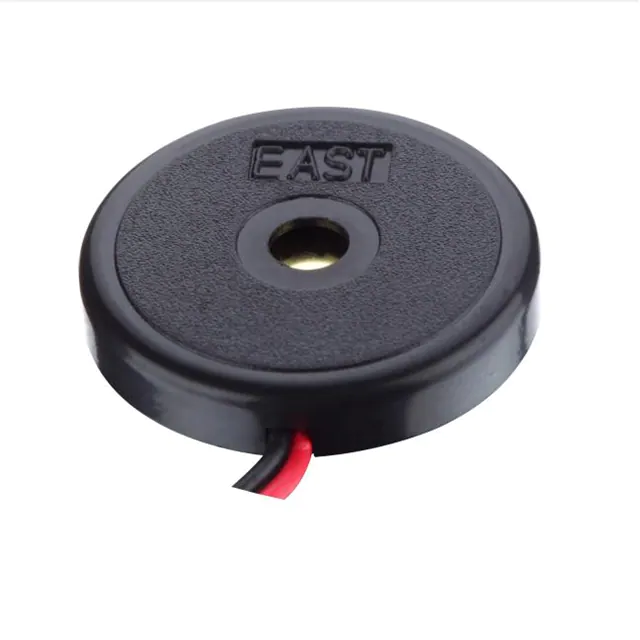

TFM-19BBUZZER 12V 23MM WIRE |
26 |
|
Ficha técnica |
- | Tray | Active | - | - | 12 V | 6 ~ 30V | 5kHz | - | Continuous | - | 75dB @ 12V, 30cm | 5mA | - | -20°C ~ 70°C | - | - | - | Wire Lead | Wire Leads | 0.906" Dia (23.00mm) | 0.169" (4.30mm) |
