Capacitores Eletrolíticos de Alumínio
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Pacote/Caixa | Série | Embalagem | Status do produto | Capacitância | Tolerância | Voltagem - Nominal | ESR (Resistência equivalente em série) | Vida Útil @ Temp. | Temperatura operacional | Polarização | Classificações | Aplicações | Corrente de ondulação em baixa frequência | Corrente de ondulação em alta frequência | Impedância | Espaçamento de cabos | Tamanho/dimensão | Altura - Assentado (Máx.) | Tamanho da superfície de montagem | Tipo de montagem |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B41858C6687M001CAP ALUM 680UF 20% 50V RADIAL TH |
0 |
|
Ficha técnica |
B41858 | Bulk | Obsolete | 680 µF | ±20% | 50 V | 186mOhm @ 120Hz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 2.14 A @ 100 kHz | 43 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
B41858C6687M008CAP ALUM 680UF 20% 50V RADIAL TH |
0 |
|
Ficha técnica |
B41858 | Bulk | Obsolete | 680 µF | ±20% | 50 V | 186mOhm @ 120Hz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 2.14 A @ 100 kHz | 43 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|

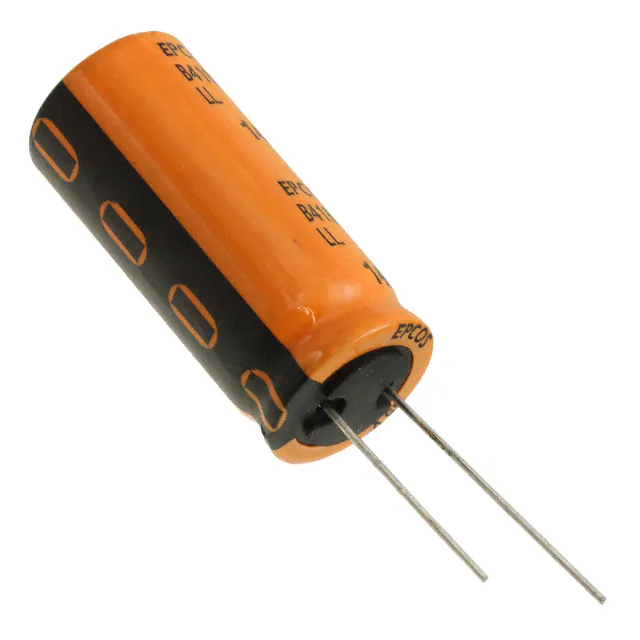

B41858C8687M001CAP ALUM 680UF 20% 63V RADIAL TH |
0 |
|
Ficha técnica |
B41858 | Bulk | Obsolete | 680 µF | ±20% | 63 V | 186mOhm @ 120Hz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 1.785 A @ 100 kHz | 65 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B41858C8687M008CAP ALUM 680UF 20% 63V RADIAL TH |
0 |
|
Ficha técnica |
B41858 | Bulk | Obsolete | 680 µF | ±20% | 63 V | 186mOhm @ 120Hz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 1.785 A @ 100 kHz | 65 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B41858C9277M001CAP ALUM 270UF 20% 100V RADIAL |
0 |
|
Ficha técnica |
B41858 | Bulk | Obsolete | 270 µF | ±20% | 100 V | 374mOhm @ 120Hz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 1.309 A @ 100 kHz | 121 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B41858C9277M008CAP ALUM 270UF 20% 100V RADIAL |
0 |
|
Ficha técnica |
B41858 | Bulk | Obsolete | 270 µF | ±20% | 100 V | 374mOhm @ 120Hz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 1.309 A @ 100 kHz | 121 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B41866C5228M003CAP ALUM 2200UF 20% 25V RADIAL |
0 |
|
Ficha técnica |
B41866 | Bulk | Obsolete | 2200 µF | ±20% | 25 V | 51mOhm @ 10kHz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.185 A @ 100 kHz | 47 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B41866C8687M001CAP ALUM 680UF 20% 63V RADIAL TH |
0 |
|
- |
B41866 | Bulk | Obsolete | 680 µF | ±20% | 63 V | 279mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 1.588 A @ 100 kHz | 89 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B41866C8687M008CAP ALUM 680UF 20% 63V RADIAL TH |
0 |
|
- |
B41866 | Bulk | Obsolete | 680 µF | ±20% | 63 V | 279mOhm @ 120Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 1.588 A @ 100 kHz | 89 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B41866G8687M003CAP ALUM 680UF 20% 63V RADIAL TH |
0 |
|
Ficha técnica |
B41866 | Bulk | Obsolete | 680 µF | ±20% | 63 V | 94mOhm @ 10kHz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.06 A @ 100 kHz | 88 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B41888C8687M003CAP ALUM 680UF 20% 63V RADIAL TH |
0 |
|
Ficha técnica |
B41888 | Bulk | Obsolete | 680 µF | ±20% | 63 V | 72mOhm @ 10kHz | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 1.629 A @ 100 kHz | 65 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B41890A4228M001CAP ALUM 2200UF 20% 16V RADIAL |
0 |
|
Ficha técnica |
B41890 | Bulk | Obsolete | 2200 µF | ±20% | 16 V | 37mOhm @ 10kHz | 15000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 2.86 A @ 100 kHz | 31 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
B41890A4228M008CAP ALUM 2200UF 20% 16V RADIAL |
0 |
|
Ficha técnica |
B41890 | Bulk | Obsolete | 2200 µF | ±20% | 16 V | 37mOhm @ 10kHz | 15000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 2.86 A @ 100 kHz | 31 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
B41895A5228M003CAP ALUM 2200UF 20% 25V RADIAL |
0 |
|
- |
B41895 | Bulk | Obsolete | 2200 µF | ±20% | 25 V | 33mOhm @ 10kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.56 A @ 100 kHz | 29 mOhms | - | - | - | - | Through Hole | |
|
|
B41895A5338M003CAP ALUM 3300UF 20% 25V RADIAL |
0 |
|
- |
B41895 | Bulk | Obsolete | 3300 µF | ±20% | 25 V | 25mOhm @ 10kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 3.34 A @ 100 kHz | 21 mOhms | - | - | - | - | Through Hole | |
|
|
B41895A6108M001CAP ALUM 1000UF 20% 50V RADIAL |
0 |
|
- |
B41895 | Bulk | Obsolete | 1000 µF | ±20% | 50 V | - | - | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | - | - | - | - | - | - | Through Hole | |
|
|
B41895A6108M008CAP ALUM 1000UF 20% 50V RADIAL |
0 |
|
- |
B41895 | Bulk | Obsolete | 1000 µF | ±20% | 50 V | - | - | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | - | - | - | - | - | - | Through Hole | |
|
|
B41895A7158M001CAP ALUM 1500UF 20% 35V RADIAL |
0 |
|
- |
B41895 | Bulk | Obsolete | 1500 µF | ±20% | 35 V | 28mOhm @ 10kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.97 A @ 100 kHz | 24 mOhms | - | - | - | - | Through Hole | |
|
|
B41895A7158M008CAP ALUM 1500UF 20% 35V RADIAL |
0 |
|
- |
B41895 | Bulk | Obsolete | 1500 µF | ±20% | 35 V | 28mOhm @ 10kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.97 A @ 100 kHz | 24 mOhms | - | - | - | - | Through Hole | |
|
B41896C4228M001CAP ALUM 2200UF 20% 16V RADIAL |
0 |
|
Ficha técnica |
B41896 | Bulk | Obsolete | 2200 µF | ±20% | 16 V | 109mOhm @ 120Hz | 7000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.86 A @ 100 kHz | 26 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole |
