Capacitores de Alumínio - Polímero
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Capacitância | Tolerância | Voltagem - Nominal | ESR (Resistência equivalente em série) | Vida Útil @ Temp. | Temperatura operacional | Classificações | Aplicações | Recursos | Corrente de ondulação em baixa frequência | Corrente de ondulação em alta frequência | Impedância | Espaçamento de cabos | Tamanho/dimensão | Altura - Assentado (Máx.) | Tamanho da superfície de montagem | Tipo de montagem | Pacote / Caixa |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEH-ZA1J220XPCAP ALUM HYBRID 22UF 20% 63V SMD |
4,461 |
|
Ficha técnica |
ZA | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 63 V | 80mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 150 mA @ 100 Hz | 1.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
RHS0J102MCN1GSCAP ALUM POLY 1000UF 20% 6.3V |
9,238 |
|
Ficha técnica |
FPCAP, RHS | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 515 mA @ 120 Hz | 5.15 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.461" (11.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
EEF-SX0E331ERCAP ALUM POLY 330UF 20% 2.5V SMD |
5,083 |
|
Ficha técnica |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|

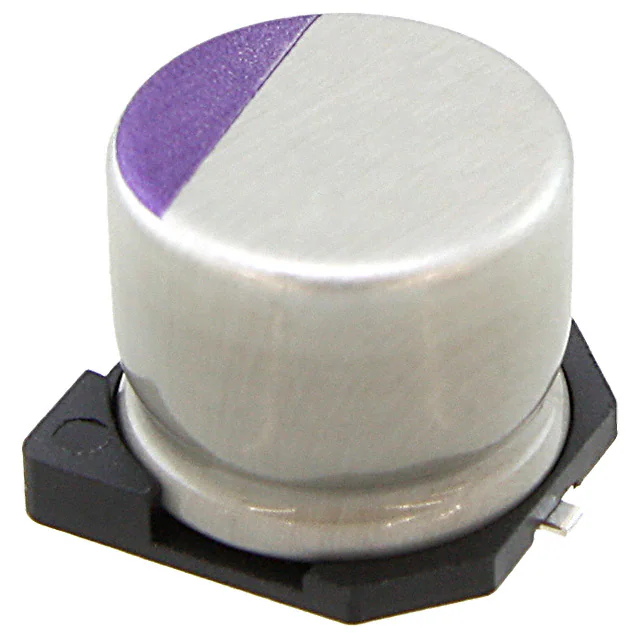

20SVP47MCAP ALUM POLY 47UF 20% 20V SMD |
2,966 |
|
Ficha técnica |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 20 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 94.5 mA @ 120 Hz | 1.89 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
16SVPK220MCAP ALUM POLY 220UF 20% 16V SMD |
390 |
|
Ficha técnica |
OS-CON™, SVPK | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | 22mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 52 mA @ 120 Hz | 1.04 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
ECASD40J107M015K00CAP ALUM POLY 100UF 20% 6.3V SMD |
2,087 |
|
Ficha técnica |
ECAS | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
EEF-GX0D561RCAP ALUM POLY 560UF 20% 2V SMD |
22,103 |
|
Ficha técnica |
SP-Cap GX | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 2 V | 3mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 10.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
EEH-ZA1H100RCAP ALUM HYBRID 10UF 20% 50V SMD |
2,143 |
|
Ficha técnica |
ZA | Tape & Reel (TR) | Active | Hybrid | 10 µF | ±20% | 50 V | 120mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 75 mA @ 100 Hz | 750 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
EEF-CX1A470RCAP ALUM POLY 47UF 20% 10V SMD |
3,270 |
|
Ficha técnica |
SP-Cap CX | Tape & Reel (TR) | Not For New Designs | Polymer | 47 µF | ±20% | 10 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | Surface Mount | 2917 (7343 Metric) |
|
HHXC500ARA101MJA0GCAP ALUMHYB 100UF 20% 50V SMD |
258 |
|
Ficha técnica |
HXC | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 50 V | 25mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
EEH-ZK1V101XPCAP ALUMHYB 100UF 20% 35V SMD |
12,545 |
|
Ficha técnica |
ZK | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 35 V | 35mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 255 mA @ 100 Hz | 1.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
|
ECASD41E336M040KA0CAP ALUM POLY 33UF 20% 25V SMD |
36,116 |
|
Ficha técnica |
ECAS | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 25 V | 40mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
RHA1C151MCN1GSCAP ALUM POLY 150UF 20% 16V SMD |
6,448 |
|
Ficha técnica |
FPCAP, RHA | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 16 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 322 mA @ 120 Hz | 3.22 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
|
EEF-CX1C220RCAP ALUM POLY 22UF 20% 16V SMD |
8,806 |
|
Ficha técnica |
SP-Cap CX | Tape & Reel (TR) | Not For New Designs | Polymer | 22 µF | ±20% | 16 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | Surface Mount | 2917 (7343 Metric) |
|

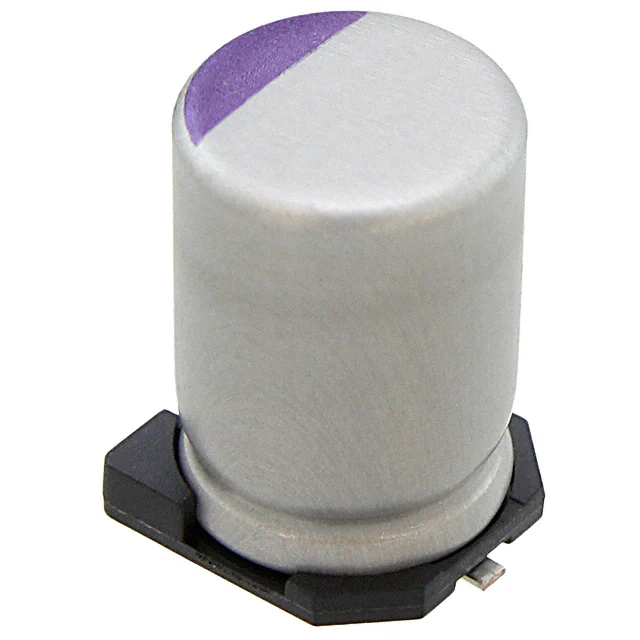

16SVPF560MCAP ALUM POLY 560UF 20% 16V SMD |
2,180 |
|
Ficha técnica |
OS-CON™, SVPF | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 16 V | 14mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 247.5 mA @ 120 Hz | 4.95 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
|
EEF-SX0D331E4CAP ALUM POLY 330UF 20% 2V SMD |
38,651 |
|
Ficha técnica |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2 V | 4.5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 8.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
APXG250ARA221MJA0GCAP ALUM POLY 220UF 20% 25V SMD |
11,640 |
|
Ficha técnica |
NPCAP™-PXG | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 25 V | 20mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|

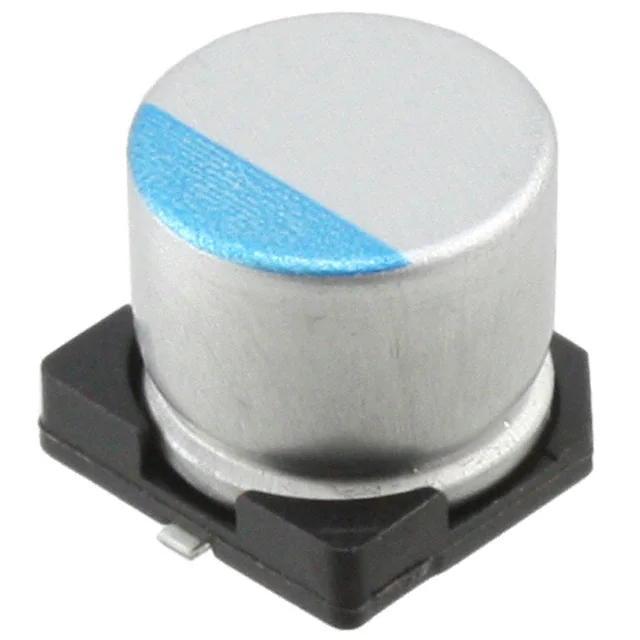

APXE160ARA680MF61GCAP ALUM POLY 68UF 20% 16V SMD |
3,520 |
|
Ficha técnica |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 16 V | 28mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.39 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
PCS0J221MCL1GSCAP ALUM POLY 220UF 20% 6.3V SMD |
2,915 |
|
Ficha técnica |
PCS | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 20mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
A759KS107M1VAAE031CAP ALUM POLY 100UF 20% 35V TH |
4,903 |
|
Ficha técnica |
A759 | Bulk | Active | Polymer | 100 µF | ±20% | 35 V | 31mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 214.5 mA @ 120 Hz | 4.29 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
