Transformadores de áudio
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Relação de espiras - Primário:Secundário | Impedância - Primário (Ohms) | Impedância - Secundário (Ohms) | Resistência CC (DCR) - Primário | Resistência CC (DCR) - Secundário | Tipo de transformador | Faixa de frequência | Resposta de frequência | Tensão - Isolamento | Perda de inserção | Perda de retorno | Nível de potência | Temperatura operacional | Agência de Aprovação | Tipo de montagem | Tamanho/dimensão | Altura - Assentado (Máx.) | Estilo de Terminação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
808XFMR 200 50/50 / 40K 10K/10K |
0 |
|
Ficha técnica |
800 | Bulk | Active | - | 200, 50/50 | 40k, 10k/10k | - | - | Broadcast Quality | 50Hz ~ 15kHz | ±0.5dB | - | 1dB | - | 15dB | - | - | Chassis Mount | 1.752" L x 1.252" W (44.50mm x 31.80mm) | 2.559" (65.00mm) | Solder Lug |
|
|
835XFMR 40K 10K/10K / 40K 10K/10K |
0 |
|
Ficha técnica |
800 | Bulk | Obsolete | 1:1 | 40k, 10k/10k | 40k, 10k/10k | - | - | Broadcast Quality | 50Hz ~ 15kHz | ±0.5dB | - | 1dB | - | 15dB | - | - | Chassis Mount | 1.752" L x 1.252" W (44.50mm x 31.80mm) | 2.559" (65.00mm) | Solder Lug |
|
|
841XFMR 20K 5K/5K / 200 50/50 CHAS |
0 |
|
Ficha técnica |
800 | Bulk | Obsolete | - | 20k, 5k/5k | 200, 50/50 | - | - | Broadcast Quality | 50Hz ~ 15kHz | ±0.5dB | - | 1dB | - | 20dB Max | - | - | Chassis Mount | 1.752" L x 1.252" W (44.50mm x 31.80mm) | 2.559" (65.00mm) | Solder Lug |
|
|
844XFMR 40K 10K/10K / 500 125/125 |
0 |
|
Ficha técnica |
800 | Bulk | Obsolete | - | 40k, 10k/10k | 500, 125/125 | - | - | Broadcast Quality | 50Hz ~ 15kHz | ±0.5dB | - | 1dB | - | 20dB Max | - | - | Chassis Mount | 1.752" L x 1.252" W (44.50mm x 31.80mm) | 2.559" (65.00mm) | Solder Lug |
|
|
842XFMR 20K 5K/5K / 500 125/125 |
0 |
|
Ficha técnica |
800 | Bulk | Obsolete | - | 20k, 5k/5k | 500, 125/125 | - | - | Broadcast Quality | 50Hz ~ 15kHz | ±0.5dB | - | 1dB | - | 20dB Max | - | - | Chassis Mount | 1.752" L x 1.252" W (44.50mm x 31.80mm) | 2.559" (65.00mm) | Solder Lug |
|
813XFMR 600 150/150 / 2.4K, 600/600 |
0 |
|
Ficha técnica |
800 | Bulk | Obsolete | - | 600, 150/150 | 2.4k, 600/600 | - | - | Broadcast Quality | 50Hz ~ 15kHz | ±0.5dB | - | 1dB | - | 15dB | - | - | Chassis Mount | 1.752" L x 1.252" W (44.50mm x 31.80mm) | 2.559" (65.00mm) | Solder Lug |
|
140CAUDIO XFMR 50 / 60K CHAS MNT |
0 |
|
Ficha técnica |
140 | Bulk | Obsolete | 1:34:5 | 50 | 60k | - | - | Shielded | 70Hz ~ 11kHz | ±1dB | - | - | - | - | - | - | Chassis Mount | 1.250" Dia (31.75mm) | 1.000" (25.40mm) | Wire Leads |
|
|
806XFMR 30, 7.5/7.5 / 40K 10K/10K |
0 |
|
Ficha técnica |
800 | Bulk | Obsolete | - | 30, 7.5/7.5 | 40k, 10k/10k | - | - | Broadcast Quality | 50Hz ~ 15kHz | ±0.5dB | - | 1dB | - | 15dB | - | - | Chassis Mount | 1.752" L x 1.252" W (44.50mm x 31.80mm) | 2.559" (65.00mm) | Solder Lug |
|
|
TTC-112AUDIO XFMR |
0 |
|
- |
TTC | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TTC-121AUDIO XFMR 600 / 600 300/300 TH |
0 |
|
Ficha técnica |
TTC | Bulk | Obsolete | 1:0.5 | 600 | 600, 300/300 | 74Ohm | 64Ohm | - | 300Hz ~ 3.5kHz | ±0.7dB | 1500VRMS @ 1 Minute | 1.1dB Typ @ 1kHz | 18dB Typ | -45dB ~ 7dB | - | - | Through Hole | 1.650" L x 1.370" W (41.90mm x 34.80mm) | 0.657" (16.70mm) | PC Pin |
|
|
TTC-198AUDIO XFMR 600 / 600CT |
0 |
|
- |
TTC | - | Obsolete | 1:1 | 600 | 600CT | 33Ohm | 56Ohm | - | 300Hz ~ 3.5kHz | ±0.5dB | 4000VRMS @ 1 Minute | 1.4dB Max @ 1kHz | 26dB Min | -45dB ~ 7dB | - | - | - | - | - | - |
|
|
TTC-2000AUDIO XFMR |
0 |
|
- |
TTC | - | Obsolete | 1:1 | - | - | - | - | - | - | - | 1500VRMS @ 1 Minute | - | - | - | - | UL1950 | - | - | - | - |
|
|
TTC-2002AUDIO XFMR |
0 |
|
- |
TTC | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TTC-2003AUDIO XFMR |
0 |
|
- |
TTC | - | Obsolete | 1:1 | - | - | - | - | - | - | - | 500VRMS @ 1 Minute | - | - | - | - | - | - | - | - | - |
|
|
TTC-2012AUDIO XFMR |
0 |
|
- |
TTC | - | Obsolete | - | - | - | - | - | - | - | - | 1500VRMS @ 1 Minute | -3.5dB Max @ 6-9MHz | -12dB Min @ 6-9MHz | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
TTC-231XFMR 600 / 1.2KCT 600/600 |
0 |
|
- |
TTC | - | Obsolete | 0.659:1 | 600 | 1.2kCT, 600/600 | 75Ohm | 170Ohm | - | 300Hz ~ 3.5kHz | ±0.5dB | 1500VRMS @ 1 Minute | 1.7dB Max @ 1kHz | 14dB Min @ 1kHz | -45dB ~ 10dB | - | - | - | - | - | - |
|
TTC-5000AUDIO XFMR 600 / 301 TH |
0 |
|
Ficha técnica |
TTC | Bulk | Obsolete | 1:1 | 600 | 301 | 150Ohm | 150Ohm | Data/Voice Coupling | 200Hz ~ 4kHz | ±0.25dB | 1875VRMS @ 1 Second | 3.25dB Max @ 1kHz | 20dB Min @ 1kHz | - | - | UL1950, UL60950, EN60950 | Through Hole | 0.886" L x 0.909" W (22.50mm x 23.10mm) | 0.543" (13.80mm) | PC Pin |
|
TTC-5006AUDIO XFMR 600 / 374 TH |
0 |
|
Ficha técnica |
TTC | Bulk | Obsolete | - | 600 | 374 | - | - | - | - | - | - | 2.5dB | - | - | - | - | Through Hole | 0.929" L x 0.976" W (23.60mm x 24.80mm) | 0.543" (13.80mm) | PC Pin |
|
|
TTC-5007AUDIO XFMR 600 / 530 TH |
0 |
|
Ficha técnica |
TTC | Bulk | Obsolete | - | 600 | 530 | - | - | - | - | - | - | 1dB Typ | - | - | - | - | Through Hole | 0.929" L x 0.976" W (23.60mm x 24.80mm) | 0.543" (13.80mm) | PC Pin |
|

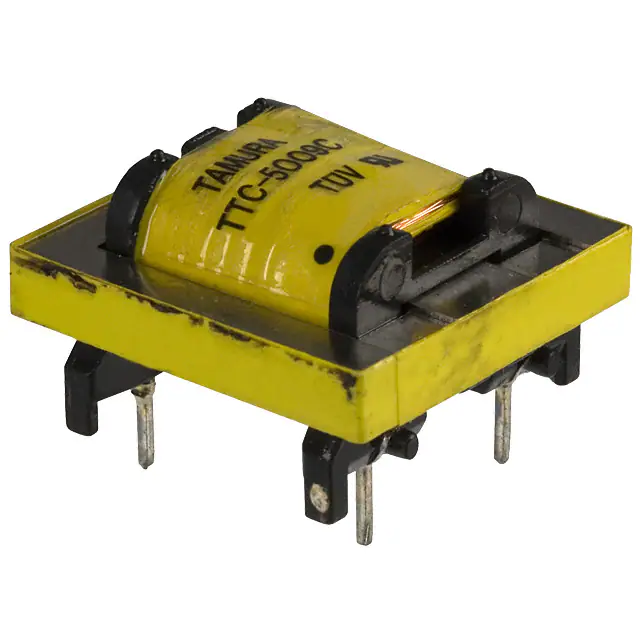

TTC-5009AUDIO XFMR 600 / 530 TH |
0 |
|
Ficha técnica |
TTC | Bulk | Obsolete | 1:1 | 600 | 530 | 46Ohm | 45Ohm | - | 200Hz ~ 4kHz | ±0.25dB | 1875VRMS @ 1 Second | 1dB Max @ 1kHz | 20dB Min @ 1kHz | - | - | UL1950, UL60950, EN60950 | Through Hole | 0.886" L x 0.909" W (22.50mm x 23.10mm) | 0.543" (13.80mm) | PC Pin |
