Relés Automotivos
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de bobina | Corrente da bobina | Tensão da bobina | Forma de contato | Classificação de contato (corrente) | Tensão de comutação | Tensão de operação obrigatória | Tensão de liberação obrigatória | Tempo de operação | Tempo de liberação | Recursos | Tipo de montagem | Estilo de Terminação | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A2S1CSQ48VDC1.9RRELAY AUTOMOTIVE SPDT 40A 48V |
15 |
|
Ficha técnica |
A2 | Tray | Active | Non Latching | 39.6 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
ACNM7112SAZRELAY AUTOMOTIVE SPST 30A 12V |
12 |
|
Ficha técnica |
ACNM | Tape & Reel (TR) | Active | Non Latching | 53.3 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Surface Mount | Gull Wing | -40°C ~ 110°C |
|
CB1F-P-24VRELAY AUTOMOTIVE SPDT 20A 24V |
0 |
|
Ficha técnica |
CB | Tube | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 85°C |
|

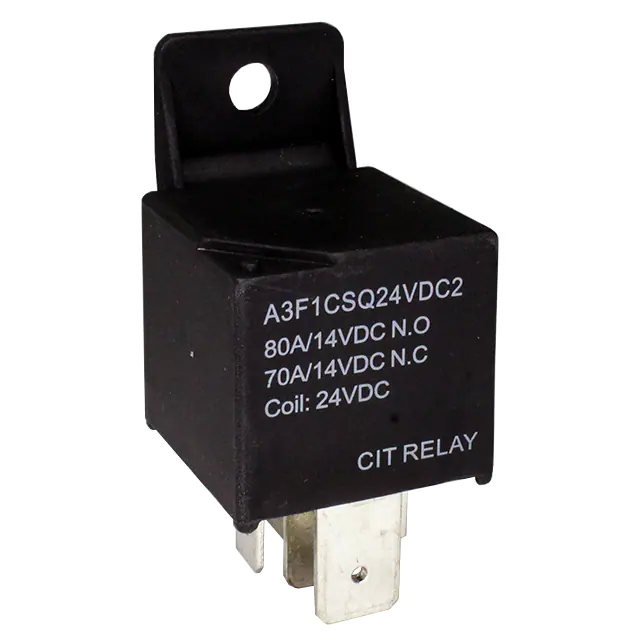

A3F1CSQ24VDC2RELAY AUTOMOTIVE SPDT 80A 24V |
0 |
|
Ficha técnica |
A3F | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
CB1AF-R-12VRELAY AUTOMOTIVE SPST 40A 12V |
8 |
|
Ficha técnica |
CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
CB1A-R-WM-12VRELAY AUTOMOTIVE SPST 40A 12V |
15 |
|
Ficha técnica |
CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
CB1A-T-M-12VCB RELAY HR 1 FORM A 12V |
19 |
|
Ficha técnica |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A3K1CSP12VDC1.6RRELAY AUTOMOTIVE SPDT 150A 12V |
0 |
|
Ficha técnica |
A3K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A2H1ASQ12VDC1.6RELAY AUTOMOTIVE SPST 50A 12V |
0 |
|
Ficha técnica |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2H1ASP12VDC1.6RELAY AUTOMOTIVE SPST 50A 12V |
0 |
|
Ficha técnica |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A2HF1ASQ12VDC1.6RELAY AUTOMOTIVE SPST 50A 12V |
0 |
|
Ficha técnica |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2H1ASQ12VDC1.6RRELAY AUTOMOTIVE SPST 50A 12V |
0 |
|
Ficha técnica |
A2H | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2H1ASQ12VDC1.6DRELAY AUTOMOTIVE SPST 50A 12V |
0 |
|
Ficha técnica |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2HF1ASQ12VDC1.6RRELAY AUTOMOTIVE SPST 50A 12V |
0 |
|
Ficha técnica |
A2H | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2HM1ASQ12VDC1.6RELAY AUTOMOTIVE SPST 50A 12V |
0 |
|
Ficha técnica |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2HF1ASQ12VDC1.6DRELAY AUTOMOTIVE SPST 50A 12V |
0 |
|
Ficha técnica |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2H1ASQ24VDC1.6RELAY AUTOMOTIVE SPST 50A 24V |
0 |
|
Ficha técnica |
A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2HF1ASQ24VDC1.6RELAY AUTOMOTIVE SPST 50A 24V |
0 |
|
Ficha técnica |
A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2HM1ASQ12VDC1.6RRELAY AUTOMOTIVE SPST 50A 12V |
0 |
|
Ficha técnica |
A2H | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2HM1ASQ12VDC1.6DRELAY AUTOMOTIVE SPST 50A 12V |
0 |
|
Ficha técnica |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
