Relés Automotivos
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo de bobina | Corrente da bobina | Tensão da bobina | Forma de contato | Classificação de contato (corrente) | Tensão de comutação | Tensão de operação obrigatória | Tensão de liberação obrigatória | Tempo de operação | Tempo de liberação | Recursos | Tipo de montagem | Estilo de Terminação | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

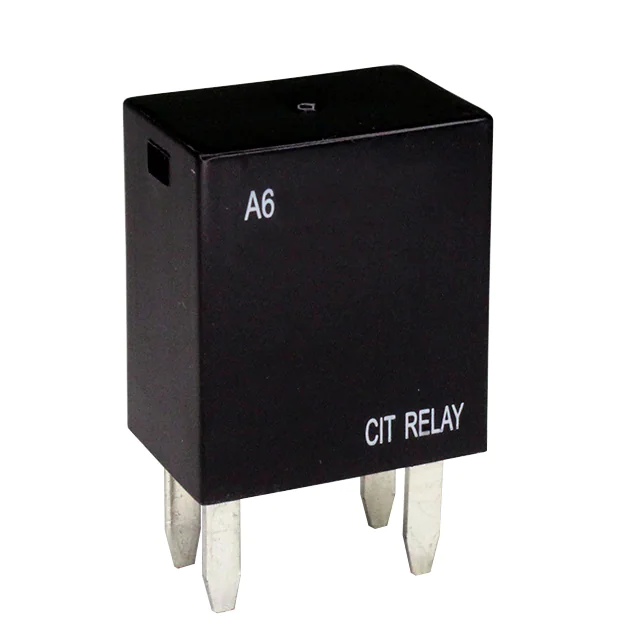

A61CC12VDC.9DRELAY AUTOMOTIVE SPDT 30A 12V |
0 |
|
Ficha técnica |
A6 | Tray | Active | Non Latching | 75 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Diode | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A61CC12VDC.9RRELAY AUTOMOTIVE SPDT 30A 12V |
0 |
|
Ficha técnica |
A6 | Tray | Active | Non Latching | 75 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Resistor | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A61CC12VDC1.3RRELAY AUTOMOTIVE SPDT 30A 12V |
0 |
|
Ficha técnica |
A6 | Tray | Active | Non Latching | 110.1 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Resistor | Through Hole | PC Pin | -40°C ~ 85°C |
|
AZ987-1C-24DETRELAY AUTOMOTIVE SPDT 30A 24V |
0 |
|
Ficha técnica |
AZ987 | Box | Active | Non Latching | - | 24VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 13.8 VDC | 3 VDC | 4 ms | 2 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 105°C |
|
|
AZ988-1AT-12DSEC1RRELAY AUTOMOTIVE SPST 30A 12V |
0 |
|
Ficha técnica |
AZ988 | Box | Active | Non Latching | 96.8 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 27VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | MICRO-ISO, Resistor, Sealed - Epoxy | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A61CC24VDC.9RELAY AUTOMOTIVE SPDT 30A 24V |
0 |
|
Ficha técnica |
A6 | Tray | Active | Non Latching | 37.5 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A61CC24VDC1.3RELAY AUTOMOTVIE SPDT 30A 24V |
0 |
|
Ficha técnica |
A6 | Tray | Active | Non Latching | 55 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
A3F1ACQ12VDC1RELAY AUTOMOTIVE SPST 60A 12V |
0 |
|
Ficha técnica |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A31ACQ12VDC1RELAY AUTOMOTIVE SPST 60A 12V |
0 |
|
Ficha técnica |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
AZ9841-1C-24DRELAY AUTOMOTIVE SPDT 40A 24V |
0 |
|
Ficha técnica |
AZ9841 | Box | Active | Non Latching | 55 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 14.4 VDC | 2.4 VDC | 5 ms | 2 ms | 280-ISO | Socketable | Plug In, Quick Connect - 0.110" (2.8mm) | -40°C ~ 125°C |
|
A102AS12VDCRELAY AUTOMOTIVE DPST 30A 12V |
0 |
|
Ficha técnica |
A10 | Tube | Active | Non Latching | 47.2 mA | 12VDC | DPST-NO (2 Form A) | 30 A | 28VDC - Max | 8.4 VDC | 1.2 VDC | 4 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 105°C |
|
|
AZ9701-1A-12DTRELAY AUTOMOTIVE SPST 45A 12V |
0 |
|
Ficha técnica |
AZ9701 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 45 A | 150VDC - Max | 6.8 VDC | 0.7 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
A3F1ACQ12VDC1RRELAY AUTOMOTIVE SPST 60A 12V |
0 |
|
Ficha técnica |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3F1ACQ12VDC1DRELAY AUTOMOTIVE SPST 60A 12V |
0 |
|
Ficha técnica |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A31ACQ12VDC1RRELAY AUTOMOTIVE SPST 60A 12V |
0 |
|
Ficha técnica |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A31ACQ12VDC1DRELAY AUTOMOTIVE SPST 60A 12V |
0 |
|
Ficha técnica |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
PC785-1C-12S-D-XRELAY AUTOMOTIVE SPDT 35A 12V |
0 |
|
Ficha técnica |
- | Tube | Active | Non Latching | 110 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.2 VDC | 1.2 VDC | 5 ms | 2 ms | Diode, Sealed - Fully | Socketable | Plug In | -40°C ~ 125°C |
|
|
A61CC24VDC.9RRELAY AUTOMOTIVE SPDT 30A 24V |
0 |
|
Ficha técnica |
A6 | Tray | Active | Non Latching | 37.5 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Resistor | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A61CC24VDC.9DRELAY AUTOMOTIVE SPDT 30A 24V |
0 |
|
Ficha técnica |
A6 | Tray | Active | Non Latching | 37.5 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Diode | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A61CC24VDC1.3DRELAY AUTOMOTVIE SPDT 30A 24V |
0 |
|
Ficha técnica |
A6 | Tray | Active | Non Latching | 55 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Diode | Through Hole | PC Pin | -40°C ~ 85°C |
