Matrizes de Transistores Bipolares
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Pacote/Caixa | Embalagem | Status do produto | Tipo Transistor | Corrente - Coletor (Ic) (Máx.) | Tensão - Coletor Emissor Ruptura (Máx.) | Saturação Vce (Máx.) @ Ib, Ic | Corrente - Corte do coletor (Máx.) | Ganho de corrente CC (hFE) (Mín.) @ Ic, Vce | Potência - Máx. | Frequência - Transição | Temperatura operacional | Grau | Qualificação | Tipo de montagem | Pacote do dispositivo do fornecedor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MMPQ3906 TR13TRANS 4PNP QUAD 40V 200MA 16SOIC |
4,334 |
|
Ficha técnica |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 4 PNP (Quad) | 200mA | 40V | 400mV @ 5mA, 50mA | - | 100 @ 10mA, 1V | 1W | 450MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
SMA4033TRANS 4NPN DARL 100V 2A 12-SIP |
9,884 |
|
Ficha técnica |
- | 12-SIP | Tube | Active | 4 NPN Darlington (Quad) | 2A | 100V | 1.5V @ 2mA, 1A | 10µA (ICBO) | 2000 @ 1A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
L6221CDTRANS 4NPN DARL 60V 1.2A 20-SO |
2,419 |
|
Ficha técnica |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | 4 NPN Darlington (Quad) | 1.2A | 60V | - | - | - | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 20-SO |
|
|
L6221CD013TRTRANS 4NPN DARL 60V 1.2A 20-SO |
4,444 |
|
Ficha técnica |
- | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | 4 NPN Darlington (Quad) | 1.2A | 60V | - | - | - | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 20-SO |
|
STA322ATRANS 3PNP 50V 3A 8-SIP |
4,965 |
|
Ficha técnica |
- | 8-SIP | Bulk | Obsolete | 3 PNP | 3A | 50V | 1V @ 40mA, 2A | 100µA (ICBO) | 100 @ 1A, 4V | 3W, 15W | - | 150°C (TJ) | - | - | Through Hole | 8-SIP |
|
|
SMA4020TRANS 4PNP DARL 60V 4A 12SIP |
9,493 |
|
Ficha técnica |
- | 12-SIP | Tube | Active | 4 PNP Darlington (Quad) | 4A | 60V | 1.5V @ 6mA, 3A | 10µA (ICBO) | 2000 @ 3A, 4V | 4W, 20W | - | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
SLA4030TRANS 4NPN DARL 100V 4A 12-SIP |
6,569 |
|
Ficha técnica |
- | 12-SIP Exposed Tab | Tube | Active | 4 NPN Darlington (Quad) | 4A | 100V | 1.5V @ 10mA, 2A | 10µA (ICBO) | 2000 @ 2A, 4V | 5W | - | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
|
L6221AD013TRTRANS 4NPN DARL 50V 1.8A 20-SO |
2,369 |
|
Ficha técnica |
- | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | 4 NPN Darlington (Quad) | 1.8A | 50V | 1.6V @ 1.8A | - | - | 1W | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 20-SO |
|
|
L6221ADTRANS 4NPN DARL 50V 1.8A 20-SO |
6,137 |
|
Ficha técnica |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | 4 NPN Darlington (Quad) | 1.8A | 50V | 1.6V @ 1.8A | - | - | 1W | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 20-SO |
|
|
MMPQ3904 TR13TRANS 4NPN QUAD 40V 200MA 16SOIC |
5,579 |
|
Ficha técnica |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 4 NPN (Quad) | 200mA | 40V | 300mV @ 5mA, 50mA | - | 100 @ 10mA, 1V | 1W | 450MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
MPQ2222A PBFREETRANS 4NPN QUAD 40V 500MA TO-116 |
7,486 |
|
Ficha técnica |
- | 14-DIP (0.300", 7.62mm) | Tube | Active | 4 NPN (Quad) | 500mA | 40V | 1V @ 50mA, 500mA | 10nA (ICBO) | 100 @ 150mA, 10V | 650mW | 200MHz | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-116 |
|
|
SLA4031TRANS 4NPN DARL 120V 4A 12-SIP |
2,694 |
|
Ficha técnica |
- | 12-SIP Exposed Tab | Tube | Active | 4 NPN Darlington (Quad) | 4A | 120V | 1.5V @ 2mA, 2A | 10µA (ICBO) | 2000 @ 2A, 2V | 5W | - | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|

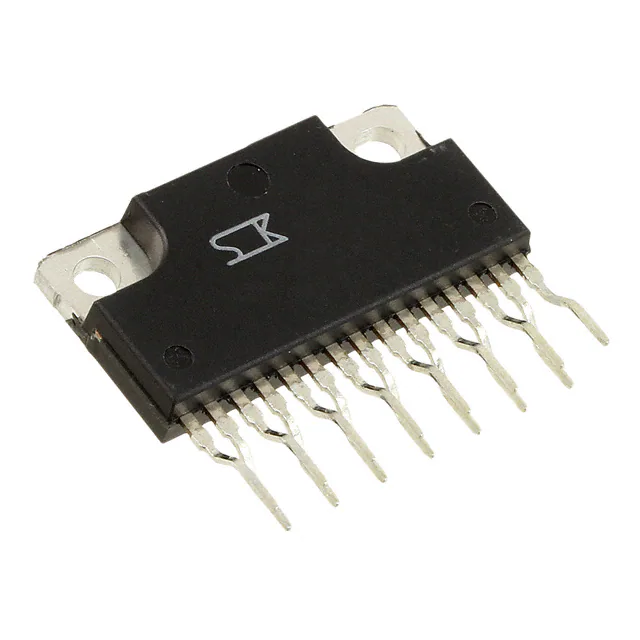

SMA4036TRANS 6 NPN DARL 120V 2A 15-SIP |
5,011 |
|
Ficha técnica |
- | 15-SIP Exposed Tab, Formed Leads | Tube | Active | 6 NPN Darlington | 2A | 120V | 1.5V @ 2mA, 1A | 10µA (ICBO) | 2000 @ 1A, 4V | 4W | 50MHz | 150°C (TJ) | - | - | Through Hole | 15-SIP |
|
|
E-L6221ADTRANS 4NPN DARL 50V 1.8A 20-SO |
6,974 |
|
Ficha técnica |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | 4 NPN Darlington (Quad) | 1.8A | 50V | 1.6V @ 1.8A | - | - | 1W | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 20-SO |
|
|
MPQ3904 PBFREETRANS 4NPN QUAD 40V 200MA TO-116 |
9,839 |
|
Ficha técnica |
- | 14-DIP (0.300", 7.62mm) | Tube | Active | 4 NPN (Quad) | 200mA | 40V | 200mV @ 1mA, 10mA | 50nA (ICBO) | 75 @ 10mA, 1V | 500mW | 250MHz | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-116 |
|
STA403ATRANS 4NPN DARL 100V 4A 10-SIP |
2,273 |
|
Ficha técnica |
- | 10-SIP | Bulk | Active | 4 NPN Darlington (Quad) | 4A | 100V | 100V @ 10mA | 100µA (ICBO) | 1000 @ 2A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
|
SLA4036TRANS 120V 2A 15-ZIP |
3,848 |
|
Ficha técnica |
- | 15-SIP Exposed Tab, Formed Leads | Bulk | Active | - | 2A | 120V | - | - | - | - | - | 150°C (TJ) | - | - | Through Hole | 15-ZIP |
|
|
STA406ATRANS 4NPN DARL 60V 6A 10-SIP |
2,422 |
|
Ficha técnica |
- | 10-SIP | Bulk | Active | 4 NPN Darlington (Quad) | 6A | 60V | 1.5V @ 10mA, 3A | 100µA (ICBO) | 2000 @ 3A, 2V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
|
SMA4038TRANS 6 NPN DARL 120V 3A 15-SIP |
1 |
|
Ficha técnica |
- | 15-SIP Exposed Tab, Formed Leads | Tube | Active | 6 NPN Darlington | 3A | 120V | 1.5V @ 3mA, 1.5A | 10µA (ICBO) | 2000 @ 1.5A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 15-SIP |
|
|
SLA4051TRANS 9 NPN DARL 120V 2A 21-SIP |
6,568 |
|
Ficha técnica |
- | 21-SSIP Exposed Tab | Tube | Active | 9 NPN Darlington | 2A | 120V | - | - | - | - | - | 150°C (TJ) | - | - | Through Hole | 21-SIP w/fin |
