Prendedores de cabos e fios
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Pacote/Caixa | Tipo | Diâmetro do cabo externo (mín.) | Diâmetro do cabo externo (máx.) | Tamanho da rosca | Comprimento da rosca | Tamanho do cubo do conduíte | Tamanho do furo do painel | Material | Inclui | Cor | Proteção de entrada | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EM4-20CCABLE GLAND 7.5-14MM M20 BRASS |
81 |
|
Ficha técnica |
Cable Gland | 0.295" (7.50mm) | 0.551" (14.00mm) | M20x1.5 | 0.315" (8.00mm) | - | 0.787" (20.0mm) | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
97160.6CABLE GLAND 23.88-27.94MM M50 |
7 |
|
Ficha técnica |
Cable Gland | 0.940" (23.88mm) | 1.100" (27.94mm) | M50x1.5 | 0.390" (9.91mm) | - | 1.969" (50.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
M6063CABLE GRIP 2.67-8MM M16 ALUMINUM |
10 |
|
Ficha técnica |
Cable Grip | 0.105" (2.67mm) | 0.315" (8.00mm) | M16 | 0.340" (8.64mm) | - | 0.630" (16.0mm) | Aluminum | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 121°C | |
|

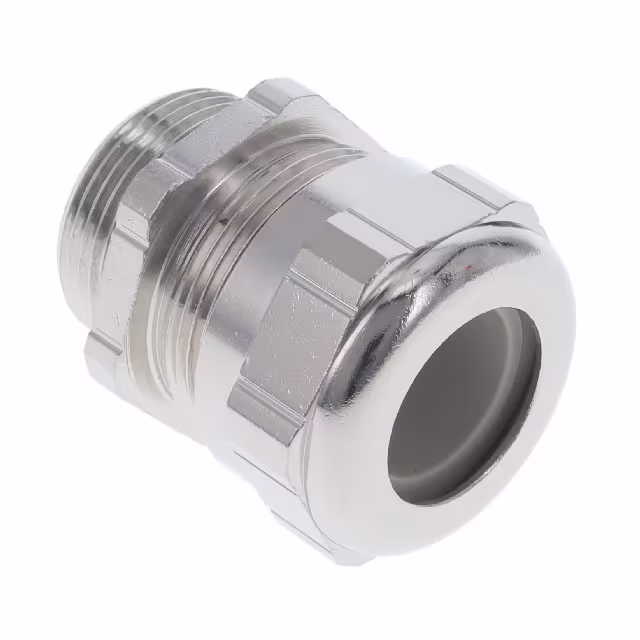

21511.6CABLE GLAND 13.97-18.03MM PG21 |
23 |
|
Ficha técnica |
Cable Gland | 0.550" (13.97mm) | 0.710" (18.03mm) | PG21 | 0.430" (10.92mm) | - | 1.120" (28.4mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
21556.6CABLE GLAND 17.02-20.07MM M25 |
25 |
|
- |
Cable Gland | 0.670" (17.02mm) | 0.790" (20.07mm) | M25x1.5 | 0.430" (10.92mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
1300960050CABLE GRIP RA 1/2NPT STEEL |
0 |
|
Ficha técnica |
Cable Grip - 90° | - | - | 1/2" NPT | - | - | - | - | Strain Relief | Silver | - | - | |
|

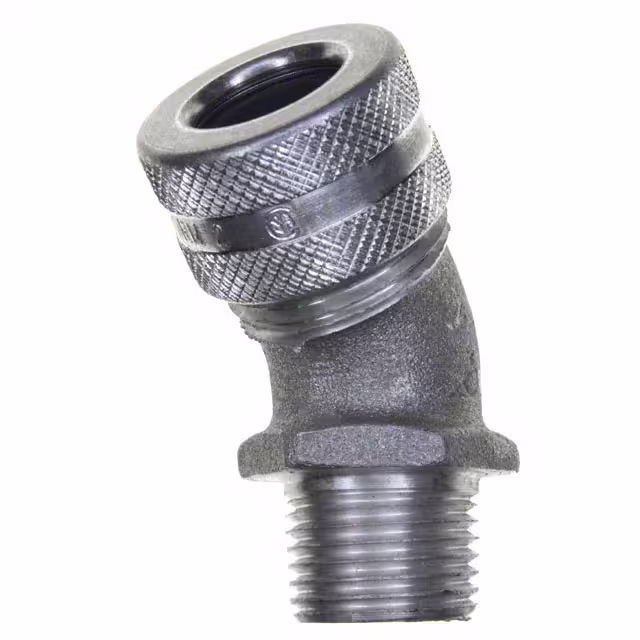

DB-945CABLE GRP 9.53-12.7MM MET ALLOY |
24 |
|
Ficha técnica |
Cable Grip - 45° | 0.375" (9.53mm) | 0.500" (12.70mm) | - | - | 1/2" (12.7mm) | 0.875" (22.2mm), 7/8" | Metal Alloy | Compression Nut, Strain Relief | Silver | - | - | |
|
|
73873092CABLE GLAND 15.49-24MM 1 1/4"NPT |
19 |
|
- |
Cable Gland | 0.610" (15.49mm) | 0.945" (24.00mm) | 1 1/4" NPT | 0.630" (16.00mm) | - | - | Stainless Steel | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 105°C | |
|

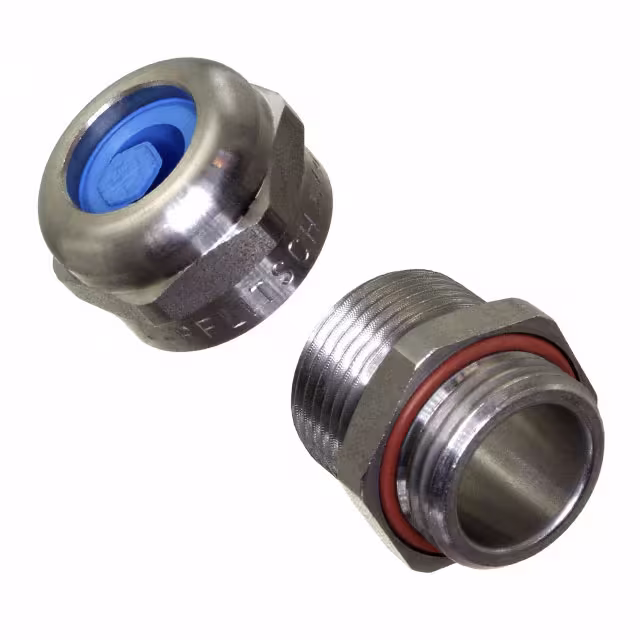

96572.7CABLE FEEDTHR 8.89-13.97MM M20 |
19 |
|
Ficha técnica |
Cable Feedthrough | 0.350" (8.89mm) | 0.550" (13.97mm) | M20x1.5 | 0.260" (6.60mm) | - | 0.790" (20.1mm) | Stainless Steel | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -60°C ~ 500°C | |
|
MMS-50CABLE GLAND 22.5-32MM M50 BRASS |
20 |
|
Ficha técnica |
Cable Gland | 0.886" (22.50mm) | 1.260" (32.00mm) | M50x1.5 | 0.591" (15.00mm) | - | 1.969" (50.0mm) | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
1300990190CABLE GRP 14.22-15.88MM 1/2" NPT |
0 |
|
Ficha técnica |
Cable Grip | 0.560" (14.22mm) | 0.625" (15.88mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Strain Relief | Yellow | - | - | |
|
1300970156CABLE GRP 15.88-19.05MM 1/2" NPT |
0 |
|
Ficha técnica |
Cable Grip | 0.625" (15.88mm) | 0.750" (19.05mm) | 1/2" NPT | - | - | - | Aluminum | Compression Nut, Grommet, Strain Relief | Silver | - | - | |
|
|
1300990189CABLE GRIP 12.7-14.28MM 1/2" NPT |
0 |
|
Ficha técnica |
Cable Grip | 0.500" (12.70mm) | 0.562" (14.28mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Strain Relief | Yellow | - | - | |
|

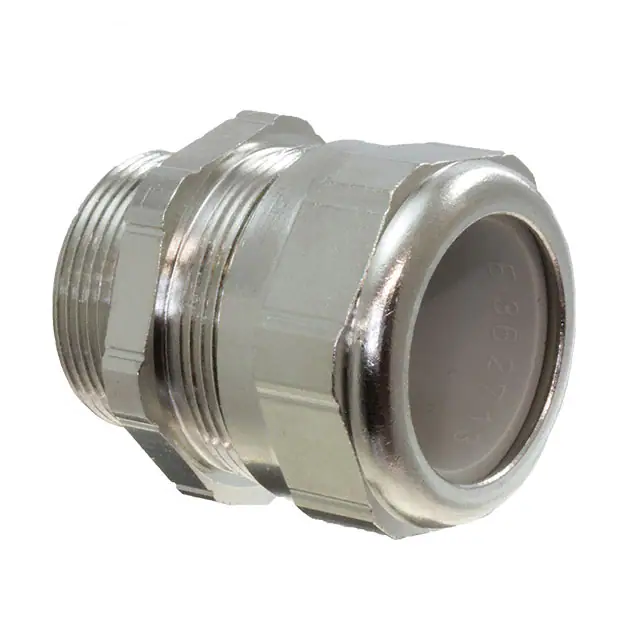

21558.6CABLE GLAND 22.1-25.91MM M32 |
4 |
|
Ficha técnica |
Cable Gland | 0.870" (22.10mm) | 1.020" (25.91mm) | M32x1.5 | 0.510" (12.95mm) | - | 1.260" (32.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
21807.6CABLE GLAND 23.88-27.94MM 1 1/4" |
7 |
|
- |
Cable Gland | 0.940" (23.88mm) | 1.100" (27.94mm) | 1 1/4" NPT | 0.790" (20.07mm) | - | 1.660" (42.2mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
SM3-16CABLE GLAND 4-8MM M16 S STEEL |
7 |
|
Ficha técnica |
Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | M16x1.5 | 0.472" (12.00mm) | - | 0.630" (16.0mm) | Stainless Steel | O-Ring | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
MMS-50CCABLE GLAND 27-44MM M50 BRASS |
5 |
|
Ficha técnica |
Cable Gland | 1.063" (27.00mm) | 1.732" (44.00mm) | M50x1.5 | 0.591" (15.00mm) | - | 1.969" (50.0mm) | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
21816.6CABLE GLAND 36.07-39.88MM 1 1/2" |
6 |
|
Ficha técnica |
Cable Gland | 1.420" (36.07mm) | 1.570" (39.88mm) | 1 1/2" NPT | 0.870" (22.10mm) | - | 1.900" (48.3mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
1427BCGM63CABLE GRIP 29-35MM M63 BRASS |
0 |
|
Ficha técnica |
Cable Grip | 1.142" (29.00mm) | 1.378" (35.00mm) | M63x1.5 | 0.394" (10.00mm) | - | 2.480" (63.0mm) | Brass | - | Silver | IP68 - Dust Tight, Waterproof; NEMA 4, 4X, 6, 12, 13 | -40°C ~ 100°C | |
|
BG212VATRICPCABLE GLAND 5-7MM M12 BRASS |
7 |
|
Ficha técnica |
Cable Gland | 0.197" (5.00mm) | 0.276" (7.00mm) | M12x1.5 | 0.276" (7.00mm) | - | 0.472" (12.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C |
