Prendedores de cabos e fios
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Pacote/Caixa | Tipo | Diâmetro do cabo externo (mín.) | Diâmetro do cabo externo (máx.) | Tamanho da rosca | Comprimento da rosca | Tamanho do cubo do conduíte | Tamanho do furo do painel | Material | Inclui | Cor | Proteção de entrada | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPG9 NC080CABLE GLAND 4-8MM PG9 BRASS |
156 |
|
Ficha técnica |
Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | PG9 | 0.236" (6.00mm) | - | 0.598" (15.2mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
50.625 MCABLE GLAND 11-16MM M25 BRASS |
161 |
|
Ficha técnica |
Cable Gland | 0.433" (11.00mm) | 0.630" (16.00mm) | M25x1.5 | 0.276" (7.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
53112100CABLE GLAND 1.98-5MM M12 BRASS |
203 |
|
Ficha técnica |
Cable Gland | 0.078" (1.98mm) | 0.197" (5.00mm) | M12x1.5 | 0.256" (6.50mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4, 6, 12 | -40°C ~ 100°C | |
|
PMS25 BK080CABLE GLAND 13-18.01MM M25 |
789 |
|
Ficha técnica |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | M25x1.5 | 0.394" (10.00mm) | - | 0.984" (25.0mm) | Polyamide (PA), Nylon | Gasket, Nut, Strain Relief | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
53112931CABLE GLAND 7-15MM M32 POLYAMIDE |
143 |
|
Ficha técnica |
Cable Gland | 0.276" (7.00mm) | 0.591" (15.00mm) | M32 | 1.272" (32.31mm) | - | 1.272" (32.3mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
52015780CABLE GLAND 1.98-6MM PG9 BRASS |
110 |
|
Ficha técnica |
Cable Gland | 0.078" (1.98mm) | 0.236" (6.00mm) | PG9 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof; Nema 6P | -40°C ~ 100°C | |
|
53112922CABLE GLAND 11-20MM M32 POLYAMID |
144 |
|
Ficha técnica |
Cable Gland | 0.433" (11.00mm) | 0.787" (20.00mm) | M32 | 0.315" (8.00mm) | - | 1.272" (32.3mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

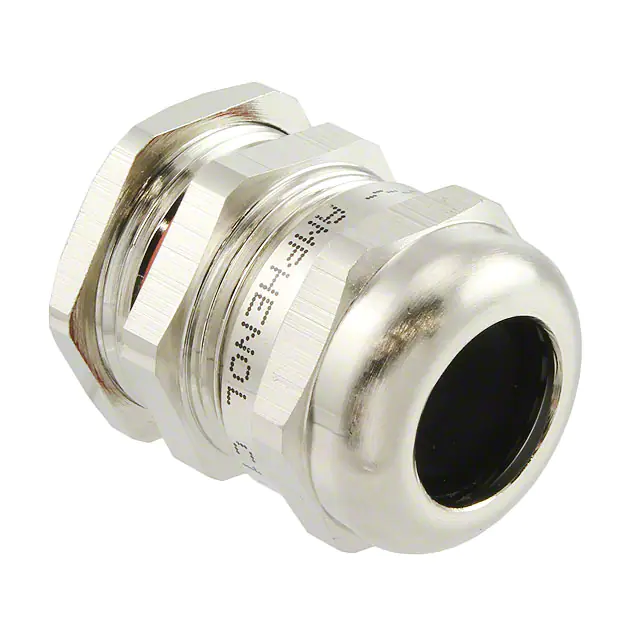

AIO-CSJPG16CABLE GLAND 10-14MM PG16 BRASS |
356 |
|
Ficha técnica |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | PG16 | 0.315" (8.00mm) | - | - | Brass | Panel Nut, Sealing Nut | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
96571.6/15CABLE FEEDTHROUGH 7.11-10.92MM |
140 |
|
Ficha técnica |
Cable Feedthrough | 0.280" (7.11mm) | 0.430" (10.92mm) | M16x1.5 | - | - | 0.630" (16.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

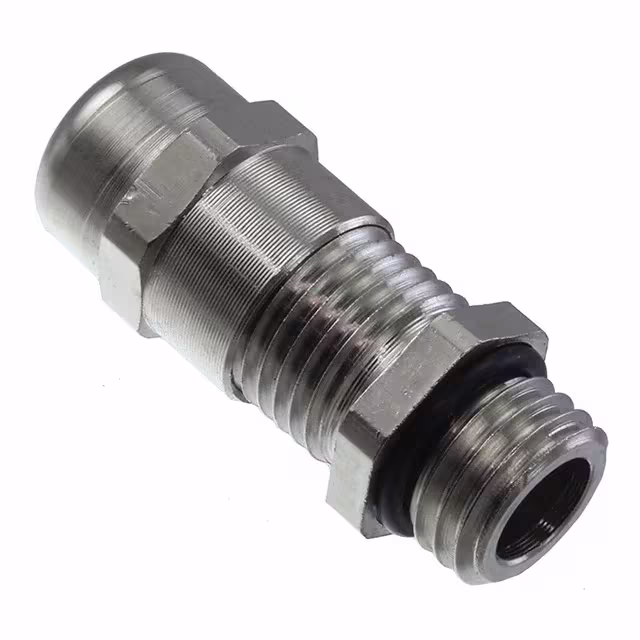

4264112CABLE GLAND 4-6.5MM M12 BRASS |
876 |
|
Ficha técnica |
Cable Gland | 0.157" (4.00mm) | 0.256" (6.50mm) | M12x1.5 | 0.276" (7.00mm) | - | 0.472" (12.0mm) | Brass, Nickel Plated | Clamping Ring, Sealing Ring | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 120°C | |
|
|
MES16 NC080CABLE GLAND 5-10MM M16 BRASS |
219 |
|
Ficha técnica |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | M16x1.5 | 0.276" (7.00mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|

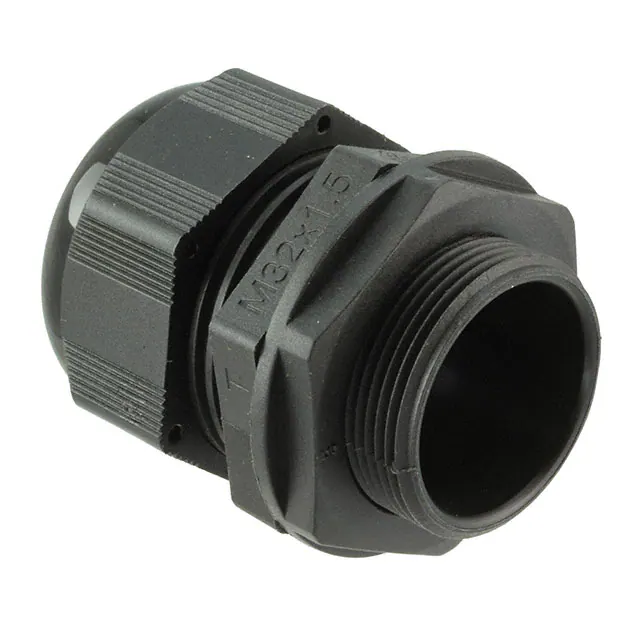

1478769-6CABLE GLAND 18.01-25MM |
1,421 |
|
- |
Cable Gland, Anti-Vibration | 0.709" (18.01mm) | 0.984" (25.00mm) | - | 0.709" (18.01mm) | - | 1.260" (32.0mm) | Polyamide (PA), Nylon | Locknut | Black | IP68 - Dust Tight, Waterproof | - | |
|

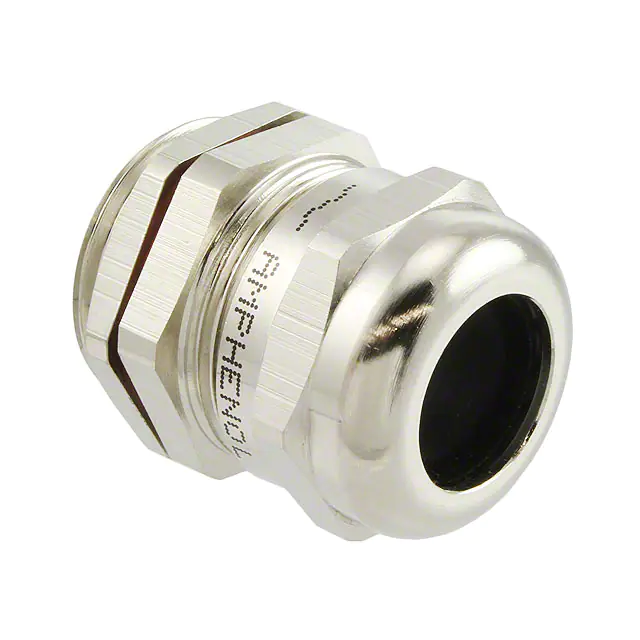

AIO-CSJM22CABLE GLAND 10-14MM M22 BRASS |
678 |
|
Ficha técnica |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | M22x1.5 | 0.315" (8.00mm) | - | - | Brass | Panel Nut, Sealing Nut | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
4561CABLE GRIP 4-6MM 1/8" NPT BRASS |
195 |
|
Ficha técnica |
Cable Grip | 0.157" (4.00mm) | 0.236" (6.00mm) | 1/8" NPT | 0.310" (7.87mm) | - | 0.910" (23.1mm) | Brass, Nickel Plated | - | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
K151-1025-00CABLE GLND 12.5-20.5MM M25 BRASS |
565 |
|
Ficha técnica |
Cable Gland | 0.492" (12.50mm) | 0.807" (20.50mm) | M25x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | Contact Spring, O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
PMC40 BK080CABLE GLAND 19-28MM M40 POLYAMID |
797 |
|
Ficha técnica |
Cable Gland | 0.748" (19.00mm) | 1.102" (28.00mm) | M40x1.5 | 0.394" (10.00mm) | - | 1.575" (40.0mm) | Polyamide (PA), Nylon | Locknut | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
50.650 PA7001CABLE GLAND 27-35MM M50 POLYAMID |
288 |
|
Ficha técnica |
Cable Gland | 1.063" (27.00mm) | 1.378" (35.00mm) | M50x1.5 | 0.472" (12.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

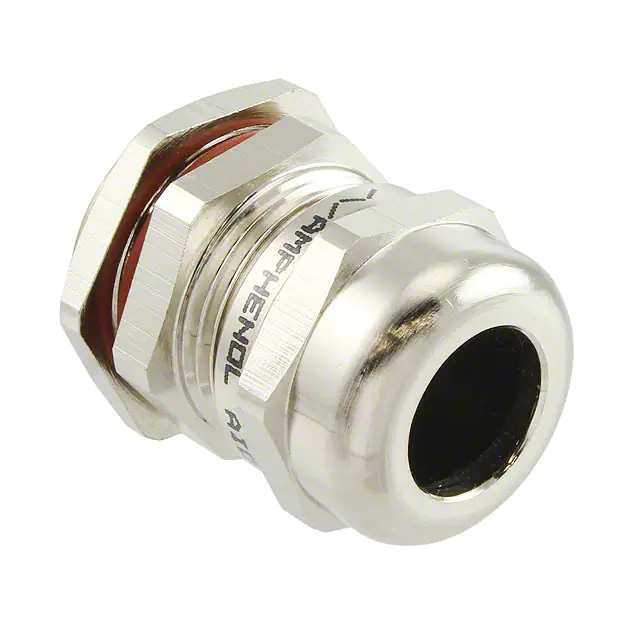

AIO-CSJPG13CABLE GLAND 6-12MM PG13 BRASS |
165 |
|
Ficha técnica |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | PG13 | - | - | - | Brass | Panel Nut, Sealing Nut | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
MA6CG-S2CABLE GRIP 7.5-11MM ZINC |
131 |
|
Ficha técnica |
Cable Grip | 0.295" (7.50mm) | 0.433" (11.00mm) | - | - | - | 0.910" (23.1mm) | Zinc, Nickel Plated | EMI Shielding Ring, Gasket, Nut, Seal | Gray | IP67 - Dust Tight, Waterproof | - | |
|
21661.6CABLE GLAND 8.89-12.95MM PG16 |
284 |
|
Ficha técnica |
Cable Gland | 0.350" (8.89mm) | 0.510" (12.95mm) | PG16 | 0.260" (6.60mm) | - | 0.890" (22.6mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C |
