Prendedores de cabos e fios
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Pacote/Caixa | Tipo | Diâmetro do cabo externo (mín.) | Diâmetro do cabo externo (máx.) | Tamanho da rosca | Comprimento da rosca | Tamanho do cubo do conduíte | Tamanho do furo do painel | Material | Inclui | Cor | Proteção de entrada | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
CG-P-M18-1.5CABLE GLAND 5-10MM M18 POLYAMIDE |
1,732 |
|
Ficha técnica |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | M18 | 0.354" (9.00mm) | - | 0.720" (18.3mm) | Polyamide (PA66), Nylon 6/6 | Locknut, Seal | - | IP68 - Dust Tight, Waterproof | - | |
|
|
CG-P-11CABLE GLAND 5-10MM PG11 POLYAMID |
1,365 |
|
Ficha técnica |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | PG11 | 0.354" (9.00mm) | - | 0.736" (18.7mm) | Polyamide (PA66), Nylon 6/6 | Locknut, Seal | - | IP68 - Dust Tight, Waterproof | - | |
|
|
CG-P-M20CABLE GLAND 6-11MM M20 POLYAMIDE |
1,548 |
|
Ficha técnica |
Cable Gland | 0.236" (6.00mm) | 0.433" (11.00mm) | M20 | 0.394" (10.00mm) | - | 0.787" (20.0mm) | Polyamide (PA66), Nylon 6/6 | Locknut, Seal | - | IP68 - Dust Tight, Waterproof | - | |
|

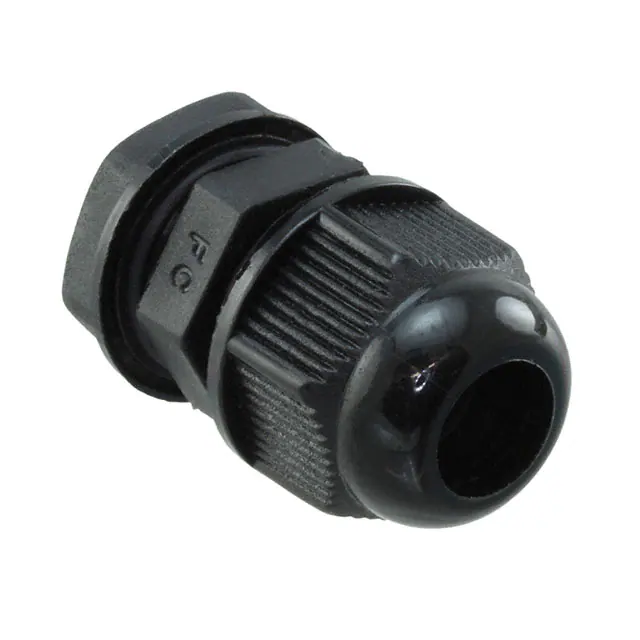

GC1000-BCABLE GLAND 3.5-8MM M16 POLYAMID |
1,622 |
|
Ficha técnica |
Cable Gland | 0.138" (3.50mm) | 0.315" (8.00mm) | M16x1.5 | 0.335" (8.50mm) | - | 0.650" (16.5mm) | Polyamide (PA), Nylon | Locknut, O-Ring, Seal | Black | IP67 - Dust Tight, Waterproof | -30°C ~ 120°C | |
|
M4514CABLE GRIP 1.65-5.33MM 1/4" NPT |
1,366 |
|
Ficha técnica |
Cable Grip | 0.065" (1.65mm) | 0.210" (5.33mm) | 1/4" NPT | 0.450" (11.43mm) | - | 0.540" (13.7mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
3458CABLE GRIP 1.75-4.75MM 3/8" NPT |
12,535 |
|
Ficha técnica |
Cable Grip | 0.069" (1.75mm) | 0.187" (4.75mm) | 3/8" NPT | 0.530" (13.46mm) | - | 0.669" (17.0mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
3211CABLE GRIP 4.6-7.93MM PG9 |
10,048 |
|
Ficha técnica |
Cable Grip | 0.181" (4.60mm) | 0.312" (7.93mm) | PG9 | 0.340" (8.64mm) | - | 0.600" (15.2mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
50.612 PA7035LCABLE GLAND 3-6.5MM M12 POLYAMID |
466 |
|
Ficha técnica |
Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | M12x1.5 | 0.591" (15.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

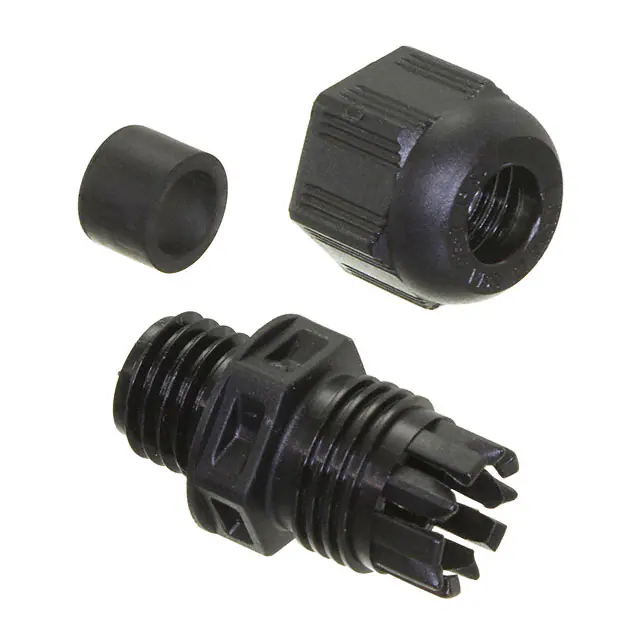

98121.1CABLE GLAND 3.05-7.11MM M12 |
179 |
|
Ficha técnica |
Cable Gland | 0.120" (3.05mm) | 0.280" (7.11mm) | M12x1.5 | 0.350" (8.89mm) | - | 0.470" (11.9mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | - | |
|
IPG-222135-GCABLE GLAND 6.1-11.94MM PG13.5 |
3,142 |
|
Ficha técnica |
Cable Gland | 0.240" (6.10mm) | 0.470" (11.94mm) | PG13.5 | 0.350" (8.89mm) | - | 0.800" (20.3mm) | Polyamide (PA), Nylon | Gasket | Gray | IP66 - Dust Tight, Water Resistant | -20°C ~ 65°C | |
|
CG-PG11-2-BKCABLE GLAND 5-10MM PG11 POLYAMID |
583 |
|
Ficha técnica |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | PG11 | 0.315" (8.00mm) | - | 0.740" (18.8mm) | Polyamide (PA), Nylon | Sealing Gland, Sealing Nut | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
3208CABLE GRIP 2.9-6.35MM PG7 |
769 |
|
Ficha técnica |
Cable Grip | 0.114" (2.90mm) | 0.250" (6.35mm) | PG7 | 0.330" (8.38mm) | - | 0.492" (12.5mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
50.616 PA/RSWCABLE GLAND 3-10MM M16 POLYAMIDE |
714 |
|
Ficha técnica |
Cable Gland | 0.118" (3.00mm) | 0.394" (10.00mm) | M16x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
50.11213PA/SWCABLE GLAND 6-12MM 1/2" NPT |
145 |
|
Ficha técnica |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | 1/2" NPT | 0.571" (14.50mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
M3458CABLE GRIP 1.65-5.84MM 3/8" NPT |
10,708 |
|
Ficha técnica |
Cable Grip | 0.065" (1.65mm) | 0.230" (5.84mm) | 3/8" NPT | 0.490" (12.45mm) | - | 0.681" (17.3mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|

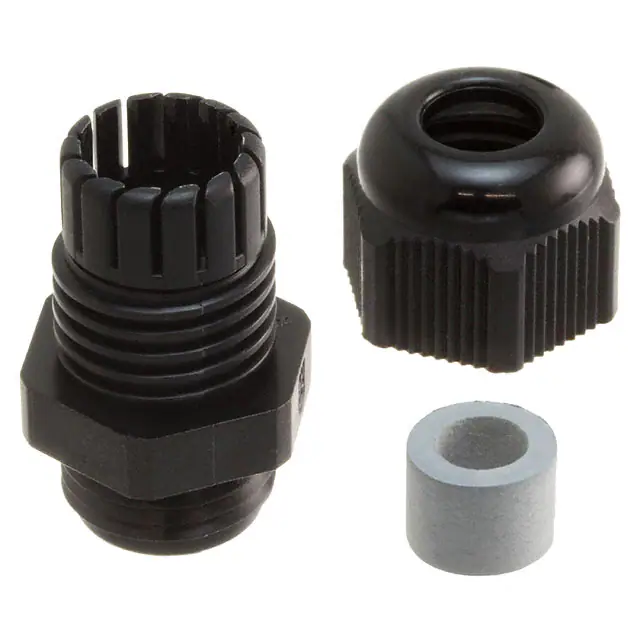

CG-PG9-2-BKCABLE GLAND 4-8MM PG9 POLYAMIDE |
789 |
|
Ficha técnica |
Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | PG9 | 0.315" (8.00mm) | - | 0.606" (15.4mm) | Polyamide (PA), Nylon | Sealing Gland, Sealing Nut | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
M4338CABLE GRIP 2.41-7.37MM M20 |
8,369 |
|
Ficha técnica |
Cable Grip | 0.095" (2.41mm) | 0.290" (7.37mm) | M20 | 0.410" (10.41mm) | - | 0.787" (20.0mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
|
M4516CABLE GRIP 2.92-6.35MM 1/4" NPT |
11,410 |
|
Ficha técnica |
Cable Grip | 0.115" (2.92mm) | 0.250" (6.35mm) | 1/4" NPT | 0.450" (11.43mm) | - | 0.540" (13.7mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
|
CG-PG7-2-BKCABLE GLAND 3-6.5MM PG7 POLYAMID |
1,563 |
|
Ficha técnica |
Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | PG7 | 0.315" (8.00mm) | - | 0.500" (12.7mm) | Polyamide (PA), Nylon | Sealing Gland, Sealing Nut | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
1411126CABLE GLAND 11-16.99MM M25 |
192 |
|
Ficha técnica |
Cable Gland | 0.433" (11.00mm) | 0.669" (16.99mm) | M25 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | Seal | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C |
