Prendedores de cabos e fios
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Pacote/Caixa | Tipo | Diâmetro do cabo externo (mín.) | Diâmetro do cabo externo (máx.) | Tamanho da rosca | Comprimento da rosca | Tamanho do cubo do conduíte | Tamanho do furo do painel | Material | Inclui | Cor | Proteção de entrada | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50.620 ESCABLE GLAND 9-13MM M20 S STEEL |
34 |
|
Ficha técnica |
Cable Gland | 0.354" (9.00mm) | 0.512" (13.00mm) | M20x1.5 | 0.236" (6.00mm) | - | - | Stainless Steel | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
USG 22554 PCCABLE GLAND M25 PC |
70 |
|
Ficha técnica |
Cable Gland - Splittable Body | - | - | M25x1.5 | 0.433" (11.00mm) | - | - | Polycarbonate (PC) | - | Gray | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C | |
|
19000005096CABLE GLAND 18.01-25MM M32 BRASS |
77 |
|
Ficha técnica |
Cable Gland | 0.709" (18.01mm) | 0.984" (25.00mm) | M32 | - | - | - | Brass | Clamping Ring | - | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
53112930CABLE GLAND 9-16.99MM 3/4" NPT |
94 |
|
Ficha técnica |
Cable Gland | 0.354" (9.00mm) | 0.669" (16.99mm) | 3/4" NPT | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4X, 6, 12 | -40°C ~ 100°C | |
|
USG 22053 PCNCABLE GLAND M20 PC |
50 |
|
Ficha técnica |
Cable Gland - Splittable Body | - | - | M20x1.5 | 0.394" (10.00mm) | - | - | Polycarbonate (PC) | - | Black | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C | |
|
50.650M/EMV/LCABLE GLAND 24-35MM M50 BRASS |
26 |
|
Ficha técnica |
Cable Gland | 0.945" (24.00mm) | 1.378" (35.00mm) | M50x1.5 | 0.551" (14.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

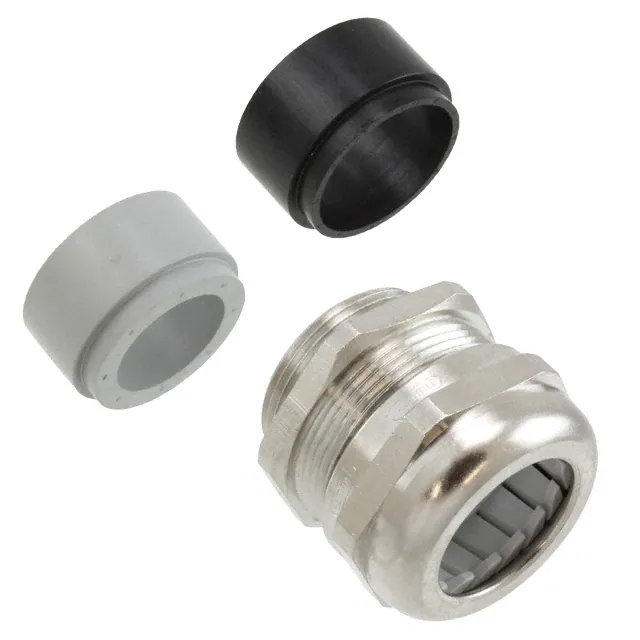

19000005095CABLE GLAND 13-25MM M32 BRASS |
87 |
|
Ficha técnica |
Cable Gland | 0.512" (13.00mm) | 0.984" (25.00mm) | M32 | - | - | - | Brass | Clamping Ring | - | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
IPG-2227-GCABLE GLAND 3.05-6.1MM PG7 |
808 |
|
Ficha técnica |
Cable Gland | 0.120" (3.05mm) | 0.240" (6.10mm) | PG7 | 0.320" (8.13mm) | - | 0.490" (12.4mm) | Polyamide (PA), Nylon | Gasket | Gray | IP66 - Dust Tight, Water Resistant | -20°C ~ 65°C | |
|
|
1417652CABLE GLAND 3-6.5MM M12 POLYAMID |
106 |
|
Ficha técnica |
Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | M12x1.5 | 0.315" (8.00mm) | - | 0.480" (12.2mm) | Polyamide (PA), Nylon | - | Light Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
CG-P-M8-1.25CABLE GLAND 2.5-4.5MM M8 |
906 |
|
Ficha técnica |
Cable Gland | 0.098" (2.50mm) | 0.177" (4.50mm) | M8 | 0.295" (7.50mm) | - | 0.327" (8.3mm) | Polyamide (PA66), Nylon 6/6 | Locknut, Seal | - | IP68 - Dust Tight, Waterproof | - | |
|
1411124CABLE GLAND 5-10MM M16 POLYAMIDE |
999 |
|
Ficha técnica |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | M16 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | Seal | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|

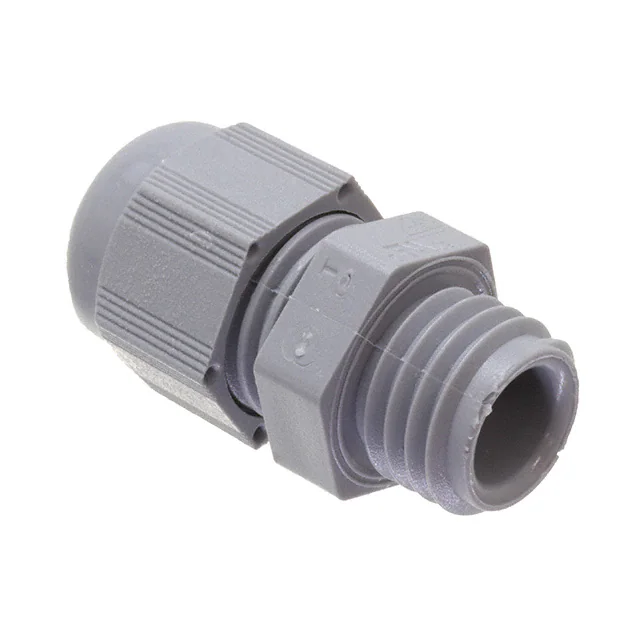

1411123CABLE GLAND 3-6.5MM M12 POLYAMID |
752 |
|
Ficha técnica |
Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | M12 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | Seal | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
1411131CABLE GLAND 3-6.5MM M12 POLYAMID |
359 |
|
Ficha técnica |
Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | M12 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | Seal | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
1411132CABLE GLAND 5-10MM M16 POLYAMIDE |
318 |
|
Ficha técnica |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | M16 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | Seal | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
1424496CABLE GLAND 4-8MM PG9 POLYAMIDE |
256 |
|
Ficha técnica |
Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | PG9 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | Seal | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
1424486CABLE GLAND 4-8MM PG9 POLYAMIDE |
134 |
|
Ficha técnica |
Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | PG9 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | Seal | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
1424480CABLE GLAND 4-8MM M16 POLYAMIDE |
67 |
|
Ficha técnica |
Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | M16x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | Seal | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
IPG-2229-GCABLE GLAND 4.06-7.87MM PG9 |
956 |
|
Ficha técnica |
Cable Gland | 0.160" (4.06mm) | 0.310" (7.87mm) | PG9 | 0.320" (8.13mm) | - | 0.600" (15.2mm) | Polyamide (PA), Nylon | Gasket | Gray | IP66 - Dust Tight, Water Resistant | -20°C ~ 65°C | |
|
IPG-22274-GCABLE GLAND 3.05-6.1MM PG7 |
396 |
|
Ficha técnica |
Cable Gland | 0.120" (3.05mm) | 0.240" (6.10mm) | PG7 | 0.590" (14.99mm) | - | 0.470" (11.9mm) | Polyamide (PA), Nylon | Gasket | Gray | IP66 - Dust Tight, Water Resistant | -20°C ~ 65°C | |
|
|
1424498CABLE GLAND 6-12MM PG13.5 |
28 |
|
Ficha técnica |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | PG13.5 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | Seal | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C |
