Prendedores de cabos e fios
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Pacote/Caixa | Tipo | Diâmetro do cabo externo (mín.) | Diâmetro do cabo externo (máx.) | Tamanho da rosca | Comprimento da rosca | Tamanho do cubo do conduíte | Tamanho do furo do painel | Material | Inclui | Cor | Proteção de entrada | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50.663 YCABLE GLAND 32-42MM M63 BRASS |
0 |
|
Ficha técnica |
Cable Gland | 1.260" (32.00mm) | 1.654" (42.00mm) | M63x1.5 | 0.394" (10.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
951899CABLE GLAND PG48 |
0 |
|
- |
Cable Gland | - | - | PG48 | - | - | - | - | - | Black | - | - | |
|
|
951915CABLE GLAND PG48 |
0 |
|
- |
Cable Gland | - | - | PG48 | - | - | - | - | - | - | - | - | |
|
|
158PMK1/29CABLE GLAND PG48 BRASS |
0 |
|
- |
Cable Gland | - | - | PG48 | - | - | - | Brass, Nickel Plated | - | Silver | - | - | |
|
|
25465.6CABLE GLAND M63 |
0 |
|
- |
Cable Gland | - | - | M63x1.5 | - | - | - | - | - | - | - | - | |
|
21560.6CABLE GLAND 28.96-32MM M40 BRASS |
0 |
|
- |
Cable Gland | 1.140" (28.96mm) | 1.260" (32.00mm) | M40x1.5 | 0.550" (13.97mm) | - | 1.570" (39.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
25496.6/15CABLE GLAND 26.92-32MM M50 BRASS |
0 |
|
- |
Cable Gland | 1.060" (26.92mm) | 1.260" (32.00mm) | M50x1.5 | 0.590" (14.99mm) | - | 1.969" (50.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
95147.7CABLE GLAND 11.43-15.5MM M32 |
0 |
|
- |
Cable Gland | 0.450" (11.43mm) | 0.610" (15.50mm) | M32x1.5 | 0.280" (7.11mm) | - | 1.260" (32.0mm) | Stainless Steel | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -60°C ~ 500°C | |
|
|
95148.7CABLE GLAND 13.97-18.03MM M32 |
0 |
|
- |
Cable Gland | 0.550" (13.97mm) | 0.710" (18.03mm) | M32x1.5 | 0.280" (7.11mm) | - | 1.260" (32.0mm) | Stainless Steel | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -60°C ~ 500°C | |
|
|
95149.7CABLE GLAND 17.02-20.57MM M32 |
0 |
|
- |
Cable Gland | 0.670" (17.02mm) | 0.810" (20.57mm) | M32x1.5 | 0.280" (7.11mm) | - | 1.260" (32.0mm) | Stainless Steel | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -60°C ~ 500°C | |
|
|
98518.6CABLE GLAND 28.96-39.88MM PG42 |
0 |
|
- |
Cable Gland | 1.140" (28.96mm) | 1.570" (39.88mm) | PG42 | 0.390" (9.91mm) | - | 2.150" (54.6mm) | Brass, Nickel Plated | - | Silver | IP65 - Dust Tight, Water Resistant | - | |
|
|
18636.6CABLE GLAND 34.04-38.1MM PG42 |
0 |
|
- |
Cable Gland | 1.340" (34.04mm) | 1.500" (38.10mm) | PG42 | 0.390" (9.91mm) | - | 2.130" (54.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
18637.6CABLE GLAND PG42 BRASS |
0 |
|
- |
Cable Gland | - | - | PG42 | - | - | - | Brass, Nickel Plated | - | Silver | - | - | |
|
|
96559.5CABLE GLAND SPLIT M63 PVDF |
0 |
|
- |
Cable Gland - Split, No Openings | - | - | M63x1.5 | - | - | - | Polyvinylidene Fluoride (PVDF) | - | - | - | - | |
|
|
96560.5CABLE GLAND SPLIT M63 PVDF |
0 |
|
- |
Cable Gland - Split, No Openings | - | - | M63x1.5 | - | - | - | Polyvinylidene Fluoride (PVDF) | - | - | - | - | |
|
|
96561.5CABLE GLAND SPLIT M63 PVDF |
0 |
|
- |
Cable Gland - Split, No Openings | - | - | M63x1.5 | - | - | - | Polyvinylidene Fluoride (PVDF) | - | - | - | - | |
|
|
96562.5CABLE GLAND SPLIT M63 PVDF |
0 |
|
- |
Cable Gland - Split, No Openings | - | - | M63x1.5 | - | - | - | Polyvinylidene Fluoride (PVDF) | - | - | - | - | |
|

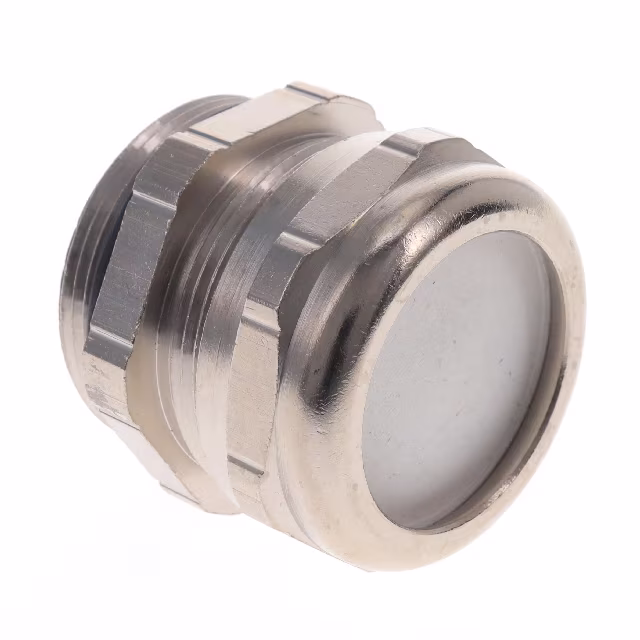

09000005125CABLE GLAND PG29 |
0 |
|
Ficha técnica |
Cable Gland | - | - | PG29 | - | - | - | - | - | - | - | - | |
|
|
K100-1063-00-EXPERFECT PLUS EX-CABLE GLAND M63 |
0 |
|
Ficha técnica |
Cable Gland | 1.339" (34.00mm) | 1.890" (48.00mm) | M63x1.5 | 0.394" (10.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | |
|
|
1300990165CABLE GRIP 7.87-9.4MM 1/2" NPT |
0 |
|
Ficha técnica |
Cable Grip | 0.310" (7.87mm) | 0.370" (9.40mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Strain Relief | Yellow | - | - |
