Processo, Temperatura
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Faixa de Entrada | Tipo de saída | Método de controle | Comunicações | Número de caracteres por linha | Tipo de Exibição | Caracteres de exibição - Altura | Voltagem - Alimentação | Dimensões do Recorte do Painel | Tipo de montagem | Estilo de Terminação | Proteção de entrada | Recursos |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E5AC-RR4A5M-010CONTROL TEMP/PROCESS 100-240V |
10 |
|
Ficha técnica |
E5AC | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (6) | On/Off, Proportional (PID) | - | 4, 4, 4 | LCD - Tri Color Characters, Backlight | 0.984" (25.00mm), 0.590" (15.00mm), 0.374" (9.50mm) | 100 ~ 240VAC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Event Input, Heater Fault Detection |
|
|
E5AC-QR4A5M-009CONTROL TEMP/PROC RELAY/VOLT OUT |
2 |
|
Ficha técnica |
E5AC | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (5), Voltage (External SSR) | On/Off, Proportional (PID) | RS-485 (CompoWay/F, Modbus) | 4, 4, 4 | LCD - Tri Color Characters, Backlight | 0.984" (25.00mm), 0.590" (15.00mm), 0.374" (9.50mm) | 100 ~ 240VAC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Event Input, Heater Fault Detection |
|
G3PW-A260EC-S-FLKCONTROL POWER SS OUT 100-240V |
2 |
|
Ficha técnica |
G3PW | Box | Active | Power Controller | 1 ~ 60A | Solid State (2) | On/Off, Phase Control | RS-485 (CompoWay/F) | 3 | LED - Red Characters | - | 100 ~ 240VAC | - | Chassis Mount | Screw Terminal | - | Event Input, Heater Fault Detection |
|
G3PW-A245EU-SCONTROL POWER SS OUT 100-240V |
2 |
|
Ficha técnica |
G3PW | Box | Active | Power Controller | 1 ~ 45A | Solid State (2) | On/Off, Phase Control | - | 3 | LED - Red Characters | - | 100 ~ 240VAC | - | Chassis Mount | Screw Terminal | - | Event Input |
|
E5EN-HAA3BFMD-500 AC/DC24CONTROL TEMP/PROC RELAY OUT 24V |
2 |
|
Ficha técnica |
E5EN-H | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (3), Option Cards Available | On/Off, Proportional (PID) | Option Cards Available | 5, 5, 4 | LCD - Tri Color Characters, Backlight | 0.465" (11.80mm), 0.319" (8.10mm), 0.228" (5.80mm) | 24VAC/DC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Event Input, Option Cards Available |
|
E5AC-CC4D5M-013CONTROL TEMP/PROC 24V PANEL MT |
5 |
|
Ficha técnica |
E5AC | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Analog (2), Relay (4) | On/Off, Proportional (PID) | - | 4, 4, 4 | LCD - Tri Color Characters, Backlight | 0.984" (25.00mm), 0.590" (15.00mm), 0.374" (9.50mm) | 24VAC/DC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Event Input |
|
|
E5AC-CX4A5M-013CONTROL TEMP/PROCESS 100-240V |
2 |
|
Ficha técnica |
E5AC | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Analog, Relay (4) | On/Off, Proportional (PID) | - | 4, 4, 4 | LCD - Tri Color Characters, Backlight | 0.984" (25.00mm), 0.590" (15.00mm), 0.374" (9.50mm) | 100 ~ 240VAC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Event Input |
|
E5AC-TCC4A5M-0212 CURR 6 EVENT TRANS OUT |
2 |
|
Ficha técnica |
E5AC | Bulk | Active | Temperature Controller (Type B, C, E, J, K, L, N, P, PLII, R, S, T, U) | 0 ~ 20mA, 0 ~ 10V | Relay | On/Off, Proportional (PID) | RS-485 | 4, 4, 4 | LCD - White Characters | 0.984" (25.00mm), 0.590" (15.00mm), 0.374" (9.50mm) | 100 ~ 240VAC | Square - 96.00mm x 96.00mm | Panel Mount | Screw Terminal | IP20, IP66 - Dust Tight, Water Resistant | Event Input |
|
DTC2000CDTC EXTENSION UNIT, CURRENT OUTP |
16 |
|
Ficha técnica |
DT | Box | Not For New Designs | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U) | -200°C ~ 1800°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV | Analog | On/Off, Proportional (PID) | RS-485 (Modbus) | - | - | - | 24VDC | - | Chassis Mount, DIN Rail | Screw Terminal | - | - |
|

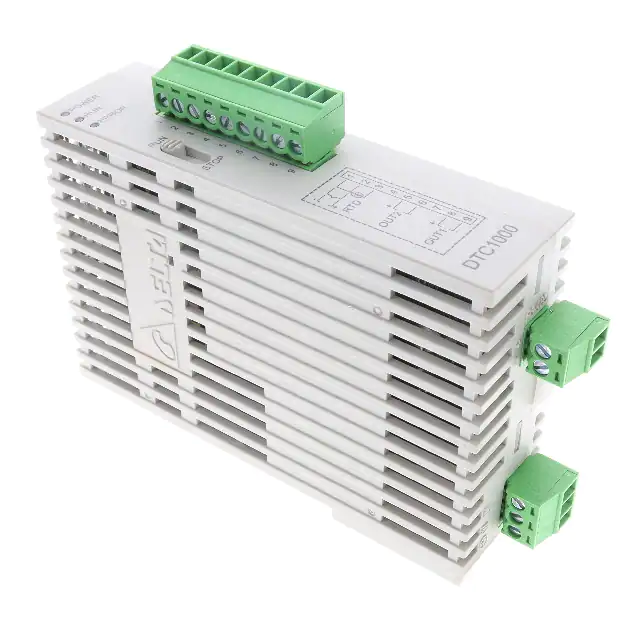

DTC1000CDTC MPU, CURRENT OUTPUT |
3 |
|
Ficha técnica |
DT | Box | Not For New Designs | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U) | -200°C ~ 1800°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV | Analog | On/Off, Proportional (PID) | RS-485 (Modbus) | - | - | - | 24VDC | - | Chassis Mount, DIN Rail | Screw Terminal | - | - |
|
DTB4896VVEDELTA TEMPERATURE CONTROLLER DTB |
20 |
|
Ficha técnica |
DT | Box | Not For New Designs | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U) | -200°C ~ 1800°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV | Voltage (External SSR) (2) | On/Off, Proportional (PID) | RS-485 (Modbus) | 4, 4 | LED - Dual Color Characters | - | 100 ~ 240VAC | Rectangular - 44.50mm x 91.50mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
|
DTB4896VREDELTA TEMPERATURE CONTROLLER DTB |
3 |
|
Ficha técnica |
DT | Box | Not For New Designs | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U) | -200°C ~ 1800°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV | Relay, Voltage (External SSR) | On/Off, Proportional (PID) | RS-485 (Modbus) | 4, 4 | LED - Dual Color Characters | - | 100 ~ 240VAC | Rectangular - 44.50mm x 91.50mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
DTB9696RRDELTA TEMPERATURE CONTROLLER DTB |
5 |
|
Ficha técnica |
DT | Box | Not For New Designs | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U) | -200°C ~ 1800°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV | Relay (2) | On/Off, Proportional (PID) | RS-485 (Modbus) | 4, 4 | LED - Dual Color Characters | - | 100 ~ 240VAC | Square - 91.50mm x 91.50mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
|
DTB9696CRDELTA TEMPERATURE CONTROLLER DT |
6 |
|
Ficha técnica |
DT | Box | Not For New Designs | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U) | -200°C ~ 1800°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV | Analog, Relay | On/Off, Proportional (PID) | RS-485 (Modbus) | 4, 4 | LED - Dual Color Characters | - | 100 ~ 240VAC | Square - 91.50mm x 91.50mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
|
DTB9696RREDELTA TEMPERATURE CONTROLLER DTB |
5 |
|
Ficha técnica |
DT | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U) | -200°C ~ 1800°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV | Relay (2) | On/Off, Proportional (PID) | RS-485 (Modbus) | 4, 4 | LED - Dual Color Characters | - | 100 ~ 240VAC | Square - 91.50mm x 91.50mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
|
DTB9696VVEDELTA TEMPERATURE CONTROLLER DT |
5 |
|
Ficha técnica |
DT | Box | Not For New Designs | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U) | -200°C ~ 1800°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV | Voltage (External SSR) (2) | On/Off, Proportional (PID) | RS-485 (Modbus) | 4, 4 | LED - Dual Color Characters | - | 100 ~ 240VAC | Square - 91.50mm x 91.50mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
DTB4848VREDELTA TEMPERATURE CONTROLLER DTB |
14 |
|
Ficha técnica |
DT | Box | Not For New Designs | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U) | -200°C ~ 1800°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV | Relay, Voltage (External SSR) | On/Off, Proportional (PID) | RS-485 (Modbus) | 4, 4 | LED - Dual Color Characters | - | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
|
DTB4896CRDELTA TEMPERATURE CONTROLLER DTB |
12 |
|
Ficha técnica |
DT | Box | Not For New Designs | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U) | -200°C ~ 1800°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV | Analog, Relay | On/Off, Proportional (PID) | RS-485 (Modbus) | 4, 4 | LED - Dual Color Characters | - | 100 ~ 240VAC | Rectangular - 44.50mm x 91.50mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
|
DTB4896CVEDELTA TEMPERATURE CONTROLLER DT |
12 |
|
Ficha técnica |
DT | Box | Not For New Designs | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U) | -200°C ~ 1800°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV | Analog, Voltage (External SSR) | On/Off, Proportional (PID) | RS-485 (Modbus) | 4, 4 | LED - Dual Color Characters | - | 100 ~ 240VAC | Rectangular - 44.50mm x 91.50mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
|
DTB4896VVTDELTA TEMPERATURE CONTROLLER DTB |
12 |
|
Ficha técnica |
DT | Box | Not For New Designs | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U) | -200°C ~ 1800°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV | Voltage (External SSR) (2) | On/Off, Proportional (PID) | RS-485 (Modbus) | 4, 4 | LED - Dual Color Characters | - | 100 ~ 240VAC | Rectangular - 44.50mm x 91.50mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
