Processo, Temperatura
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Tipo | Faixa de Entrada | Tipo de saída | Método de controle | Comunicações | Número de caracteres por linha | Tipo de Exibição | Caracteres de exibição - Altura | Voltagem - Alimentação | Dimensões do Recorte do Painel | Tipo de montagem | Estilo de Terminação | Proteção de entrada | Recursos |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TX4S-24CLCD PID TEMP CONTROL 100-240VAC |
18 |
|
Ficha técnica |
TX | Box | Active | Temperature Controller (RTD, Type J, K, L, R, S, T) | -100°C ~ 1700°C | Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LED - Dual Color Characters | 0.551" (14.00mm), 0.299" (7.60mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP50 - Dust Protected | Limit Function |
|
TK4SP-14SRTEMP CONTROL SSR RELAY 100-240V |
7 |
|
Ficha técnica |
TK | Box | Active | Temperature Controller (RTD, Type B, C, E, G, J, K, L, N, PL-II, R, S, T, U) | -200°C ~ 2300°C, -328°F ~ 4172°F | Relay, Solid State | On/Off, Proportional (PID) | Option Cards Available | 4, 4 | LED - Green, Red Characters | 0.551" (14.00mm), 0.394" (10.00mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP50 - Dust Protected | Option Cards Available |
|
|
TK4SP-14RRTEMP CONTROL 2RELAY 100-240VAC |
4 |
|
Ficha técnica |
TK | Box | Active | Temperature Controller (RTD, Type B, C, E, G, J, K, L, N, PL-II, R, S, T, U) | -200°C ~ 2300°C, -328°F ~ 4172°F | Relay (2) | On/Off, Proportional (PID) | Option Cards Available | 4, 4 | LED - Green, Red Characters | 0.551" (14.00mm), 0.394" (10.00mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP50 - Dust Protected | Option Cards Available |
|
|
TK4S-14CCTEMP CONTROL CRNT 2SSR 100-240V |
5 |
|
Ficha técnica |
TK | Box | Active | Temperature Controller (RTD, Type B, C, E, G, J, K, L, N, PL-II, R, S, T, U) | -200°C ~ 2300°C, -328°F ~ 4172°F | Analog, Solid State (2) | On/Off, Proportional (PID) | Option Cards Available | 4, 4 | LED - Green, Red Characters | 0.551" (14.00mm), 0.394" (10.00mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Option Cards Available |
|
8105002500N1050 CONTROL TEMP REL/SSR OUT |
10 |
|
Ficha técnica |
N1050 | Box | Active | Temperature Controller (RTD, Type J, K, S, T) | -200°C ~ 1760°C, -328°F ~ 3200°F | Relay (3), Voltage (External SSR) | On/Off, Proportional (PID) | RS-485, USB | 4, 4 | LCD - Tri Color Characters, Backlight | 0.531" (13.50mm) | 100 ~ 240VAC/VDC | Square - 46.00mm x 46.00mm | Panel Mount | Screw Terminal | IP65 - Front, IP20 Rear | USB Configurable, Ramp and Soak, Timer, Auto-Tuning, Sensor Fault Detection, Alarm Signaling |
|
TZ4ST-14CPID CONTROL CURRENT 100-240VAC |
24 |
|
Ficha técnica |
TZ | Box | Active | Temperature Controller (RTD, Type E, J, K, N, R, S, T, W) | -200°C ~ 1700°C, -328°F ~3092°F | Analog | On/Off, Proportional (PID) | - | 4, 4 | LED - Green, Red Characters | 0.307" (7.80mm) | 100 ~ 240VAC | Square - 48.00mm x 48.00mm | DIN Rail | Screw Terminal | - | Option Cards Available |
|
|
TZ4ST-14SPID CONTROL SSR 100-240VAC |
19 |
|
Ficha técnica |
TZ | Box | Active | Temperature Controller (RTD, Type E, J, K, N, R, S, T, W) | -200°C ~ 1700°C, -328°F ~3092°F | Solid State | On/Off, Proportional (PID) | - | 4, 4 | LED - Green, Red Characters | 0.307" (7.80mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | - | Option Cards Available |
|
T3S-B4RK8F-NTEMP CONTROL K 800F 100-240VAC |
14 |
|
Ficha técnica |
T3/T4 | Box | Active | Temperature Controller (Type K) | 0°C ~ 799°C | Relay | On/Off, Proportional (P) | - | 3 | LED - Red Characters | 0.315" (8.00mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | - | - | - |
|
T3S-B4RK4C-NTEMP CONTROL K 400C 100-240VAC |
13 |
|
Ficha técnica |
T3/T4 | Box | Active | Temperature Controller (Type K) | 0°C ~ 399°C | Relay | On/Off, Proportional (P) | - | 3 | LED - Red Characters | 0.315" (8.00mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | - | - | - |
|
TX4S-A4SLCD PID TEMP CONTROL 100-240VAC |
11 |
|
Ficha técnica |
TX | Box | Active | Temperature Controller (RTD, Type J, K, L, R, S, T) | -100°C ~ 1700°C | Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LED - Dual Color Characters | 0.551" (14.00mm), 0.299" (7.60mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP50 - Dust Protected | Limit Function |
|
T3S-B4RJ2CTEMP CONTROL J 200C 100-240VAC |
11 |
|
Ficha técnica |
T3/T4 | Box | Active | Temperature Controller (Type J) | 0°C ~ 199°C | Relay | On/Off, Proportional (P) | - | 3 | LED - Red Characters | 0.315" (8.00mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | - | - | - |
|
AKT4R112100CNTRL TEMP REL/VOLT OUT 100-240V |
21 |
|
Ficha técnica |
KT4R | Box | Obsolete | Temperature Controller (RTD, Type B, C, E, J, K, N, PL-II, R, S, T, W) | -200°C ~ 2315°C, 0 ~ 20mA, 0 ~ 10VDC | Relay, Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LED - Dual Color Characters | 0.488" (12.40mm), 0.347" (8.80mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
TF33-24A-TREFRIGERATION TEMP CONTROL 3CH |
11 |
|
Ficha técnica |
TF3 | Box | Active | Temperature Controller (Thermistor, NTC) | -40°C ~ 99.9°C | - | On/Off | RS-485 (Modbus) | 3 | LED - Red Characters | 0.760" (19.30mm) | 100 ~ 240VAC | Rectangular - 70.30mm x 28.20mm | Panel Mount | Screw Terminal | IP65/IP67 - Dust Tight, Waterproof, Water Resistant | Limit Function |
|
TK4N-14CCTEMP CONTROL CRNT 2SSR 100-240V |
22 |
|
Ficha técnica |
TK | Box | Active | Process, Temperature Controller (Type B, C, E, G, J, K, L, N, PLII, R, S, T, U) | -1999°C ~ 9999°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV | Voltage (External SSR) (2) | On/Off, Proportional (PID) | Option Cards Available | 4, 4 | LED - Dual Color Characters | 0.283" (7.20mm), 0.228" (5.80mm) | 100 ~ 240VAC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP50/IP65 - Dust Tight, Water Resistant | Limit Function |
|
|
TK4S-24RCTEMP CTRL RELAY CRNT SSR 100-240 |
20 |
|
Ficha técnica |
TK | Box | Active | Temperature Controller (RTD, Type B, C, E, G, J, K, L, N, PL-II, R, S, T, U) | -200°C ~ 2300°C, -328°F ~ 4172°F | Analog, Relay, Solid State | On/Off, Proportional (PID) | Option Cards Available | 4, 4 | LED - Green, Red Characters | 0.551" (14.00mm), 0.394" (10.00mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Option Cards Available |
|
|
TK4S-24RRTEMP CONTROL 2RELAY 100-240VAC |
20 |
|
Ficha técnica |
TK | Box | Active | Temperature Controller (RTD, Type B, C, E, G, J, K, L, N, PL-II, R, S, T, U) | -200°C ~ 2300°C, -328°F ~ 4172°F | Relay (2) | On/Off, Proportional (PID) | Option Cards Available | 4, 4 | LED - Green, Red Characters | 0.551" (14.00mm), 0.394" (10.00mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Option Cards Available |
|
TK4L-14RNTEMP CONTROL RELAY 100-240VAC |
19 |
|
Ficha técnica |
TK | Box | Active | Process, Temperature Controller (Type B, C, E, G, J, K, L, N, PLII, R, S, T, U) | -1999°C ~ 9999°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV | Relay | On/Off, Proportional (PID) | Option Cards Available | 4, 4 | LED - Dual Color Characters | 0.866" (22.00mm), 0.551" (14.00mm) | 100 ~ 240VAC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP50/IP65 - Dust Tight, Water Resistant | Limit Function |
|

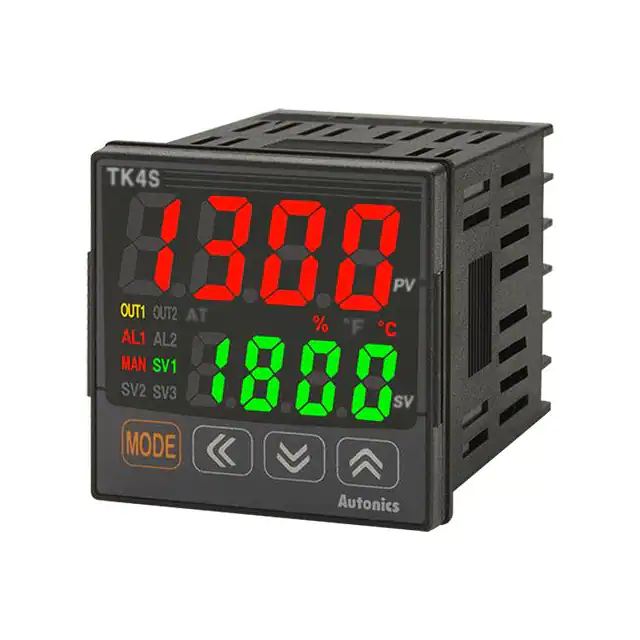

TK4S-T4CNTEMP CONTROL CRNT SSR 100-240VAC |
19 |
|
Ficha técnica |
TK | Box | Active | Process, Temperature Controller (Type B, C, E, G, J, K, L, N, PLII, R, S, T, U) | -1999°C ~ 9999°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV | Voltage (External SSR) | On/Off, Proportional (PID) | RS-485 (Modbus) | 4, 4 | LED - Dual Color Characters | 0.551" (14.00mm), 0.394" (10.00mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP50/IP65 - Dust Tight, Water Resistant | Limit Function |
|
TK4H-14CNTEMP CONTROL CRNT SSR 100-240VAC |
17 |
|
Ficha técnica |
TK | Box | Active | Process, Temperature Controller (Type B, C, E, G, J, K, L, N, PLII, R, S, T, U) | -1999°C ~ 9999°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV | Voltage (External SSR) | On/Off, Proportional (PID) | Option Cards Available | 4, 4 | LED - Dual Color Characters | 0.575" (14.60mm), 0.472" (12.00mm) | 100 ~ 240VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP50/IP65 - Dust Tight, Water Resistant | Limit Function |
|
TK4N-14RRTEMP CONTROL 2RELAY 100-240VAC |
13 |
|
Ficha técnica |
TK | Box | Active | Process, Temperature Controller (Type B, C, E, G, J, K, L, N, PLII, R, S, T, U) | -1999°C ~ 9999°C, 0 ~ 20mA, 0 ~ 10VDC, 0 ~ 50mV | Relay (2) | On/Off, Proportional (PID) | Option Cards Available | 4, 4 | LED - Dual Color Characters | 0.283" (7.20mm), 0.228" (5.80mm) | 100 ~ 240VAC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP50/IP65 - Dust Tight, Water Resistant | Limit Function |
