Transformadores de detecção de corrente
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Faixa de frequência | Tipo | Classificação de Corrente (Amps) | Indutância | ET (Volt-Tempo) | Relação de espiras - Primário:Secundário | Relação de corrente | Resistência CC (DCR) | Classificações | Tipo de montagem | Tamanho/dimensão | Altura - Assentado (Máx.) | Estilo de Terminação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CST206-1ACURR SENSE XFMR 110A T/H |
3,197 |
|
Ficha técnica |
CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 110 A | 14 mH | 2000VµS | - | 100:1 | 580mOhm Max | - | Through Hole | 1.075" L x 0.400" W (27.31mm x 10.16mm) | 1.225" (31.12mm) | PC Pin |
|
PE-63587NLCURR SENSE XFMR 20A T/H |
274 |
|
Ficha técnica |
THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 20 mH | - | - | 100:1 | 100Ohm Primary, 1.4Ohm Secondary | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
PE-67100NLCURR SENSE XFMR 37A T/H |
155 |
|
Ficha técnica |
- | Tray | Active | 10kHz ~ 200kHz | Invasive | 37 A | 20 mH | - | 1:100 | 100:1 | 56Ohm Primary, 1.4Ohm Secondary | - | Through Hole | 0.565" L x 0.750" W (14.35mm x 19.05mm) | 0.750" (19.05mm) | PC Pin |
|
CST306-1ACURR SENSE XFMR 35A T/H |
4,503 |
|
Ficha técnica |
CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 35 A | 3.5 mH | 500VµS | - | 50:1 | 340mOhm Max | - | Through Hole | 0.690" L x 0.385" W (17.53mm x 9.78mm) | 0.915" (23.24mm) | PC Pin |
|
|
CST306-3ACURR SENSE XFMR 25A T/H |
2,693 |
|
Ficha técnica |
CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 25 A | 55 mH | 2000VµS | - | 200:1 | 3.75Ohm Max | - | Through Hole | 0.690" L x 0.385" W (17.53mm x 9.78mm) | 0.915" (23.24mm) | PC Pin |
|
AC1030CURR SENSE XFMR 30A T/H |
2,175 |
|
Ficha técnica |
AC | Box | Active | 50/60Hz | Non-Invasive (Solid Core) | 30 A | - | - | - | 1000:1 | 48Ohm | - | Through Hole | 1.189" L x 0.563" W (30.20mm x 14.30mm) | 1.189" (30.20mm) | PC Pin |
|
|
PE-67200NLCURR SENSE XFMR 38A T/H |
986 |
|
Ficha técnica |
- | Tray | Active | 10kHz ~ 200kHz | Invasive | 38 A | 80 mH | - | - | 200:1 | 200Ohm Primary, 4.5Ohm Secondary | - | Through Hole | 0.565" L x 0.750" W (14.35mm x 19.05mm) | 0.750" (19.05mm) | PC Pin |
|
AC1050CURR SENSE XFMR 50A T/H |
3,920 |
|
Ficha técnica |
AC | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 50 A | - | - | - | 1000:1 | 49.3Ohm | - | Through Hole | 1.374" L x 0.563" W (34.90mm x 14.30mm) | 1.374" (34.90mm) | PC Pin |
|
PA3209NLCURR SENSE XFMR ROGOWSKI 1000A |
4,257 |
|
Ficha técnica |
Sidewinder®, PA32XXNL | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 1000 A | 3 mH | - | Rogowski Coil | - | 42Ohm Max | - | Chassis Mount | 2.240" L x 2.098" W (56.90mm x 53.30mm) | 0.580" (14.73mm) | Wire Leads |
|
CT-1020CURR SENSE XFMR 20A T/H |
1,348 |
|
Ficha técnica |
CT | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 20 A | - | - | - | 1000:1 | 41.8Ohm | - | Through Hole | 0.937" L x 0.438" W (23.80mm x 11.12mm) | 0.937" (23.80mm) | PC Pin |
|
|
CST206-2ACURR SENSE XFMR 80A T/H |
1,768 |
|
Ficha técnica |
CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 80 A | 56 mH | 4000VµS | - | 200:1 | 3.5Ohm Max | - | Through Hole | 1.075" L x 0.400" W (27.31mm x 10.16mm) | 1.225" (31.12mm) | PC Pin |
|
|
CST206-3ACURR SENSE XFMR 70A T/H |
1,133 |
|
Ficha técnica |
CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 70 A | 130 mH | 6000VµS | - | 300:1 | 12.4Ohm Max | - | Through Hole | 1.075" L x 0.400" W (27.31mm x 10.16mm) | 1.225" (31.12mm) | PC Pin |
|
T60404E4626X501CURR SENSE XFMR 1:2500 100A TH |
7,456 |
|
Ficha técnica |
- | Box | Active | 50Hz | Non-Invasive (Solid Core) | 100 A | 2.1 H | - | 1:2500 | 2500:1 | 44Ohm | - | Through Hole | 1.339" L x 0.551" W (34.00mm x 14.00mm) | 1.339" (34.00mm) | PC Pin |
|

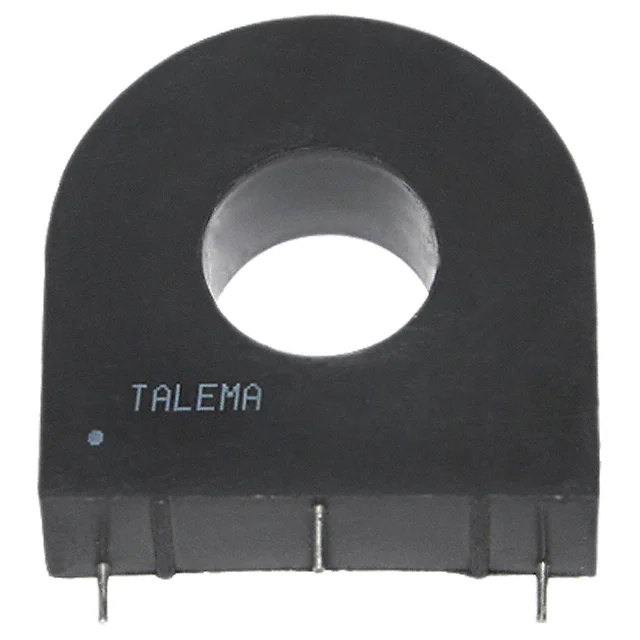

AC1100CURR SENSE XFMR 100A T/H |
953 |
|
Ficha técnica |
AC | Box | Active | 50/60Hz | Non-Invasive (Solid Core) | 100 A | - | - | - | 1000:1 | 21.3Ohm | - | Through Hole | 1.752" L x 0.563" W (44.50mm x 14.30mm) | 1.752" (44.50mm) | PC Pin |
|

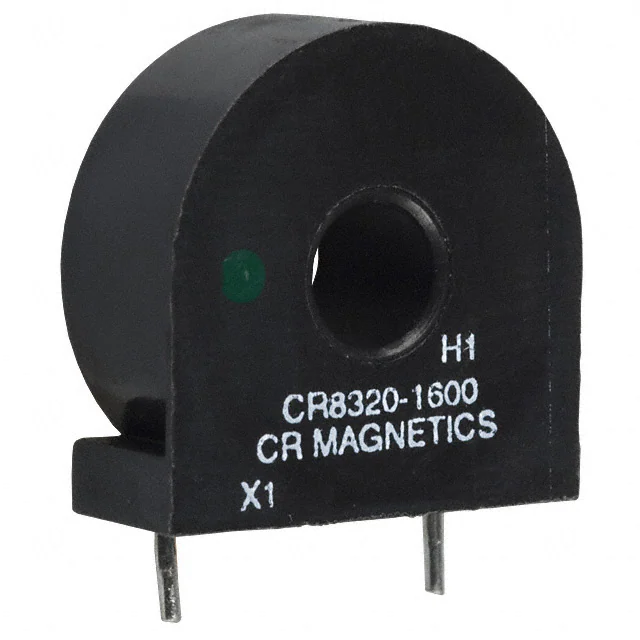

CR8320-1600CURR SENSE XFMR 10A T/H |
1,950 |
|
Ficha técnica |
CR8300 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 10 A | - | - | - | 1600:1 | 95Ohm | - | Through Hole | 0.764" L x 0.323" W (19.40mm x 8.20mm) | 0.768" (19.50mm) | PC Pin |
|

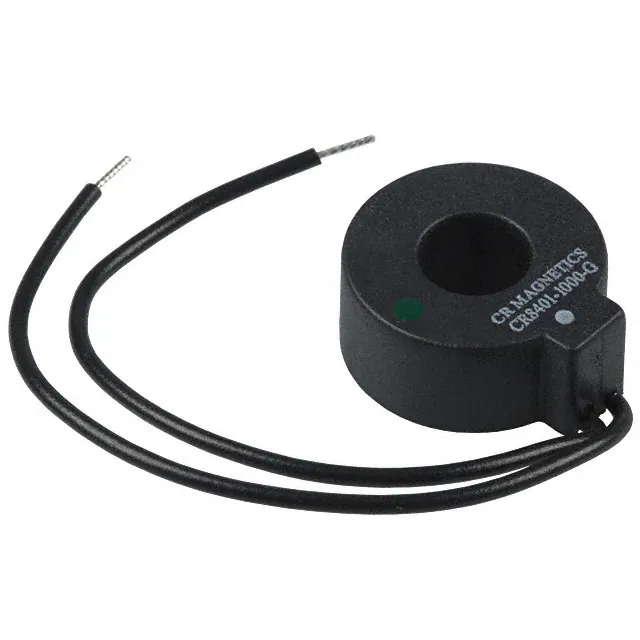

CR8401-1000-GCURR SENSE XFMR 4A IN-LINE |
772 |
|
Ficha técnica |
CR8400 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 10 A | - | - | - | 1000:1 | 49Ohm | - | Free Hanging (In-Line) | 0.880" L x 0.690" W (22.35mm x 17.53mm) | 0.325" (8.26mm) | Wire Leads |
|

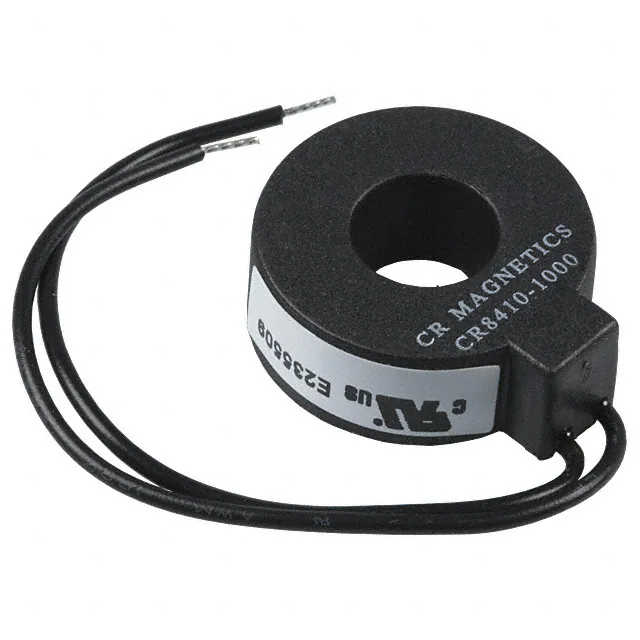

CR8410-1000CURR SENSE XFMR 20A IN-LINE |
435 |
|
Ficha técnica |
CR8400 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 20 A | - | - | - | 1000:1 | 41Ohm | - | Free Hanging (In-Line) | 1.094" L x 0.866" W (27.80mm x 22.00mm) | 0.323" (8.20mm) | Wire Leads |
|
101990029CURR SENSE XFMR 100A:0.05A 100A |
263 |
|
Ficha técnica |
SCT013 | Bulk | Active | - | Non-Invasive (Split Core) | 100 A | - | - | 1:1800 | - | - | - | Chassis Mount | - | - | Wire Leads with Connector |
|
CR8348-2000CURR SENSE XFMR 50A T/H |
337 |
|
Ficha técnica |
CR8300 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 50 A | - | - | - | 2000:1 | 106Ohm | - | Through Hole | 0.925" L x 0.433" W (23.50mm x 11.00mm) | 0.984" (25.00mm) | PC Pin |
|
CR8349-1500CURR SENSE XFMR 75A T/H |
2,531 |
|
Ficha técnica |
CR8300 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 75 A | - | - | - | 1500:1 | 80Ohm | - | Through Hole | 1.024" L x 0.670" W (26.00mm x 17.00mm) | 1.102" (28.00mm) | PC Pin |
