Transformadores de detecção de corrente
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Faixa de frequência | Tipo | Classificação de Corrente (Amps) | Indutância | ET (Volt-Tempo) | Relação de espiras - Primário:Secundário | Relação de corrente | Resistência CC (DCR) | Classificações | Tipo de montagem | Tamanho/dimensão | Altura - Assentado (Máx.) | Estilo de Terminação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA0368.070NLCURR SENSE XFMR 1:70 4A SMD |
15 |
|
Ficha técnica |
- | Tube | Active | 50kHz ~ 1MHz | Invasive | 4 A | 3.3 mH | - | 1:70 | - | 4mOhm Primary, 1.2Ohm Secondary | - | Surface Mount | 0.285" L x 0.352" W (7.25mm x 8.25mm) | 0.124" (3.15mm) | - |
|
B82801B0305A125CURR SENSE XFMR 1:125 SMD |
0 |
|
Ficha técnica |
B82801B | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 3 mH | - | 1:125 | - | 0.8mOhm Primary, 6.5Ohm Secondary | - | Surface Mount | 0.280" L x 0.320" W (7.11mm x 8.13mm) | 0.200" (5.08mm) | Gull Wing |
|

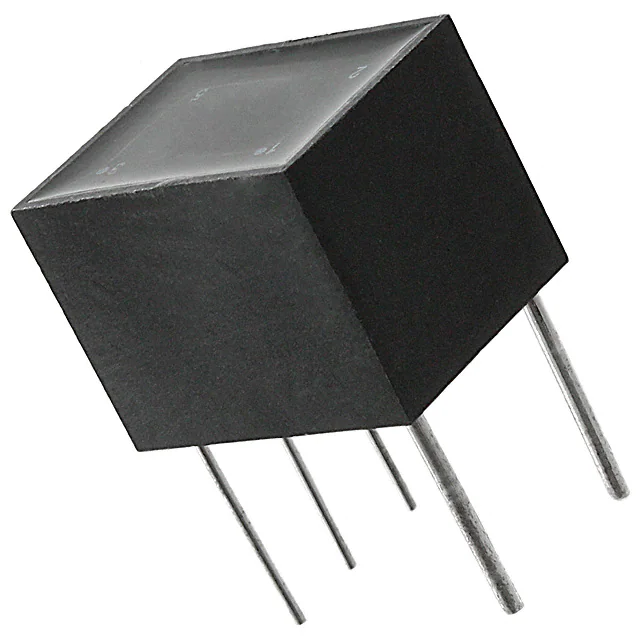

PE-63619NLCURR SENSE XFMR 20A T/H |
0 |
|
Ficha técnica |
THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 80 mH | - | - | 200CT:1 | 200Ohm Primary, 4.5Ohm Secondary | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
PE-67300NLCURR SENSE XFMR 37A T/H |
0 |
|
Ficha técnica |
- | Tray | Active | 10kHz ~ 200kHz | Invasive | 37 A | 180 mH | - | - | 300:1 | 510Ohm Primary, 11Ohm Secondary | - | Through Hole | 0.565" L x 0.750" W (14.35mm x 19.05mm) | 0.750" (19.05mm) | PC Pin |
|

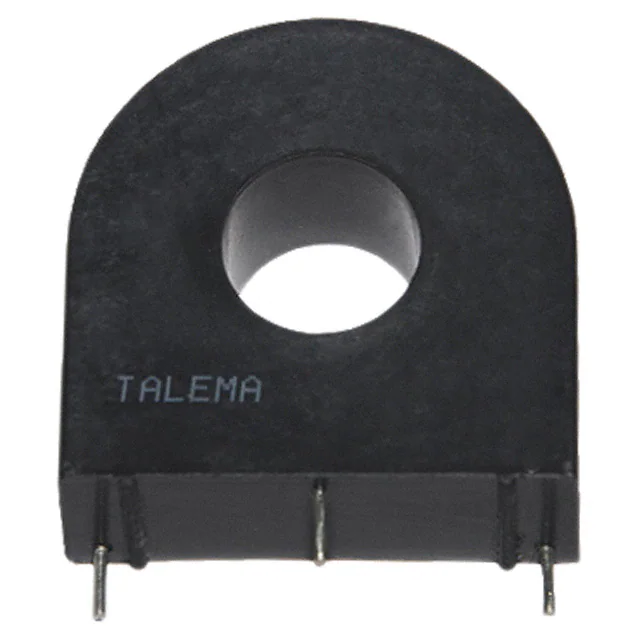

AC1075CURR SENSE XFMR 75A T/H |
0 |
|
Ficha técnica |
AC | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 75 A | - | - | - | 1000:1 | 24Ohm | - | Through Hole | 1.500" L x 0.626" W (38.10mm x 15.90mm) | 1.500" (38.10mm) | PC Pin |
|
CCT272440-80-10-02CURR SENSE XFMR 80A CHAS MNT |
0 |
|
Ficha técnica |
CCT | Bulk | Active | 50/60Hz | Non-Invasive (Split Core) | 80 A | - | - | - | 3000:1 | 352Ohm | - | Chassis Mount | 1.201" L x 1.083" W (30.50mm x 27.50mm) | 1.634" (41.50mm) | Wire Leads with Connector |
|
CT5CFCURR SENSE XFMR CHAS MNT |
0 |
|
Ficha técnica |
CT | Box | Active | 50/60Hz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Chassis Mount | 2.063" L x 1.100" W (52.40mm x 27.94mm) | 1.250" (31.75mm) | Wire Leads |
|
2277815CURR SENSE XFMR 60A DIN RAIL |
0 |
|
Ficha técnica |
- | Bulk | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 60 A | - | - | - | - | - | - | DIN Rail | 2.362" L x 1.181" W (60.00mm x 30.00mm) | 3.150" (80.00mm) | Terminal Block |
|

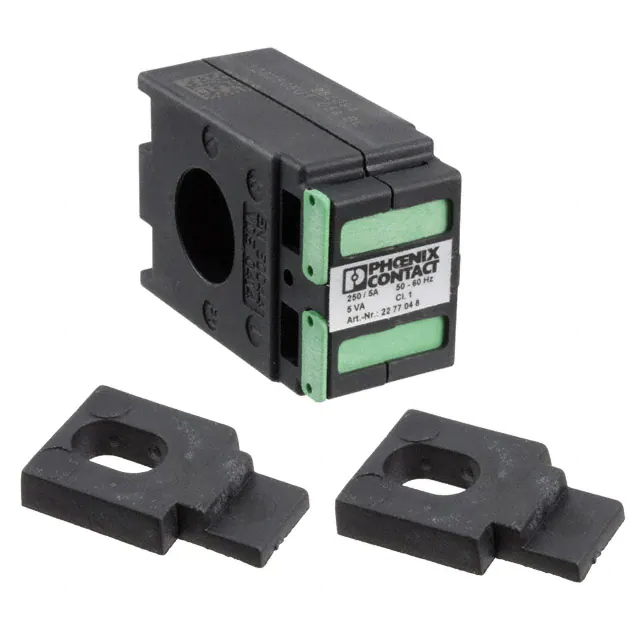

2277048CURR SENSE XFMR 250A DIN RAIL |
1 |
|
Ficha técnica |
PACT | Bulk | Active | 50/60Hz | Non-Invasive (Solid Core) | 250 A | - | - | - | 200:5 | - | - | DIN Rail | 1.732" L x 1.181" W (44.00mm x 30.00mm) | 2.598" (66.00mm) | Terminal Block |
|
CT-0100-D10CURR SENSE XFMR 100:5 DONUT |
1 |
|
Ficha técnica |
CT | Bulk | Active | - | Non-Invasive (Solid Core) | 100 A | - | - | - | 100:5 | - | - | Free Hanging (In-Line) | - | - | Wire Leads |
|
CT-0100-F10CURR SENSE XFMR 100:5 FOOTED |
0 |
|
Ficha técnica |
CT | Bulk | Active | - | Non-Invasive (Solid Core) | 100 A | - | - | - | 100:5 | - | - | - | - | - | Terminal Block |
|
CT400ACURR SENSE XFMR 5A CHAS MNT |
1 |
|
Ficha técnica |
CT | Box | Active | - | Non-Invasive (Solid Core) | 5 A | - | - | - | 400:5 | - | - | Chassis Mount | 4.750" L x 1.750" W (120.65mm x 44.45mm) | 4.250" (107.95mm) | Wire Leads |
|
|
CT150ACURR SENSE XFMR 5A CHAS MNT |
1 |
|
Ficha técnica |
CT | Box | Active | - | Non-Invasive (Solid Core) | 5 A | - | - | - | 150:5 | - | - | Chassis Mount | 3.750" L x 1.750" W (95.25mm x 44.45mm) | 3.250" (82.55mm) | Wire Leads |
|
CT200ACURR SENSE XFMR 5A CHAS MNT |
1 |
|
Ficha técnica |
CT | Box | Active | - | Non-Invasive (Solid Core) | 5 A | - | - | - | 200:5 | - | - | Chassis Mount | 4.750" L x 1.750" W (120.65mm x 44.45mm) | 4.250" (107.95mm) | Wire Leads |
|
|
CT500ACURR SENSE XFMR 5A CHAS MNT |
1 |
|
Ficha técnica |
CT | Box | Active | - | Non-Invasive (Solid Core) | 5 A | - | - | - | 500:5 | - | - | Chassis Mount | 4.750" L x 1.750" W (120.65mm x 44.45mm) | 4.250" (107.95mm) | Wire Leads |
|
CT-0400-F20CURR SENSE XFMR 400:5 FOOTED |
1 |
|
Ficha técnica |
CT | Bulk | Active | - | Non-Invasive (Solid Core) | 400 A | - | - | - | 400:5 | - | - | - | - | - | Terminal Block |
|
CT-0500-D20CURR SENSE XFMR 500:5 DONUT |
1 |
|
Ficha técnica |
CT | Bulk | Active | - | Non-Invasive (Solid Core) | 500 A | - | - | - | 500:5 | - | - | Free Hanging (In-Line) | - | - | Wire Leads |
|
|
CT1200ACURR SENSE XFMR 5A CHAS MNT |
1 |
|
Ficha técnica |
CT | Box | Active | - | Non-Invasive (Solid Core) | 5 A | - | - | - | 1200:5 | - | - | Chassis Mount | 8.000" L x 1.750" W (203.20mm x 44.45mm) | 7.250" (184.15mm) | Wire Leads |
|
A82-20500CURR SENSE XFMR 500A CHAS MNT |
1 |
|
Ficha técnica |
- | Bag | Active | 40Hz ~ 1kHz | Non-Invasive (Solid Core) | 500 A | - | - | - | - | - | - | Chassis Mount | 3.740" L x 0.787" W (95.00mm x 20.00mm) | 2.657" (67.50mm) | Wire Leads |
|
|
A82-20250CURR SENSE XFMR 250A CHAS MNT |
0 |
|
Ficha técnica |
- | Bag | Active | 40Hz ~ 1kHz | Non-Invasive (Solid Core) | 250 A | - | - | - | - | - | - | Chassis Mount | 3.740" L x 0.787" W (95.00mm x 20.00mm) | 2.657" (67.50mm) | Wire Leads |
