Transformadores de detecção de corrente
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Faixa de frequência | Tipo | Classificação de Corrente (Amps) | Indutância | ET (Volt-Tempo) | Relação de espiras - Primário:Secundário | Relação de corrente | Resistência CC (DCR) | Classificações | Tipo de montagem | Tamanho/dimensão | Altura - Assentado (Máx.) | Estilo de Terminação |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-63586CURR SENSE XFMR 20A T/H |
0 |
|
Ficha técnica |
- | Tray | Obsolete | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 20 A | 5 mH | - | - | 50:1 | - | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
|
PE-63588CURR SENSE XFMR 20A T/H |
0 |
|
Ficha técnica |
- | Tray | Obsolete | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 20 A | 80 mH | - | - | 200:1 | - | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
|
PE-67050CURR SENSE XFMR 35A T/H |
0 |
|
- |
- | Tray | Obsolete | 10kHz ~ 200kHz | Invasive | 35 A | 5 mH | - | - | 50:1 | 700mOhm Secondary Max | - | Through Hole | 0.750" L x 0.565" W (19.05mm x 14.35mm) | 0.750" (19.05mm) | PC Pin |
|
|
PE-67100CURR SENSE XFMR 37A T/H |
0 |
|
- |
- | Tray | Obsolete | 10kHz ~ 200kHz | Invasive | 37 A | 20 mH | - | - | 100:1 | 1.4Ohm Secondary Max | - | Through Hole | 0.750" L x 0.565" W (19.05mm x 14.35mm) | 0.750" (19.05mm) | PC Pin |
|
|
PE-67200CURR SENSE XFMR 38A T/H |
0 |
|
Ficha técnica |
- | Tray | Active | 10kHz ~ 200kHz | Invasive | 38 A | 80 mH | - | - | 200:1 | 4.5Ohm Secondary Max | - | Through Hole | 0.750" L x 0.565" W (19.05mm x 14.35mm) | 0.750" (19.05mm) | PC Pin |
|
PE-68280CURR SENSE XFMR 1:1:100 15A SMD |
0 |
|
Ficha técnica |
- | Tube | Active | 50kHz ~ 500kHz | Invasive | 15 A | 14.8 mH | - | 1:1:100 | - | 1.15mOhm Primary, 930mOhm Secondary | - | Surface Mount | 0.495" L x 0.490" W (12.57mm x 12.45mm) | 0.280" (7.11mm) | - |
|

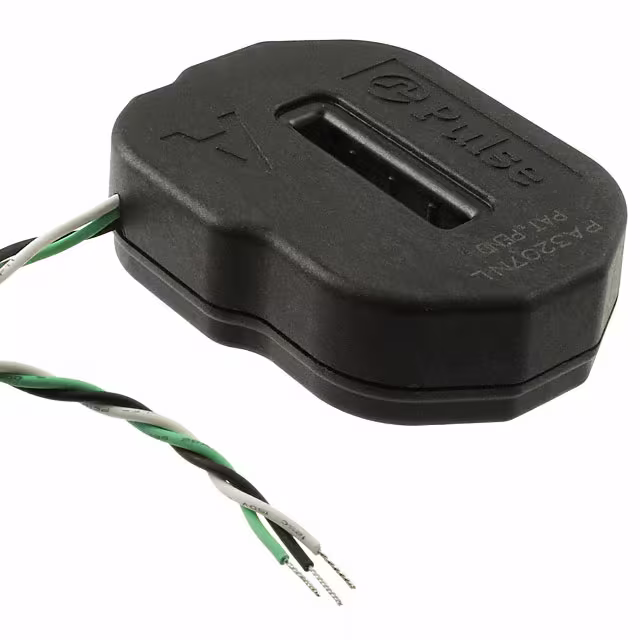

PA3207NLCURR XFMR ROGOWSKI 200A CHAS |
0 |
|
- |
Sidewinder®, PA32XXNL | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 200 A | 1.86 mH | - | Rogowski Coil | - | 66Ohm Max | - | Chassis Mount | 1.437" L x 1.913" W (36.50mm x 48.60mm) | 0.559" (14.20mm) | Wire Leads |
|
|
H1300NLCURR SENSE XFMR 1.414CT:1 SMD |
0 |
|
Ficha técnica |
- | Bulk | Active | - | Invasive | - | 350 µH | - | 1.414CT:1 | - | 65mOhm Secondary Max | - | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | Gull Wing |
|
|
H1300NLTCURR SENSE XFMR 1.414CT:1 SMD |
0 |
|
Ficha técnica |
- | Tape & Reel (TR) | Active | - | Invasive | - | 350 µH | - | 1.414CT:1 | - | 65mOhm Secondary Max | - | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | Gull Wing |
|
C-CT-6CURR SENSE XFMR 30A IN-LINE |
0 |
|
Ficha técnica |
C-CT | Bulk | Obsolete | 10Hz ~ 5kHz | Non-Invasive (Split Core) | 30 A | - | - | - | 3000:1 | - | - | Free Hanging (In-Line) | 0.760" L x 1.039" W (19.30mm x 26.40mm) | 1.220" (31.00mm) | Wire Leads |
|
C-CT-10CURR SENSE XFMR 60A IN-LINE |
0 |
|
Ficha técnica |
C-CT | Bulk | Obsolete | 10Hz ~ 5kHz | Non-Invasive (Split Core) | 60 A | - | - | - | 3000:1 | - | - | Free Hanging (In-Line) | 1.039" L x 1.004" W (26.40mm x 25.50mm) | 1.705" (43.30mm) | Wire Leads |
|
C-CT-16CURR SENSE XFMR 100A IN-LINE |
0 |
|
Ficha técnica |
C-CT | Bulk | Obsolete | 10Hz ~ 5kHz | Non-Invasive (Split Core) | 100 A | - | - | - | 3000:1 | - | - | Free Hanging (In-Line) | 1.280" L x 1.201" W (32.50mm x 30.50mm) | 1.819" (46.20mm) | Wire Leads |
|
C-CT-24CURR SENSE XFMR 200A IN-LINE |
0 |
|
Ficha técnica |
C-CT | Bulk | Obsolete | 10Hz ~ 5kHz | Non-Invasive (Split Core) | 200 A | - | - | - | 3000:1 | - | - | Free Hanging (In-Line) | 1.906" L x 1.398" W (48.40mm x 35.50mm) | 2.740" (69.60mm) | Wire Leads |
|
7020-01037-0CURR SENSE XFMR 5A IN-LINE |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 75:5 | - | - | Free Hanging (In-Line) | 2.700" Dia (68.60mm) | 1.402" (35.60mm) | Wire Leads |
|
|
7020-01039-0CURR SENSE XFMR 5A IN-LINE |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 150:5 | - | - | Free Hanging (In-Line) | 2.700" Dia (68.60mm) | 1.402" (35.60mm) | Wire Leads |
|
|
7020-01041-0CURR SENSE XFMR 5A IN-LINE |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 250:5 | - | - | Free Hanging (In-Line) | 2.700" Dia (68.60mm) | 1.402" (35.60mm) | Wire Leads |
|
|
7020-01043-0CURR SENSE XFMR 5A IN-LINE |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 750:5 | - | - | Free Hanging (In-Line) | 1.130" Dia (28.70mm) | 4.500" (114.30mm) | Wire Leads |
|
|
7020-01044-0CURR SENSE XFMR 5A IN-LINE |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 1000:5 | - | - | Free Hanging (In-Line) | 1.130" Dia (28.70mm) | 4.500" (114.30mm) | Wire Leads |
|
|
7020-01045-0CURR SENSE XFMR 5A IN-LINE |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 1500:5 | - | - | Free Hanging (In-Line) | 1.130" Dia (28.70mm) | 4.500" (114.30mm) | Wire Leads |
|
|
7020-01046-0CURR SENSE XFMR 5A IN-LINE |
0 |
|
Ficha técnica |
- | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 2000:5 | - | - | Free Hanging (In-Line) | 1.130" Dia (28.70mm) | 4.500" (114.30mm) | Wire Leads |
