Conjuntos de conectores D-Sub
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Estilo do conector | Tipo de conector | Número de posições | Número de Linhas | Tipo de montagem | Tamanho do Casco, Layout do Conector | Tipo de contato | Recurso de flange | Terminação | Material primário | Material do Casco, Acabamento | Acabamento de Contato | Espessura do Acabamento de Contato | Proteção de entrada | Classificação de Inflamabilidade do Material | Classificação de Corrente (Amps) | Espaçamento de Recuo | Recursos |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3-1393483-8CONN D-SUB RCPT 9POS SOLDER CUP |
275 |
|
Ficha técnica |
AMPLIMITE HD-20 | Tray | Last Time Buy | D-Sub | Receptacle, Female Sockets | 9 | 2 | Free Hanging (In-Line) | 1 (DE, E) | Signal | Housing/Shell (Unthreaded) | Solder Cup | - | Steel, Tin Plated | Gold | 8.00µin (0.203µm) | - | UL94 V-0 | 3A | - | - |
|
K66X-E15S-N-VESACONN D-SUB HD RCPT 15P R/A SLDR |
7,120 |
|
Ficha técnica |
K66X | Tray | Active | D-Sub, High Density | Receptacle, Female Sockets | 15 | 3 | Through Hole, Right Angle | 1 (DE, E) High Density | Signal | Housing/Shell (4-40) | Solder | - | Steel, Nickel Plated | Gold | Flash | - | UL94 V-0 | 1.5A | 0.350" (8.89mm) | Board Lock |
|
5745782-4CONN D-SUB RCPT 15POS R/A SOLDER |
1,942 |
|
Ficha técnica |
AMPLIMITE HD-20 | Tray | Active | D-Sub | Receptacle, Female Sockets | 15 | 2 | Through Hole, Right Angle | 2 (DA, A) | Signal | Housing/Shell (4-40) | Solder | - | Steel, Tin Plated | Gold | 30.0µin (0.76µm) | - | UL94 V-0 | 6A | 0.318" (8.08mm) | Ground Strap |
|
|
MHDM37SPCONN D-SUB PLUG 37POS SOLDER CUP |
106 |
|
Ficha técnica |
MHDM | Tray | Active | D-Sub | Plug, Male Pins | 37 | 2 | Free Hanging (In-Line) | 4 (DC, C) | Signal | Housing/Shell (Unthreaded) | Solder Cup | Metal | Steel, Tin-Nickel Plated | Gold | - | - | UL94 V-0 | 5A | - | Grounding Indents |
|

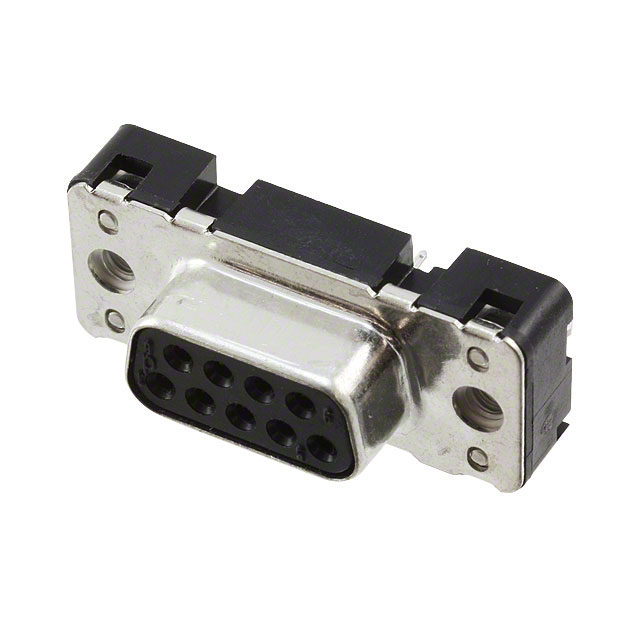

09661516512CONN D-SUB RCPT 9POS VERT SOLDER |
189 |
|
Ficha técnica |
- | Tray | Active | D-Sub | Receptacle, Female Sockets | 9 | 2 | Through Hole | 1 (DE, E) | Signal | Housing/Shell (4-40) | Solder | - | Steel | - | - | - | UL94 V-0 | 6.5A | - | Board Lock |
|
L717SDB25P1ACH4FCONN D-SUB PLUG 25POS R/A SOLDER |
105 |
|
Ficha técnica |
SD | Tray | Active | D-Sub | Plug, Male Pins | 25 | 2 | Through Hole, Right Angle | 3 (DB, B) | Signal | Mating Side, Female Screwlock (4-40) | Solder | - | Steel, Tin Plated | Gold | Flash | - | UL94 V-0 | 3A | 0.406" (10.30mm) | Board Lock, Grounding Indents |
|
K66X-E15S-NCONN D-SUB HD RCPT 15P R/A SLDR |
4,532 |
|
Ficha técnica |
K66X | Tray | Active | D-Sub, High Density | Receptacle, Female Sockets | 15 | 3 | Through Hole, Right Angle | 1 (DE, E) High Density | Signal | Housing/Shell (4-40) | Solder | - | Steel, Nickel Plated | Gold | Flash | - | UL94 V-0 | 1.5A | 0.350" (8.89mm) | Board Lock |
|
L117DBFRA25PCONN D-SUB PLUG 25POS IDC |
262 |
|
Ficha técnica |
DFR | Tray | Active | D-Sub | Plug, Male Pins | 25 | 2 | Free Hanging (In-Line) | 3 (DB, B) | Signal | Housing/Shell (Unthreaded) | IDC, Ribbon Cable | - | Steel, Tin Plated | Gold | 15.0µin (0.38µm) | - | UL94 V-0 | 3A | - | Feed Through, Grounding Indents, Strain Relief |
|
09681635813CONN D-SUB PLUG 9POS R/A SOLDER |
571 |
|
Ficha técnica |
- | Bulk | Active | D-Sub | Plug, Male Pins | 9 | 2 | Through Hole, Right Angle | 1 (DE, E) | Signal | Mating Side, Female Screwlock (4-40) | Solder | - | Steel | Gold or Gold-Palladium | 30.0µin (0.76µm) | - | UL94 V-0 | 6.5A | 0.318" (8.08mm) | Board Lock, Grounding Indents |
|
A-DFF 37 LPIII/ZCONN D-SUB RCPT 37POS IDC |
4,508 |
|
Ficha técnica |
- | Tray | Active | D-Sub | Receptacle, Female Sockets | 37 | 2 | Free Hanging (In-Line) | 4 (DC, C) | Signal | Housing/Shell (Unthreaded) | IDC, Ribbon Cable | - | Steel | Gold | Flash | - | UL94 V-0 | 3A | - | Feed Through, Strain Relief |
|
172-E09-203R021CONN D-SUB RCPT 9POS PNL MNT |
689 |
|
Ficha técnica |
172-E, M Series | Tray | Active | D-Sub | Receptacle, Female Sockets | 9 | 2 | Panel Mount | 1 (DE, E) | Signal | Cable Side (4-40) | Solder Cup | - | Steel, Nickel Plated | Gold | Flash | - | UL94 V-0 | 5A | - | - |
|
K86X-ED-15S-BRJCONN D-SUB HD RCPT 15P VERT SLDR |
3,988 |
|
Ficha técnica |
K86X | Tray | Active | D-Sub, High Density | Receptacle, Female Sockets | 15 | 3 | Through Hole | 1 (DE, E) High Density | Signal | Board Side (4-40); Mating Side, Female Screwlock (4-40) | Solder | - | Steel, Nickel Plated | Gold | Flash | - | UL94 V-0 | 1.5A | - | Board Lock |
|
1727040163CONN D-SUB RCPT 9POS SOLDER CUP |
127 |
|
Ficha técnica |
F, FCT 172704 | Bulk | Active | D-Sub | Receptacle, Female Sockets | 9 | 2 | Free Hanging (In-Line) | 1 (DE, E) | Signal | Housing/Shell (Unthreaded) | Solder Cup | - | Steel, Tin Plated | Gold | - | - | - | 5A | - | - |
|
182-037-213R531CONN D-SUB RCPT 37POS R/A SOLDER |
1,446 |
|
Ficha técnica |
182 | Tray | Active | D-Sub | Receptacle, Female Sockets | 37 | 2 | Panel Mount, Through Hole, Right Angle | 4 (DC, C) | Signal | Housing/Shell (4-40) | Solder | - | Steel, Nickel Plated | Gold | Flash | - | UL94 V-0 | 5A | 0.318" (8.08mm) | Board Lock |
|
1731130060CONN D-SUB HD PLG 26POS SLDR CUP |
847 |
|
Ficha técnica |
CT, FCT 173113 | Bulk | Active | D-Sub, High Density | Plug, Male Pins | 26 | 3 | Free Hanging (In-Line) | 2 (DA, A) High Density | Signal | Housing/Shell (Unthreaded) | Solder Cup | - | Steel, Nickel Plated | Gold | Flash | - | - | 3A | - | Grounding Indents |
|
173-E09-113R001CONN D-SUB PLUG 9POS R/A SOLDER |
525 |
|
Ficha técnica |
173-E, M Series | Tray | Active | D-Sub | Plug, Male Pins | 9 | 2 | Panel Mount, Through Hole, Right Angle | 1 (DE, E) | Signal | Housing/Shell (Unthreaded) | Solder | - | Steel, Nickel Plated | Gold | Flash | - | UL94 V-0 | 5A | 0.283" (7.20mm) | Grounding Indents |
|
1731130061CONN D-SUB HD RCPT 26P SLDR CUP |
526 |
|
Ficha técnica |
CT, FCT 173113 | Bulk | Active | D-Sub, High Density | Receptacle, Female Sockets | 26 | 3 | Free Hanging (In-Line) | 2 (DA, A) High Density | Signal | Housing/Shell (Unthreaded) | Solder Cup | - | Steel, Nickel Plated | Gold | Flash | - | - | 3A | - | - |
|
747840-4CONN D-SUB PLUG 9POS R/A SOLDER |
449 |
|
Ficha técnica |
AMPLIMITE HD-20 | Tray | Active | D-Sub | Plug, Male Pins | 9 | 2 | Through Hole, Right Angle | 1 (DE, E) | Signal | Housing/Shell (4-40) | Solder | - | Steel, Tin Plated | Gold | - | - | UL94 V-0 | 6A | 0.318" (8.08mm) | Board Lock, Ground Strap, Grounding Indents |
|
K22X-A15S-NJCONN D-SUB RCPT 15POS R/A SOLDER |
234 |
|
Ficha técnica |
K22X | Tray | Active | D-Sub | Receptacle, Female Sockets | 15 | 2 | Through Hole, Right Angle | 2 (DA, A) | Signal | Mating Side, Female Screwlock (4-40) | Solder | - | Steel, Nickel Plated | Gold | Flash | - | UL94 V-0 | 2A | 0.318" (8.08mm) | Board Lock |
|
K22X-E9S-NJCONN D-SUB RCPT 9POS R/A SOLDER |
504 |
|
Ficha técnica |
K22X | Tray | Active | D-Sub | Receptacle, Female Sockets | 9 | 2 | Through Hole, Right Angle | 1 (DE, E) | Signal | Mating Side, Female Screwlock (4-40) | Solder | - | Steel, Nickel Plated | Gold | Flash | - | UL94 V-0 | 2A | 0.318" (8.08mm) | Board Lock |
