Interruptores DIP
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Circuito | Número de posições | Classificação de Corrente (Amps) | Classificação de Tensão | Tipo de Atuador | Nível do Atuador | Material de Contato | Acabamento de Contato | Altura Acima da Placa | Tipo de montagem | Estilo de Terminação | Passo | Lavável | Recursos | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS01C-254-S-09BESWITCH SLIDE DIP SPST 0.025A 24V |
736 |
|
Ficha técnica |
DS01-254 | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS04-254-1-04BK-SMTSWITCH SLIDE DIP SPST 0.025A 24V |
215 |
|
Ficha técnica |
DS04-254-SMT | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.189" (4.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

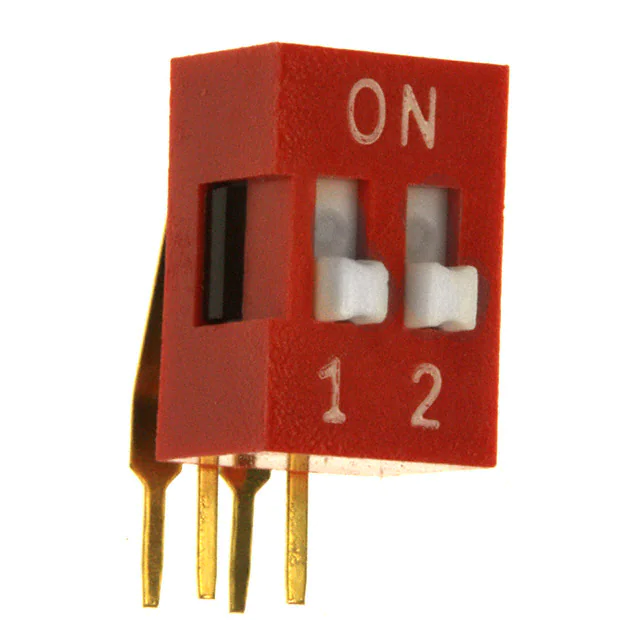

KAS2102ESWITCH SLIDE DIP SPST 0.025A 24V |
1,372 |
|
Ficha técnica |
KAS | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
206-6SWITCH SLIDE DIP SPST 0.05A 24V |
10,010 |
|
Ficha técnica |
206 | Tube | Active | SPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
DS01C-254-L-10BESWITCH SLIDE DIP SPST 0.025A 24V |
957 |
|
Ficha técnica |
DS01-254 | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CFS-0202TBSWITCH SLIDE DIP SPST 0.1A 6V |
4,886 |
|
Ficha técnica |
CFS | Tape & Reel (TR) | Active | SPST | 2 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.169" (4.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFS-0203TBSWITCH SLIDE DIP SPST 0.1A 6V |
2,531 |
|
Ficha técnica |
CFS | Tape & Reel (TR) | Active | SPST | 2 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.185" (4.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

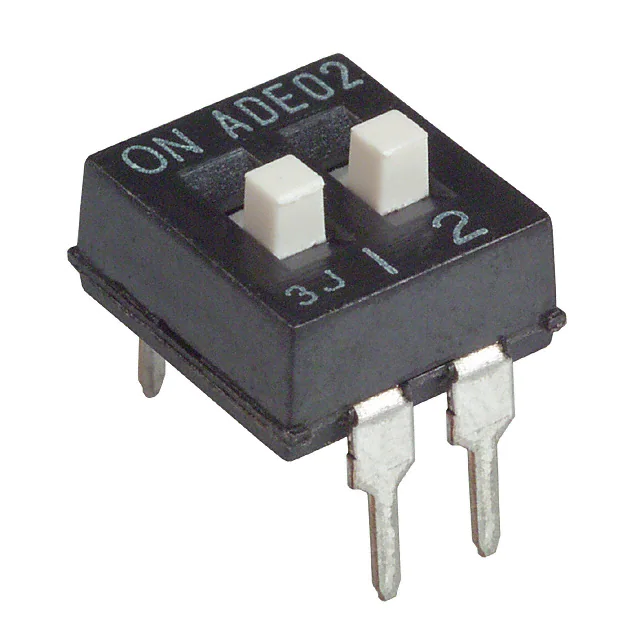

1825057-1SWITCH SLIDE DIP SPST 0.1A 24V |
100,850 |
|
Ficha técnica |
ADE | Tube | Active | SPST | 2 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
418117270904SWITCH SLIDE DIP SPST 0.025A 24V |
652 |
|
Ficha técnica |
WS-DITV | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
219-4MSTRFSWITCH SLIDE DIP SPST 0.1A 20V |
397 |
|
Ficha técnica |
219 | Tape & Reel (TR) | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
195-6MSTSWITCH PIANO DIP SPST 0.05A 24V |
5,214 |
|
Ficha técnica |
195 | Tube | Active | SPST | 6 | 50mA | 24VDC | Piano | Raised | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
.jpg)
|
219-6LPSTSWITCH SLIDE DIP SPST 0.1A 20V |
104 |
|
Ficha técnica |
219 | Tube | Active | SPST | 6 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
418117270902SWITCH SLIDE DIP SPST 0.025A 24V |
818 |
|
Ficha técnica |
WS-DITV | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
208-8STSWITCH SLIDE DIP SPST 0.05A 24V |
925 |
|
Ficha técnica |
208 | Tube | Active | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Raised | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-7LPSTRSWITCH SLIDE DIP SPST 0.1A 20V |
18,399 |
|
Ficha técnica |
219 | Tape & Reel (TR) | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-12LPSTSWITCH SLIDE DIP SPST 0.1A 20V |
11,256 |
|
Ficha técnica |
219 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
1825057-4SWITCH SLIDE DIP SPST 0.1A 24V |
13,982 |
|
Ficha técnica |
ADE | Tube | Active | SPST | 5 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
DS04-254-1-05BK-SMTSWITCH SLIDE DIP SPST 0.025A 24V |
1,600 |
|
Ficha técnica |
DS04-254-SMT | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.189" (4.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
208-10SWITCH SLIDE DIP SPST 0.05A 24V |
1,179 |
|
Ficha técnica |
208 | Tube | Active | SPST | 10 | 50mA | 24VDC | Slide (Standard) | Raised | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
194-2MSTSWITCH PIANO DIP SPST 0.05A 24V |
621 |
|
Ficha técnica |
194 | Tube | Active | SPST | 2 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
