Interruptores DIP
| Foto | Nº da peça do fabricante | Disponibilidade | Quantidade | Ficha técnica | Série | Embalagem | Status do produto | Circuito | Número de posições | Classificação de Corrente (Amps) | Classificação de Tensão | Tipo de Atuador | Nível do Atuador | Material de Contato | Acabamento de Contato | Altura Acima da Placa | Tipo de montagem | Estilo de Terminação | Passo | Lavável | Recursos | Temperatura operacional |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

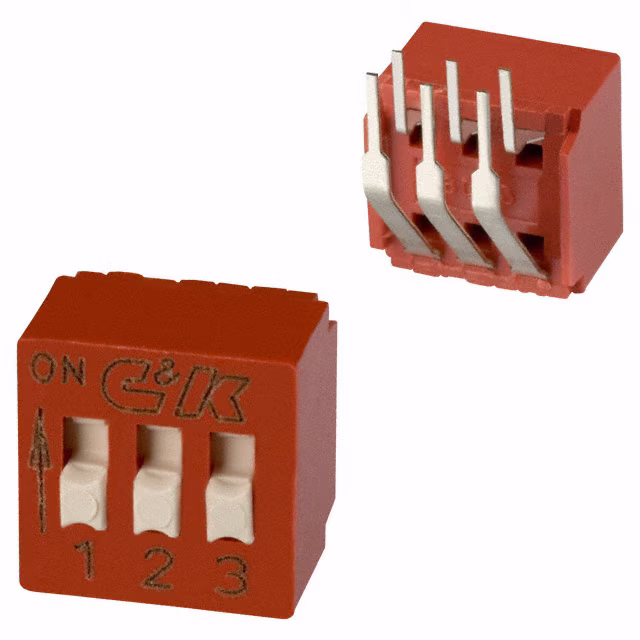

BD03AVSWITCH SLIDE DIP SPST 0.1A 5V |
1,338 |
|
Ficha técnica |
BD | Bulk | Active | SPST | 3 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

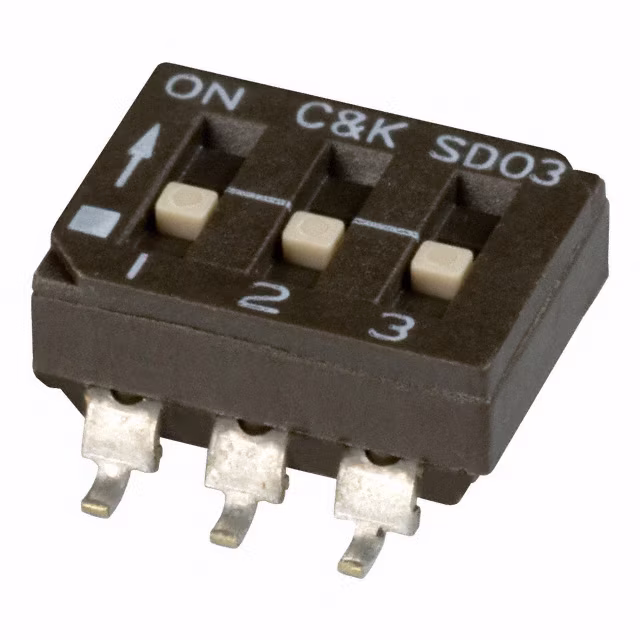

SD03H0SBSWITCH SLIDE DIP SPST 0.1A 25V |
1,585 |
|
Ficha técnica |
SD | Tube | Active | SPST | 3 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6SN-8104-PSWITCH SLIDE DIP SPST 0.025A 24V |
1,470 |
|
Ficha técnica |
A6SN | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
JS0108AP4SWITCH SLIDE DIP SPST 0.025A 24V |
549 |
|
Ficha técnica |
JS | Bulk | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.162" (4.11mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
|
SDA06H1SBDSWITCH SLIDE DIP SPST 0.025A 24V |
534 |
|
Ficha técnica |
SDA | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

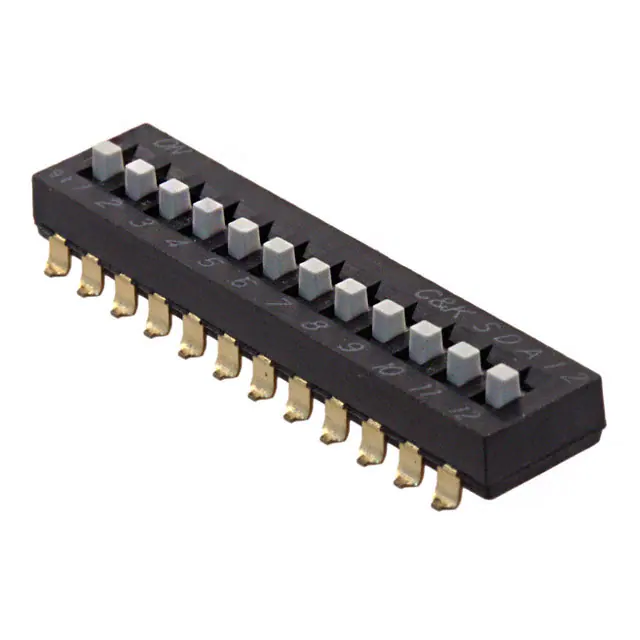

SDA12H1SBDSWITCH SLIDE DIP SPST 0.025A 24V |
1,056 |
|
Ficha técnica |
SDA | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
1825007-6SWITCH ROTARY DIP BCD 0.4VA 20V |
803 |
|
Ficha técnica |
DRD | Tube | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

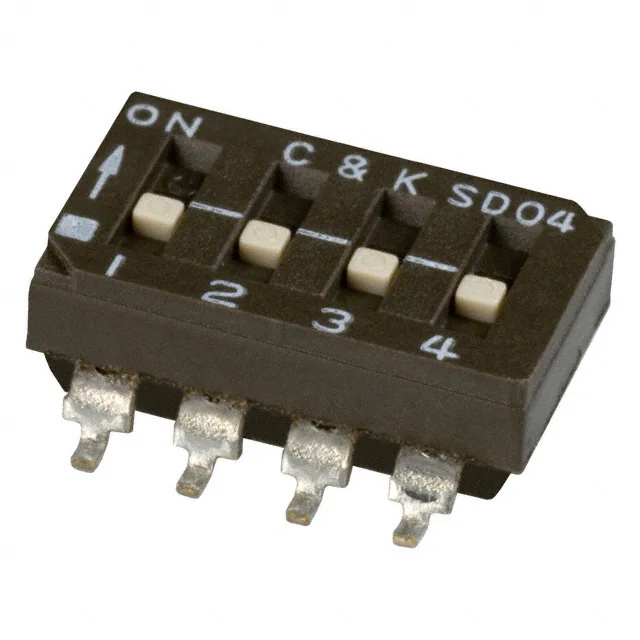

SD04H0SBSWITCH SLIDE DIP SPST 0.1A 25V |
719 |
|
Ficha técnica |
SD | Tube | Active | SPST | 4 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
SD02H0SBRSWITCH SLIDE DIP SPST 0.1A 25V |
2,677 |
|
Ficha técnica |
SD | Tape & Reel (TR) | Active | SPST | 2 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76SB02TSWITCH ROCKER DIP SPST 0.15A 30V |
4,809 |
|
Ficha técnica |
76 | Tube | Active | SPST | 2 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
A6H-0101SWITCH SLIDE DIP SPST 0.025A 24V |
3,394 |
|
Ficha técnica |
A6H | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -20°C ~ 70°C |
|
A6SN-8101SWITCH SLIDE DIP SPST 0.025A 24V |
2,873 |
|
Ficha técnica |
A6SN | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6H-2102SWITCH SLIDE DIP SPST 0.025A 24V |
970 |
|
Ficha técnica |
A6H | Bag | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -20°C ~ 70°C |
|
A6HF-4102SWITCH SLIDE DIP SPST 0.025A 24V |
639 |
|
Ficha técnica |
A6HF | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
SDA08H0SBDSWITCH SLIDE DIP SPST 0.025A 24V |
3,703 |
|
Ficha técnica |
SDA | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
90B04STSWITCH SLIDE DIP SPST 0.025A 24V |
2,695 |
|
Ficha técnica |
90B | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

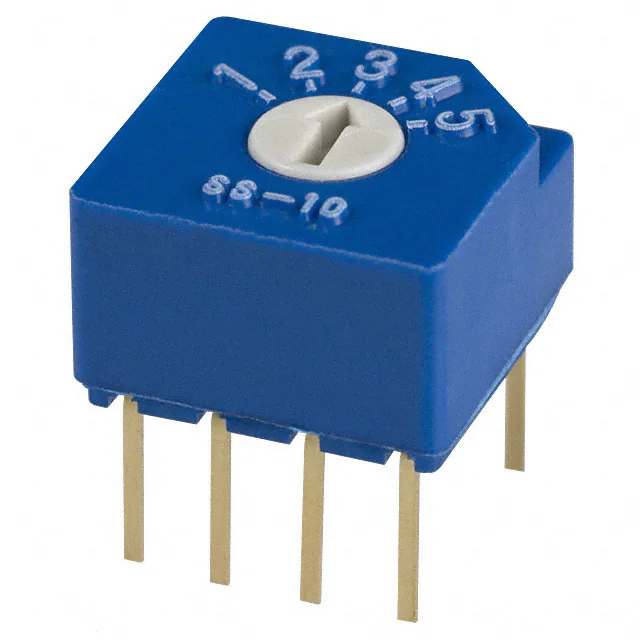

SS-10-15SPESWITCH ROTARY DIP SP5T 0.1A 5V |
1,798 |
|
Ficha técnica |
SS-10 | Bulk | Active | SP5T | 5 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|

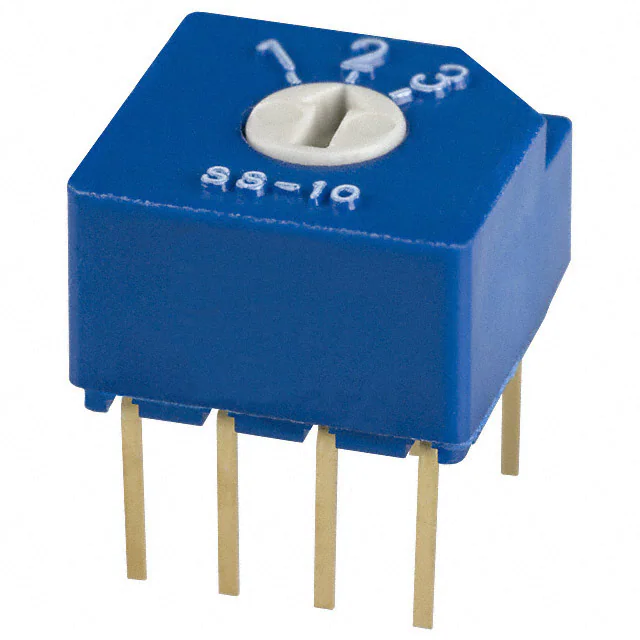

SS-10-23NPESWITCH ROTARY DIP DP3T 0.1A 5V |
3,676 |
|
Ficha técnica |
SS-10 | Bulk | Active | DP3T | 3 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
A6H-8102-PSWITCH SLIDE DIP SPST 0.025A 24V |
9,754 |
|
Ficha técnica |
A6H | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -20°C ~ 70°C |
|

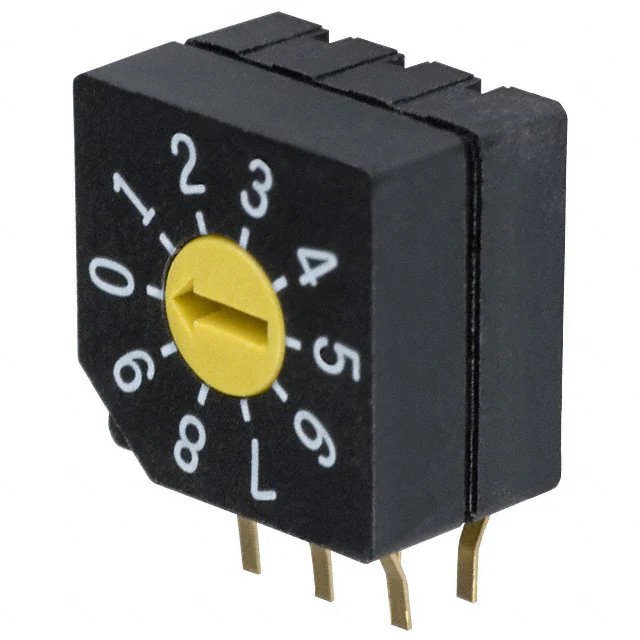

SD-2011SWITCH ROTARY DIP BCD 0.1A 5V |
5,049 |
|
Ficha técnica |
SD-2000 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
